ZRE-TRNSF 1W 2W 5W 10W 15W 20W 30W 50W Power Transformer Input AC 110V/220V/380V Output AC Single/Dual 6V 9V 12V 15V 18V 24V 36V

$8.56 – $68.17

Ships From	China China
Wattage	10W 10W 15W 15W 1W 1W 20W 20W 2W 2W 30W 30W 50W 50W 5w 5w
Color	110V Single Output 110V Single Output 220V Dual Output 220V Dual Output 220V Single Output 220V Single Output 380V Single Output 380V Single Output
Voltage	Output AC 12V Output AC 12V Output AC 15V Output AC 15V Output AC 18V Output AC 18V Output AC 24V Output AC 24V Output AC 30V Output AC 30V Output AC 36V Output AC 36V Output AC 6V Output AC 6V Output AC 9V Output AC 9V Clear

Continue Shopping SKU: 3256801928142755 Category: Transformer Tag: Transformer

Description
Reviews (0)

Plug Type: None

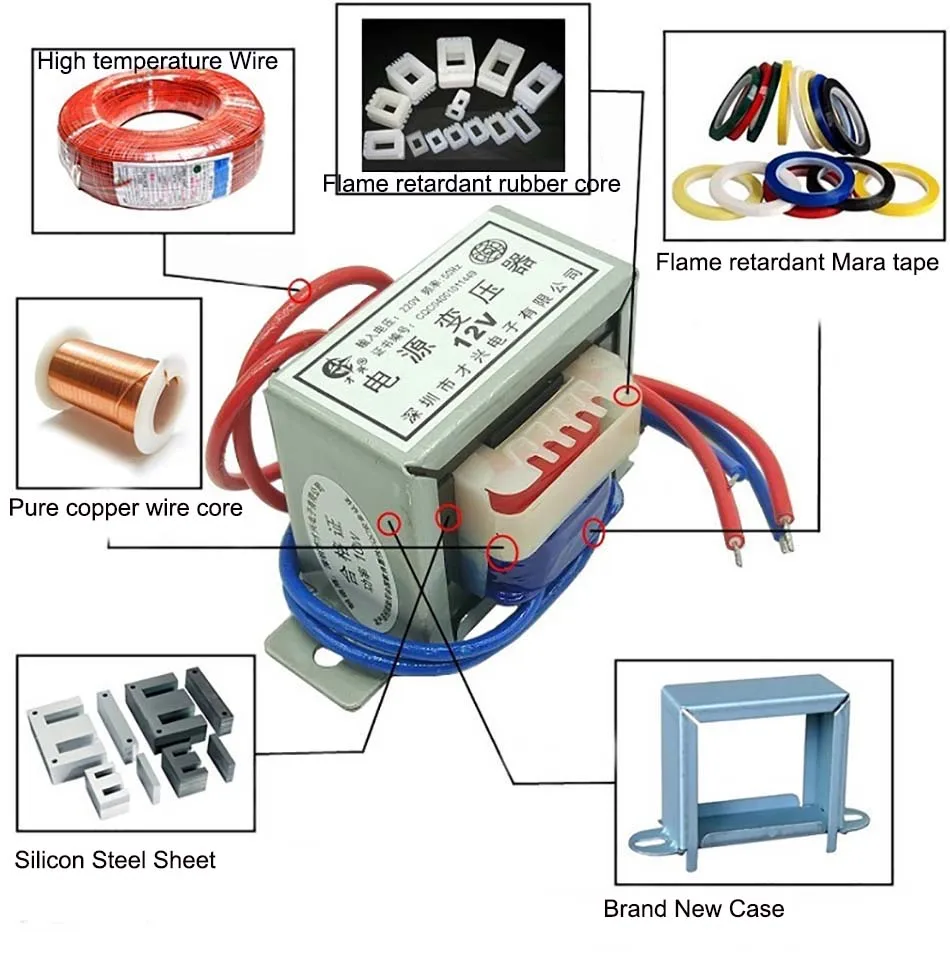

Features: Pure copper core
Weight: 500g
Model Number: Power Transformer
Output Signal: AC
Input Signal: AC
Output Voltage: 6V 9V 12V 15V 18V 24V 30V 36V
Input Voltage: 110V/220V/380V
Certification: CCC,CQC
Material: Pure copper core
Origin: Mainland China
Item Type: Lighting Transformers
Power: 1W 2W 5W 10W 15W 20W 30W 50W

Description:

I=P/U For example,

Dual Output, 18-0-18v ,Power 100W ,it is ablout 2.78A, I=P/U 100W/(18V+18V)≈2.78A

Single Output, 24V, Power 100W, it is ablout 4.17A, I=P/U 100W/24V≈4.17A

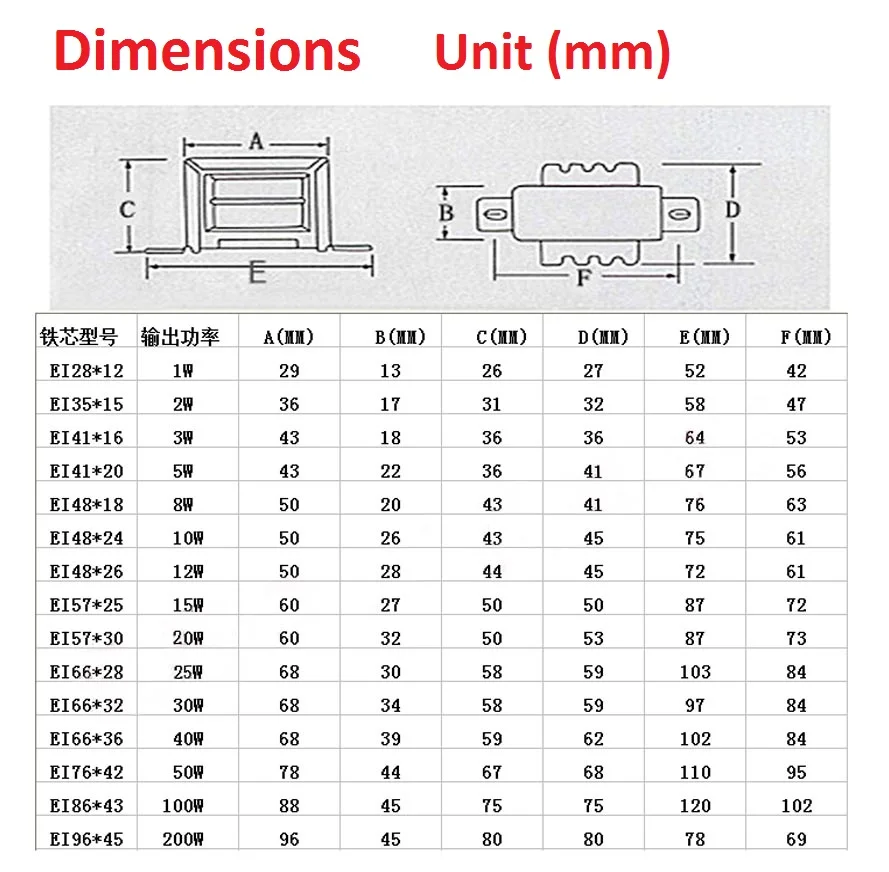

Model: EI

Rated Power: 1W 2W 5W 10W 15W 20W 30W 50W

Input Voltage: AC 110V/220V/380V / 50Hz

Output Voltage: AC Single -6V 9V 12V 15V 18V 24V 30V 36V

AC Dual -6V-0-6V 9V-0-9V 12V-0-12V 15V-0-15V 18V-0-18V 24V-0-24V

Frequency Characteristic: Low Frequency

Structural Style: Monophase Transformer

Single Voltage, input 2 wires, output 2 wires;

Dual Voltage, input 2 wires, output 3 wires.

Note: The red wire is the input wire, Blue wire is the output wire.

Package include:

1PCS x your choice.

ZRE-TRNSF 1W 2W 5W 10W 15W 20W 30W 50W Power Transformer Input AC 110V/220V/380V Output AC Single/Dual 6V 9V 12V 15V 18V 24V 36V
