ZRE-SOLAR Solar Panels Kit 100W 200W 300W 100 Watts Rigid Glass Solar Panel Monocrystalline Cell Off-grid Photovoltaic System Home RV Boat

100 Watts Glass Solar Panel 18V Monocrystalline Solar Panels Kit 300W 200W 100W Home Off-grid Applications Photovoltaic System

Maximum power(Pmax) 100W

Output tolerance ± 3%

Maximum system voltage 1000V DC

Open circuit voltage(Voc) 19.8V

Short circuit current(Isc) 6.06 A

Maximum power voltage(Vmp) 18V

Maximum power current(Imp) 5.55A

Cell efficiency 21%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 33pcs

Weight 4085g

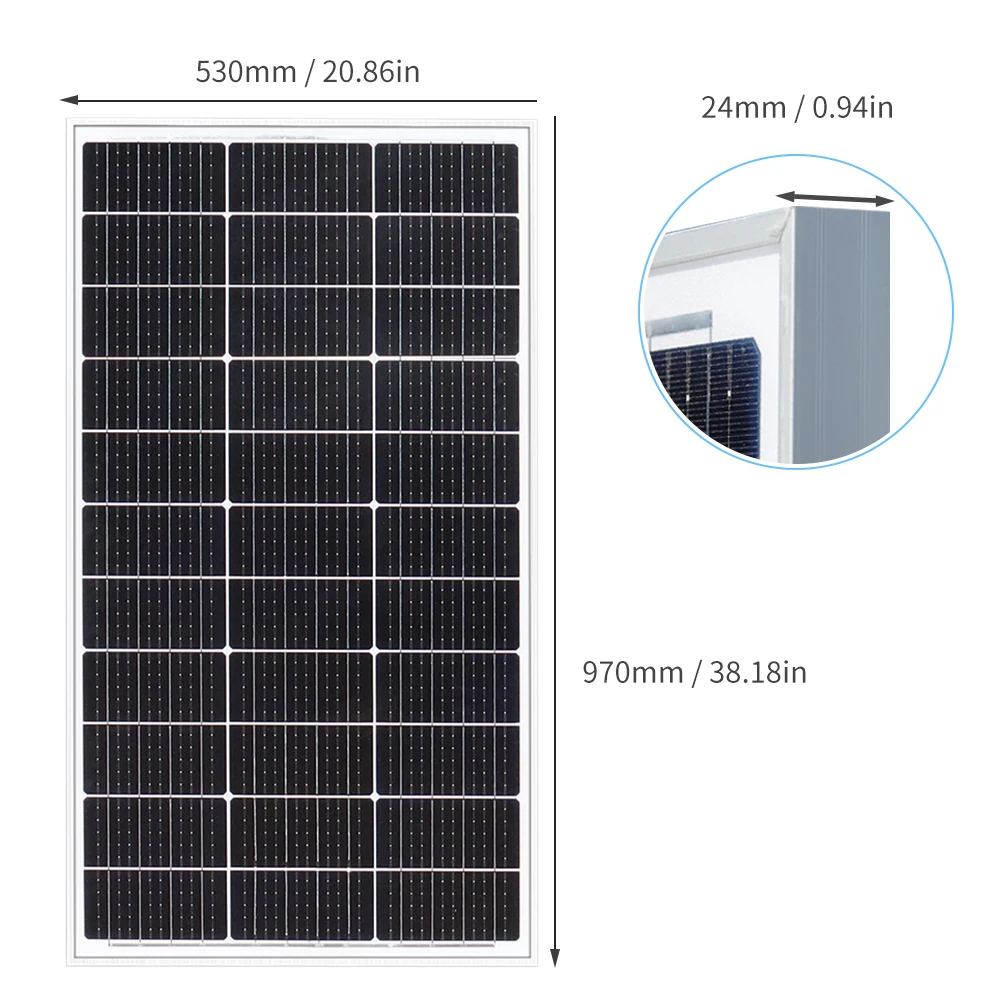

Size 970*530*25 mm

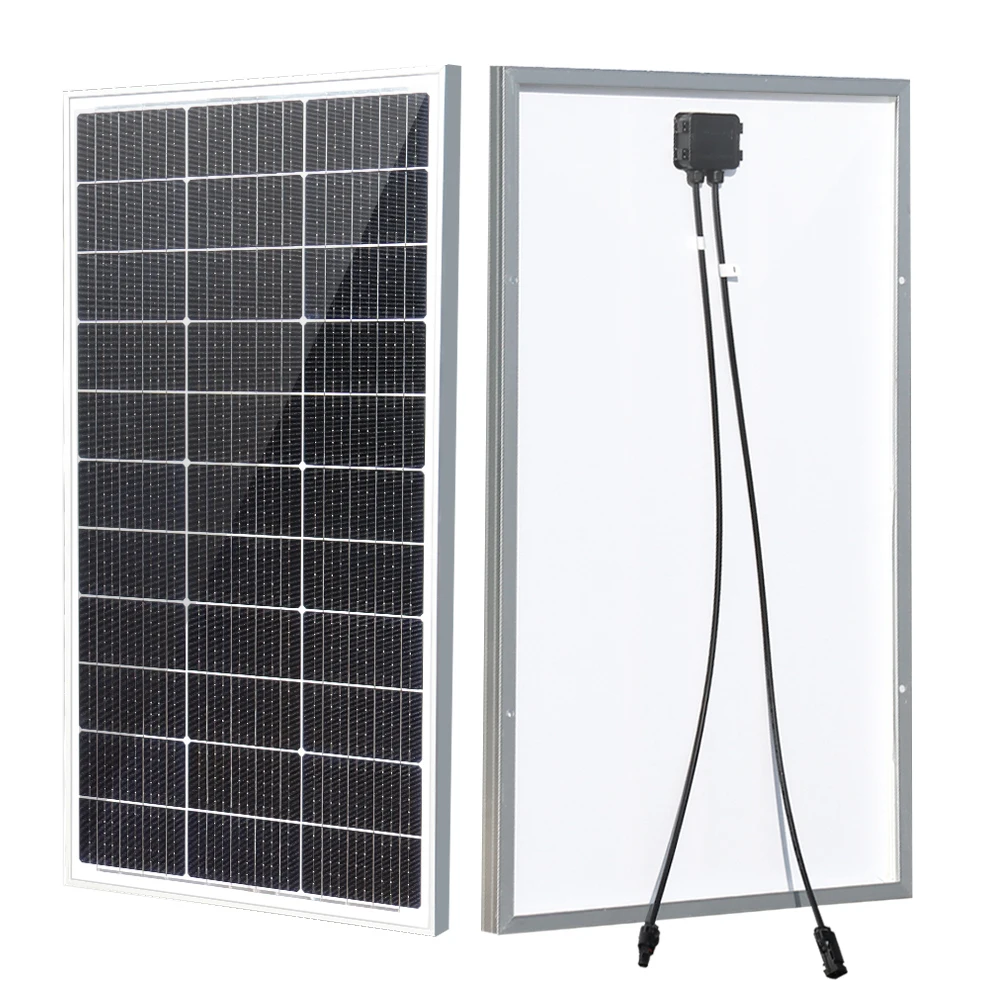

Type Glass panel

Solar cell 161*161mm multi-line mono

Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Features:

a. Select high-efficiency 161 * 161mm 12 main lines monocrystalline silicon solar cells, the power generation efficiency is about 1.3 times that of conventional polycrystalline, and the overall area is smaller at the same power.

B. Surface toughened glass has high light transmittance, improves power generation efficiency, and has a longer life.

c. It has high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

d. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.

e. Use photovoltaic special cable and MC4 connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance, MC4 connector is easy to use, plug and play.

f. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.

Packing list

1 x 100W 18V Glass Solar Panel (100W)

or

2 x 100W 18V Glass Solar Panel (200W)

or

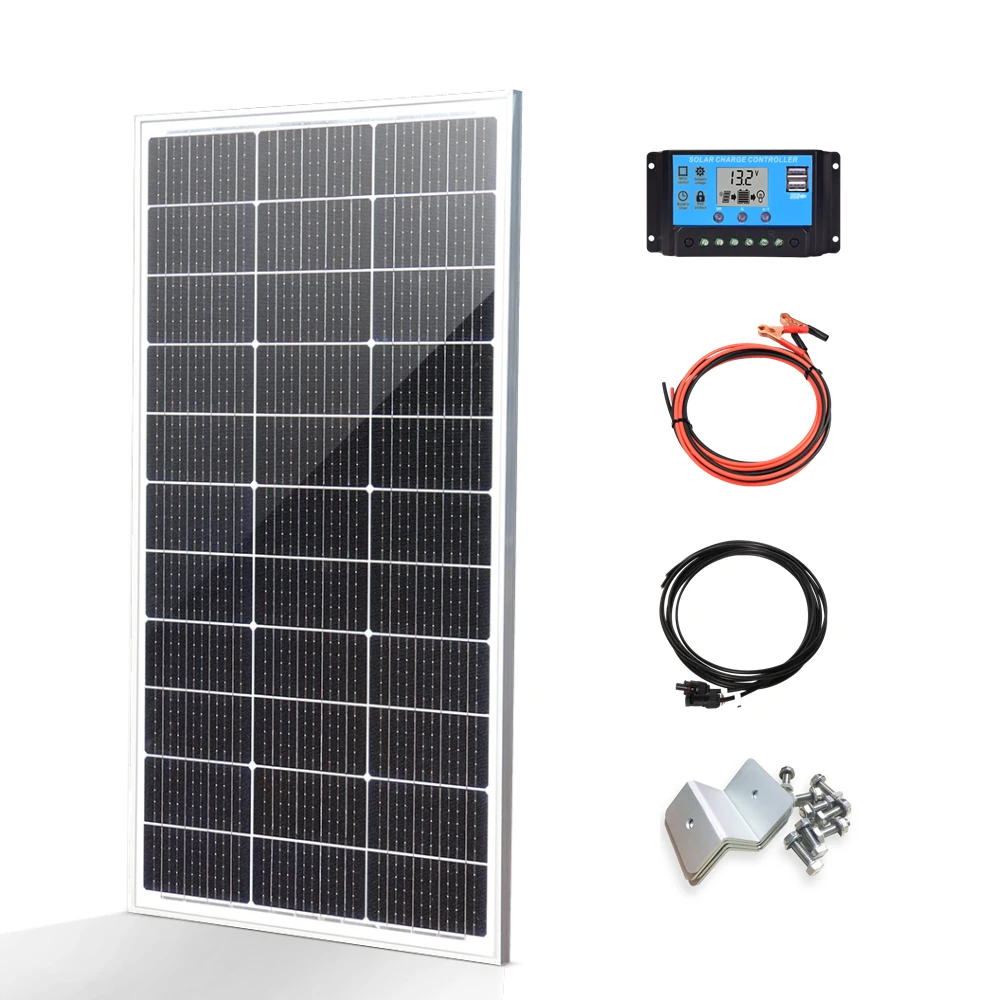

1 x 100W 18V Glass Solar Panel (100W Kit)

1 Set 3m Cable with PV connector

1 Set 3m Cable with Alligator clip

1 X 10A Controller

1 Set Z Bracket

or

2 x 100W 18V Glass Solar Panel (200W Kit)

1 Set 3m Cable with PV connector

1 Set 3m Cable with Alligator clip

1 X 20A Controller

2 Set Z Bracket

Notes for use:

a. This product must not come into contact with highly corrosive substances.

b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

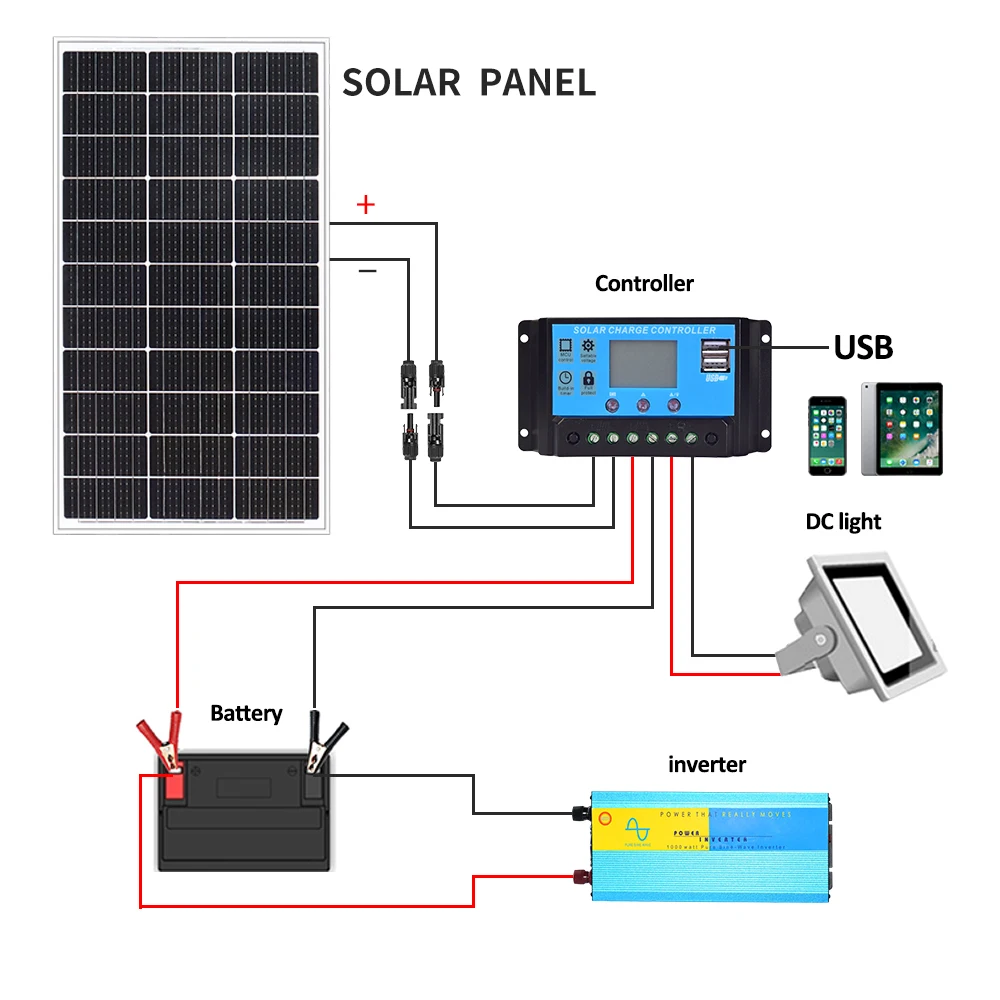

g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.

h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

i. The inverter can only be connected to the battery, not directly to the controller.
