ZRE-MSNCR ZigBee MmWave Radar Human Presence Motion Sensor 24G 5.8G Ceiling Wall Mount Luminance/Distance Detection Tuya Home Automation

ZigBee MmWave Radar Human Presence Motion Sensor 24G 5.8G Ceiling Wall Mount Luminance/Distance Detection Tuya Home Automation

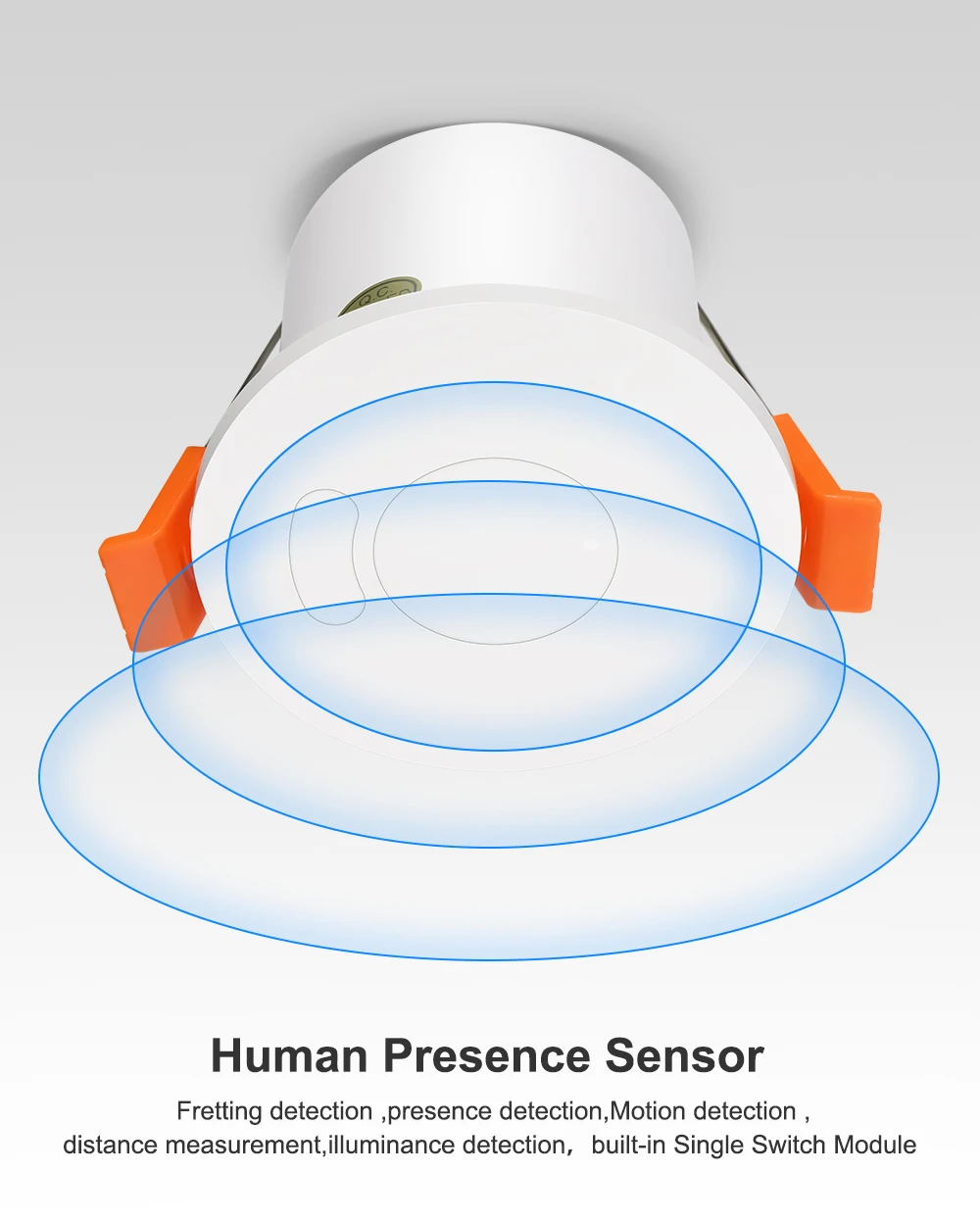

Functional ZigBee Smart Human Presence Sensor

Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.

More accurate radar measurement

We have produced both 5.8G and 24G versions, and according to different accuracy requirements, you can choose the version that is more suitable for you.

What are the main differences between 24G and 5.8G radars?

24G radar has higher sensitivity and more accurate departure delay time. For example, the departure delay is set to 30 seconds. The 24G version will become unmanned after a 30 second delay, with a maximum increase of 1-3 seconds, while the 5.8G version will increase by about 5-8 seconds. The theoretical recognition accuracy of the 24G version is higher. The 5.8G radar is actually fully compatible with daily use. The specific version to use depends on your usage scenario. You can refer to their detailed parameter differences. Of course, you can leave a message with our customer service to determine which version is more suitable.

Supports two installation methods

You can install it on the ceiling or wall using double-sided adhesive or expansion screws. The device supports connecting to 85-265V AC power.

Perceived Light Intensity for Smart&Scene Linkage

(1).Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices ,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.

(2).In this device, the Illumin threshold (0-420.00 Lux) can be set.When the device is in local (automatic) mode operation, it can be

automatically controlled in conjunction with the illumin threshold. When the actual luminance value is lower than the set illumin threshold, the local mode of the relay(breaker mode) is executed normally. When the actual luminance value exceeds the set illumin threshold, the relay remains closed regardless of whether someone is present.

16A relay function

If you want someone to automatically turn on the light, you can try directly connecting the lamp to the sensor, which can save an intelligent switch. If you only want to use it as a sensor, you can ignore it.Three relay modes can be set in the APP.

Standard (cloud linkage): It can be remotely controlled to turn on/off the relay through the APP.

Local (automatic): If someone is present, the relay will automatically turn on, otherwise it will turn off.

Not support: Disable relay.

Specification

Network: ZigBee
Input: AC110-265V
Working Temperature: -10℃~+50℃
Sensitivity: 1-9(default 7)
5.8G Beam Angle: 120X120
24G Beam Angle: 110X110°
5.8G Sensing distance: 0-11m(default 6m)
24G Sensing distance: 2.5-10m(default 7m)
5.8G Sensing radius: 2.5-3m(Presence),4～5.5m(motion)
24G Sensing radius: 2-3m(Presence),4～4.5m(motion)
Illuminance Sensor: 0～500 Lux(The approximate brightness of the environment in which the sensor is located)
Departure Delay: 0.5s～25 min；It is recommended to set it to no less than 15S. Otherwise, detection may be missed
Transmitting Power: 3～5 dBm(5.8G), 10dBm(24G)
Working Humidity: 5～90% RH(No Condensation)
Protection Level: IP20
Relay Load: Resistive load≤3000W LED≤300W
