ZRE-MSNCR Zigbee MmWave Human Presence Detector 220V/110V Radar Motion Sensor 5.8G/24G & 16A Relay Lux Light/Distance Detection Smart Life

Functional ZigBee Smart Human Presence Sensor

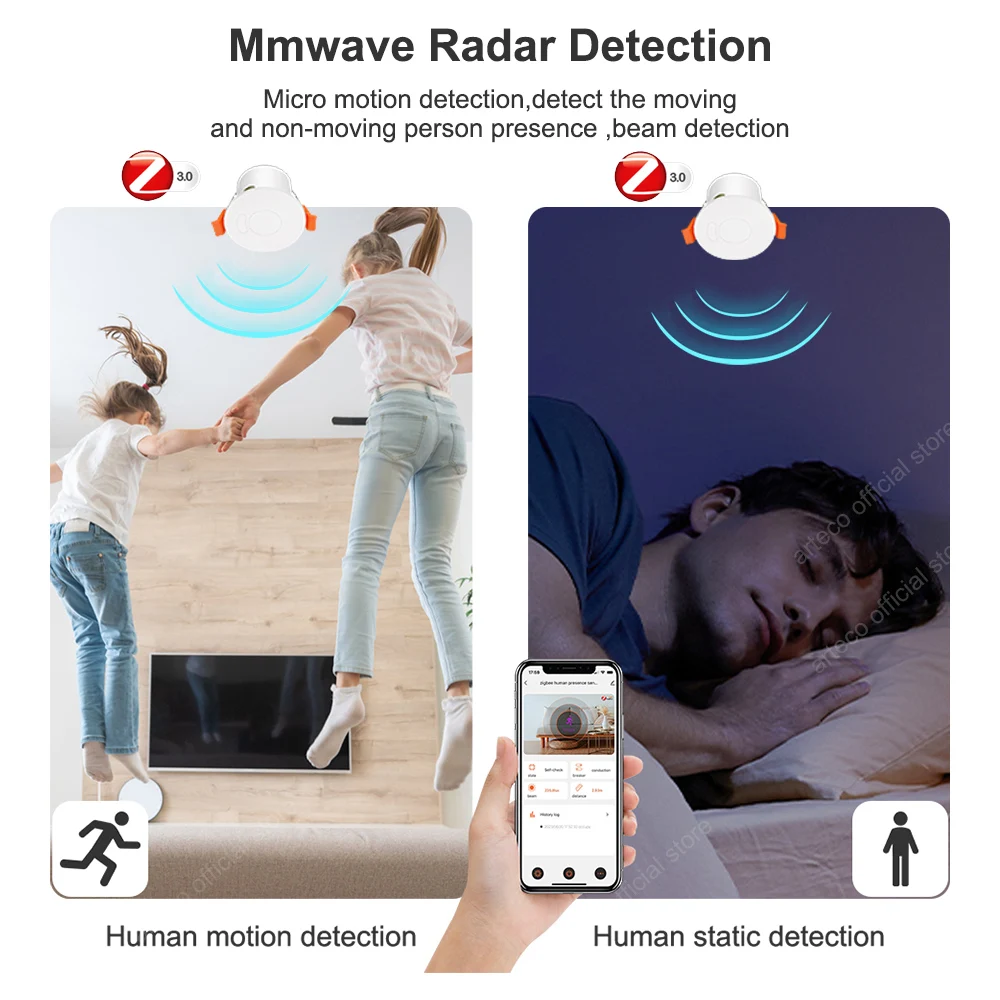

Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.

Works with Zigbee 3.0 Hub

ZigBee Hub as Control Center,Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly recommended for its wider compatibility than other hubs)

Advanced New Design with Multiple Settings
8 types of Common Parameter Settings for sensors support setting, and 5 types of Control Parameter Settings support setting.

Supports two installation methods.
You can install it on the ceiling or wall using double-sided adhesive or expansion screws. The device supports connecting to 85-265V AC power.

More accurate radar measurement.
5.8G and 24G versions optional, and according to different accuracy requirements, you can choose the version that is more suitable for you.

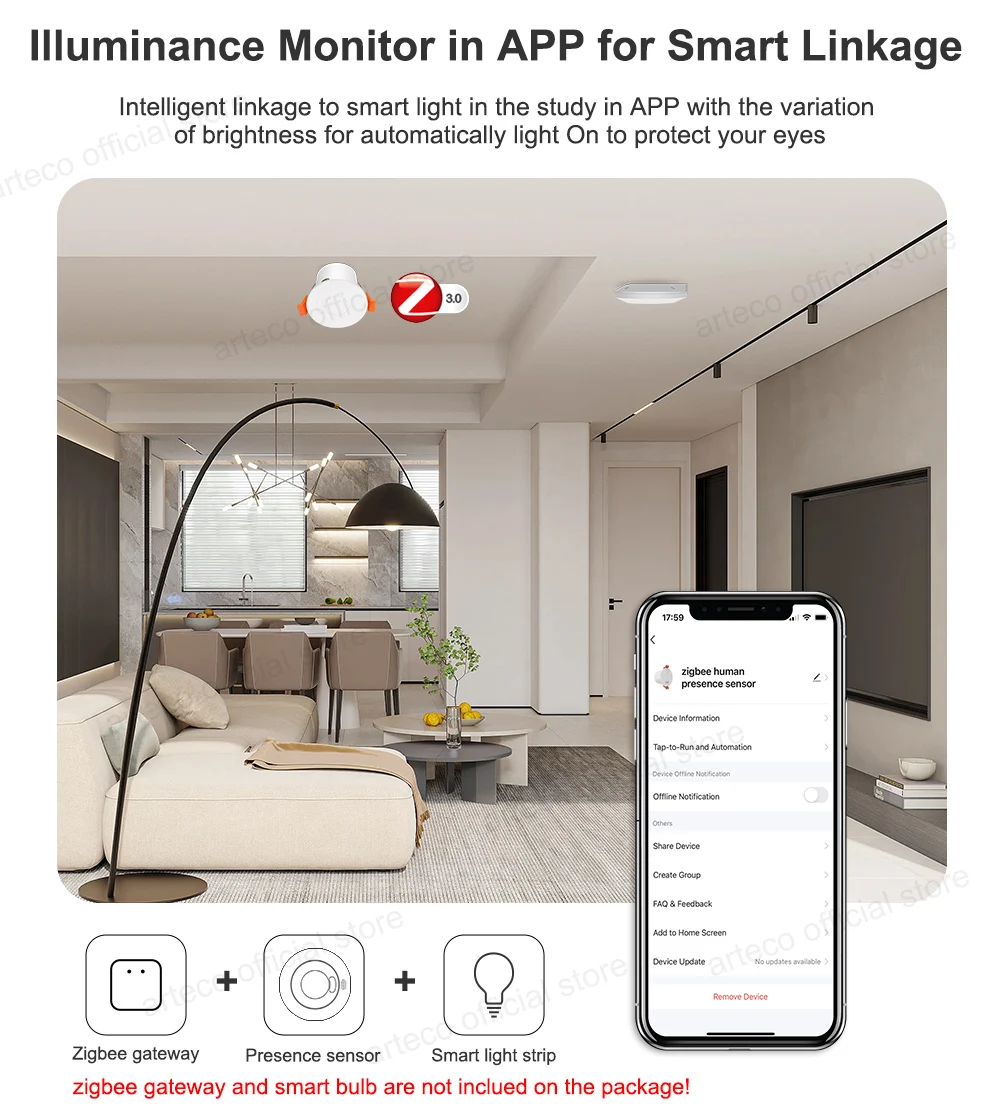

Perceived Light Intensity for Smart&Scene Linkage
(1).Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices ,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.
(2).In this device, the Illumin threshold (0-420.00 Lux) can be set.When the device is in local
(automatic) mode operation, it can be
automatically controlled in conjunction with the illumin threshold. When the actual luminance value is lower than the set illumin threshold, the local mode of the relay(breaker mode) is executed normally. When the actual luminance value exceeds the set illumin threshold, the relay remains closed regardless of whether someone is present.

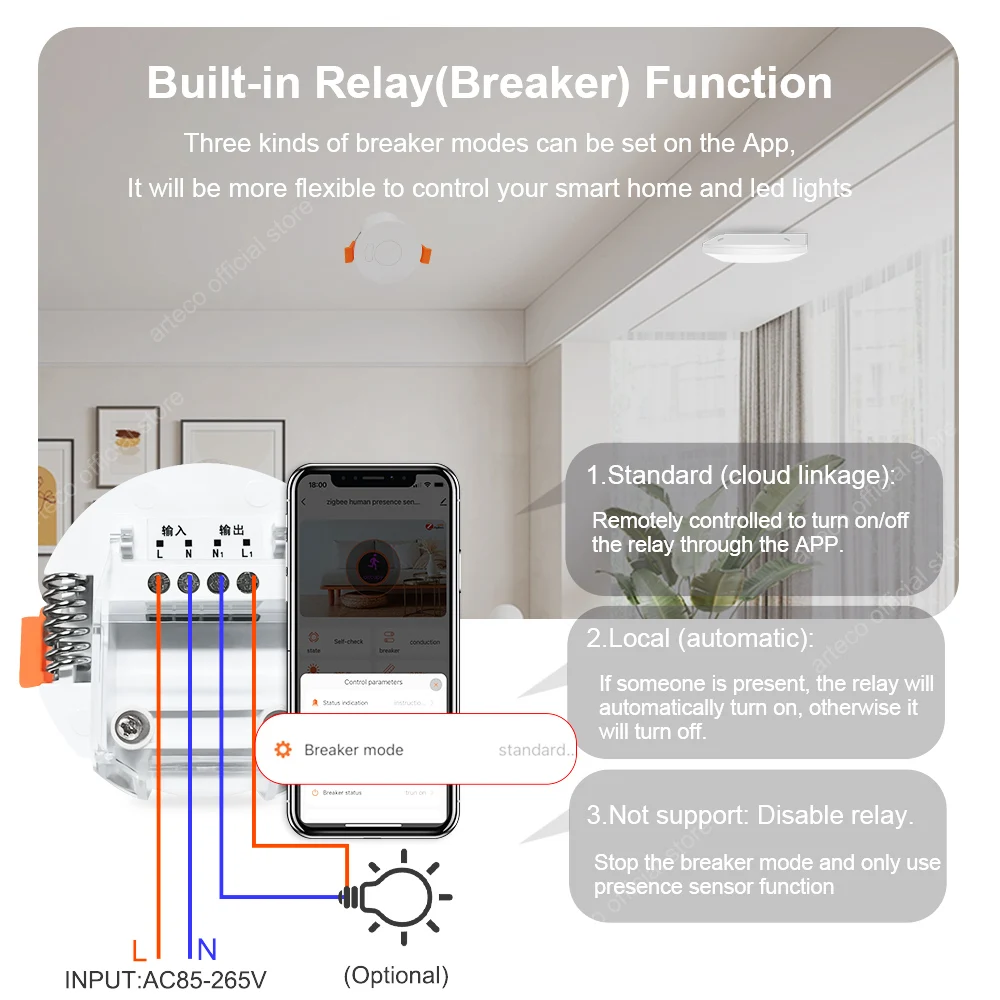

16A relay function(Breaker)
If you want someone to automatically turn on the light, you can try directly connecting the lamp to the sensor, which can save an intelligent switch. If you only want to use it as a sensor, you can ignore it.Three relay modes can be set in the APP.
Standard (cloud linkage): It can be remotely
controlled to turn on/off the relay through the APP.
Local (automatic): If someone is present, the relay
will automatically turn on, otherwise it will turn off.
not support: Disable relay.

Ceiling required Hole Size:60-65mm

Specifications

Network: ZigBee 3.0
input: 110-265VAC.
Working temperature: -10℃~+50℃

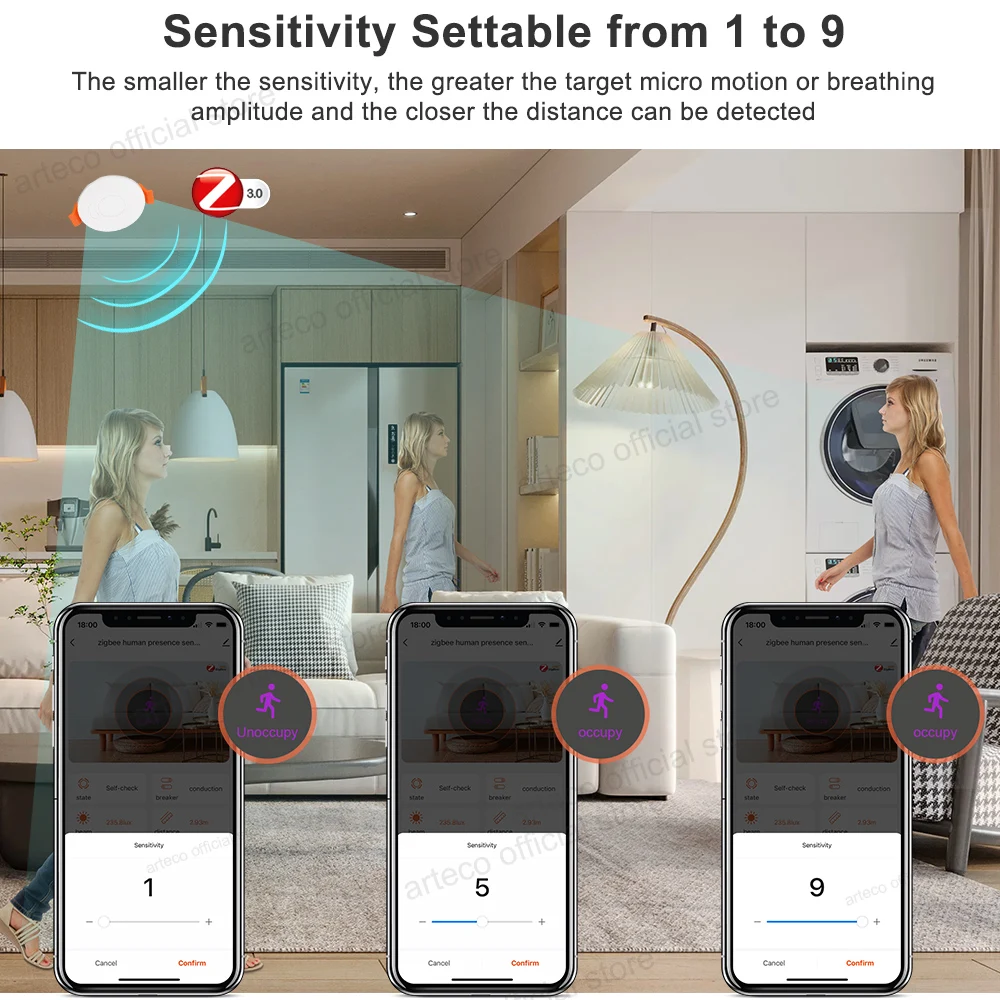

Sensitivity: 1-9(default 7)
5.8G Beam Angle:120X120
24G Beam Angle:110X110°

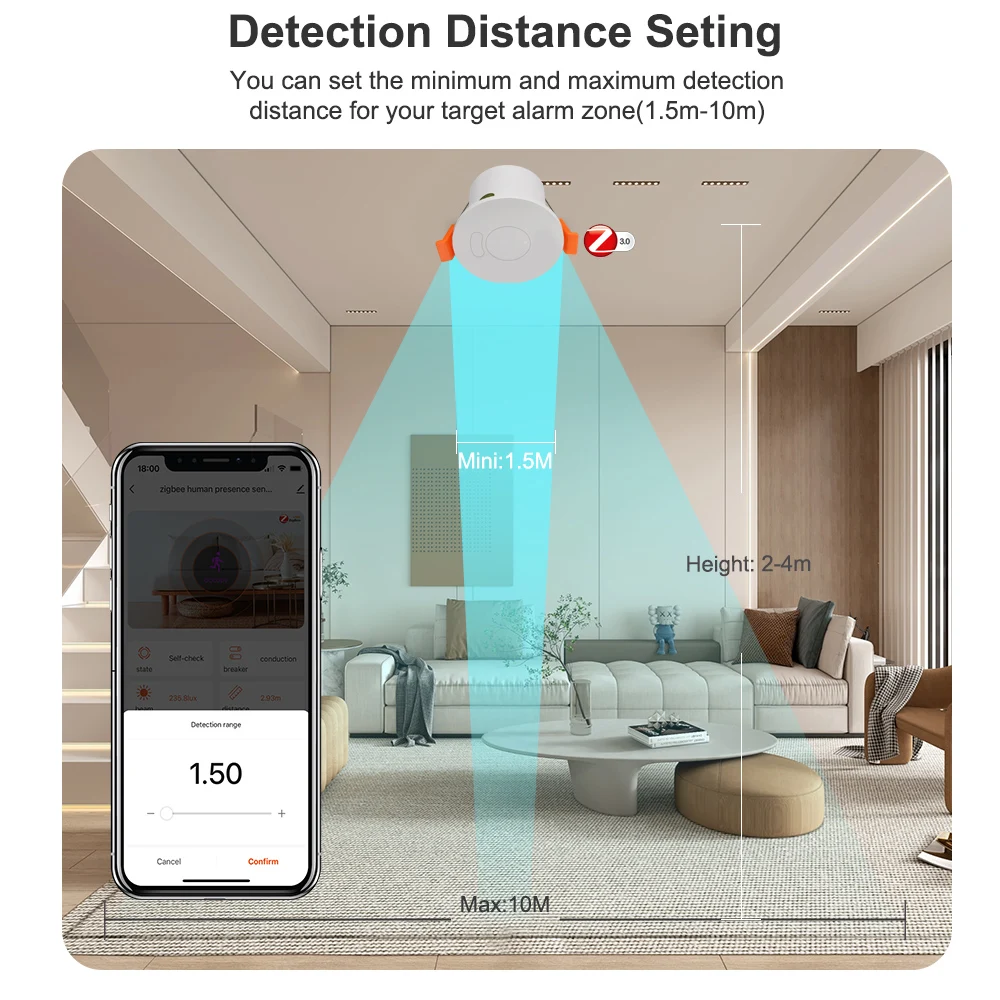

5.8G Sensing distance: 0-11m(default 6m)
24G Sensing distance: 2.5-10m(default 7m)
5.8G Sensing radius: 2.5-3m(Presence),4～5.5m(motion).
24G Sensing radius: 2-3m(Presence),4～4.5m(motion).
Illuminance Sensor: 0～500 Lux（The approximate brightness of the environment in which the sensor is located）.
Departure Delay: 0.5s～25 min；It is recommended to set it to no less than 15S. Otherwise, detection may be missed.
Transmitting Power: 3～5 dBm(5.8G), 10dBm(24G).
Working Humidity: 5～90% RH(No Condensation).
Protection Level: IP20.
Relay Load: Resistive load≤3000W LED≤300W.

Restricted Usage Scenarios
5.8G: In elevators, metal sealed toilets, and similar all metalsealed spaces; Scenarios where the plane area of metal decorative materials outside the non ceiling area exceeds 20%.
24G: The restrictions are not significant.How to install the zigbee presence sensor?

1. Select an appropriate installation location based on the scope of the detection area to ensure that the detection area can be effectively covered;

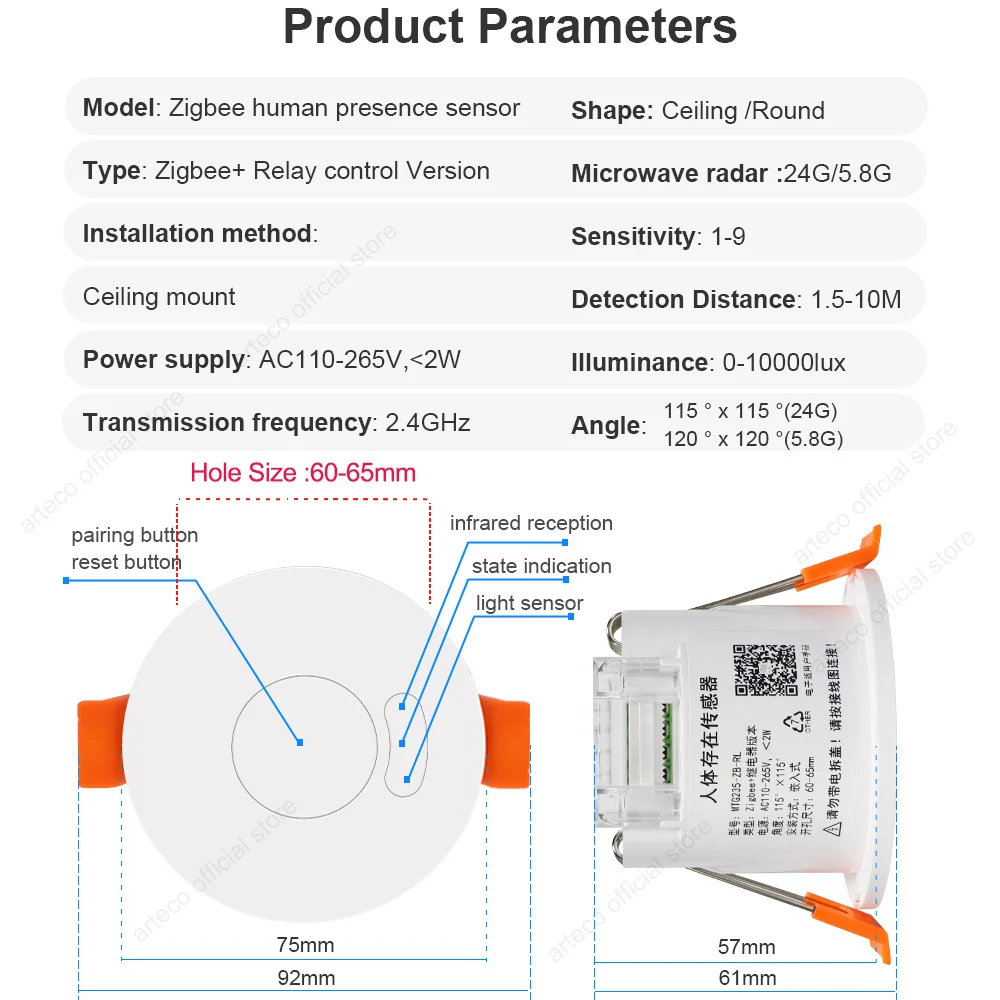

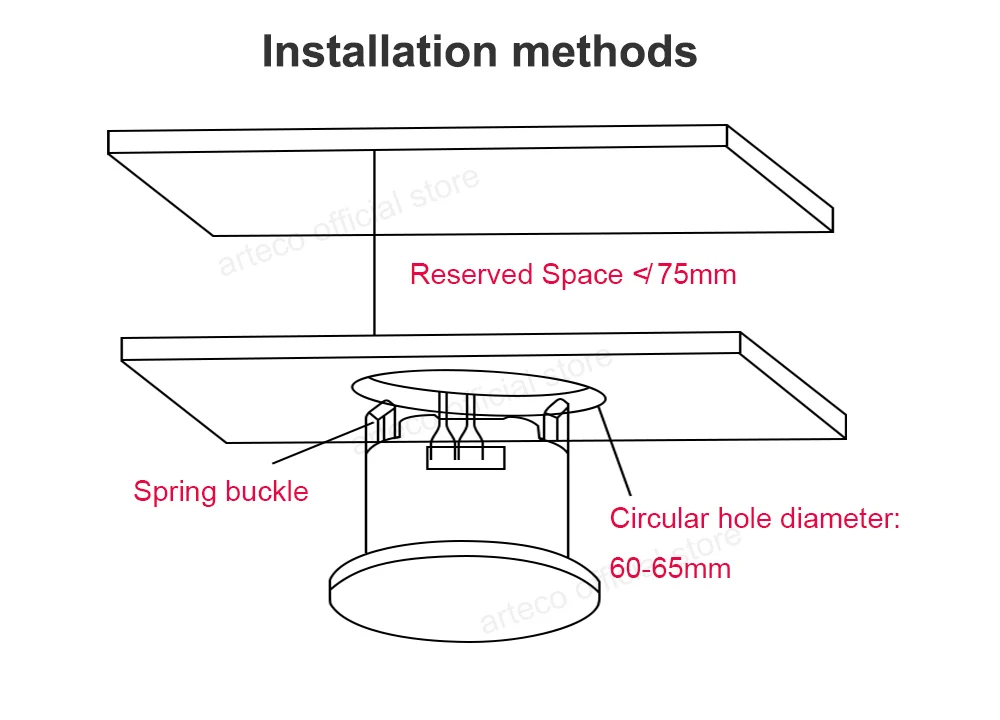

2. The edge diameter of the equipment is 75mm, and the embedded part is 60 * 58mm (cylindrical). Circular holes with a diameter of 60-65mm can be opened on the ceiling, and the minimum reserved space at the top is not less than 75mm;
3. Clip the power and signal wires onto the equipment (gently clip the wires, otherwise the wires may be easily cut) and introduce them into the ceiling opening;
4. Insert the device into the ceiling hole to complete the installation
