Wireless 433MHz EV1527 pir motion sensor Movement Detector Drop shipping Korea for Smart Life Smart Home Security Protection

Kindly Reminder:

We are professional security alarm systems and detectors manufacturer.

Welcome wholesales & retail business. We will try to offer our best price for your resell business!

Pls don’t hesitate to contact us at Whatsapp/Skype.  (Whatsapp: +86 15876646437; Skype ID: hongwuxieyu)

Big Order, Big Discount! We are waiting for you.

Brief introduction:

This product is a high stable infrared motion sensor detector. It adopts advanced signal analysis processing technology, providing super-high detection and anti-fault alarm. When intruder passes through detection zone,the detector will detect the movement of the intruder by itself,and emit wireless signal to alarm host. The product is suitable for housing estate,villa,factory,warehouse,office building and so on.

Once the motion sensor detecor detects the moving object, it will immediately send the wireless signal to the alarm panel, and then the alarm panel will send the alarm message to your mobile phone.

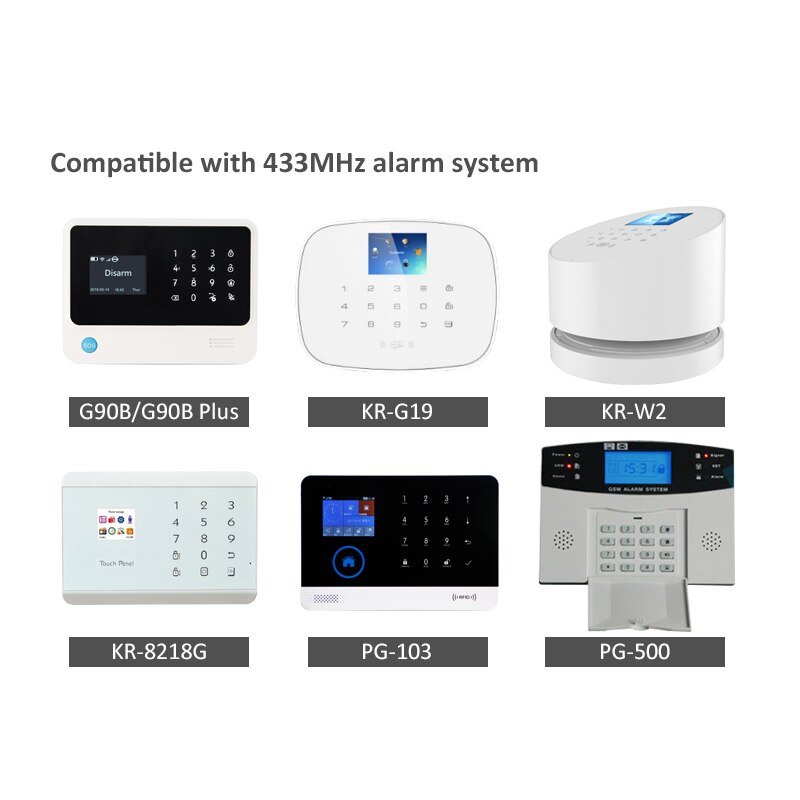

This PIR movement sensor can not work alone, it normally works with wireless alarm system which supports 433MHz EV1527 code, such as alarm panel G90B plus, G90B, G90E, S2G, S2W, KR-8218G, G15, G18, G19, W1, W2 and many other alarm panel which is normally seen in the market. If you are not sure if this PIR sensor can work with your alarm system or not, pls help to contact us before ordering. Below alarm panels which is suitable with this PIR motion sensor for your reference.

Specification:

Operating voltage:                     9V 6F22 battery

Working current:                       ≤30mA

Static current:                            ≤20uA

Emission distance:                    ≥100m(open air,no interference,walls,etc.)

Installation way:                        Wall Mounting

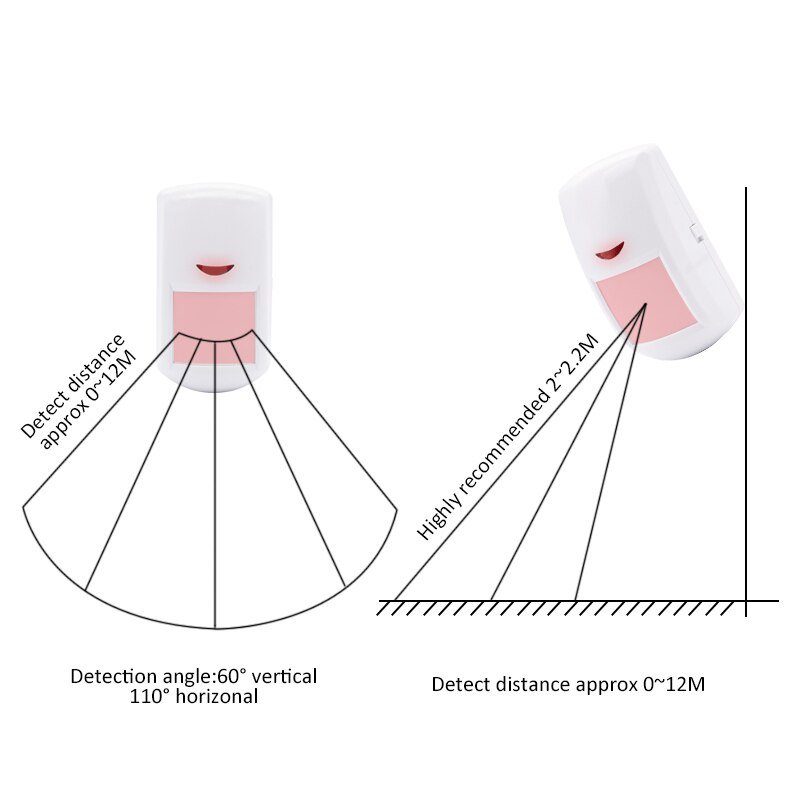

Installation height:                    2.2 m

Detection degree:                       110°

Detection Range:                        12m

Coding method:                          1527/2262

Emission Frequency:                 315MHZ /433MHZ

Dimension:                                  109x60x42mm

Notices:

1. The detection distance of PlR detector is affected by outside temperature.

2. Burglar-proof product can strengthen security coefficient,we should heighten safety consciousness to avoid lost.

3. After debugging detector successfully, in order to strengthen the elusive capacity, suggest disconnecting LED jumper, and make LED indicator light be off.

4. When voltage is lower than set point,the indicator light keeps flashing and emits alarm signal towards the outside,warning the host to exchange battery to keep working normally.

Note:

Defualt version is 433MHz EV1527.

If you need 433MHZ 2262 code , or the 315MHZ ,please contact us before order.

Packing List:

1pc Wireless PIR Motion Sensor (Battery, Bracket, Screws and English Manual included!)
