ZRE-MSNCR Wired Curtain Passive Infrared Motion Sensor DC12V Ceiling Detector with NO/NC Output for All Home Burglar Security Alarm

Wired Curtain Passive Infrared Motion Sensor DC12V Ceiling Detector with NO/NC Output for All Home Burglar Security Alarm

Introduction:

X1520 curtain style motion detector with direction-recognition adopts dual-element PIR sensor combined

with advanced soft-processing technology, can recognize intruder’s get in and out direction. It uses bi

directional temperature-compensation technology, can make accurate intrusion detection in a wide detection

range. This detector is with super low failed alarm and false alarm rate, at the same time, it is with alarm delay

function for convenient activity in terrace when installed on terrace or windows. In addition, it is also

functioning remarkably in anti fictitious movement from hot-air, window blind swaying etc. X1520 detector is

elegant in appearance and flowing in lines, can match with modern smart home environment perfectly. Its

installation is very convenient, is suitable for terrace, door and window installation. Its function and stability

exceeds other PIR detector with similar price in the market.

Feature:

-Alarm direction for optional change

-Alarm delay for option

-4 alarm delay times for option

-Alarm output NO/NC for option

-Bi-directional temperature compensation

-Surface mount installation

-EDS/anti electric shock/anti mobile interference

-Anti white light interference

-Fully-sealed optical parts

-Multiple installation methods for option

Power supply: 9-16VDC

Power consumption: NO output: 4.5mA stand by; 20mA during alarm;

NC output: 9mA stand by; 16mA during alarm

Installation height: 4m max (Ceiling mount)

Installation ways: wall mount/ceiling mount(suggested)

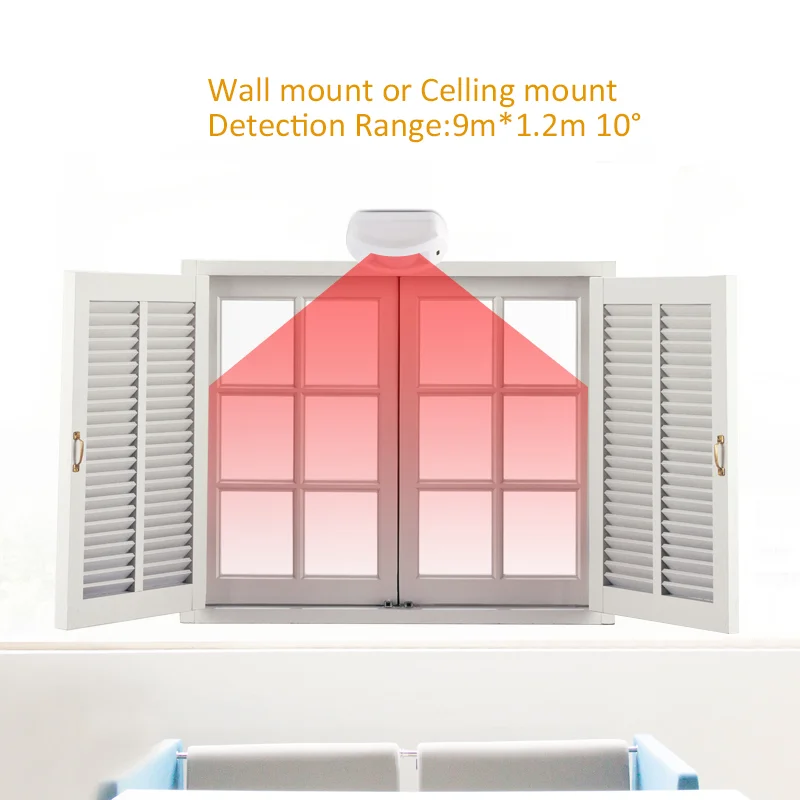

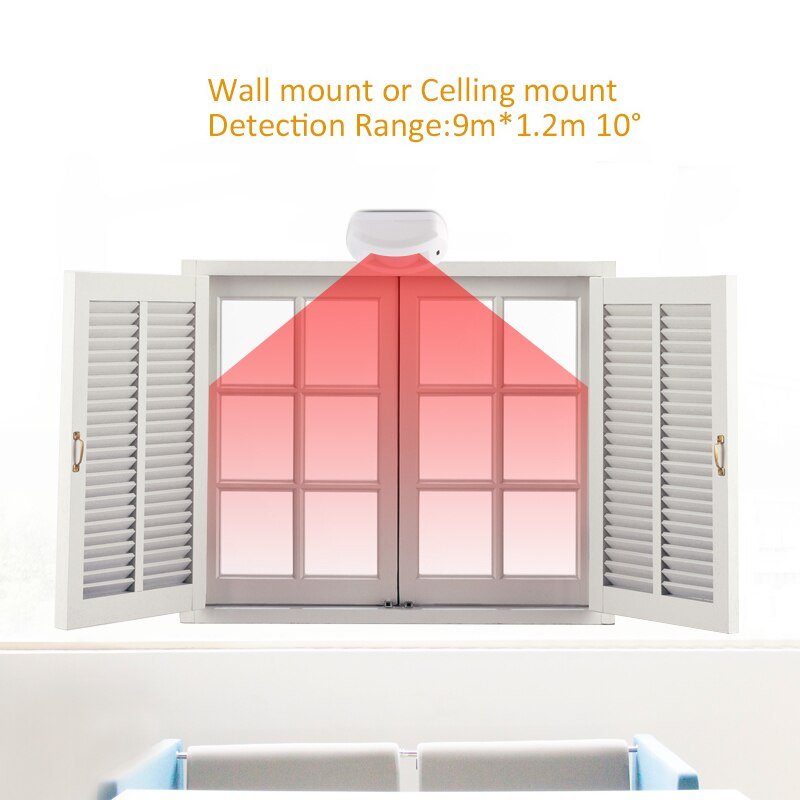

Coverage: 9m×1.2m  10°

Alarm time: 3s

Alarm delay: On/off for option

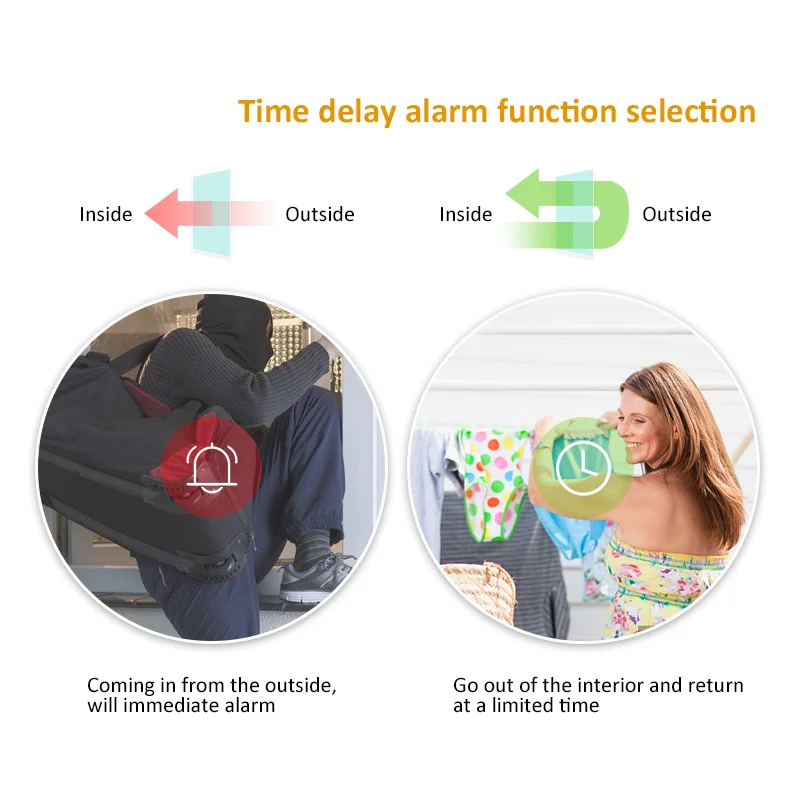

Delay time: 40s/2min/4 min /10min optional

Alarm direction: can be changed

Anti RFI/EMI: 0.1-500MHz/3V/m

Anti white light: >10000LUX

Alarm output : NO/NC optional

Alarm capacity: 100mA/24V

Tamper capacity: 100mA/24V

Temperature: -20℃/+50℃

Humidity: 95%RH

Detect speed: 0.2m/s to 3.5m/s

Dimensions: 90mm×51mm×38mm

Manual Show:

Package Content:

1pcs Wired Curtain PIR Sensor (Bracket, screws, manual included!)

Note: This sensor can not work alone, it works all home alarm system that has wired port.
