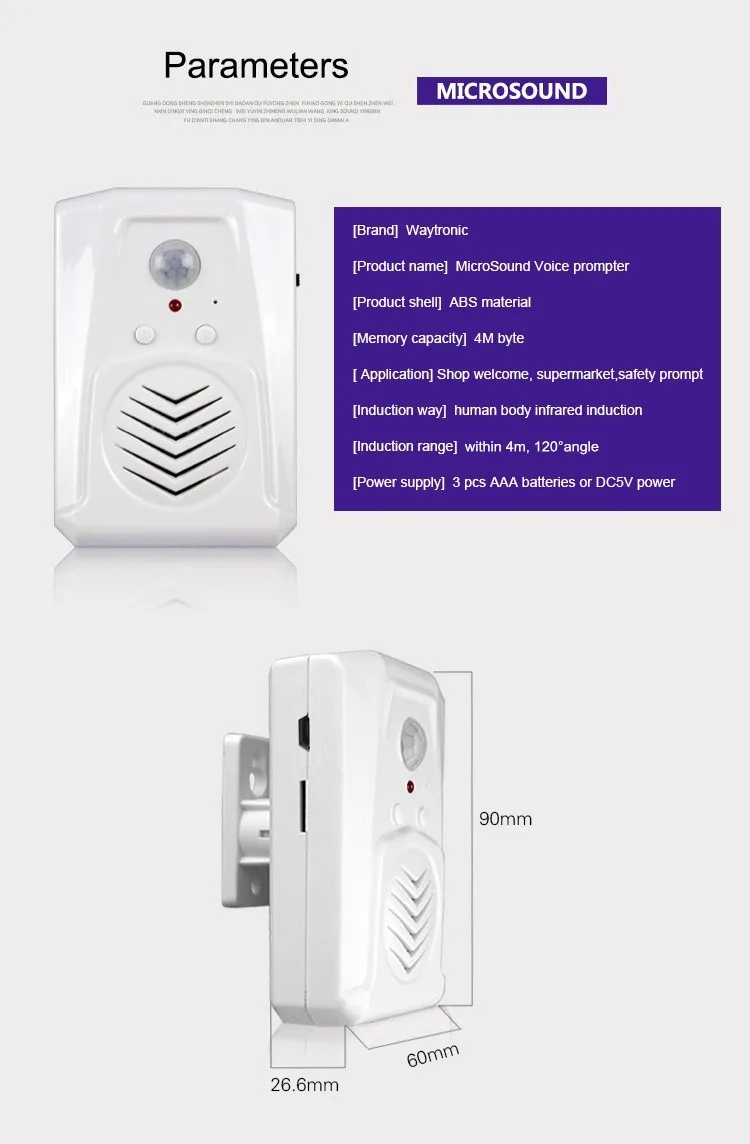

- Model Number: WT-M13
- Brand Name: waytronic
- Origin: Mainland China
- Certification: CE,NONE
- Smart home platform: Other,NONE
- Sensor range: less than 4m
- Power supply: 3*AAA batteries or DC 5V power adapter
- Built in memory: 32Mbit(4MB) SPI flash
- Audio format: MP3
- Bit rate: 8~320kbps
This talking product is one of our violent reminder devices. It is small in size, easy to carry, and has high sound quality. Using human body detection technology, sensitive and intelligent trigger sound
You can copy any mp3 sound files to the device via micro SD card, such as Halloween sound files, Christmas music files.
Features
Support to play MP3 audio only, good sound quality.
Two levels of volume.
Infrared human body motion detection. Audio will play automatically after the sensor has been activated.

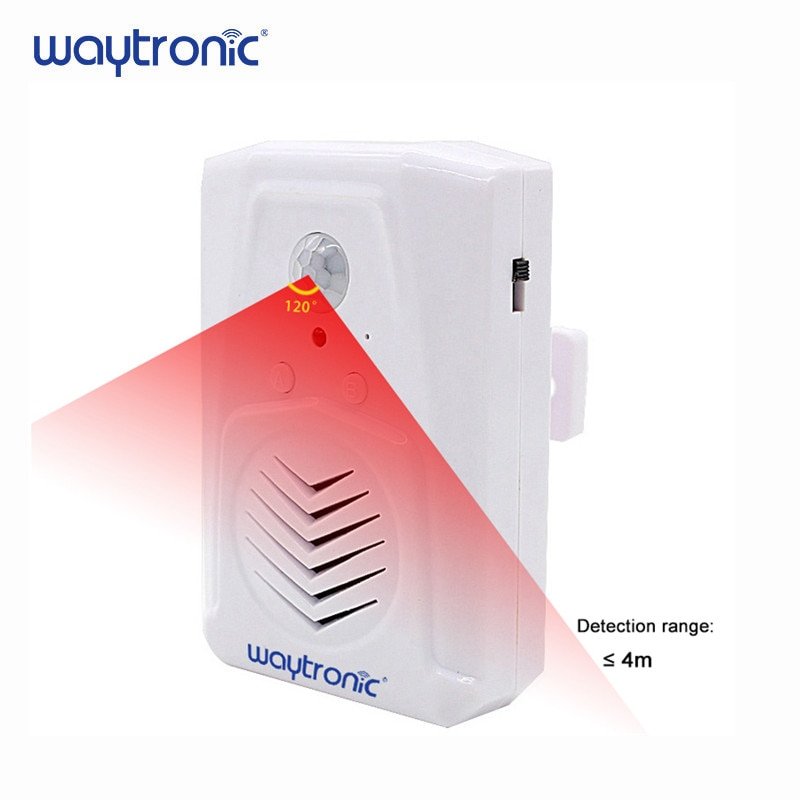

Wide detection range, up to 4 meters, horizontal direction 120 angle.
Built in 32Mbit(4MB) SPI-flash memory.
A and B buttons are corresponding to the previous audio, the next audio.
Two play modes: all loop playback, single cycle.
Support external micro SD card.
Voice customizable: Choose your own MP3 audio or record your voice via microSD card (no built-in mic). Easy to copy sound files to the microSD card.
Support to copy audio files from micro SD card to internal flash memory.
With microSD card inserted, connect device to computer by USB data cable, then audio files of micro SD card can be changed directly.

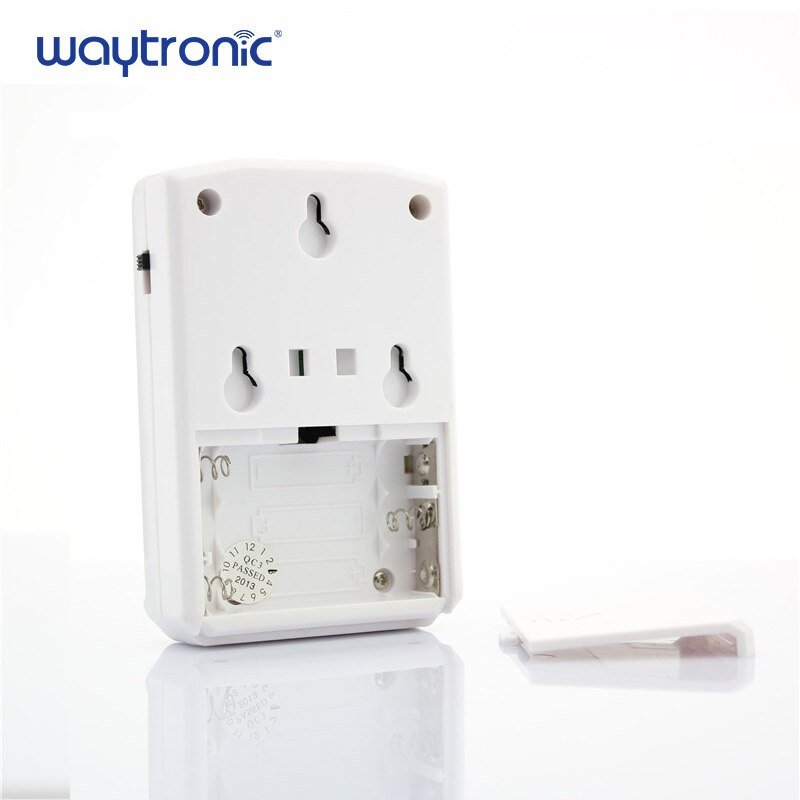

Using three AAA batteries or USB for power supply.
Wide-angle and long detection range are not adjustable and may not be suitable for applications requiring narrow detection range.

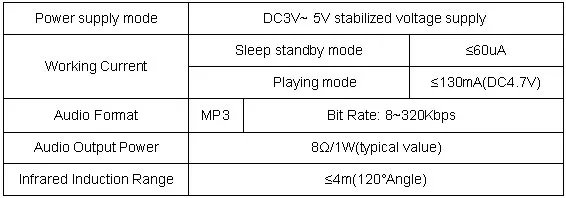

Electrical parameters

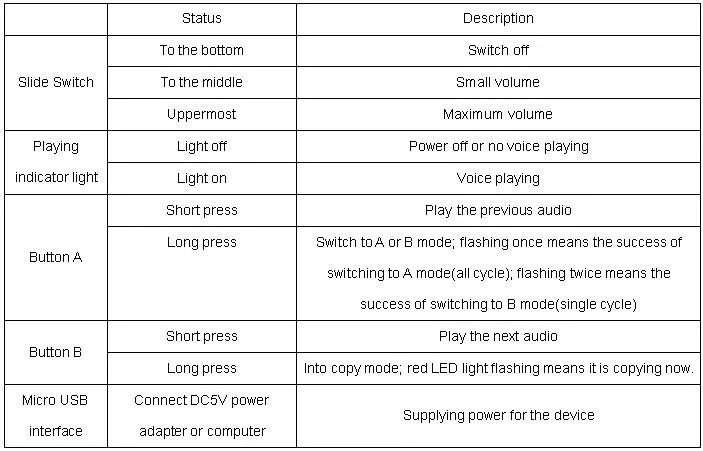

Operating guidance

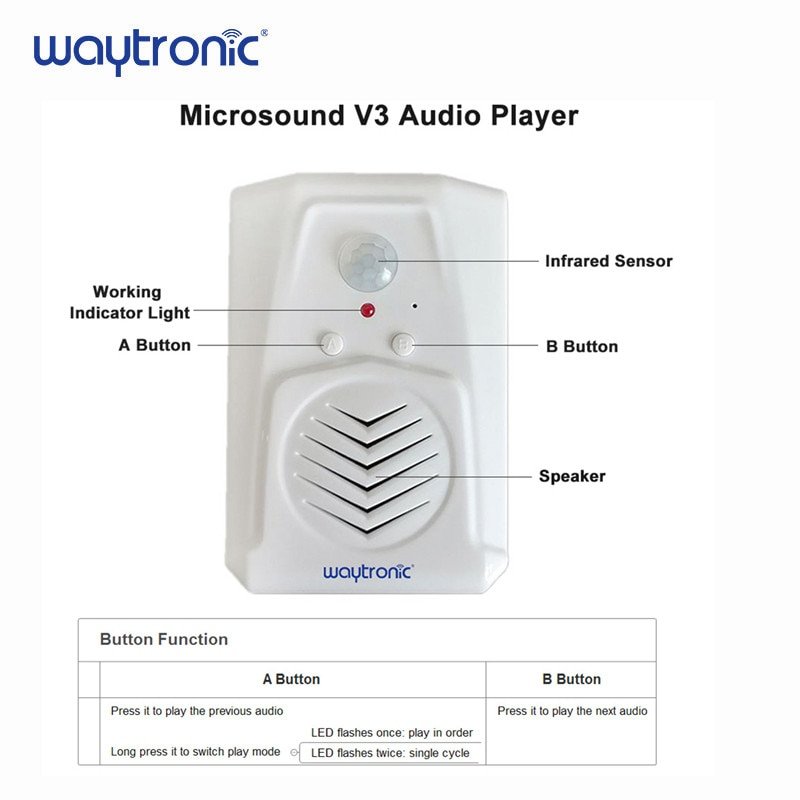

Its operation is easy and simple. There are just one mini USB interface and two buttons A and B, one slide switch in total.

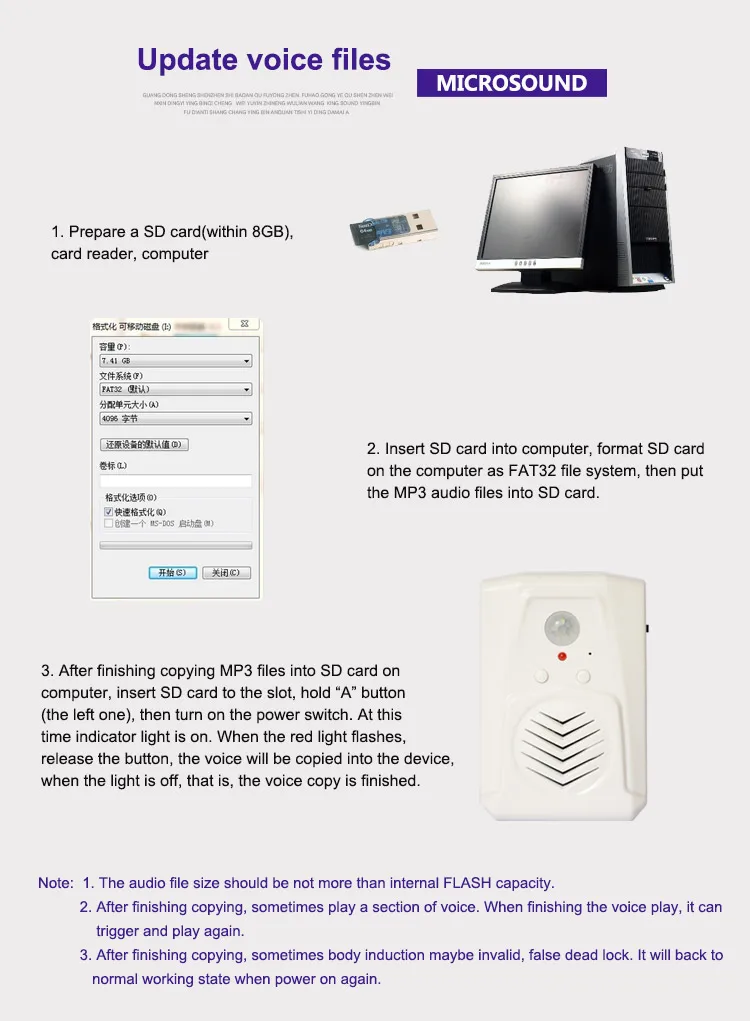

Audio download
Prepare the necessary tools, such as computer, card reader, SD card(capacity less than 8GB is better). Format SD card on the computer as a FAT32 file system, then put the MP3 audio into SD card.
After finishing copyingMP3 file, insert SD card to the slot, long press A button (the left one), and turn on the power switch.
At this time indicator light is on for a long time. When the red light flashes release the button, updating the voice from SD card to FLASH until the light is off, that is, the voice update is finished.
