- Model Number: Wire Motion Sensor
- Brand Name: eMastiff
- Origin: Mainland China
- Certification: NONE
- Smart home platform: Other
- is_customized: Yes
- manual: english
- Communication Interface: Wired
- Kit Configuration: PIR Sensor
- Color: white
- feature: Wired Infrared motion Sensor
- Size: 94 x 66 x 52mm
- Power: 12V

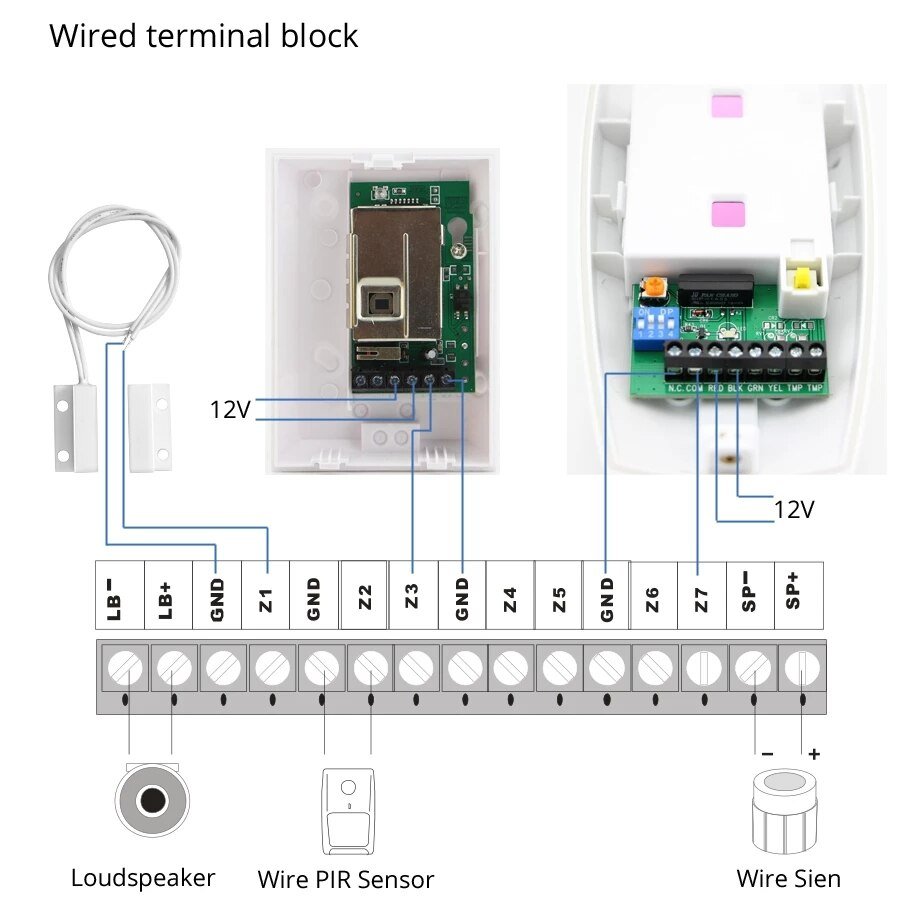

PS:This Wired PIR motion sensor can work with most home alarm system with wired defense zone function on ebay.If your alarm system can not work with wired sensor,plase do not order.Thank you.
Sensor:Low noise,high sensitivity,dual element,PIR sensor.
Pulse Count(Sensitivity):Two levels auto pulse signal processing,1~3 pulses or 2~6 pulse selectable
Temperature Compensation:Auto
Starup Time:60 Seconds after grow up
Detector Speed:0.2~7M/Sec
Lens:Second generation fresnel pet immunity lens
White Light Immunity:Yes
Coverage:12m x 1100
Zones:9+5+5+3=22
Installation Height:1.1~3.1m adjustable
Alarm Indication:Green LED contant light 3 seconds
Alarm output:N.C,rating 28VDC 0.15A
Anti-Tamper Switch:N.C.,opens when cover removed,rating 0.15A,28Vdc.
Power Input:9~16VDC,18mA
Operating Temperature:-10C~50C
Operating Humidity:95%
Size:94 x 66 x 52mm/3.7 x 2.6 x 2.oin (L x W x H)
Package include:
1 x Wired pir detector , 1 x Wall mounting
