- Detection Angle: 160
- Detection Range: 5-12
- Origin: Mainland China
- Working Voltage: AC85-265V
- Working Temperature: -10~ 40°C
- Detection Distance: 5-12M(24°C,adjustable)
- Working Frequency: 50/60Hz
- Ambient Light: 2-2000LUX (adjustable)
- Delay Time: 5sec-8min (adjustable)
- Installation Height: 1.8-2.5M
- Installation Hole Diameter: 10mm
- Rated Load: 300W (Tungsten filament lamp) 60W (Energy-saving lamp. LED lights)
- Shell Material: ABS PC
- Detection Moving Speed: 0.6-1 .5M/s
- Grade of Waterproof: IP54
- Power Consumption: <0.4W
- Working Humidity: <93%RH
- Using Range: Home lighting, parking lot, garage, school, corridor, business place,
【High Sensitivity, Light Up Before Arrival】PIR motion sensor is suitable for day and night security lighting. Max detection distance 20 feet, the sensor installed in the corner can control the outdoor lights early on, detection range of 120 ° lighting without dead ends. The recommended mounting height of the sensor is about 6 – 9ft to get the best monitoring range and distance.

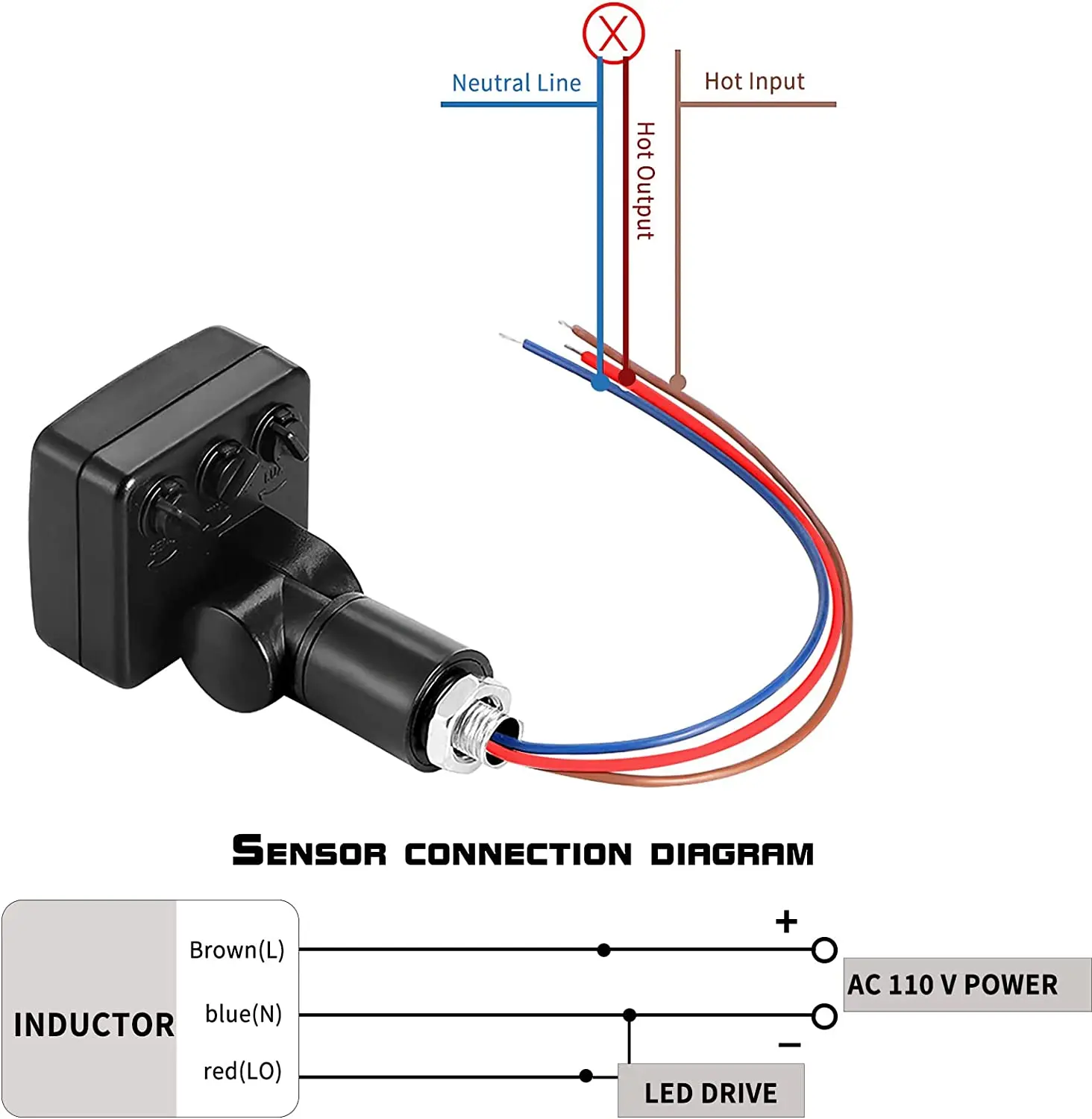

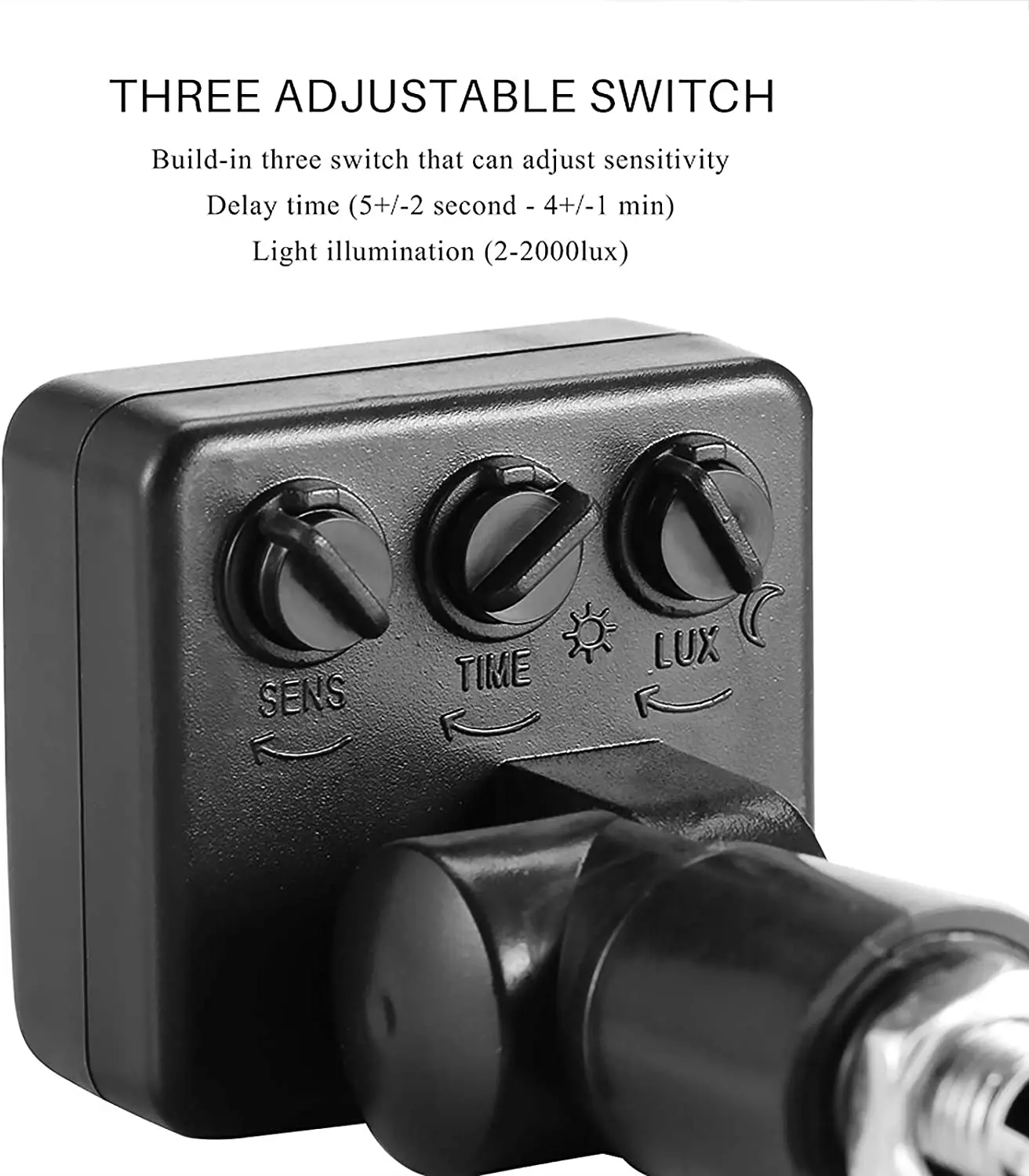

【3 Parameter Free Adjustment & Easy Wiring】"SENS" control sensing distance, MAX 20 ft. "TIME" controls the duration of the light, 3 seconds to 5 minutes, "LUX" light sensitivity (2 ~ 2000 Lux) are adjustable, you can improve / reduce the sensitivity and light duration according to different use scenarios, flexible and energy-saving. Blue for neutral (N), brown for fire wire input (L), red for fire wire output (LO), be careful not to connect 3 wires wrongly, otherwise the sensor will be scrapped.

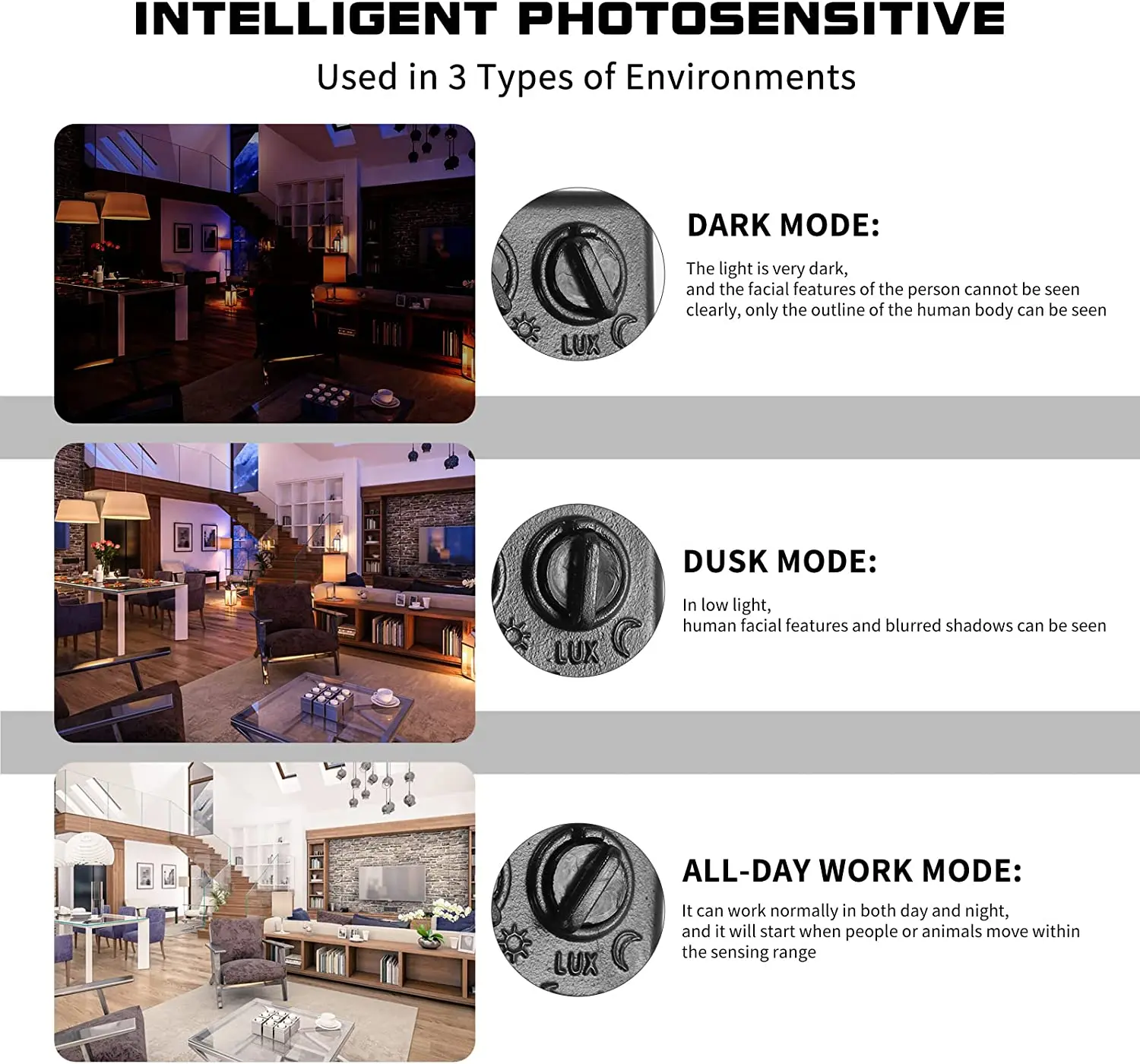

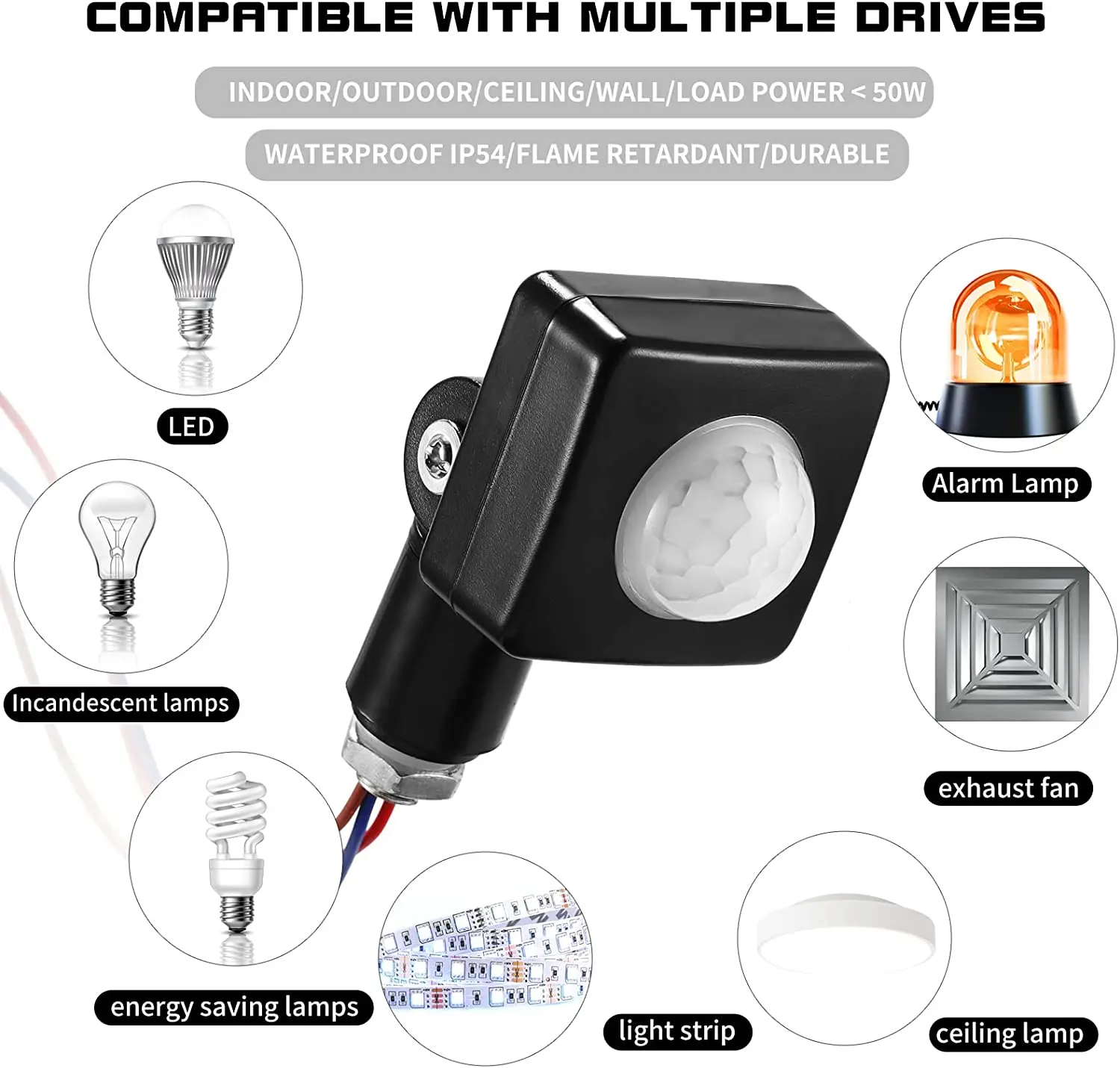

【Support Day / Night Dual Mode, More Choices For You】Turn the "LUX" knob to the position to work in daylight, NIGHT mode only works in the evening or dark environment, by controlling the threshold, your sensor light can work even in the not so dark night. The sensor probe is compatible with a variety of devices: solar lights, closet lights, ceiling lights, incandescent lights, LED light strips (<50w), exhaust fans, alarm light, it is a good backup replacement sensor.

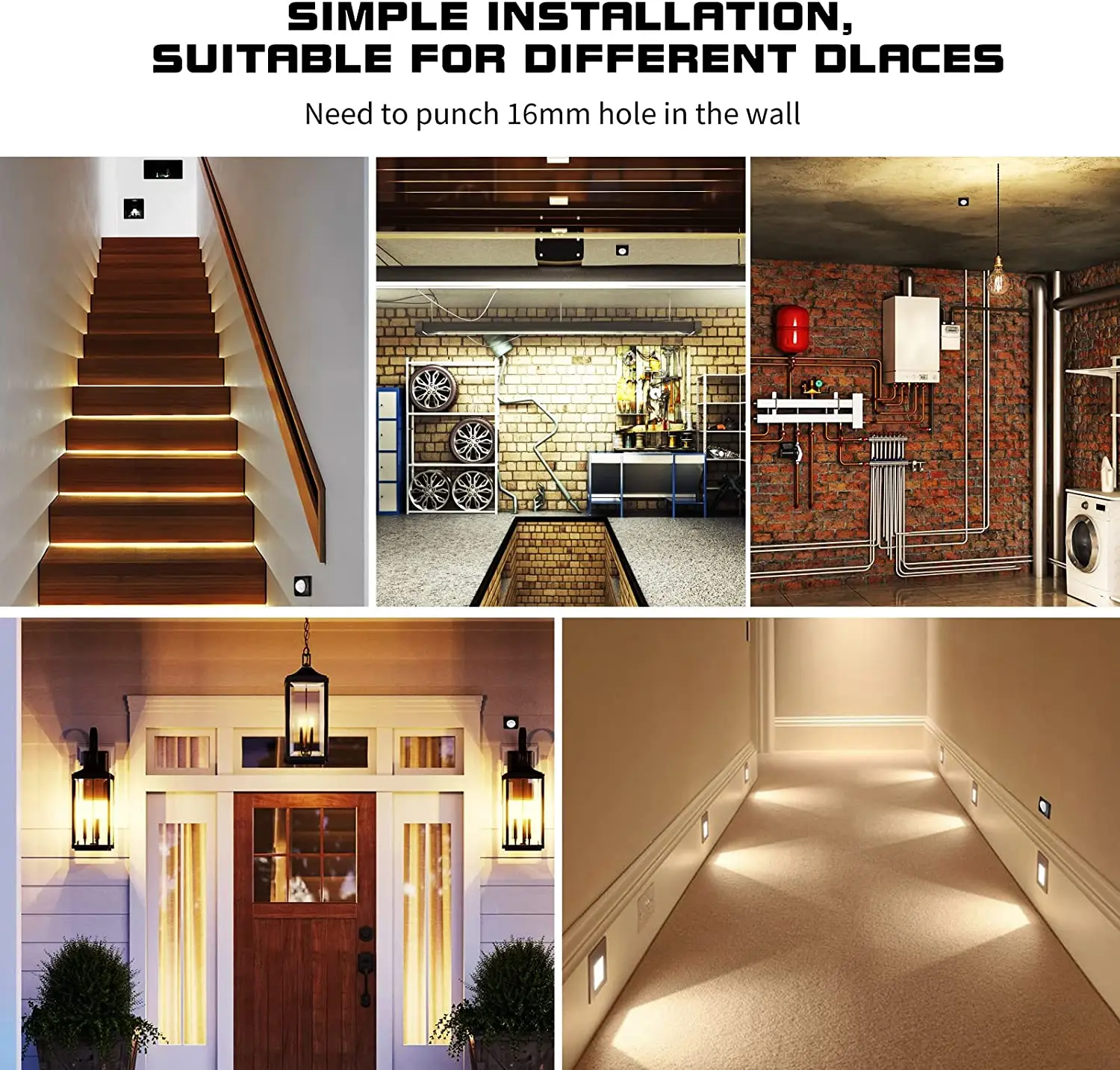

【Waterproof Flame Retardant Material, Support Indoor Outdoor Installation】The shell is made of high quality hard plastic with waterproof IP54, flame retardant, strong and durable, anti-oxidation, safe and non-leakage, you can use it safely no matter indoors or outdoors. Install sensor light in entrance, garage, stairs, corridor, basement, cabinet, patio, garden, railing outside wall, make your life more intelligent and convenient.
【Note & Aftersales】Installation of the sensor requires a 16mm hole, if you do not know how to wire and install please contact us or ask a professional electrician to handle.
