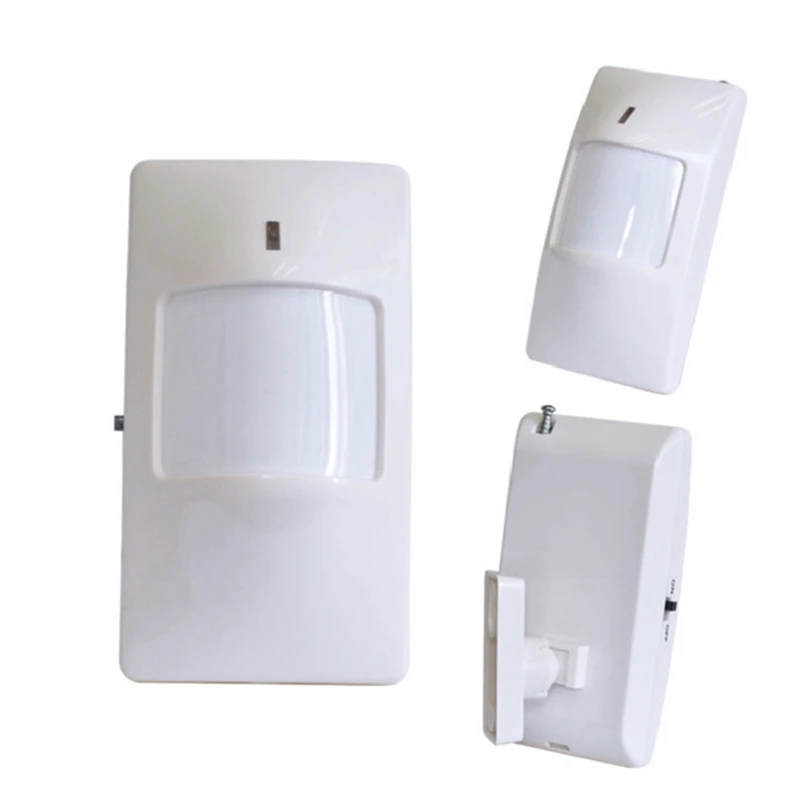

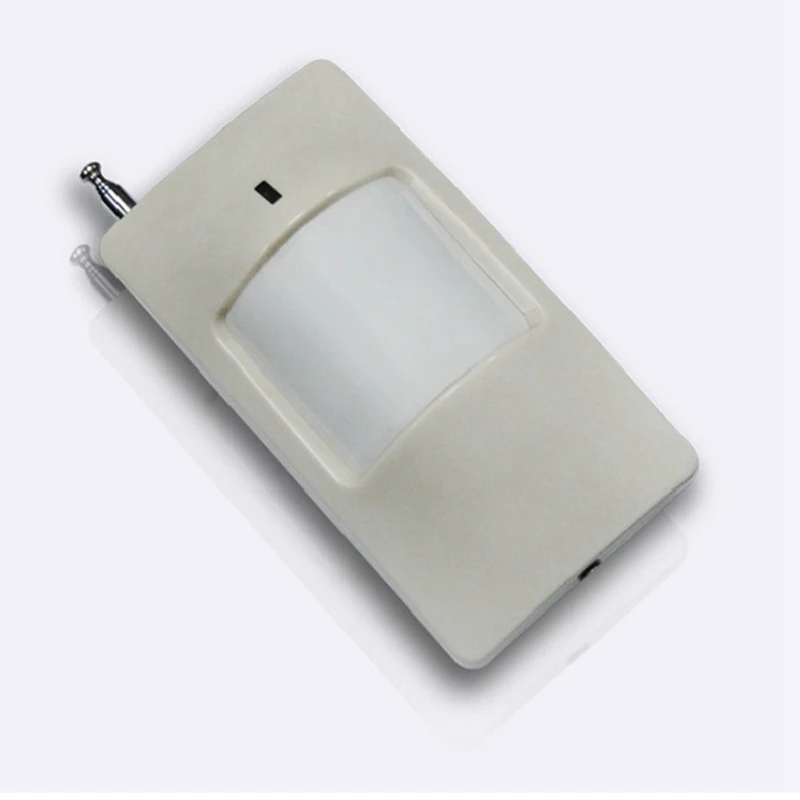

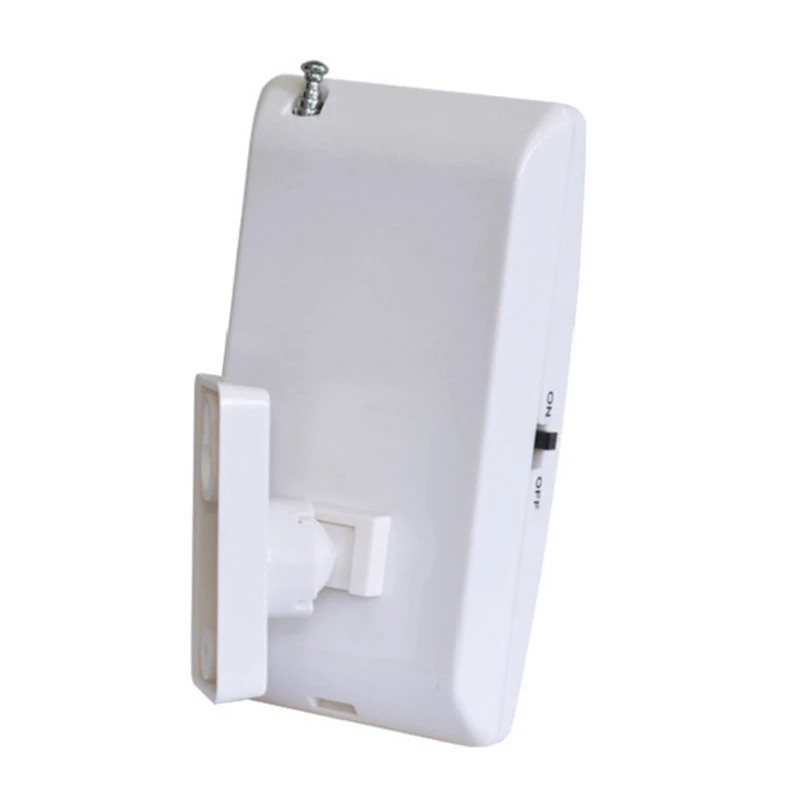

ZRE-MSNCR MOOL External Antenna Wireless PIR Sensor 433Mhz EV1527 PIR Motion Sensor Detector For Gsm Pstn Home Security Alarm

ASIC Adopted
Auto temperature compensation
send alarm signal by RF
No wiring,Install coveniently
Low battery indication

SMT design adopted
Operation Voltage: 9V 6F22 battery (Power by battery not included)
Static current: less 25uA
Alarm current: less 15mA
Detecting distance: 12M
Detecting angle: 110 degree
Code form: 1527 type
Wireless frequence: 433MHZ
Wireless distance: 100M(Open area)
Low battery indicator: Yellow LED
Alarm indicator:Red LED
Range of coverage: 11 distance ,8 middle,5 Vicinities
Sensor: Dual elements infrared sensor
Operation temperature: -10 Celsius — 50 Celsius
Enviroment humidity: less 95%(no congelation)
Anti RF interference: 10MHZ-1GMHZ 20v/m

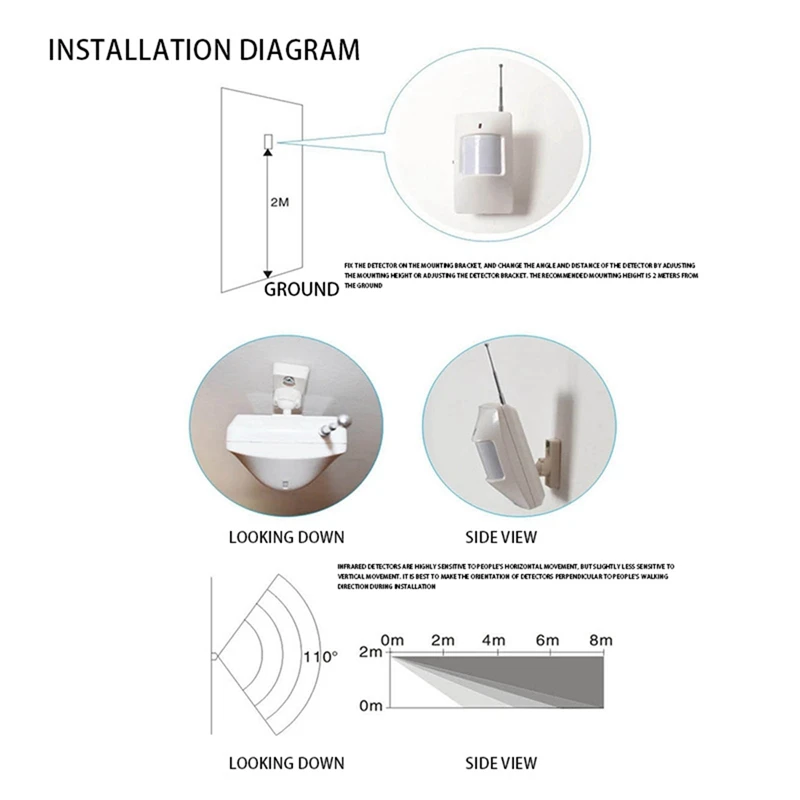

Installation mode: wall mounted or hanged in corner
Installation height: 1.7-2.5m(2.2m is proposed)

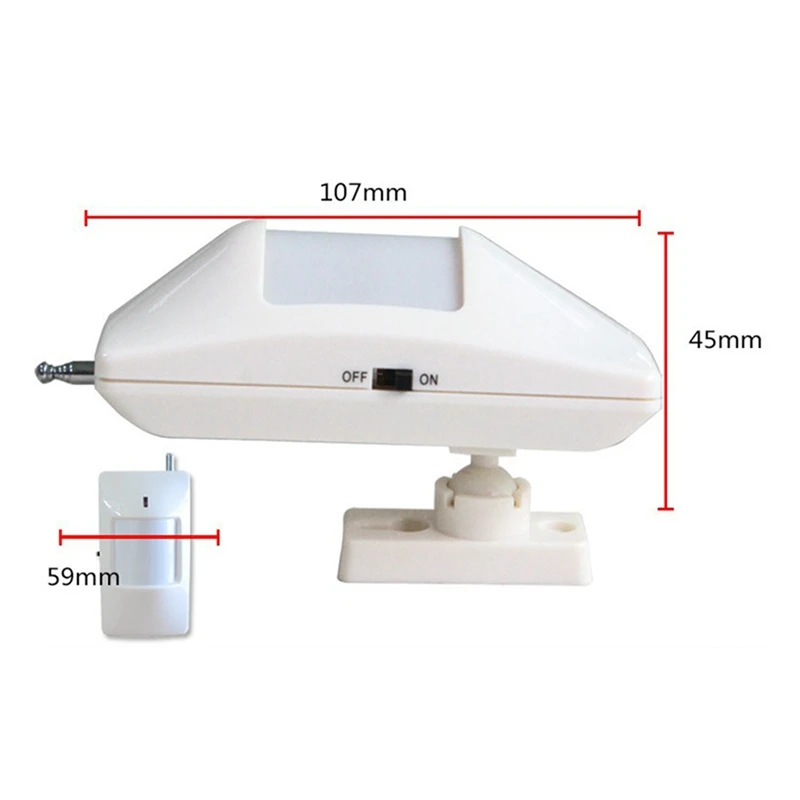

Outline size: 59 x 45 x107mm (L x W x H)
Colour:White
Material:ABS

Package Contents:
1 x Wireless PIR Motion sensor (no 9V battery)

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
