ZRE-MSNCR LED PIR No Adjustable Delay Human Body Infrared Detector IR Infrared Motion Sensor Light Switch For Home AC110-240V DC 12V-24V

LED PIR No Adjustable Delay Human Body Infrared Detector IR Infrared Motion Sensor Light Switch For Home AC110-240V DC 12V-24V

Description:

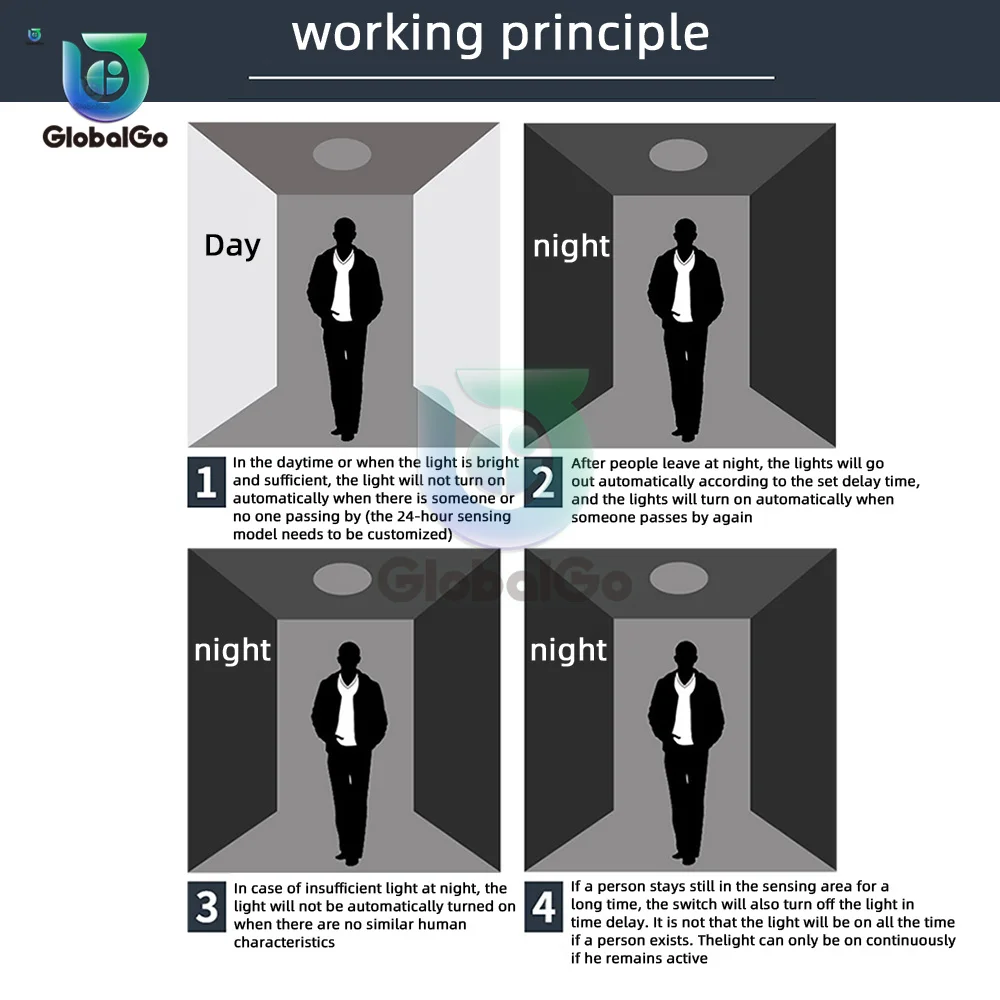

1. The light is on when people come, and off when people go

2. The product has small volume and convenient wiring

3. Small appearance and easy installation

4. High safety performance

5. Scope of application: energy-saving lamps, incandescent lamps, LED absorbers

Product specification:

Name: Human body infrared sensor head (AB high-voltage version)

Working voltage: AC110-240V

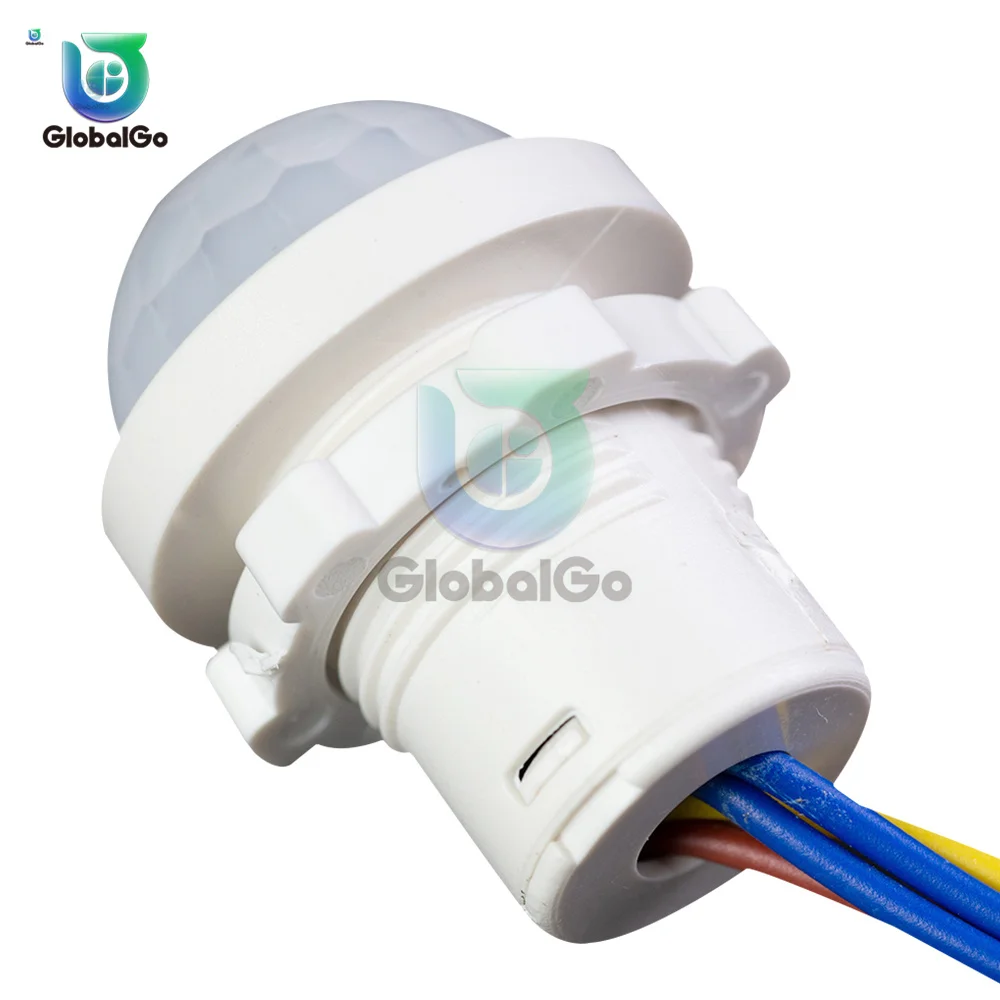

Shell size: Height 37.2 * Diameter 27.5mm

Load power: ≤ 40w

Sensing distance: 3-5 m

Sensing angle: 120 °

Delay time: 30s

Operating temperature: – 20 ℃ – 40 ℃

Opening size: 20mm recommended

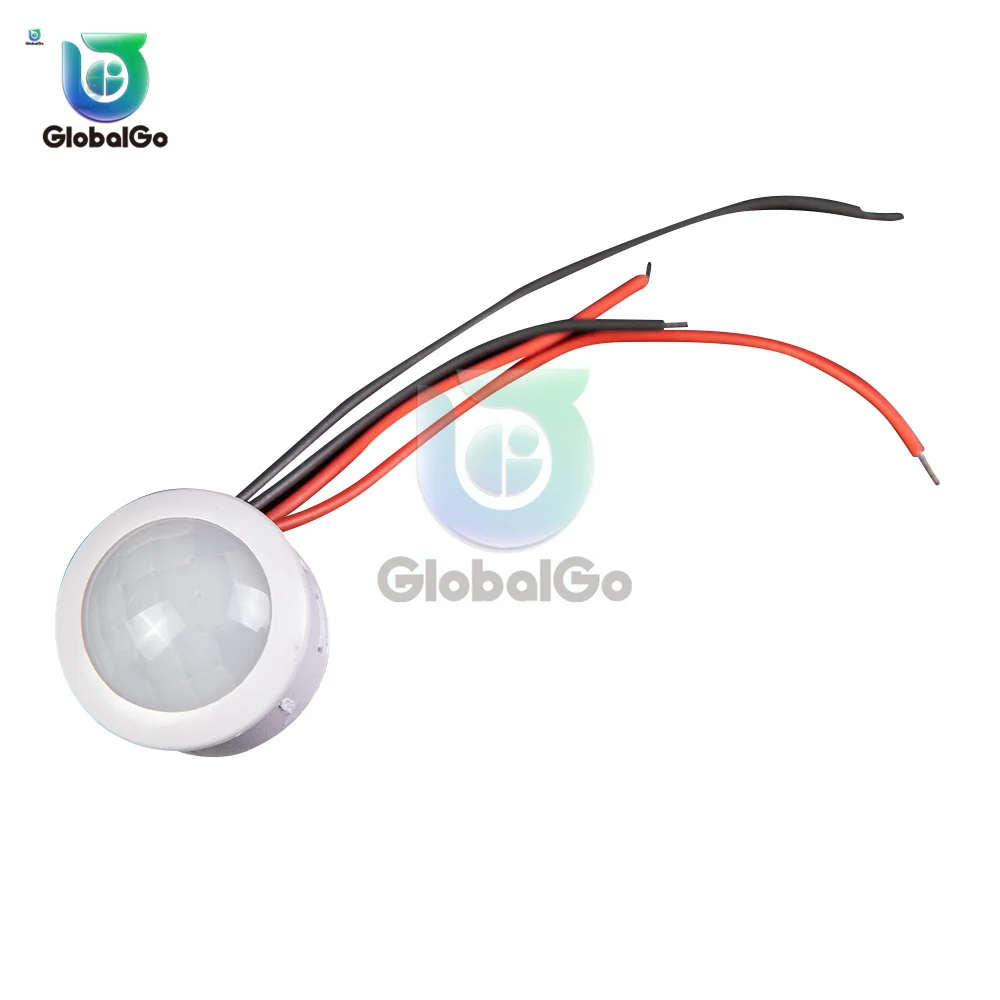

Parameters of low voltage model C:

Working voltage: DC12-24V

Load: 18W 180-260mA

Product specification: 25 * 19mm

Recommended opening: 24.9mm

Optional function: optical control model/all day sensing model without optical control

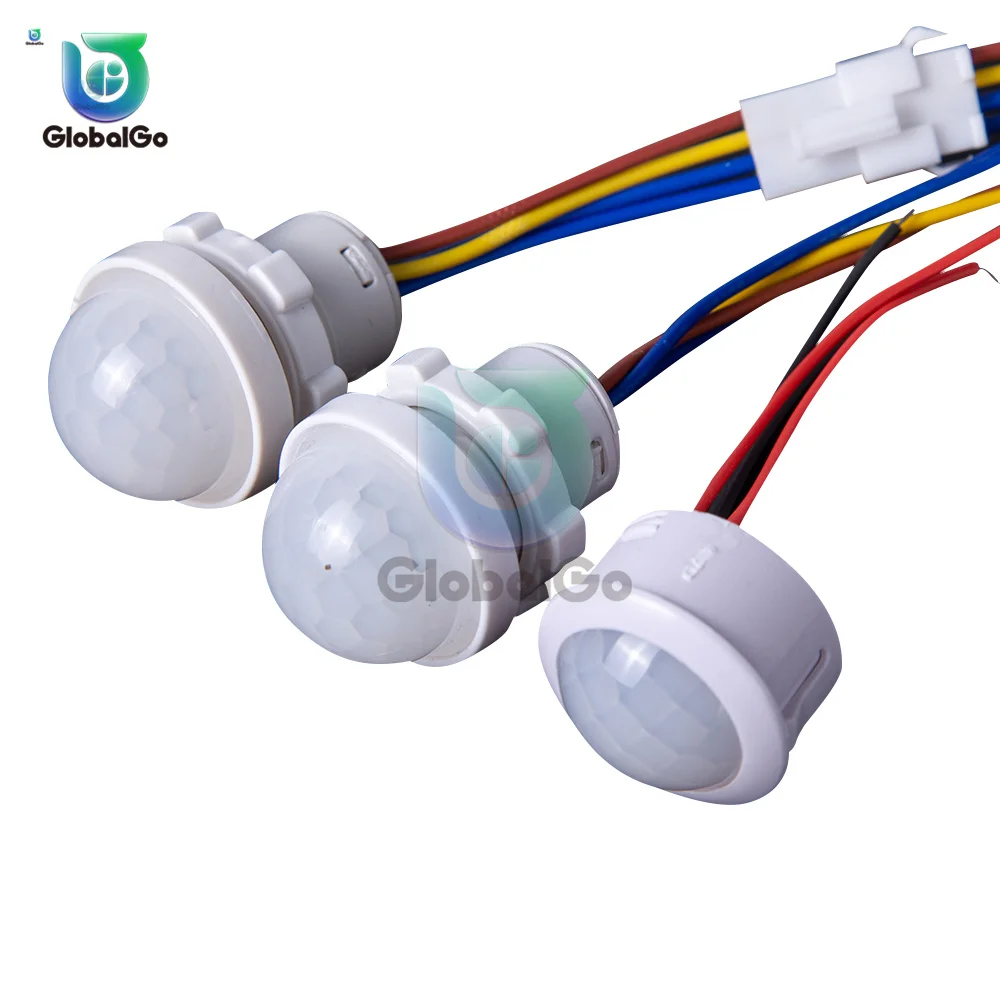

Detailed list:

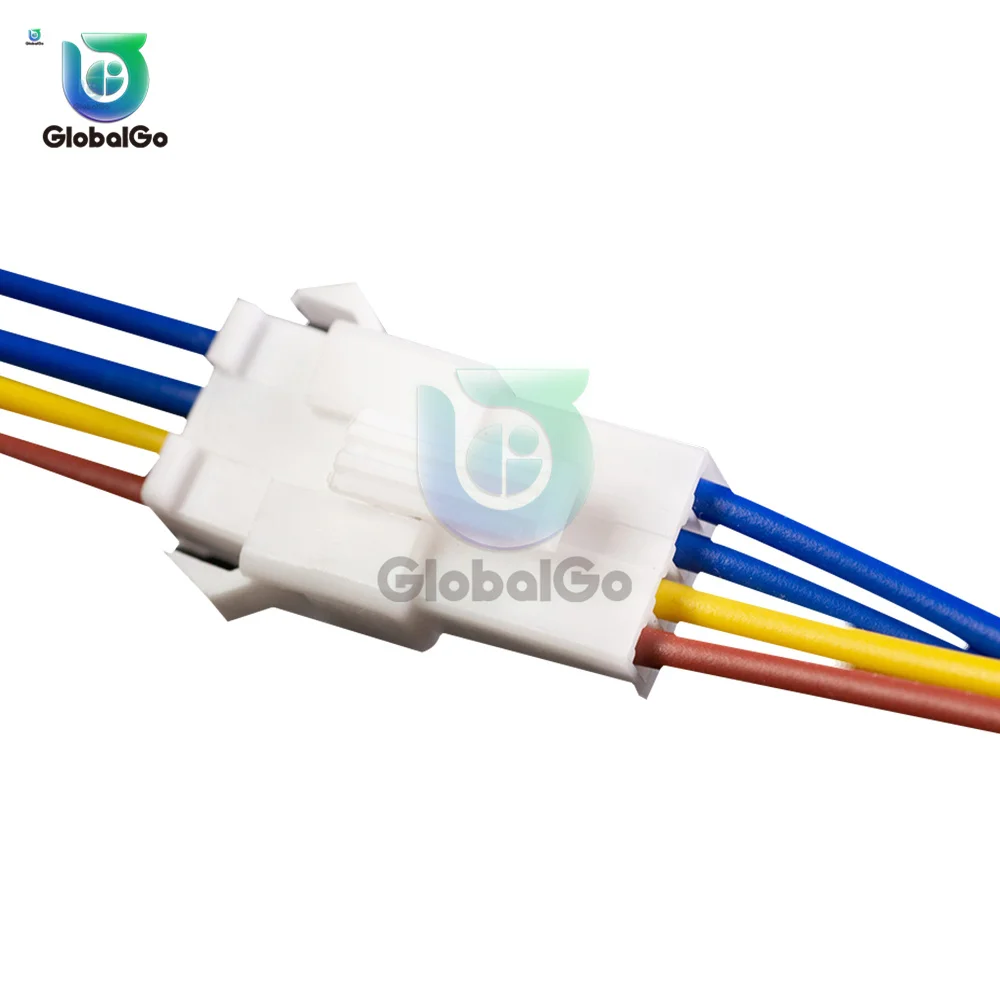

Model A human body inductive switch with light control terminal * 1

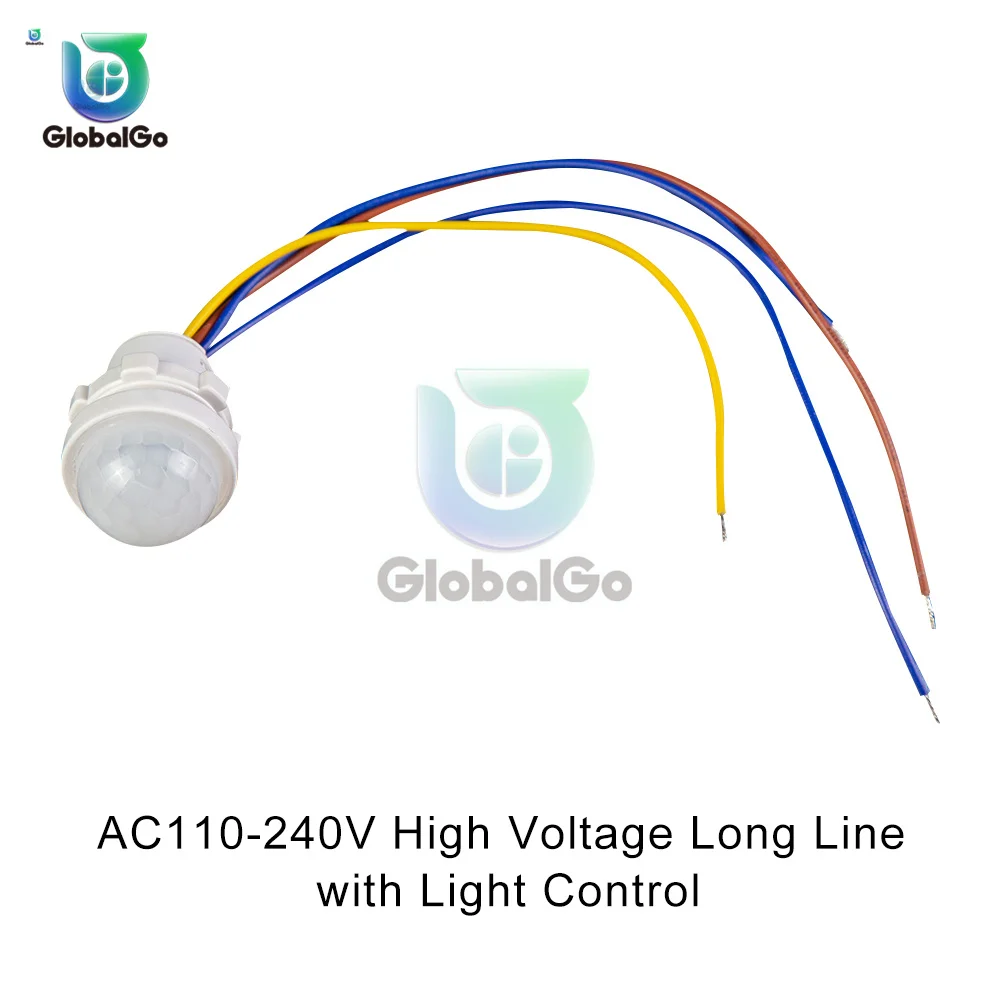

Type B long line human body inductive switch with light control * 1

Model C low voltage body inductive switch with light control * 1

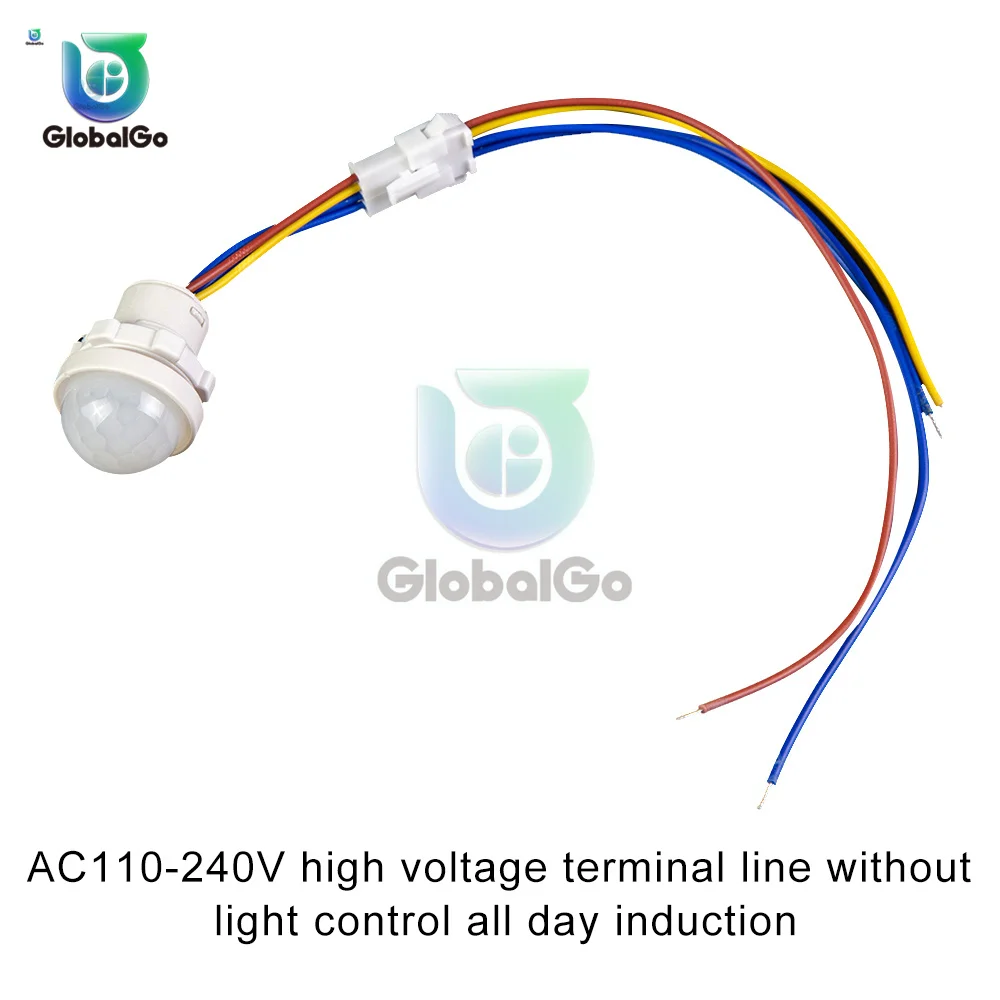

Model D without light control/all day induction terminal line type human body induction switch * 1

Model E without light control/all day induction long line human body induction switch * 1

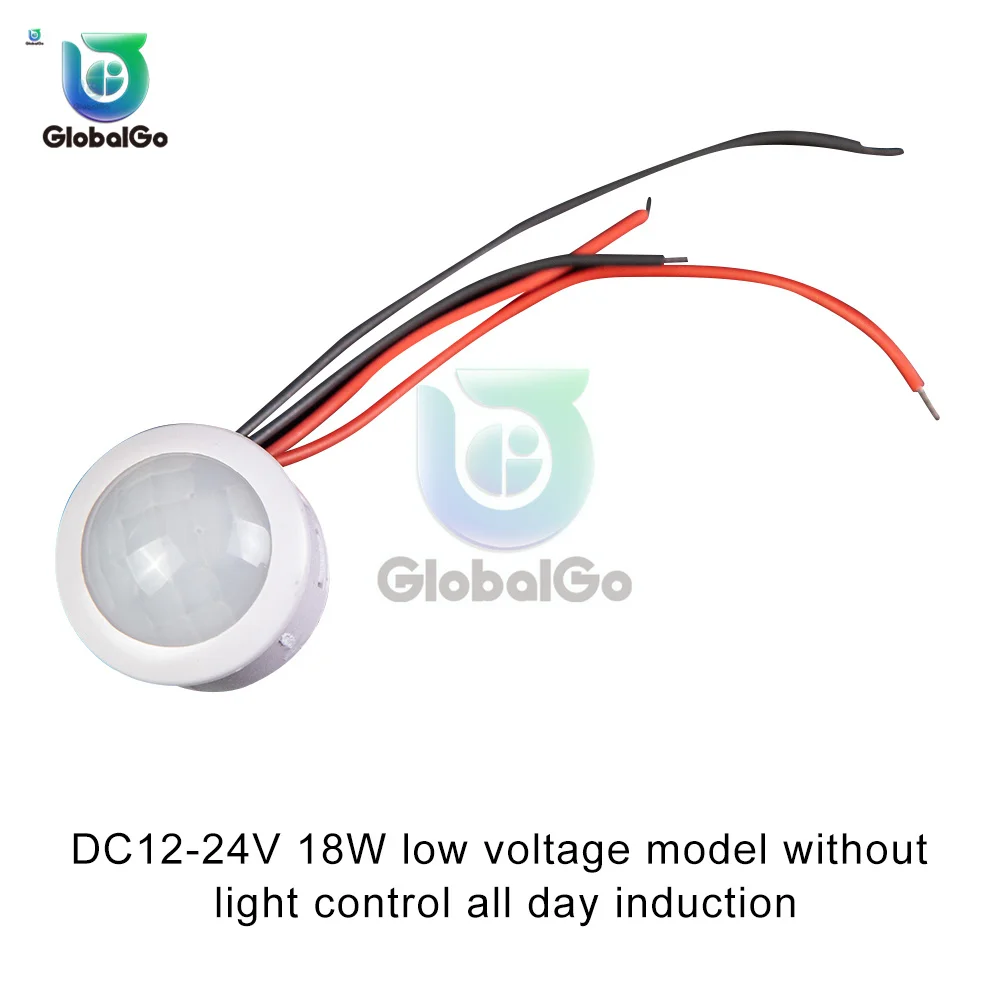

Model F without light control/all day induction low-voltage body induction switch * 1
