- Detection Angle: 360 degree Automatic Ceiling infrared PIR Motion Sensor Switch led lig
- Detection Range: 360 degree Automatic Ceiling infrared PIR Motion Sensor Switch led lig
- Model Number: 360 degree Automatic Ceiling infrared PIR Motion Sensor Switch led lig
- Origin: Mainland China
- Certification: CE

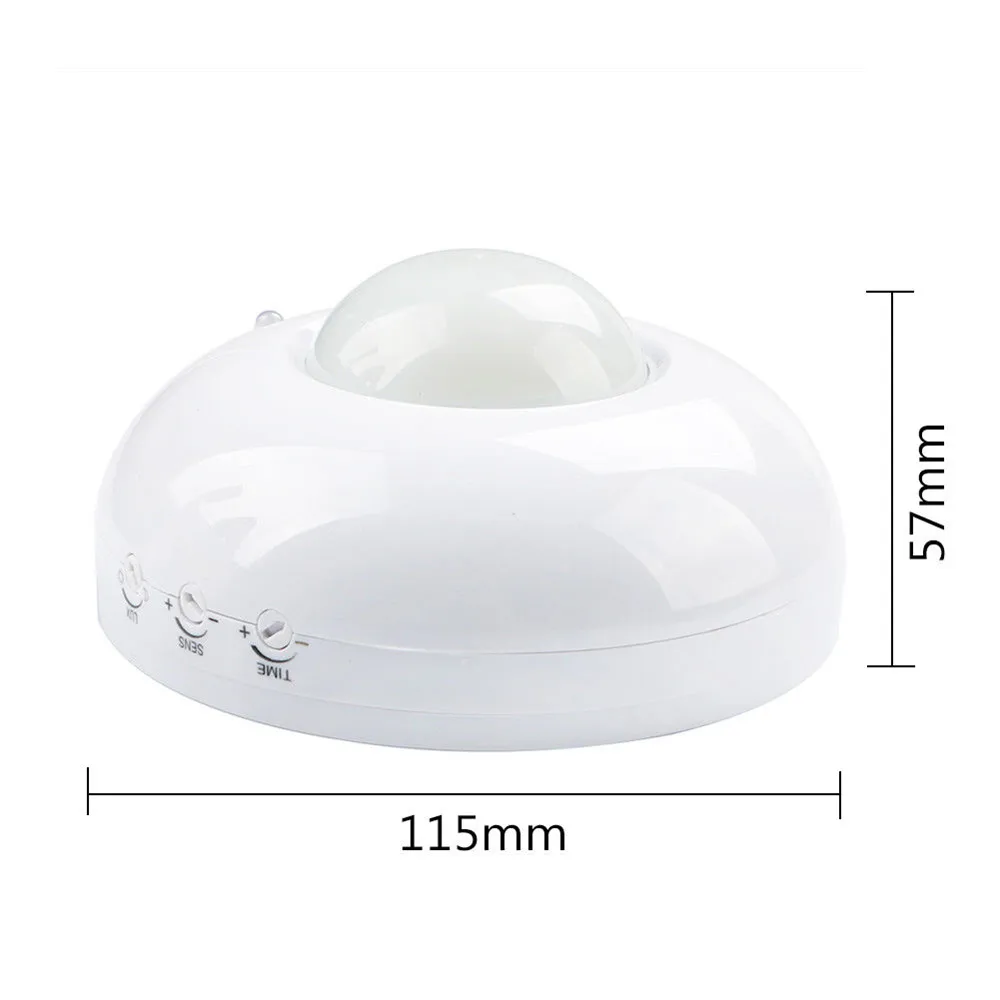

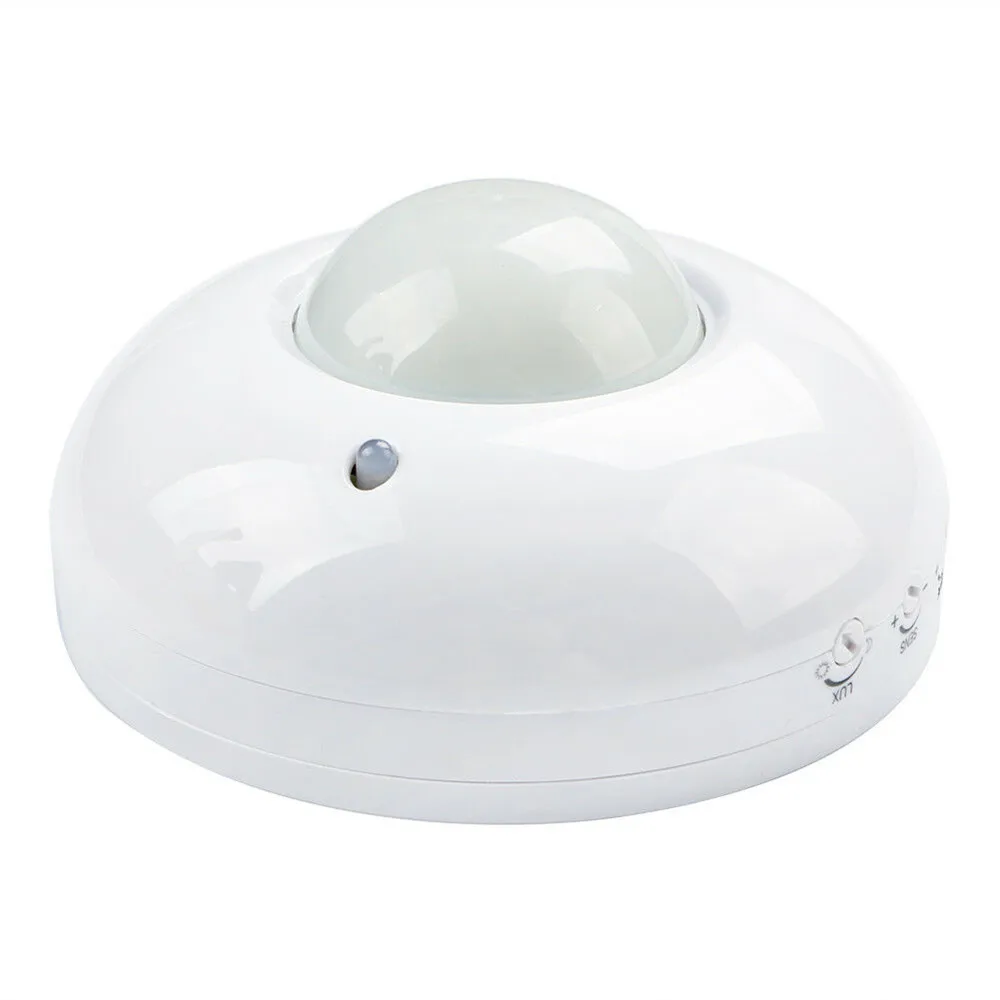

High Sensitivety 360 degree Automatic Ceiling infrared PIR Motion Sensor Switch led light motion sensor 110V 220V AC 8m max

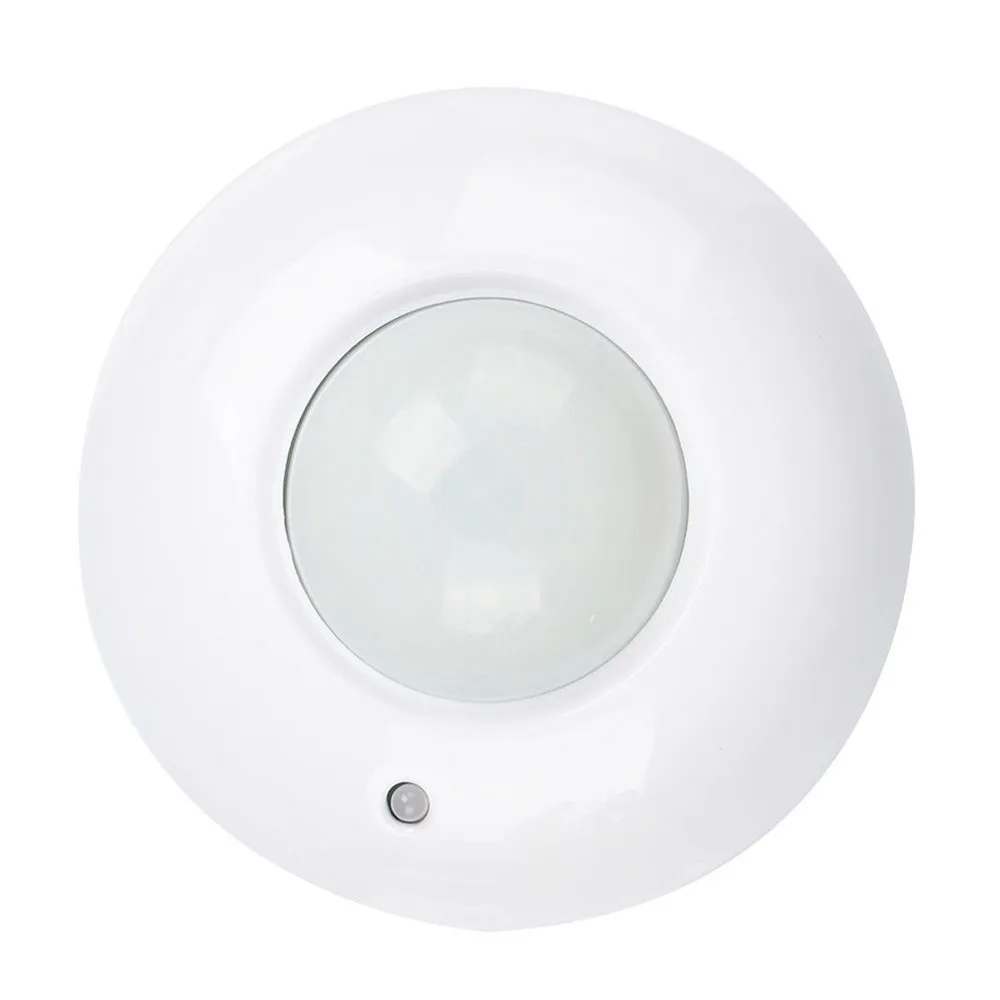

AC110-240V 360 degrees
Explanation:
When a person enters the induction range, the power is immediately turned on, and the power is turned off according to the set time after the person leaves. To achieve the purpose of intelligent energy-saving control. All electrical appliances such as LED lights, energy-saving lamps, fluorescent lamps, incandescent lamps, alarms, exhaust fans, etc. are suitable.
Specification:
Power consumption: <0.05W
Time delay adjustment range: 5 seconds to 10 minutes
Induction distance: adjustable within 8 meters in diameter
Sensing angle: 360-degree depression angle 140-degree cutting angle
Working voltage: AC110-240V range universal voltage and DC DC9-24V universal voltage optional (don’t worry about voltage instability)
Rated load current: 10A (AC voltage rating allows control of incandescent lamps 1200W, LED, energy-saving lamps and other electrical appliances 300W, DC voltage 120W)

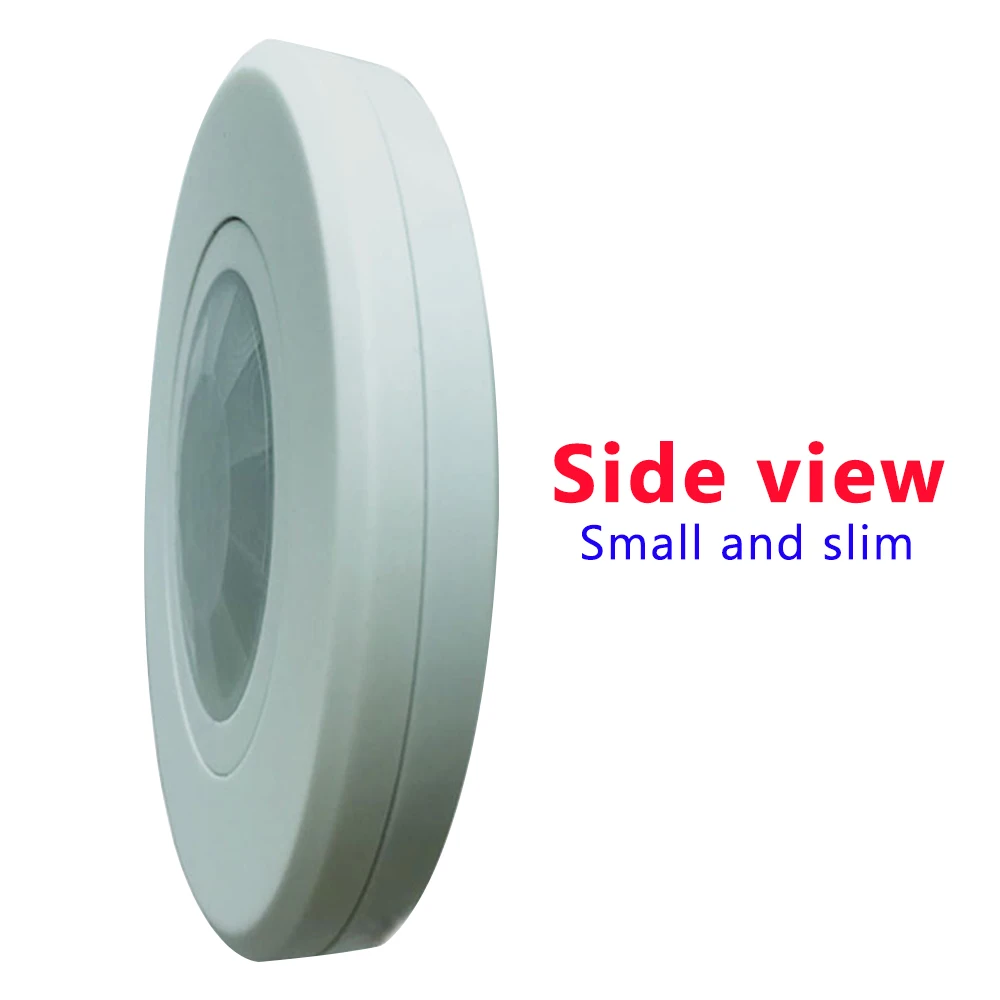

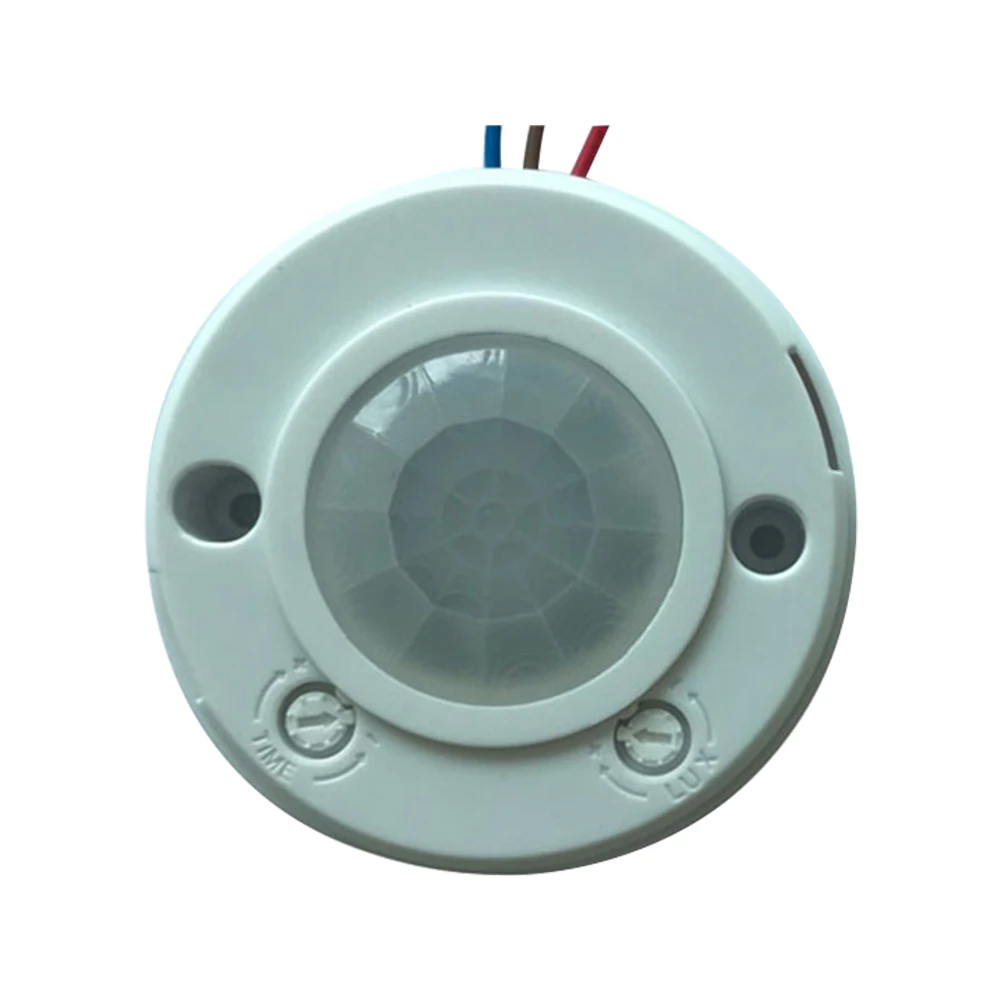

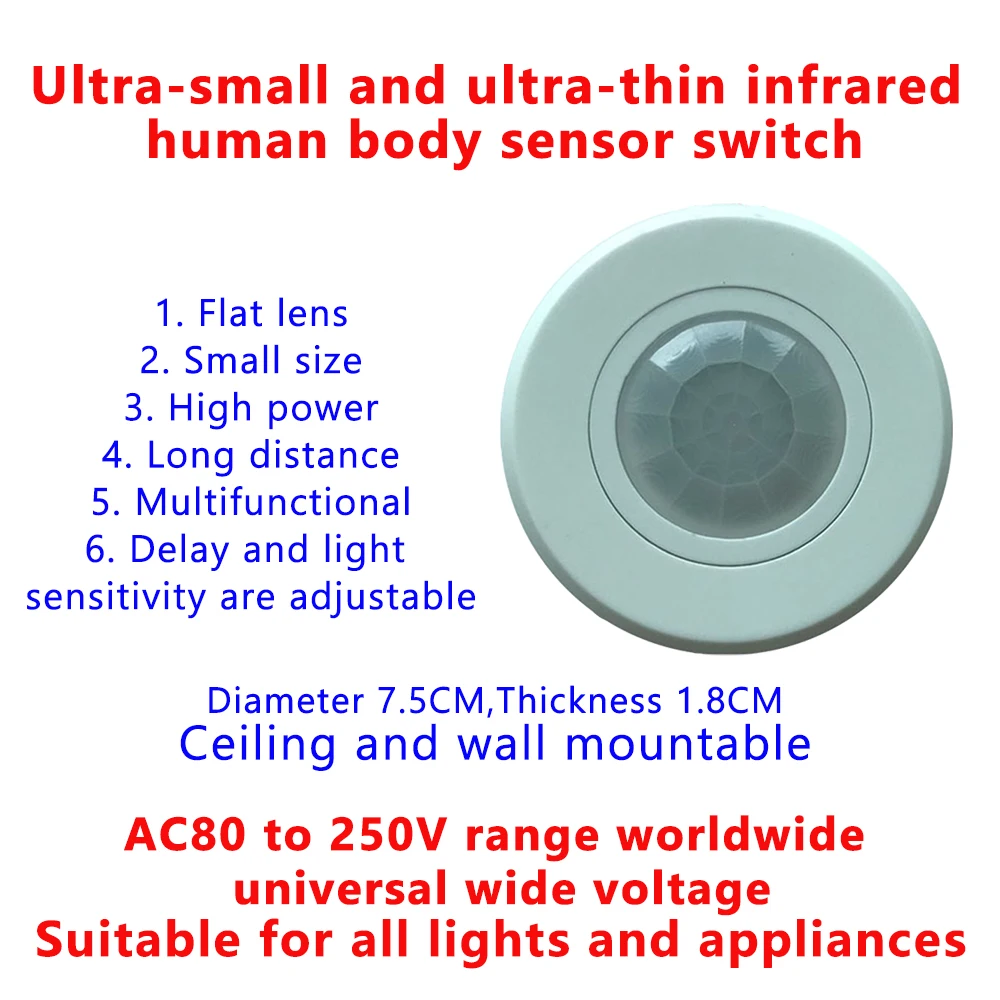

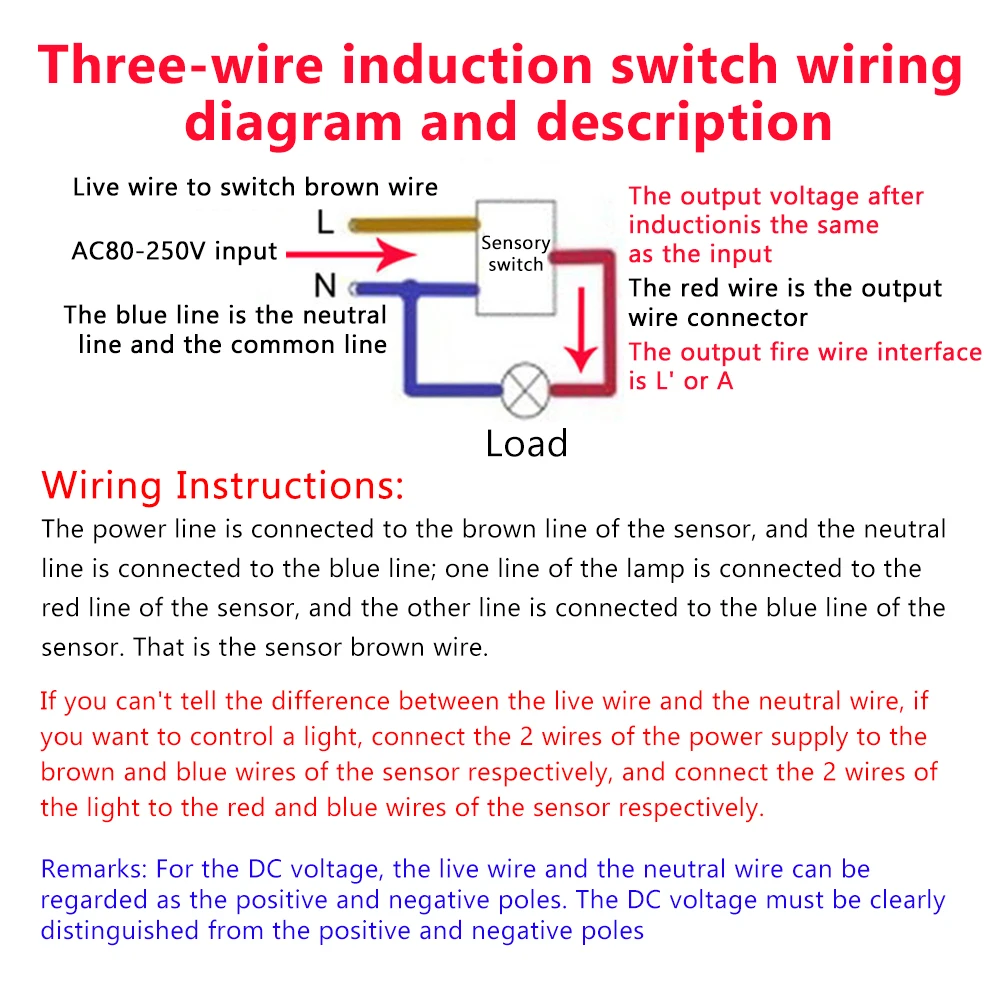

AC80-250V 120 degrees
Specification:
Induction distance: 8M in diameter
Working voltage: ultra-wide voltage AC80 to 250V
Delay adjustable range: 5 seconds to 8 minutes
Output voltage: The output voltage after induction is the same as the input voltage
On-off control: MOS tube (no sound when on and off, no static electricity, no sparks)
Applicable loads/appliances: All lamps (LED, fluorescent and incandescent) and appliances are suitable
Maximum allowable load power: 200w (LEDs, fluorescent lamps, etc. can use 200w, with zero-crossing protection design)
Sensing angle: 120 degrees (the sensing range is a 120-degree cone)
If you want to reduce the sensing angle, you can use electrical tape to paste the range that does not need to be sensed inside the sensing lens. Internal stickers have no effect on appearance
Triggering method: continuous triggering (for example, setting a delay of 30 seconds, if there is a new induction before 29 seconds, it will continue to power off and then extend the power-on time by 30 seconds)

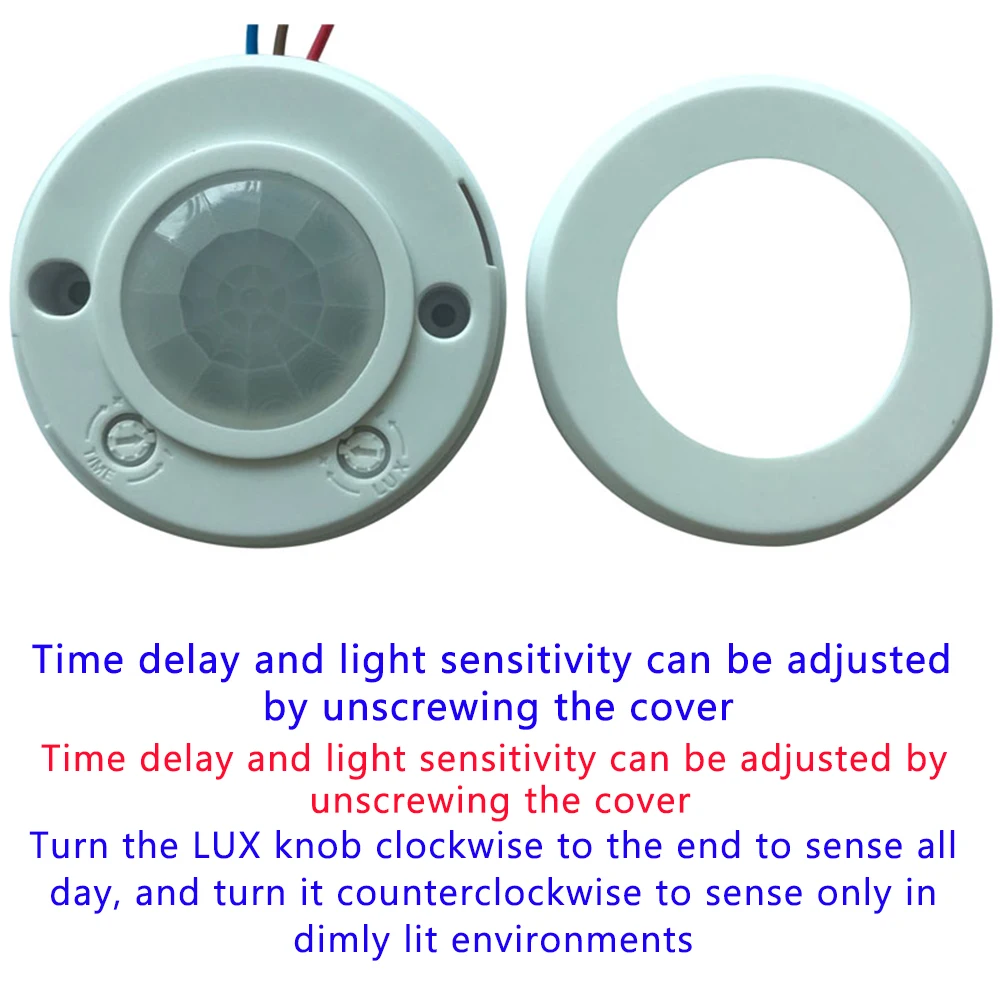

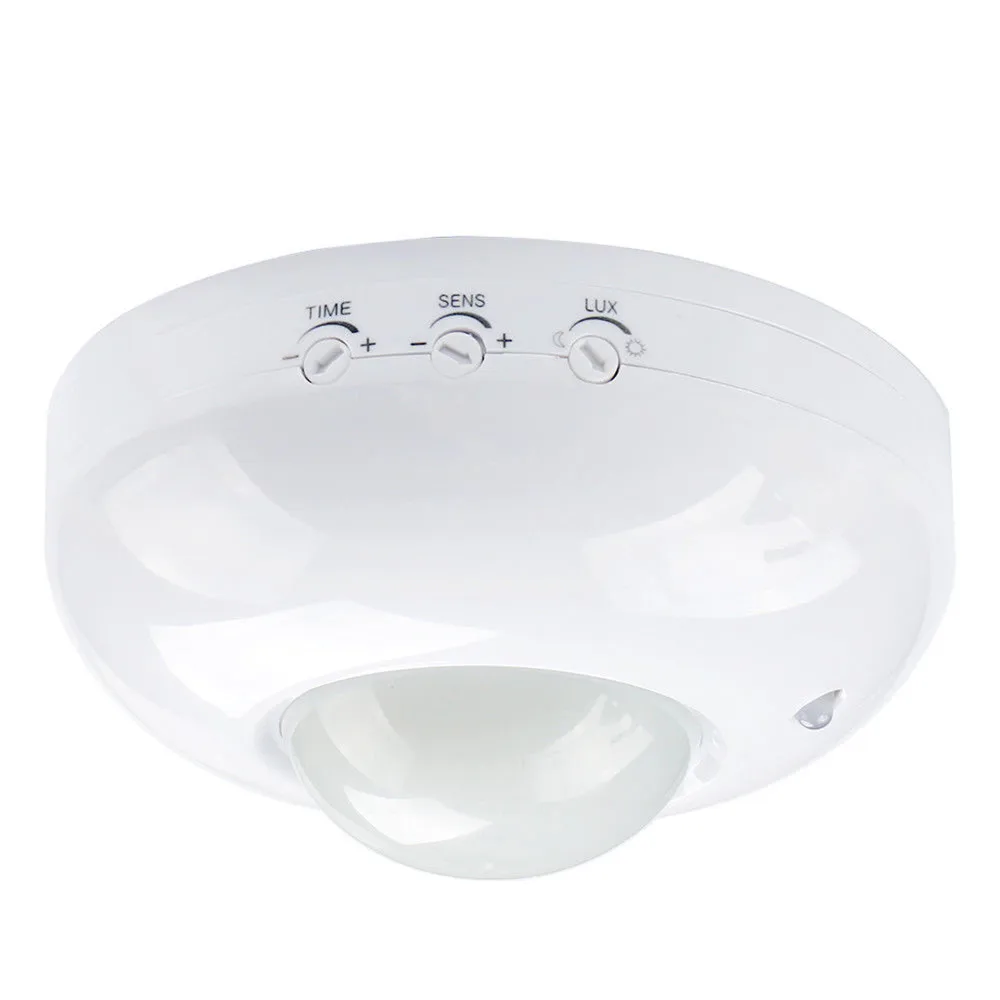

Adjustable range of light sensitivity: 10LUX to 2000LUX (the LUX knob is turned clockwise to the end to sense all day, and counterclockwise to the end to sense only in dimly lit environments)

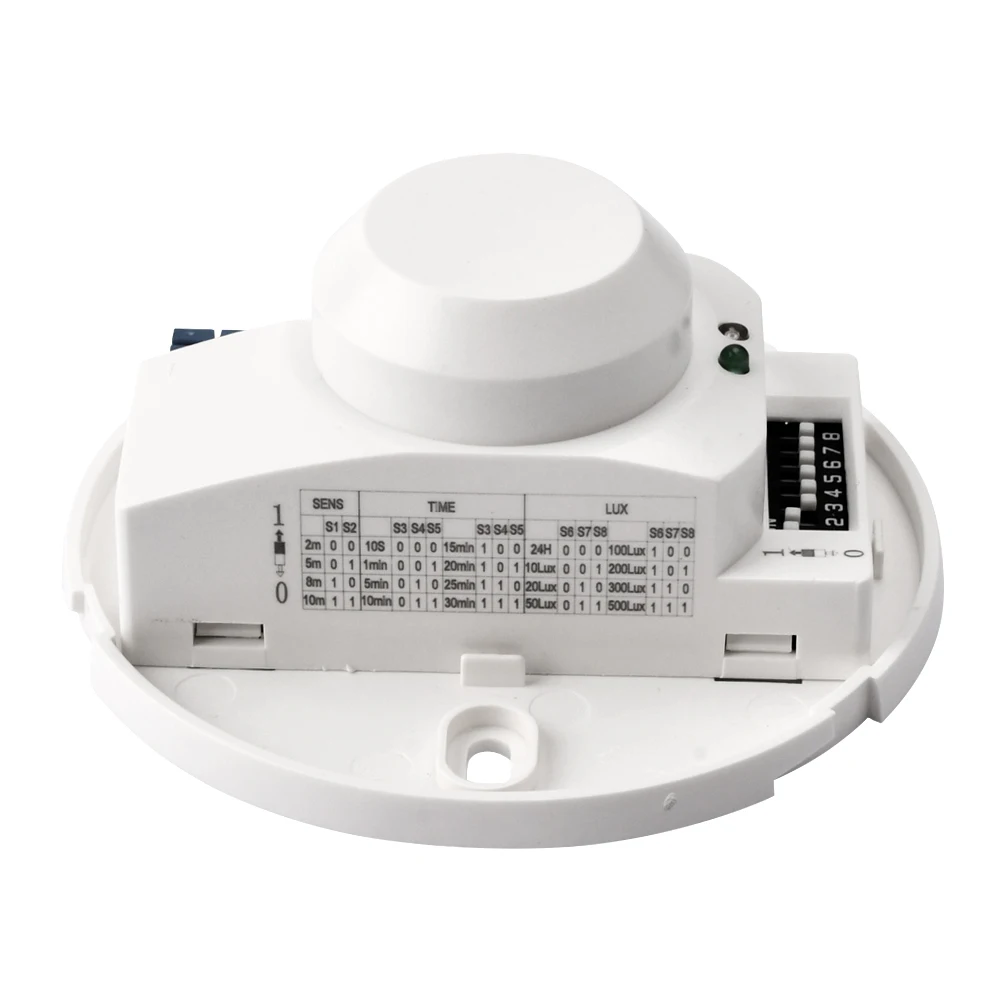

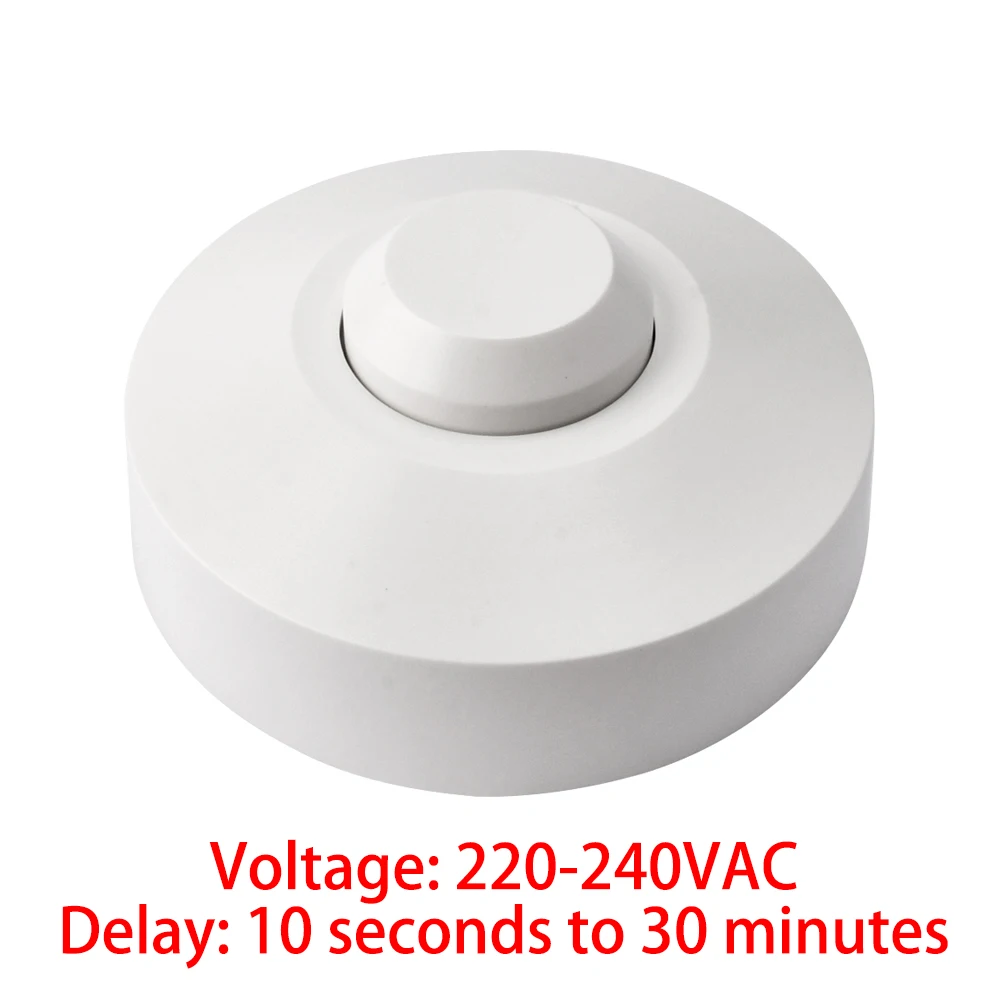

AC220-240V
Specifications:

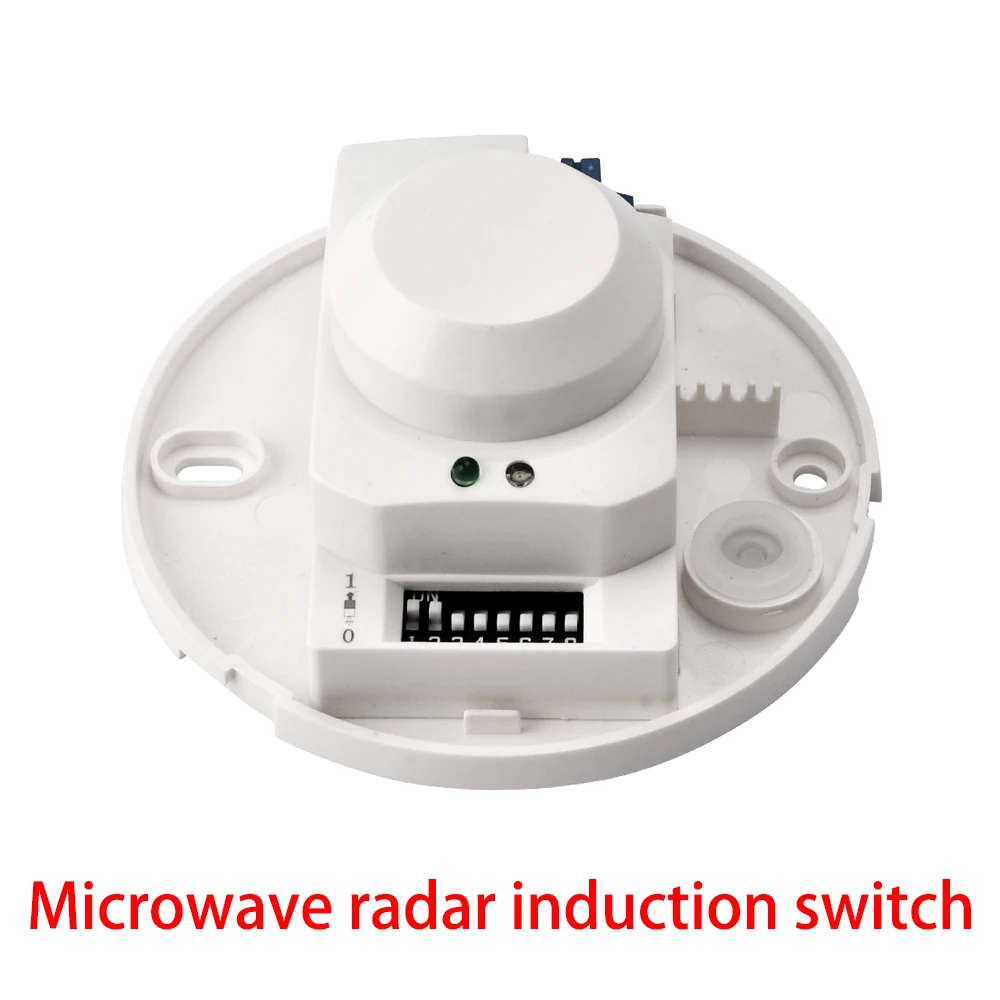

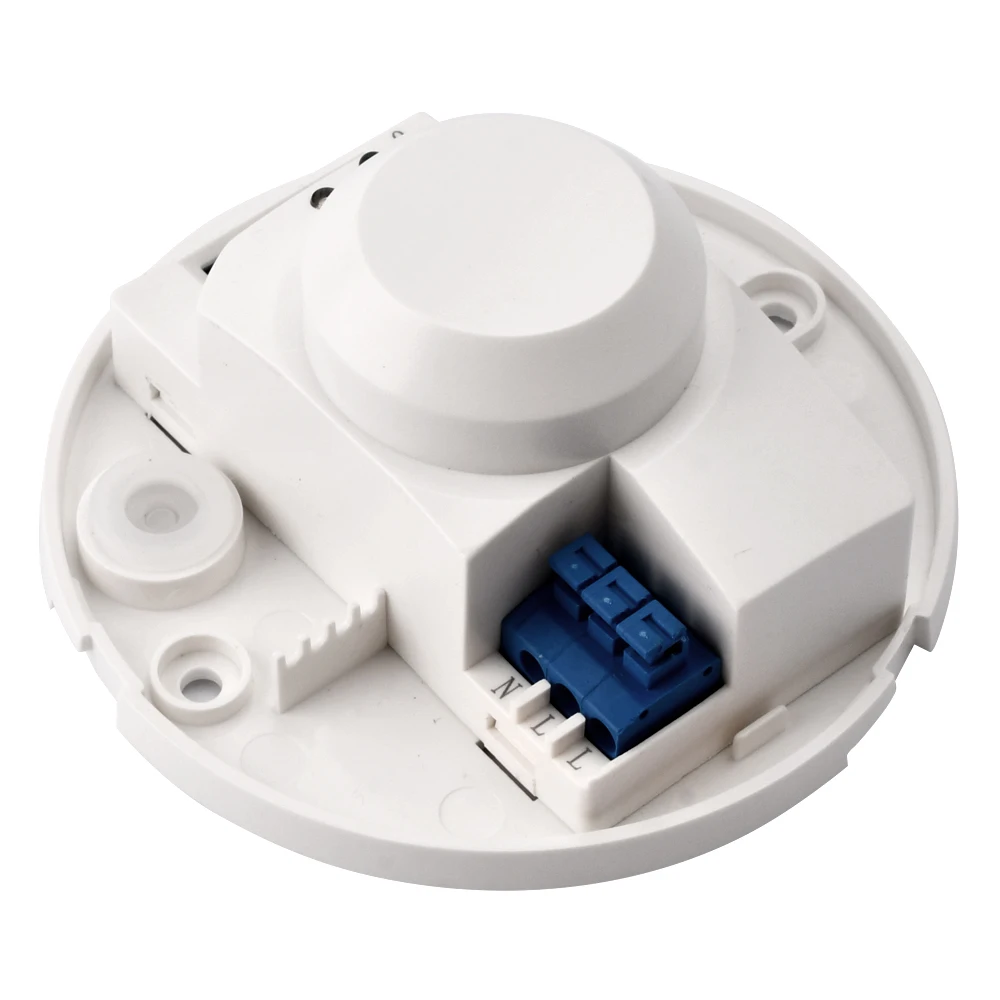

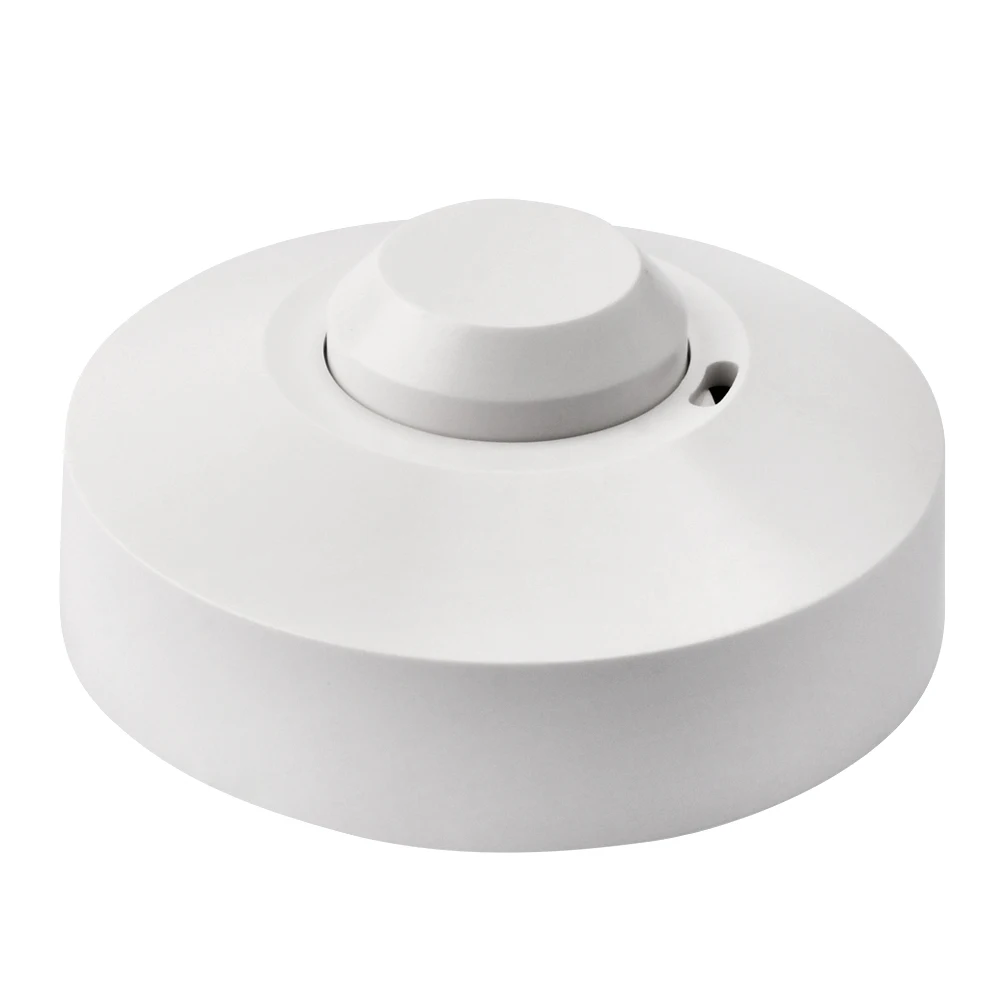

Type: Microwave radar induction switch
Model number: SK-701
Operating voltage: AC220-240V
Rated current: 10A
Hole distance: 72mm
Power frequency: 50/60Hz
Installation mode: indoor, ceiling installation
HF system: 5.8Hz +/-75MHz CW radar
Power consumption: <0.5W
Transmission power: <0.2mW
Power load: 1200W incandescent lamp 300W LED
Detection Angle: 360°
Working delay: 10 seconds to 30 minutes
Detection distance: 2 to 10 meters
Light control illumination: 10-2000LUX
Operating temperature: -20°C-70°C

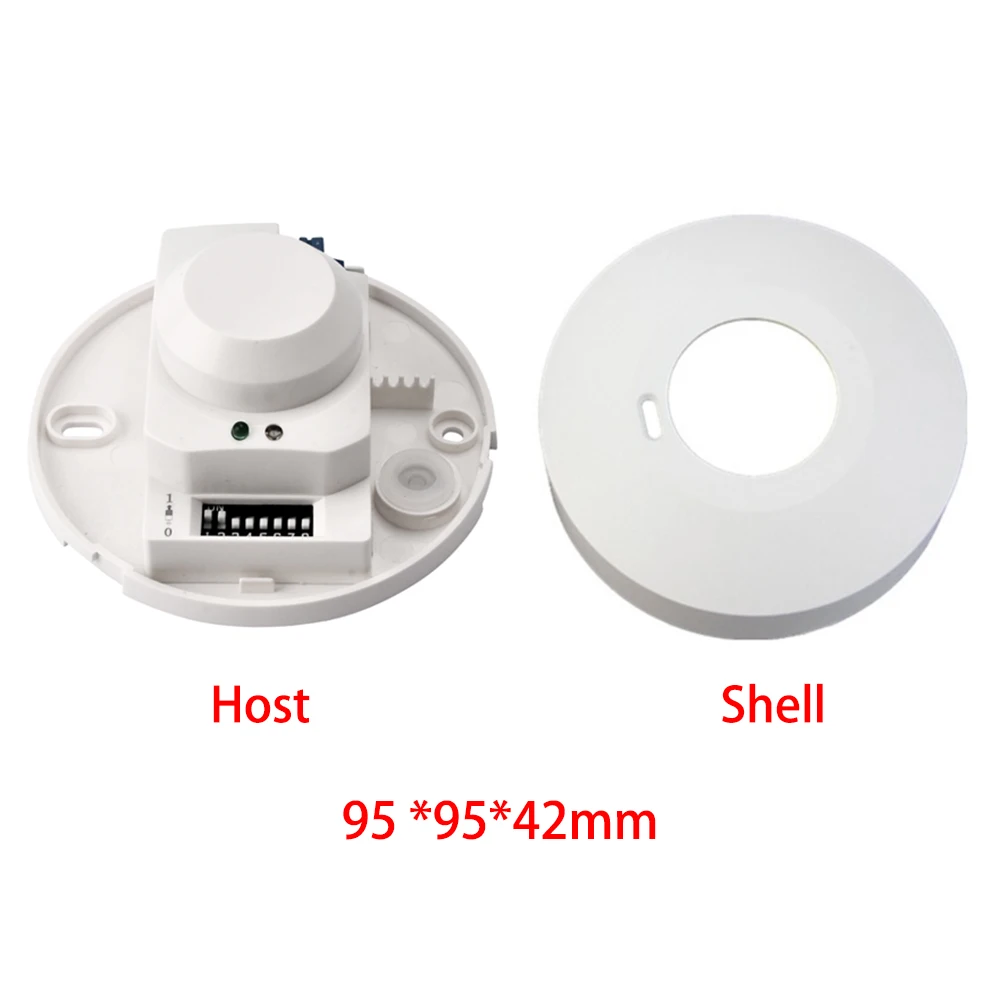

ize: 95* 95*42mm
Shipping list:
1* induction switch
