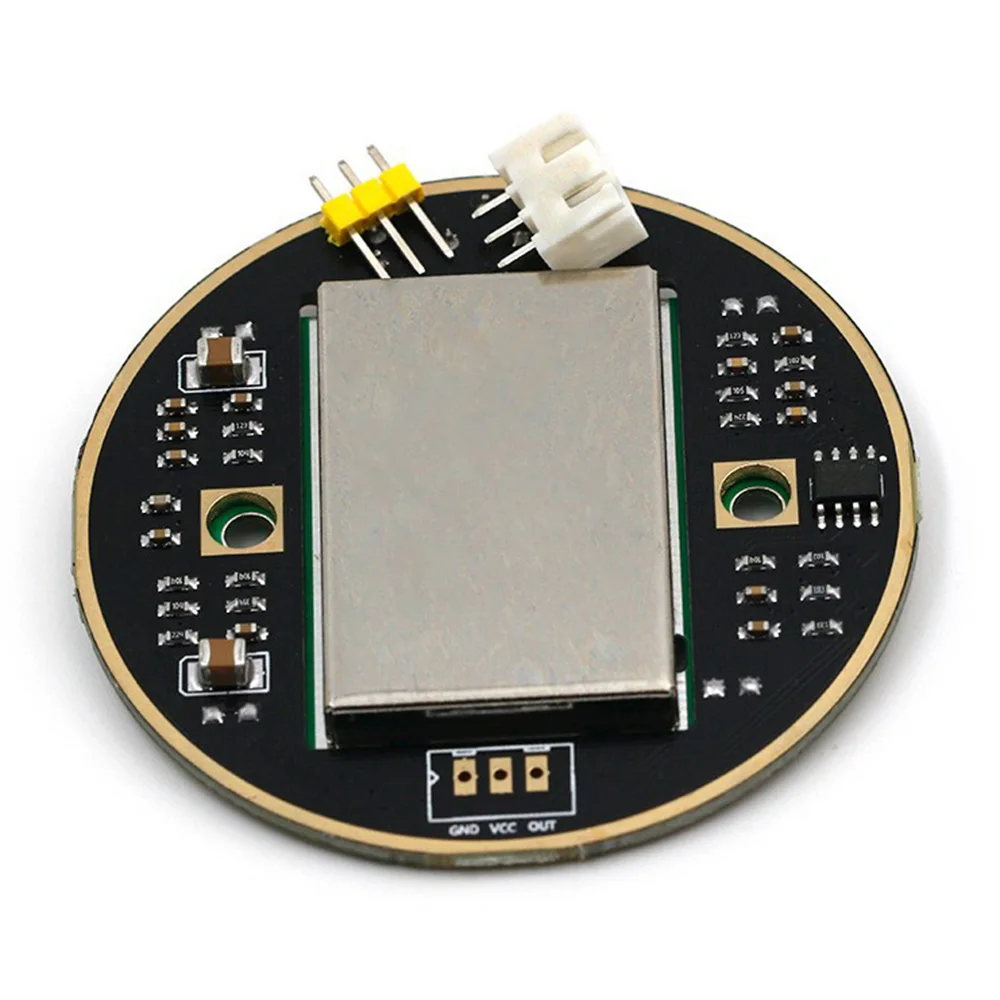

Features:
1.Non contact detection, microwave has good directionality, and the speed is equal to the speed of light
2.Not affected by temperature, humidity, noise, airflow, dust, light, etc., suitable for harsh environments
3.Strong resistance to radio frequency interference
4.Low output power, no harm to human body
5.Long detection distance, supporting the detection of non living objects

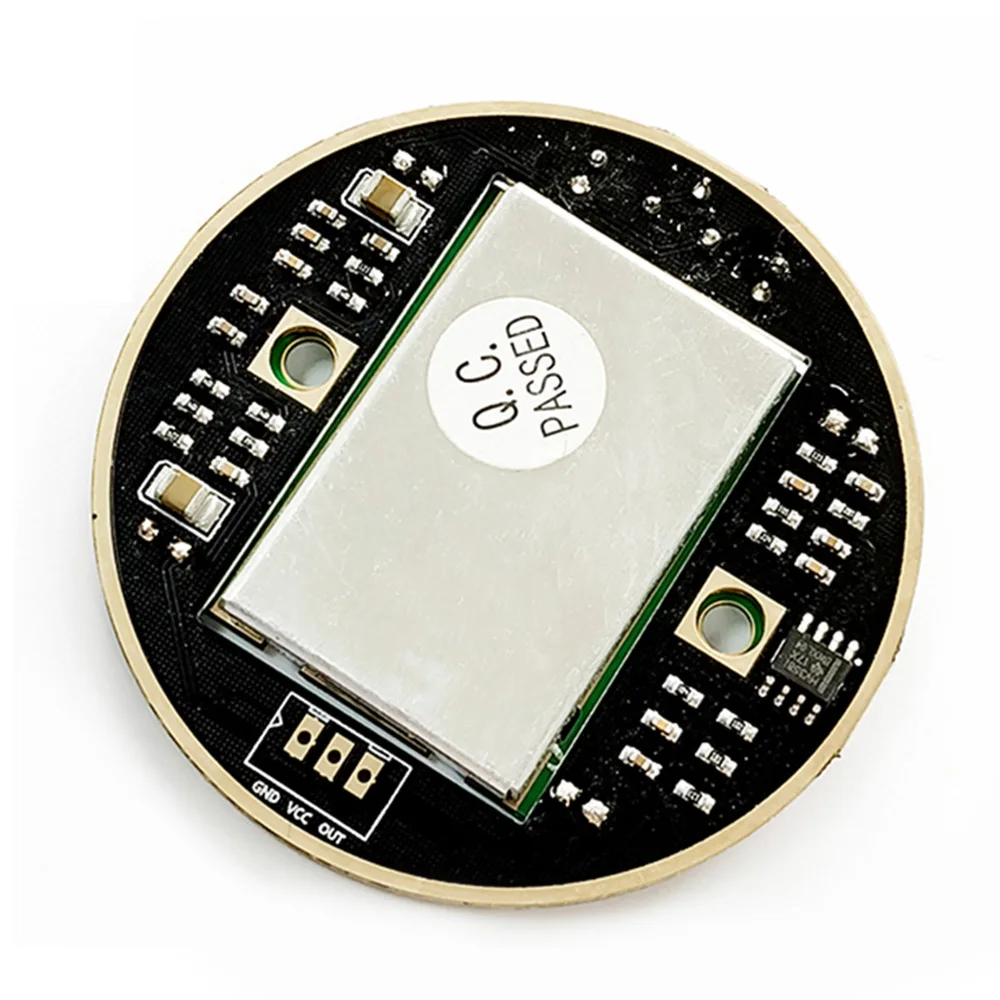

Summary

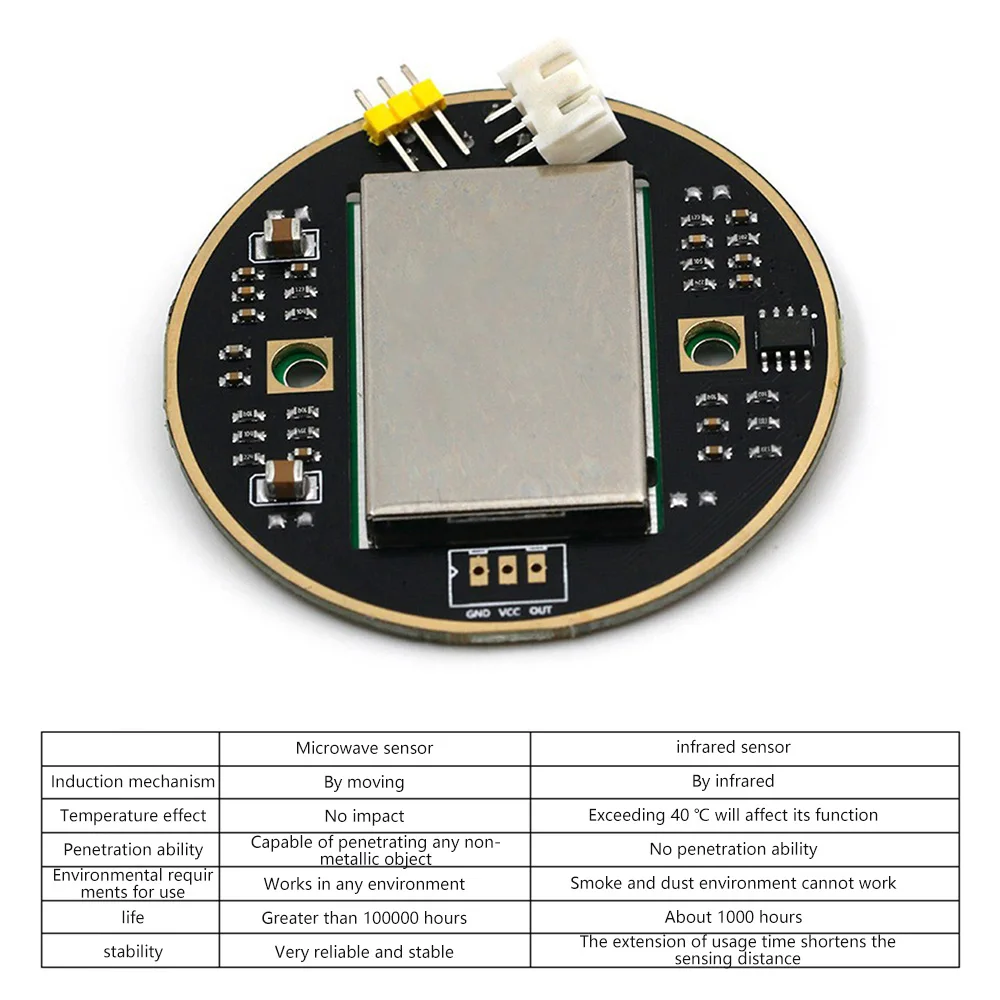

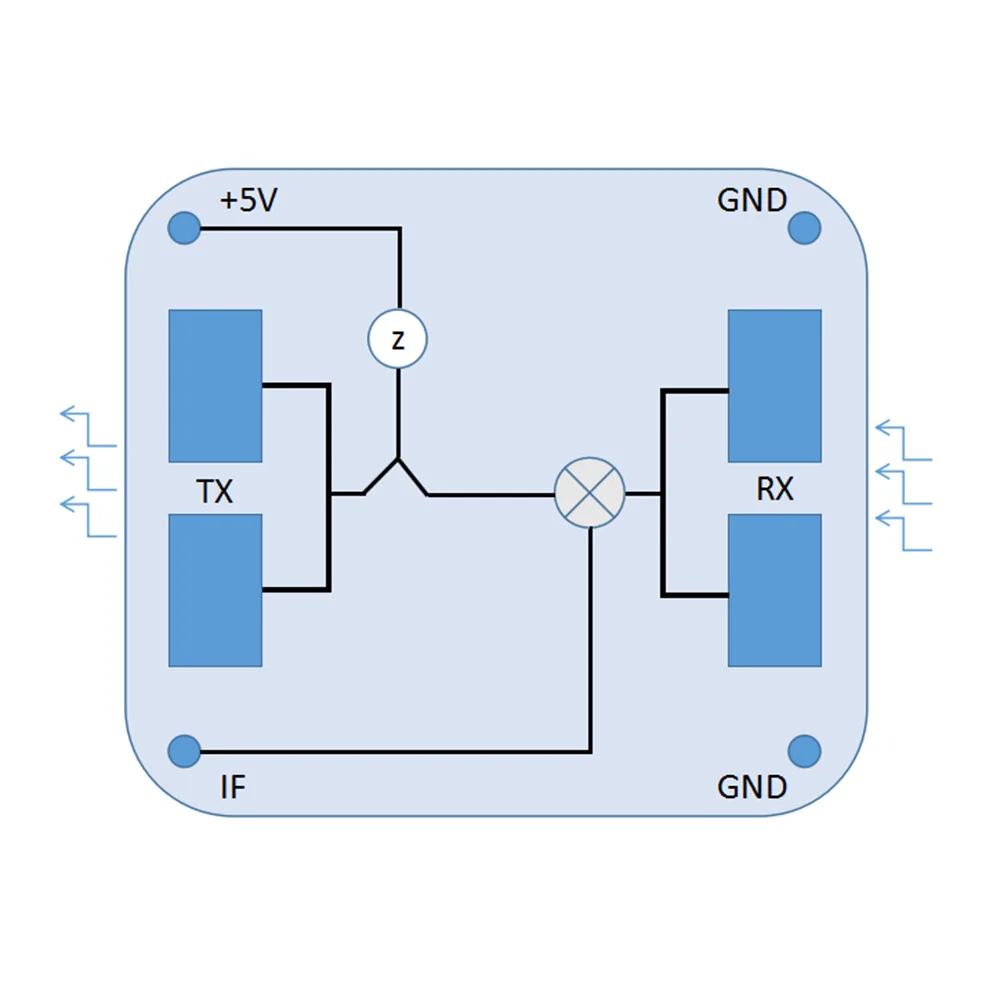

Microwave motion sensor is a microwave moving object detector designed using the principle of Doppler radar. Unlike ordinary infrared detectors, microwave sensors detect the motion of objects by detecting the reflected microwaves. The detection object will not be limited to the human body, but there are many other things. Microwave sensors are not affected by ambient temperature, with long detection distance and high sensitivity, and are widely used in industrial, traffic and civil devices, such as vehicle speed measurement, Automatic door, induction lights, Parking sensor, etc.
Due to the universality of microwave sensors in detecting objects, in practical life applications, another sensor will be used for targeted detection. Microwave sensors combined with infrared pyroelectric sensors can effectively determine whether someone has passed by, without being disturbed by sunlight, clothing color, or reacting to other objects.

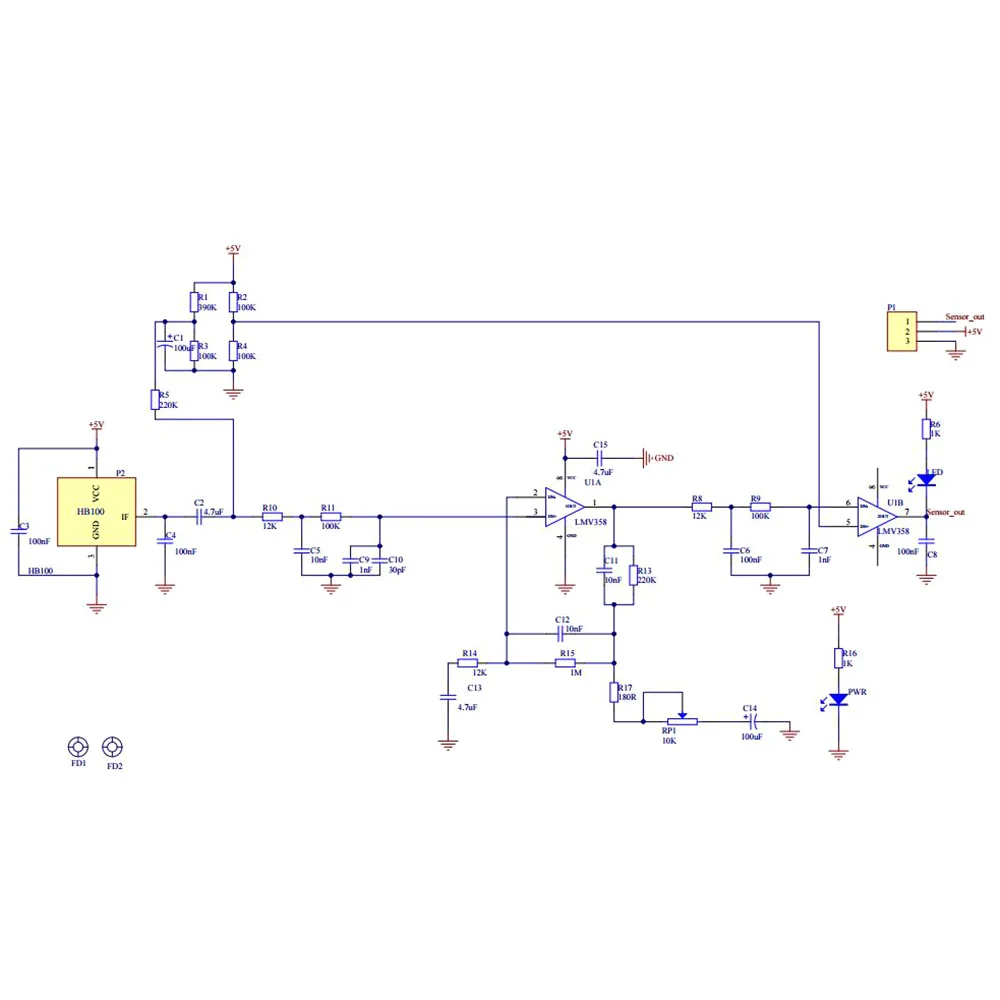

Parameters:
Working voltage: 5V
Working current (CW): 60mA maximum, 37mA typical

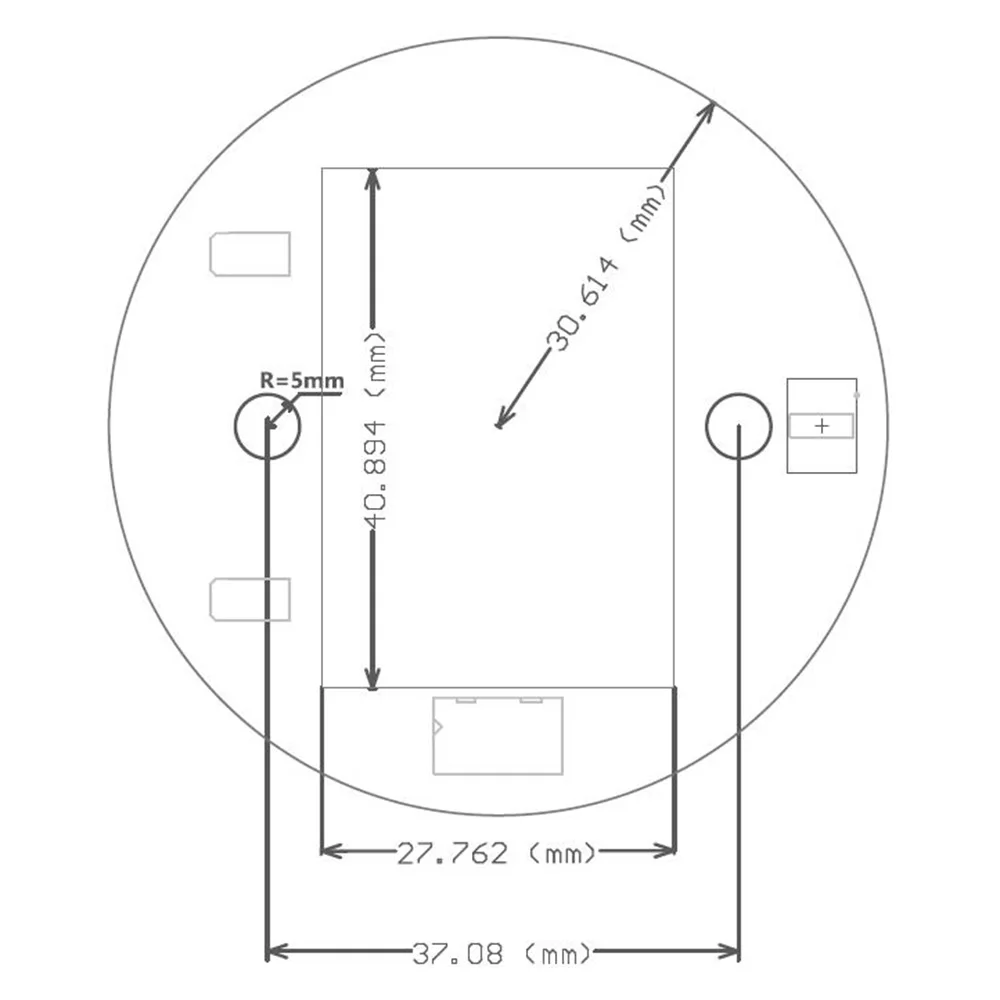

Size: 61.2×61.2mm
Emission parameters
Detection distance: 2-16m continuously adjustable (minimum range of 2m, maximum range of 16m)
Transmission frequency: 10.525 GHz
Frequency setting accuracy: 3MHz
Output power (minimum): 13dBm EIRP
Harmonic emission: < -10dBm
Average current (5% DC): 2mA typ
Pulse width (Min.): 5uSec
Load cycle (Min.): 1%
Receive parameters
Sensitivity (10dB S/N ratio) 3Hz to 80Hz Bandwidth: -86dBm
3Hz to 80Hz bandwidth clutter 10uV
Antenna gain: 8dBi
Vertical plane 3dB beam width: 36 degrees

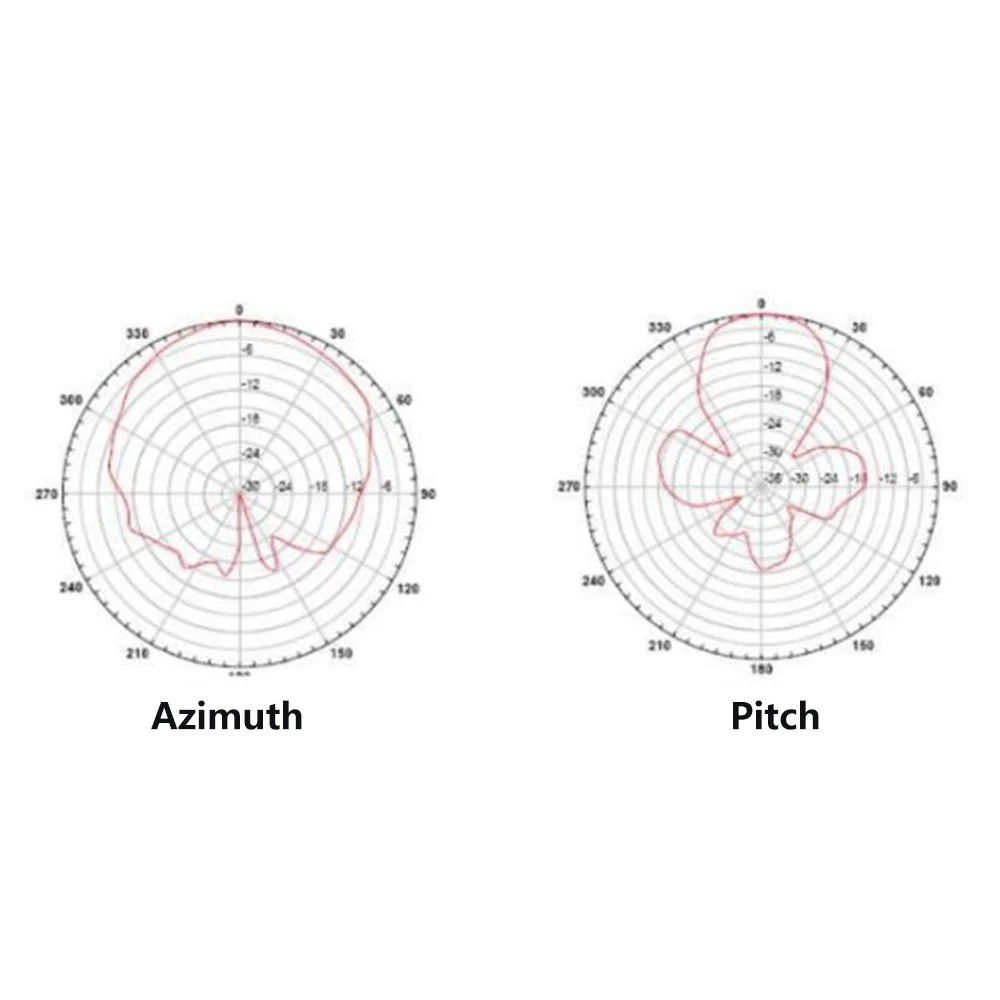

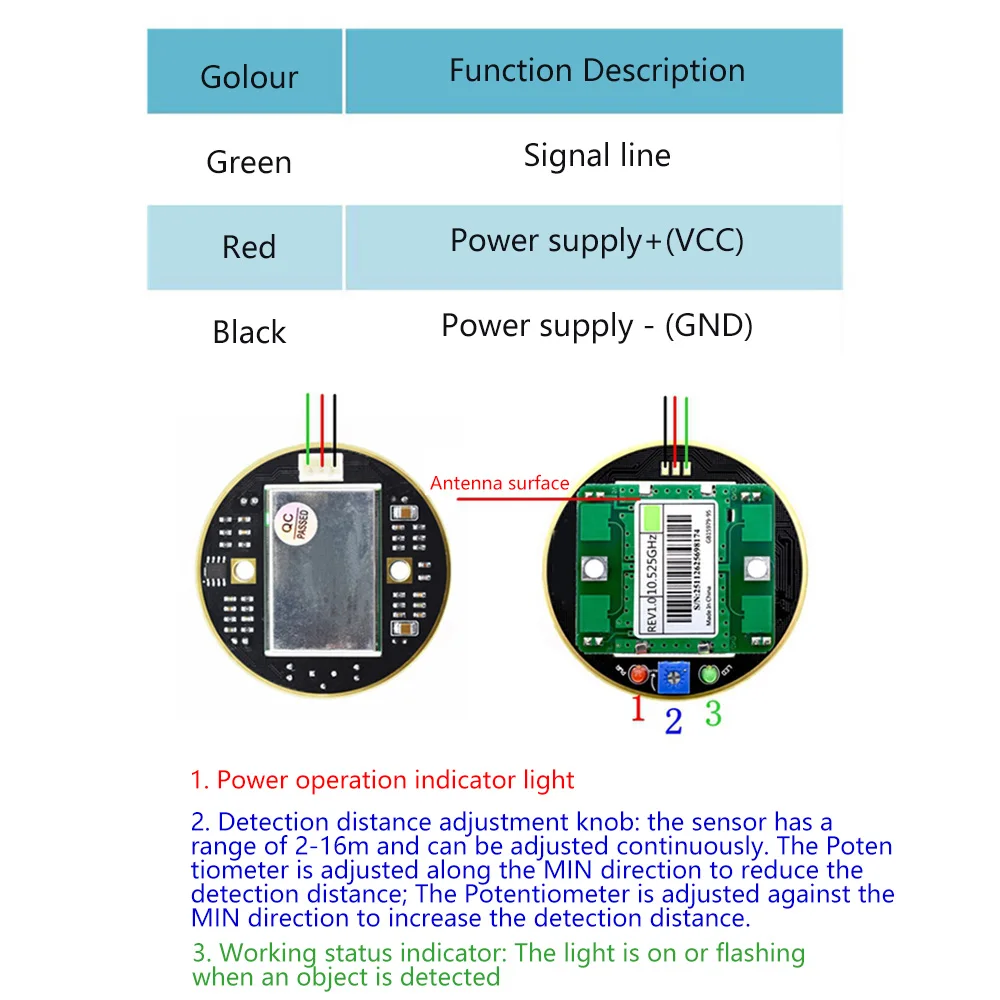

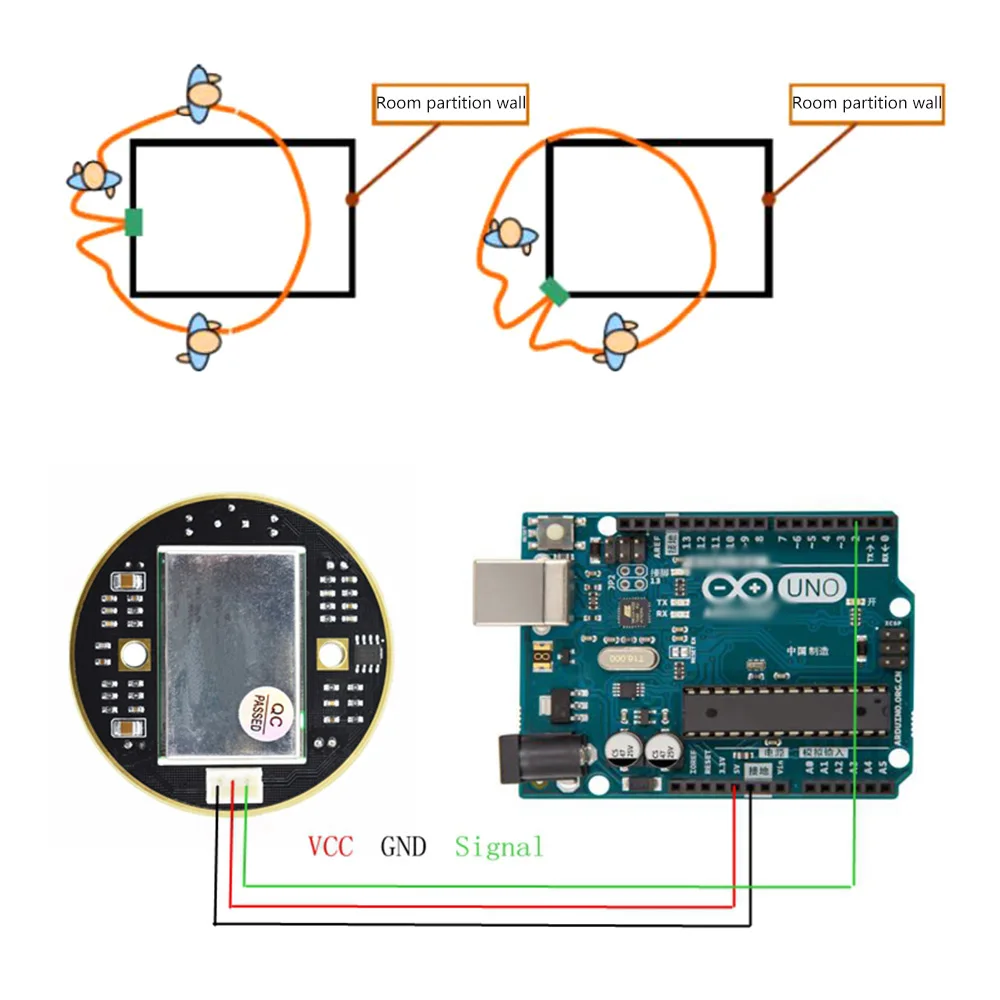

Horizontal 3dB beam width: 72 degree pin description

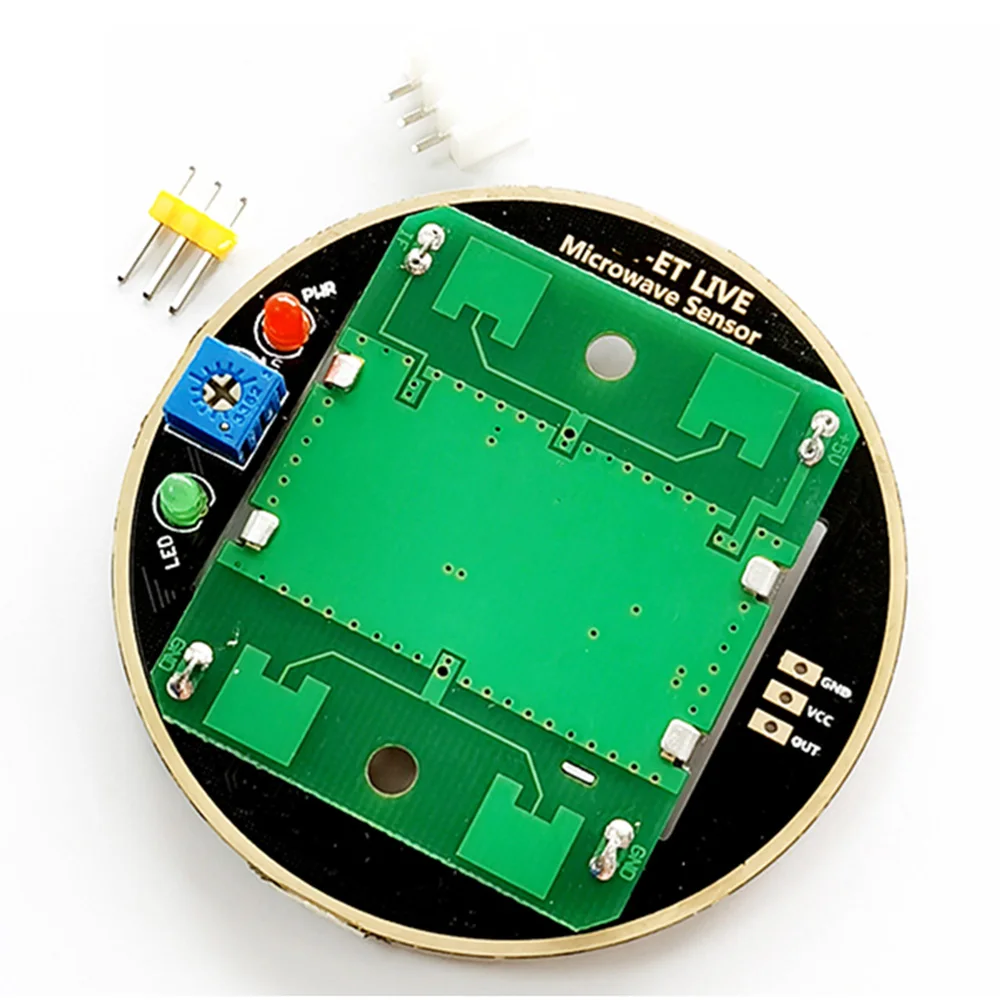

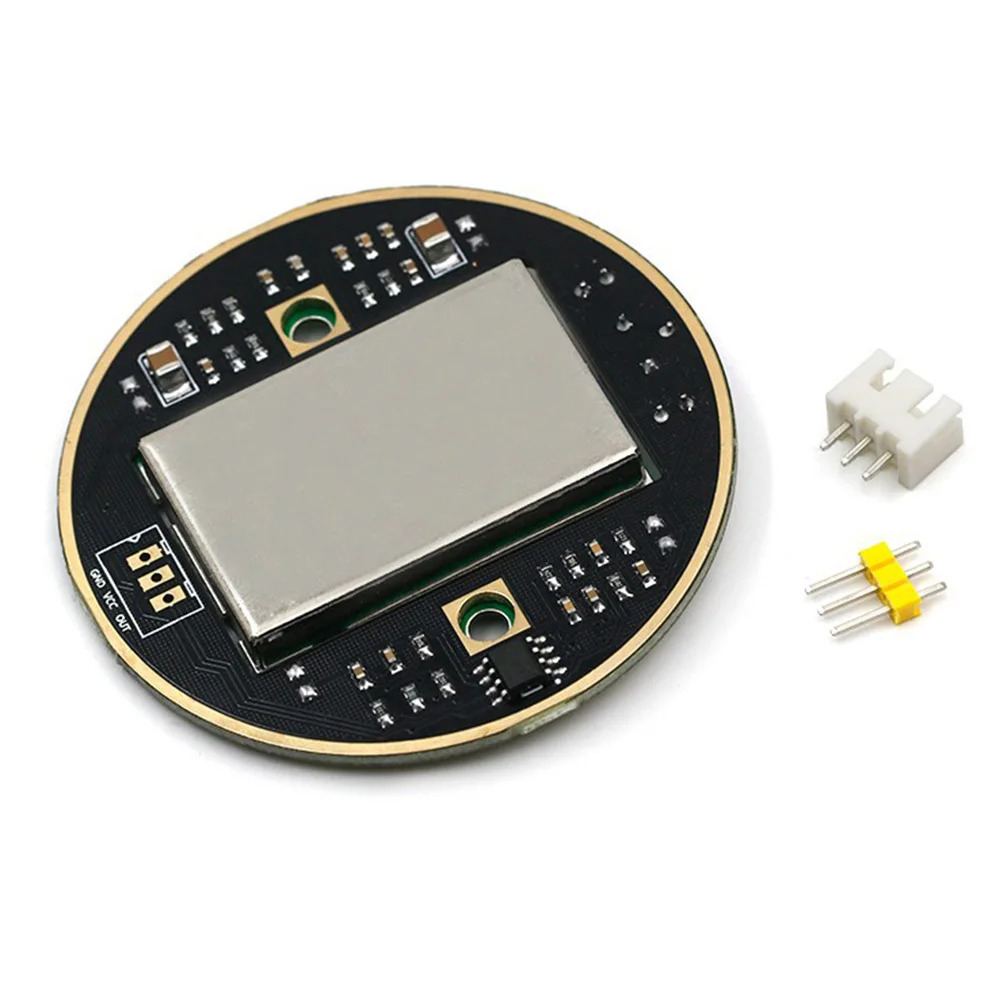

Package include:
Sensor module * 1
Pin arrangement * 2
