- is_customized: Yes
- Theory: Optical Sensor
- Usage: Ray Sensor
- Model Number: 8A Automatic Adjust PIR Motion Sensor
- Material: Polymer
- Type: Biosensor
- Output: Switching Transducer
- Brand Name: GREATZT
- Origin: Mainland China
Feature:
Material: Plastic and metal
Type: Pir Switch
Easy to install and simple to use
Adjust the light soft and stable, no flickering
Mainly use to control LED light lamps and LED Strip
You can conveniently to let the light auto on/off. The switch can detect human body’s infrared , and use infrared to control the load
Users according to actual needs, the human body sensors installed in the appropriate environment
Applications: Incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp and other kinds of load
Technical Parameters:
Working temperature: -20 to +60 °C
Input Voltage: 10.5-16V or 21-32V
Output Voltage: 10.5-16V or 21-32V
Induction distance: 8M
Induction angle: 60 degrees
Output current: <6A

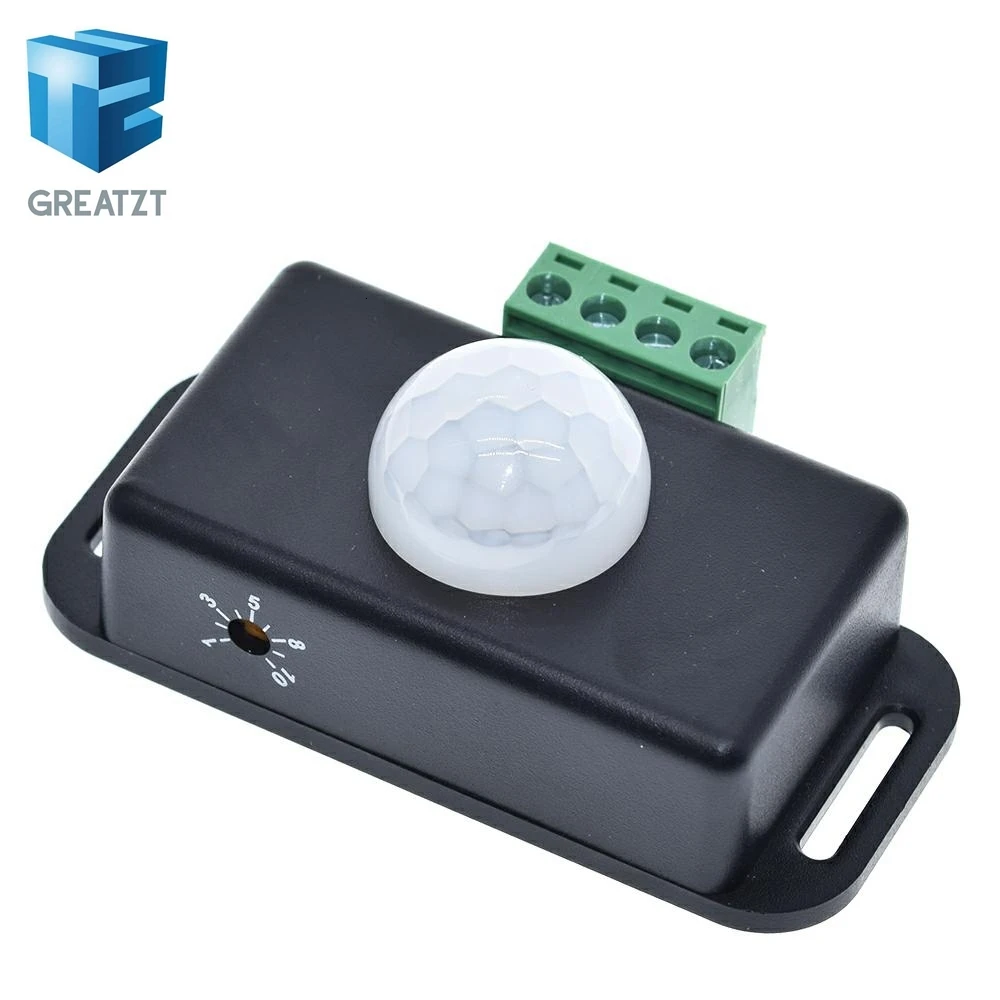

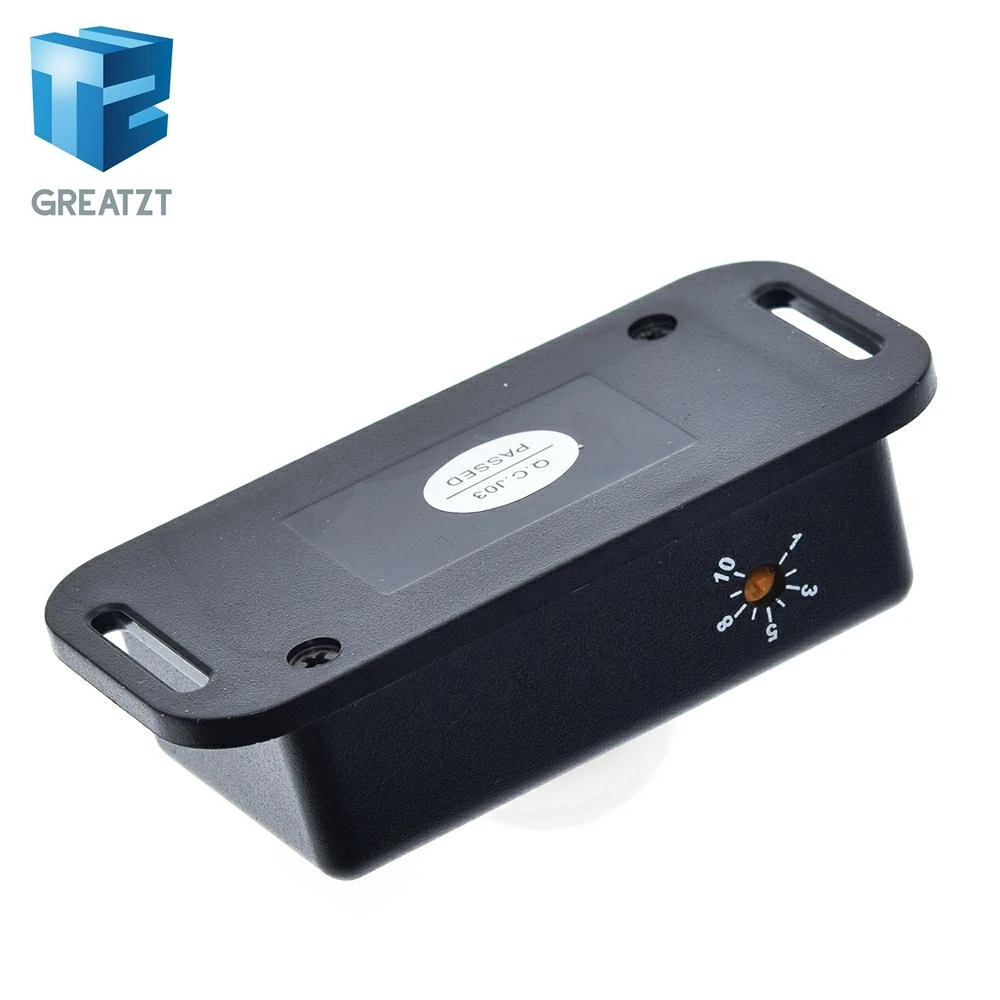

Delay Time: 1-10min(adjustable)
Dimensions: 76 * 45 * 34mm / 2.99 * 1.77 * 1.33"
Package include:

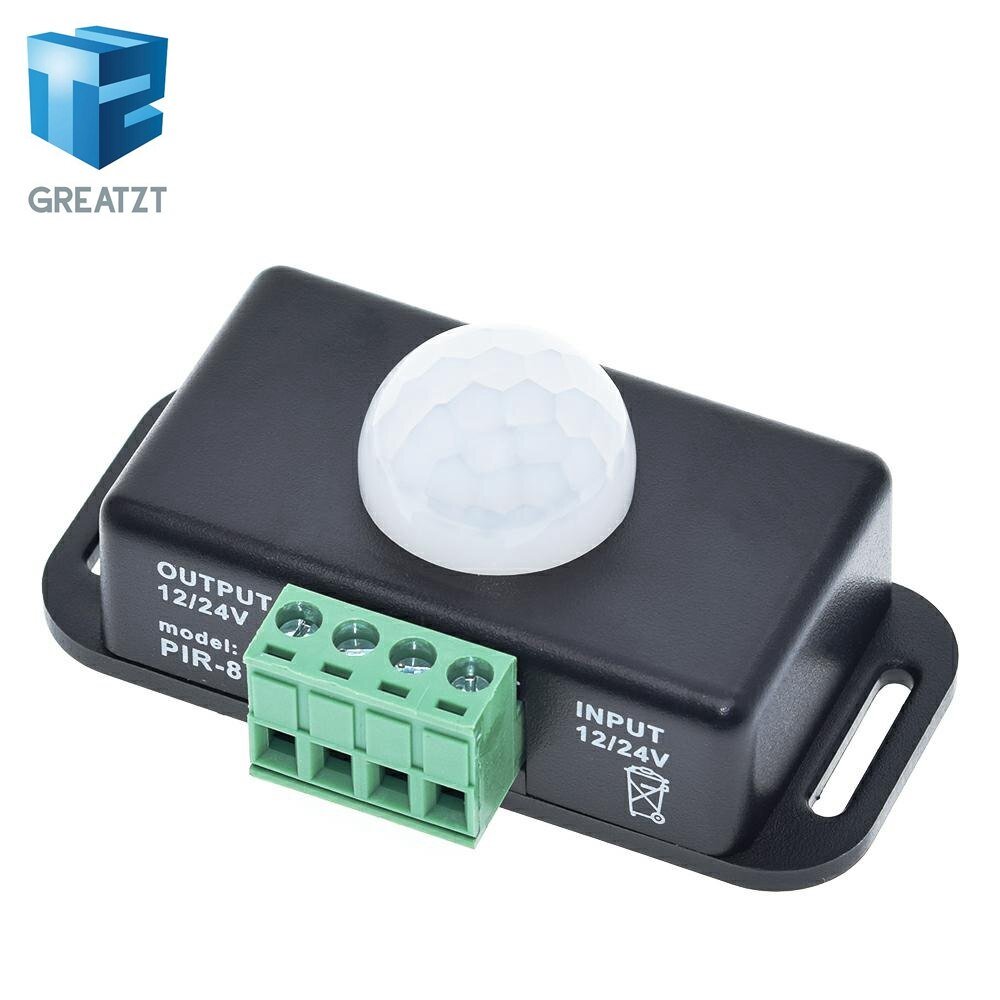

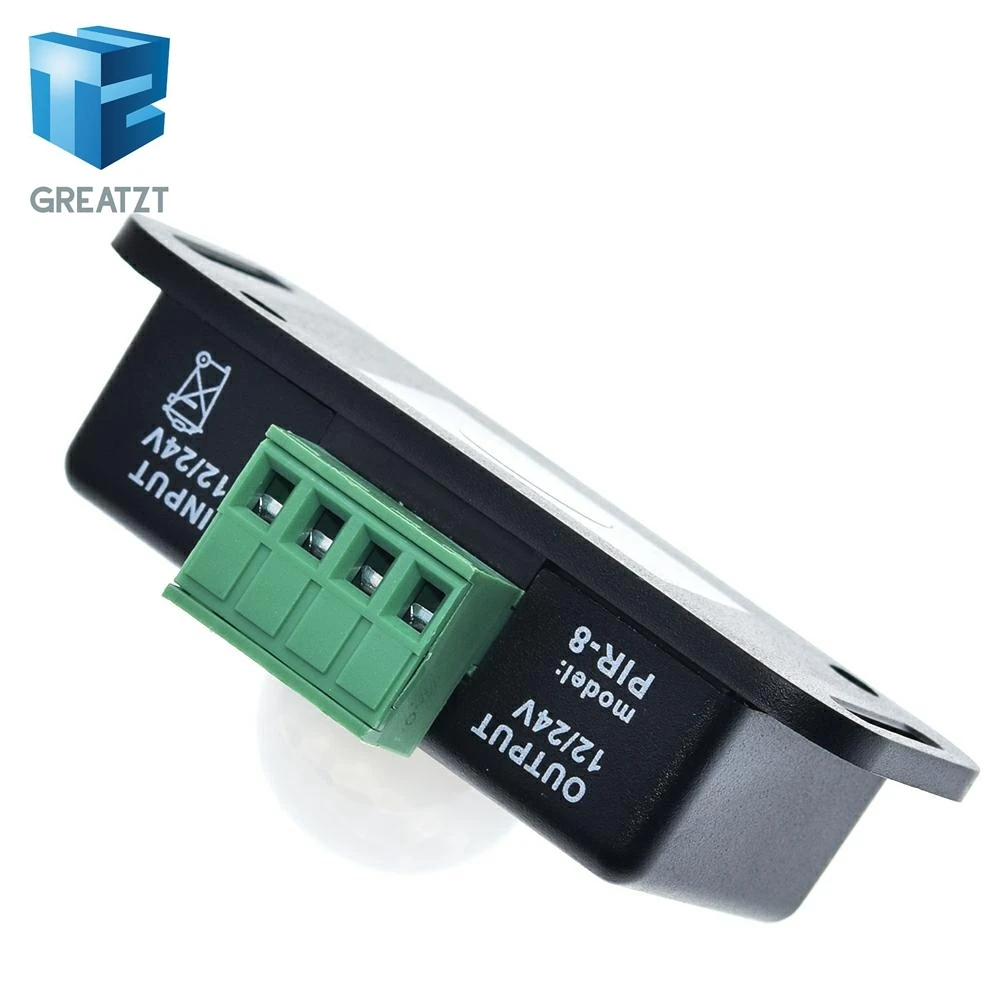

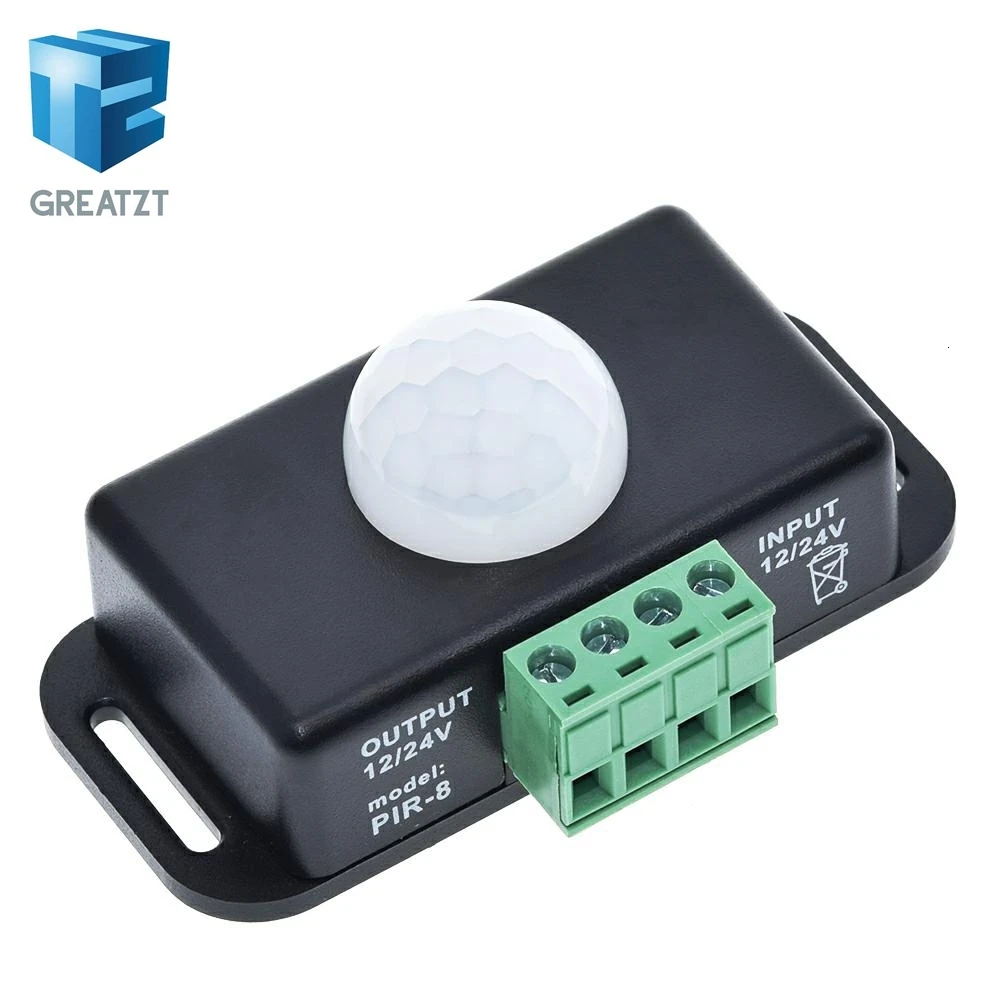

1x DC 12V/24V 8A Body Infrared PIR Motion Sensor Switch For LED Light Strip Automatic(without LED)
