ZRE-MSNCR eWeLink PIR2 Smart Home Motion Sensor With Battery Detector Motion Sensor 433Mh RF Work With SONOFF RF Bridge

Itead SONOFF PIR2 Smart Home Motion Sensor With Battery Detector Motion Sensor 433Mh RF Work With SONOFF RF Bridge

This RF BridgeR2 433 can convert most of the 433.92MHz RF Remotes into WiFi wireless. By adding the RF wireless Bridge to iOS/Android App eWeLink WiFi wirelessly, You can add up to 16 RM433 RF or alarms, also add them together (max. 16 items).
One 4 button remote controller can learn 4 devices, which means 64 devices supporting 433 MHz frequency can be added on the app through WiFi/2/3/4G network.

It can be used for most of the 433.92MHz RF Remote controlled products, like RF controlled switch, RF controlled socket, RF controlled bulb, RF controlled door opener, etc. You can set totally 8 schedule/countdown/loop timers to turn on/off the RF controlled products.

Even more exciting is that it will work with the 433.92MHz door magnetic sensor, 433.92MHz human body IR sensor, and more other 433.92MHz sensors to realize security alarm, and allowing you to DIY smart scenes. Note that the alarm push only comes in the owner’s account, those users being shared can’t view the alarm push.

The RF BridgeR2 can work with SONOFF DW2-RF wireless door/window sensor that allows users to set the smart scene for the sensor and the device to be controlled, then when you open/close the door, the device will be triggered on or off.

Note 1:
The receiving supports fixed code 433.92 frequency, like PT2260, PT2262, PT2264, EV1527, etc.
The product doesn’t support to learn rolling code and dynamic code
You can’t see device status changes in the App.
Note 2:

Scheduled/countdown timers are supported.
iOS App supports to add this product.
433MHz RF curtain switch and RF alarm are supported.

Note 3: PIR2 must be used in conjunction with RF Bridge.

433 RF Bridge

Change the control way from 433Mhz RF to the eWelink with Wi-Fi, It can work with PIR2 motion sensor and DW1 door/ window alarm to serve home security.

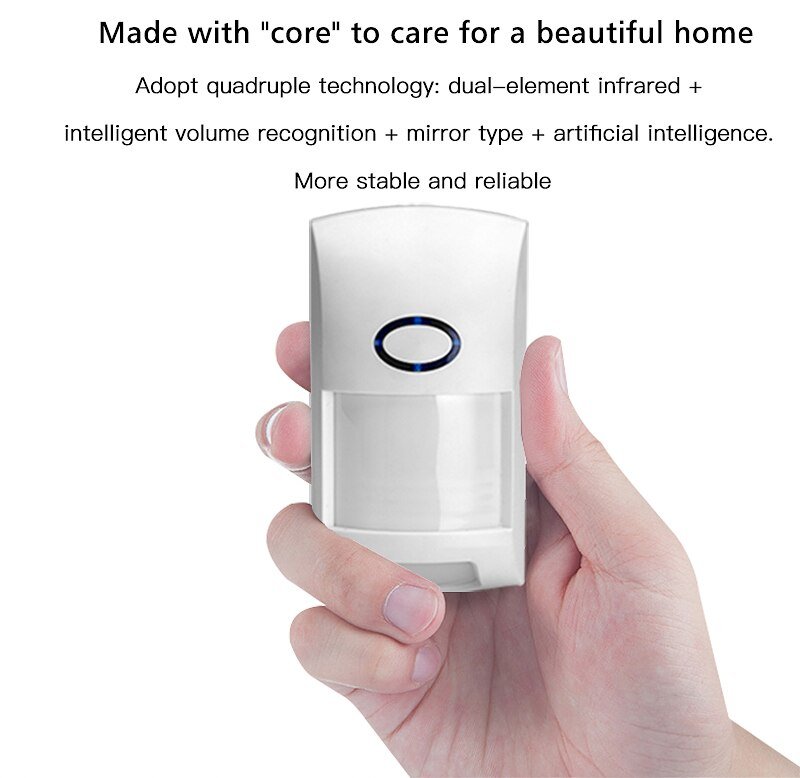

PIR2 Sensor

Detect human movement and any presence and send an alarm message to your phone.Keep an eye on your house.Works nicely with SONOFF 433 RF Bridge.

Specifications:

Specifications for RF Bridge 433:
Power Supply: USB 5V
Wireless Standard: WiFi 802.11b/g/n, 433.92MHz
Security Mechanism: WPA-PSK/WPA2-PSK
Product Dimensions: 62*62*20 (mm)
Certificate: CE (download), Declaration of EU RoHS Conformity

Specification for Sonoff PIR2 sensor
433.92MHz Transmit distance: 150m (open)
Voltage: 3V (2*AA)
Standby current: ≤9μA
Alarm current: ≤10mA
Wireless frequency: 433.92MHz
Wireless Transmit Code: 1527Mhz (default)
Detection distance: 12m@ 25℃
Detection angle: 110 degrees
Maximum coverage area: 12m*12m
Alarm indicator light: on for 3 seconds
Working environment: indoor
Tamper switch: normally closed
Anti-white light intensity: 10000Lux
Packing size: 165*65*50mm
Product Size: 120*62*46mm
Battery type: 2*AA
Weight: 120g

Features:

Features for Sonoff PIR2 sensor
Dual infrared
Ultra-low power microprocessors
Double temperature compensation technology
Robust and durable, suitable for homes, offices, sheds, garages etc.
Easy installation and set-up, wall-mounted
