Product selling point

1: Sensitive

2: Energy saving and environmental protection

3: Easy to install

4: Wide range of applications, can be used for stairs, aisles, corridors, toilets, cabinets, office buildings, schools in various buildings

Community and other public places – switch control of light strips and low-voltage lamps

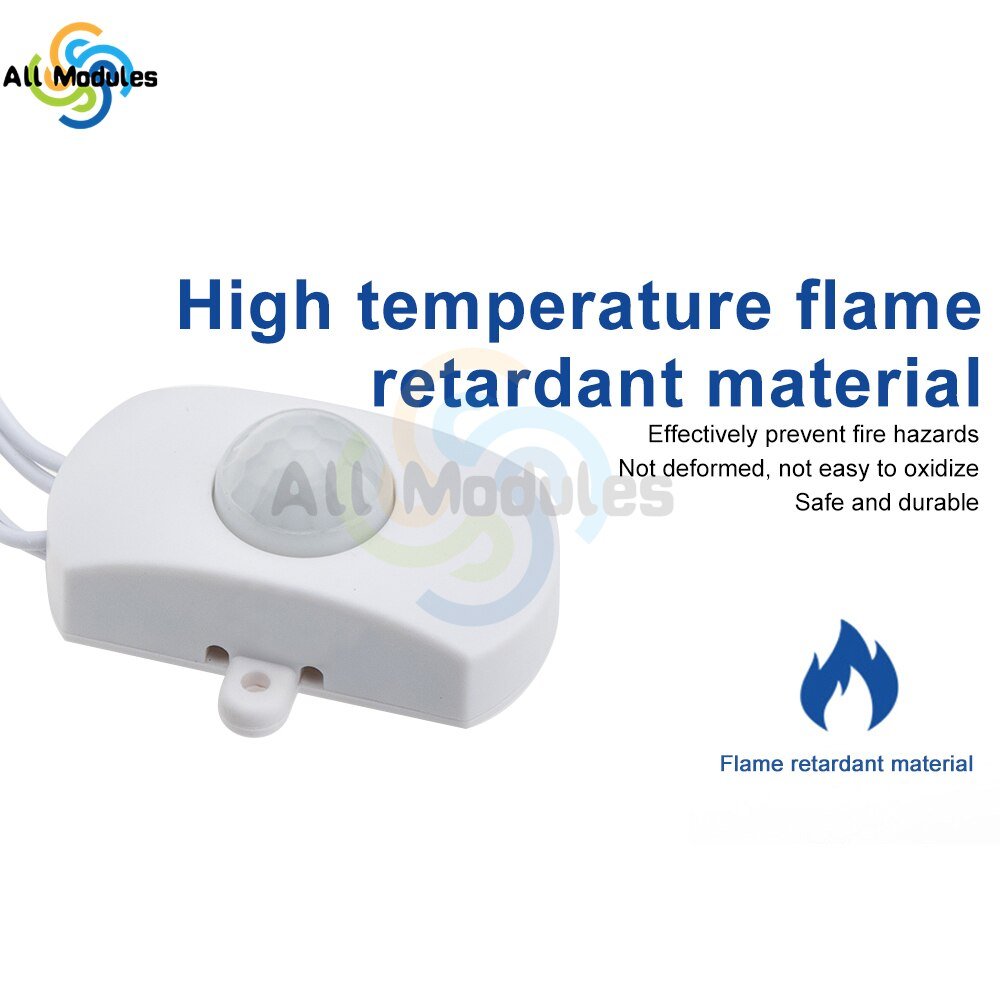

5: High temperature flame retardant material

Product Description

The sensor is suitable for low-voltage light strips. When someone enters the sensing range, the sensor detects

The change of the infrared spectrum of the human body, the switch automatically turns on the load, the light is on when people arrive, and the light is off when people leave, which is friendly and convenient, safe and energy-saving.

Product parameters

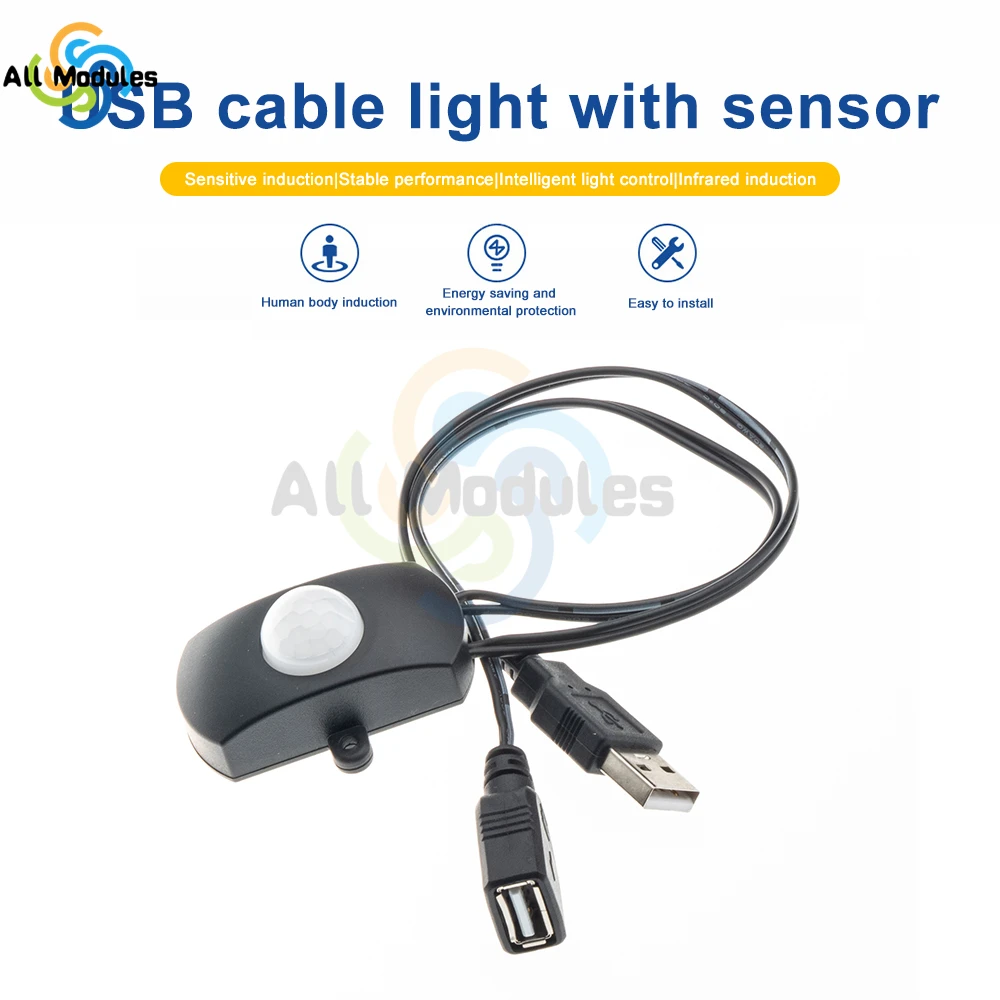

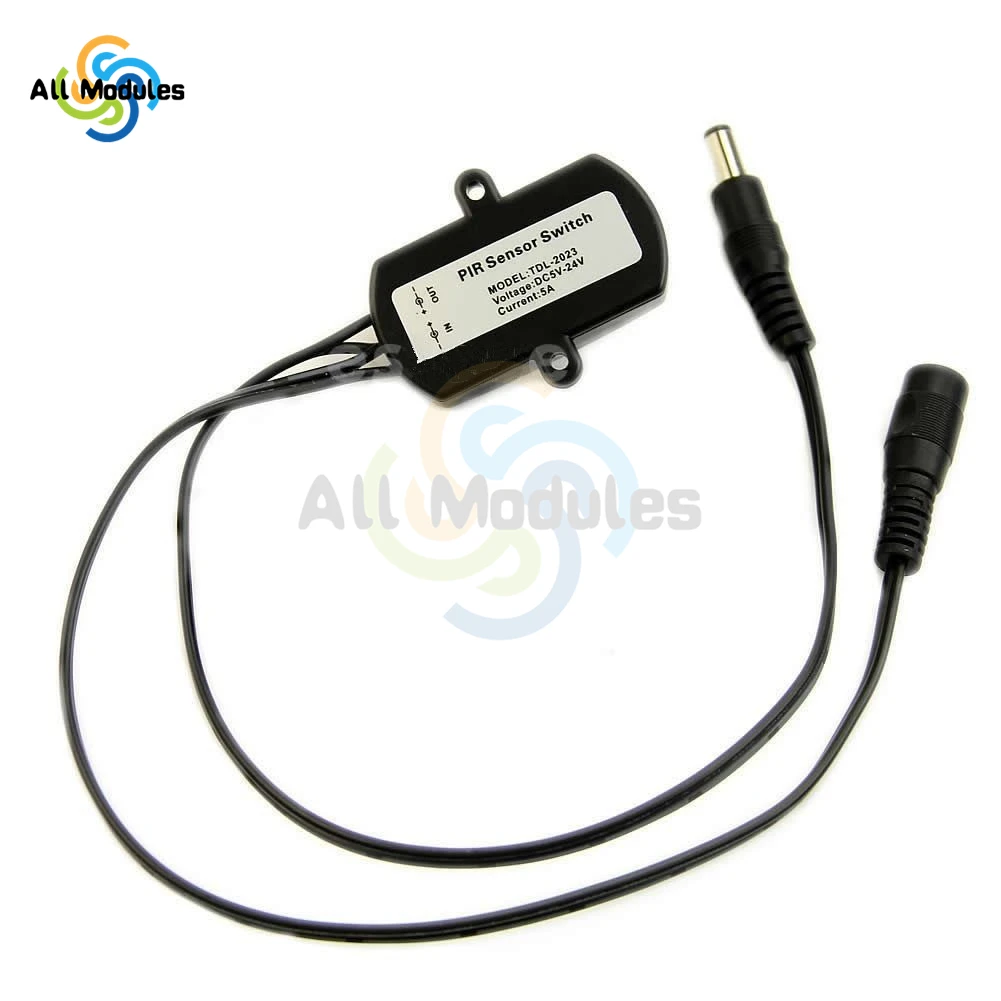

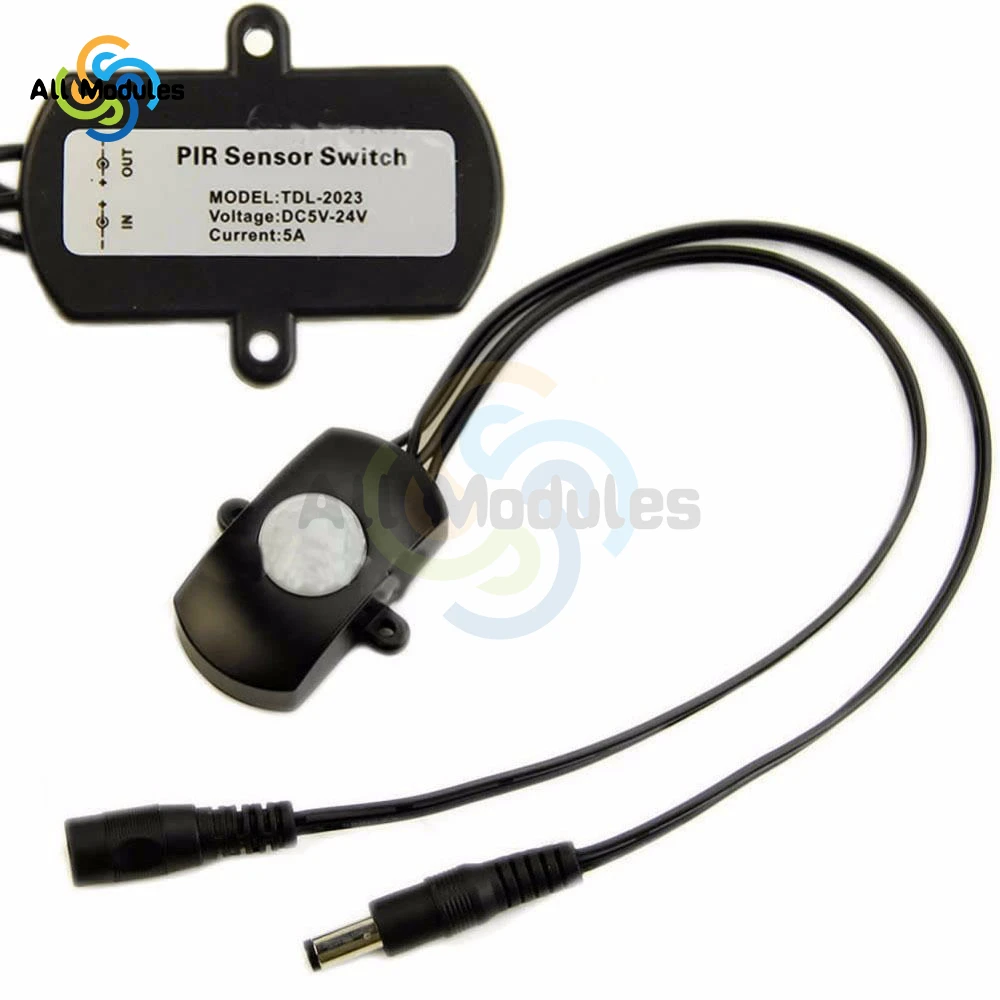

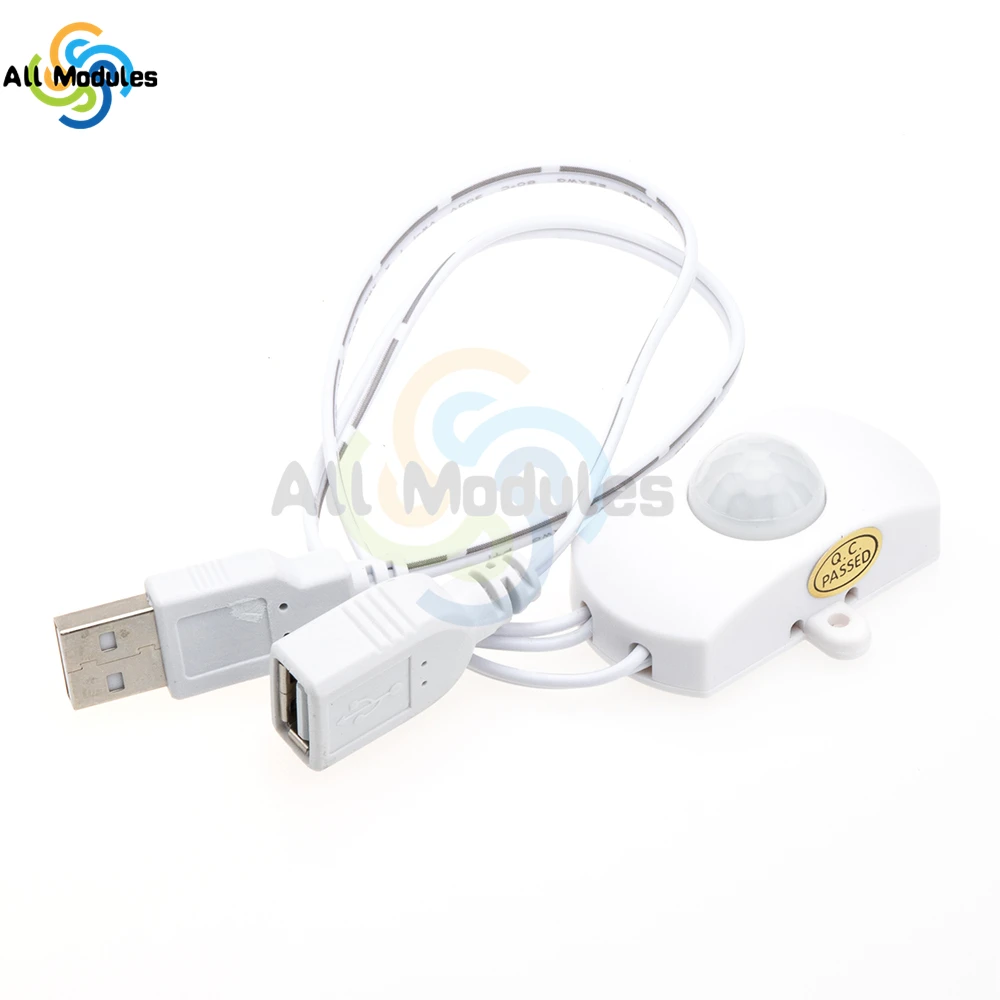

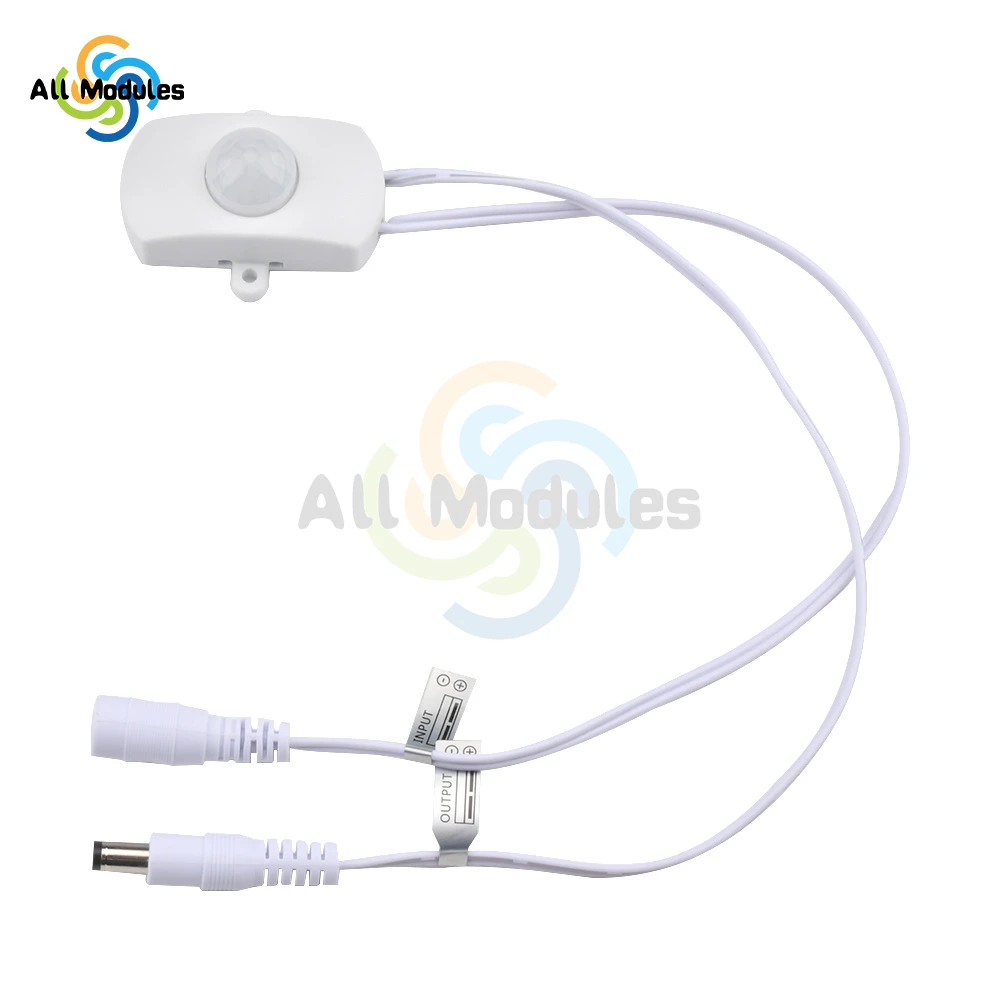

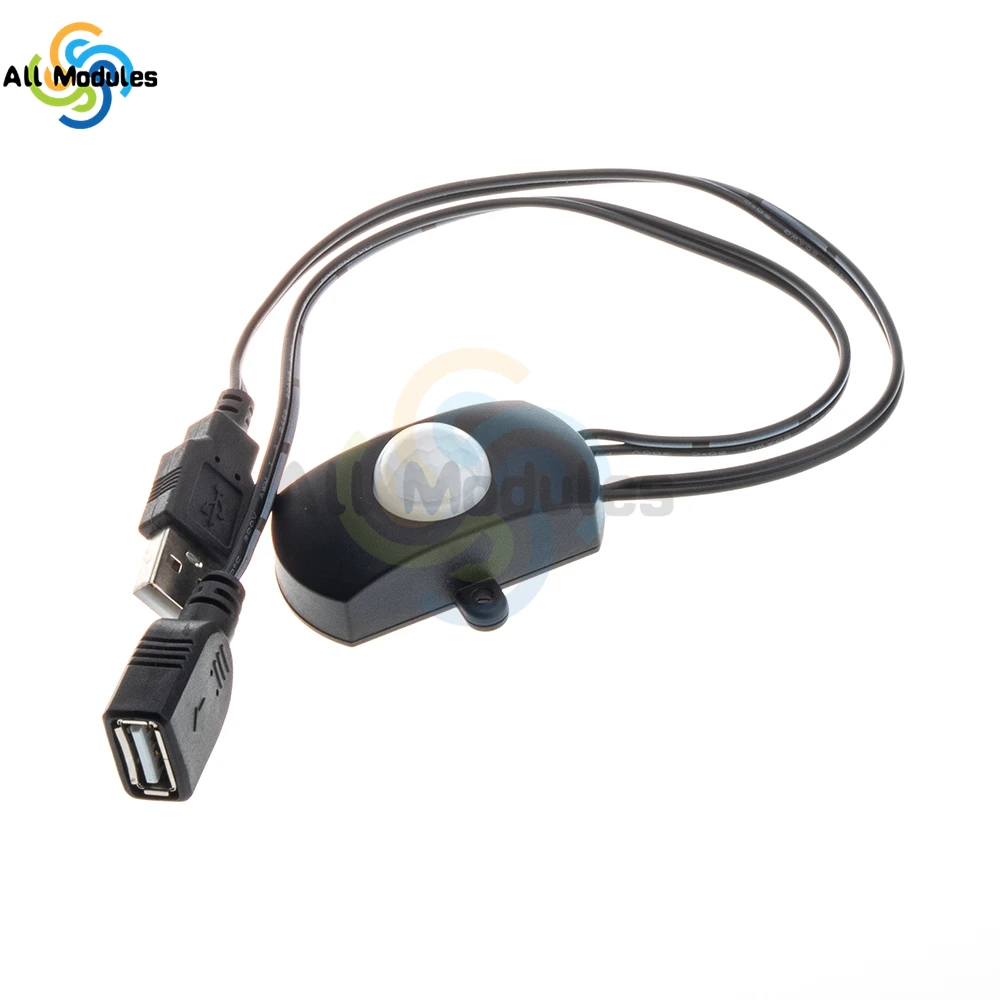

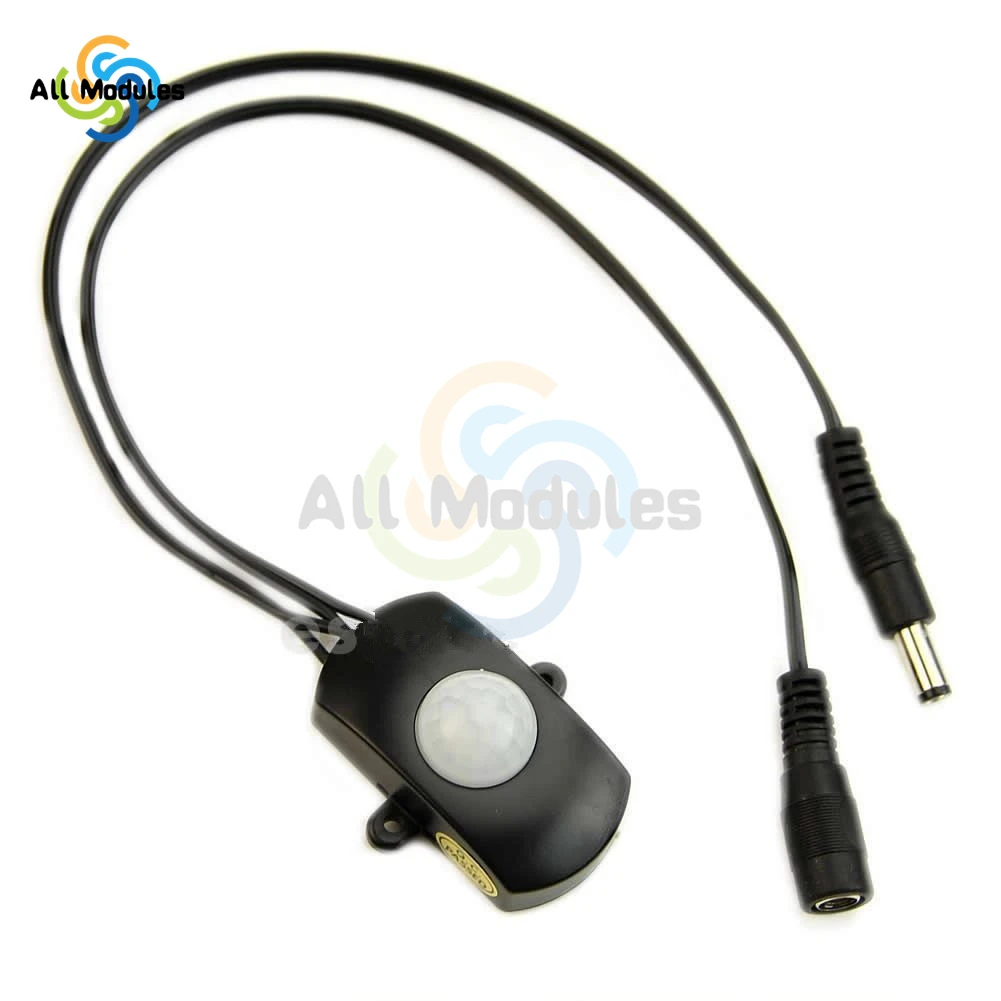

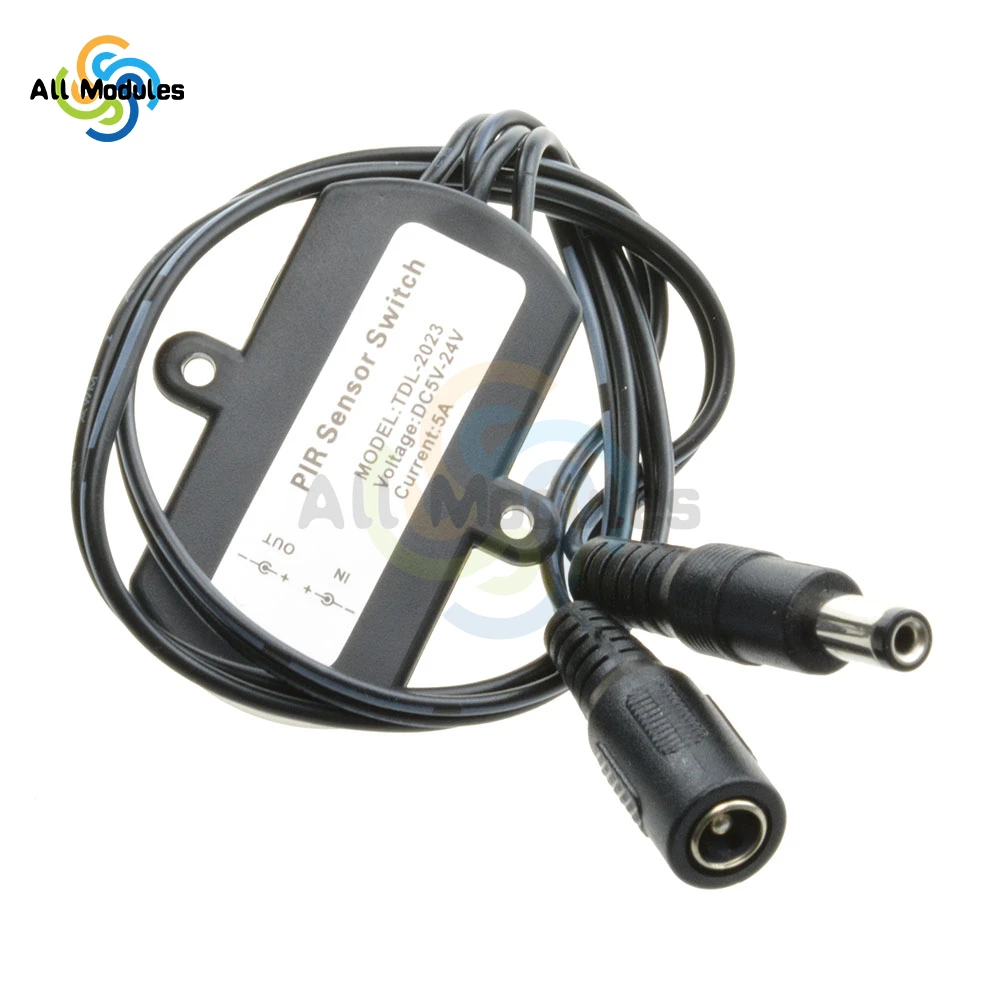

Product name: DC/USB cable light with sensor

Material: flame retardant ABS

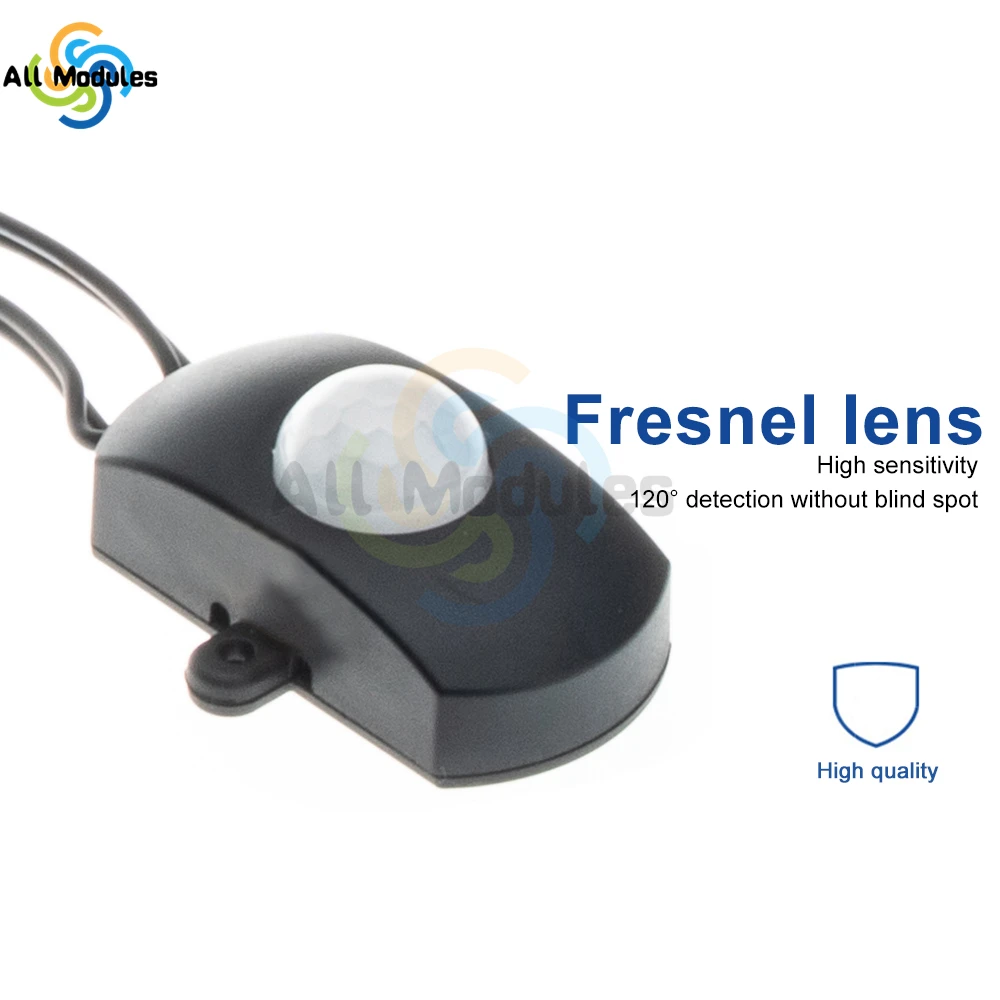

Detection angle: 120°

Working frequency: 50/60Hz

Detection distance: M (24°)

Rated load: 5A

Working temperature: -20℃~+50℃

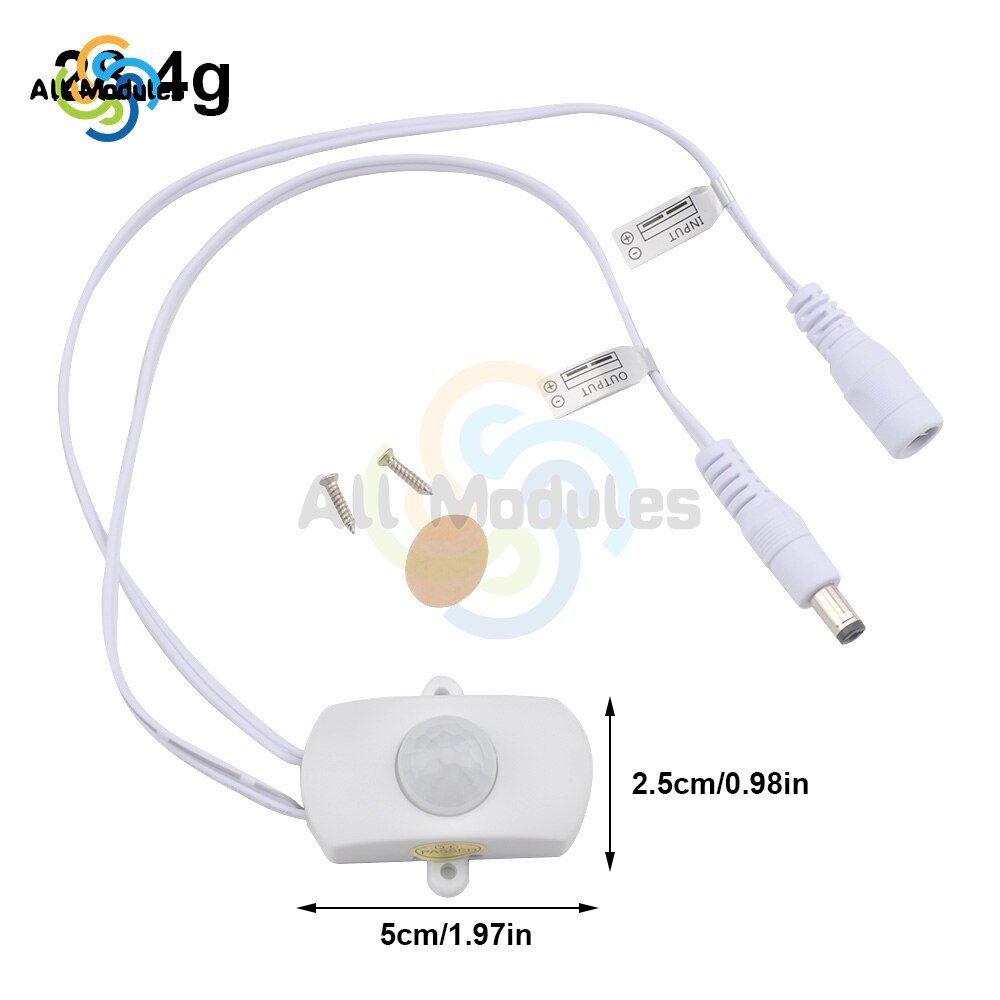

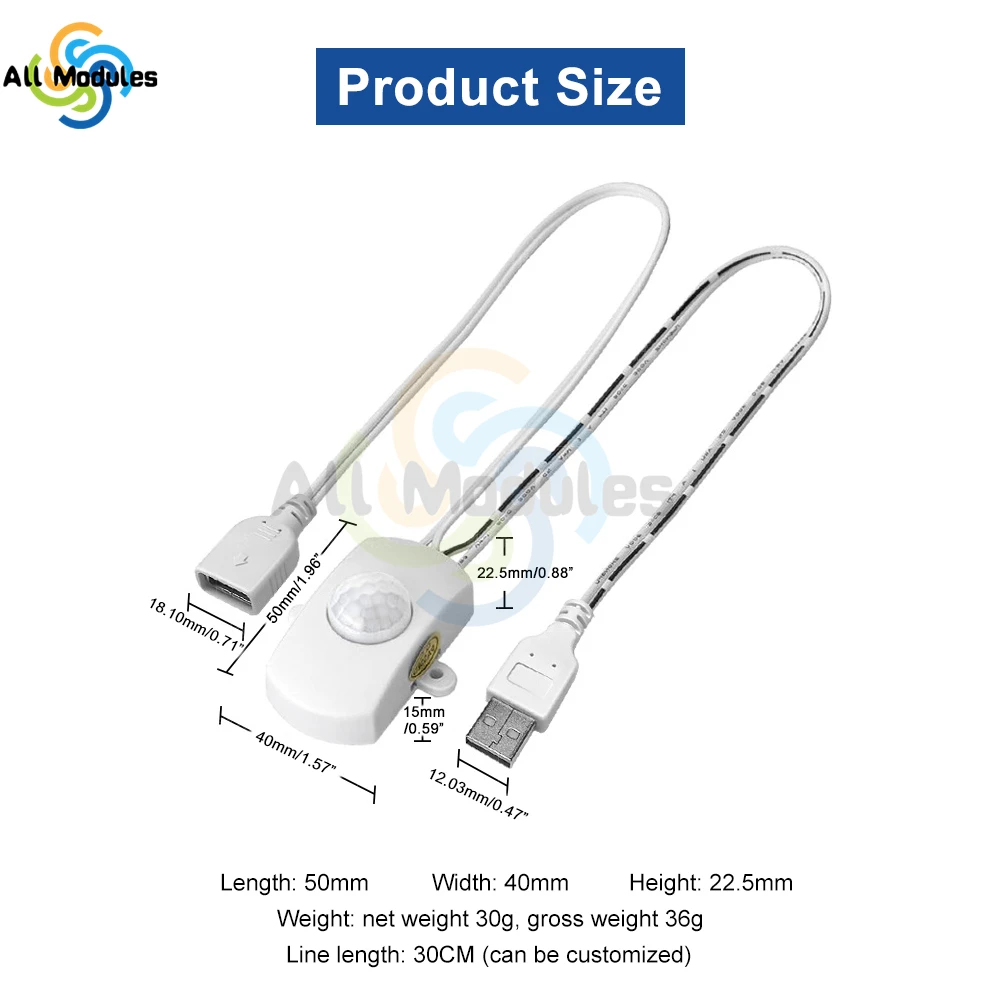

Product size: 50*40*22.5mm

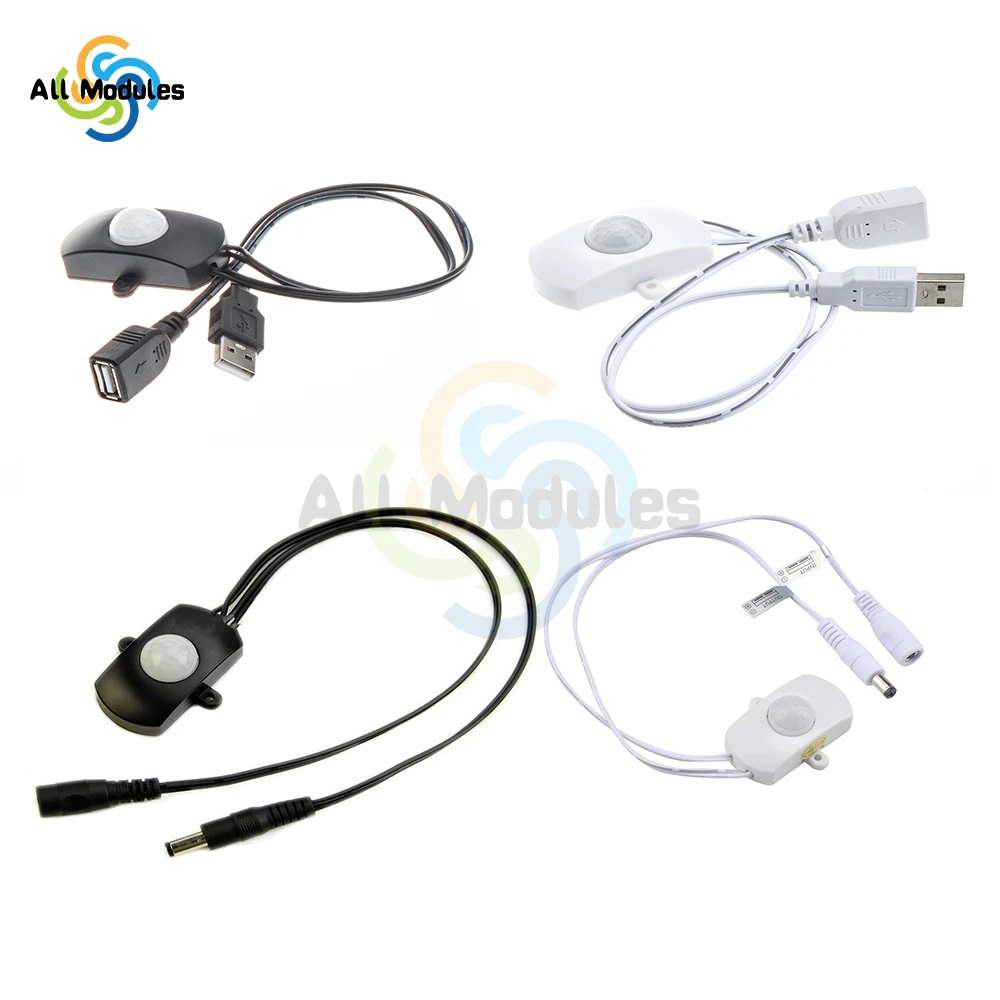

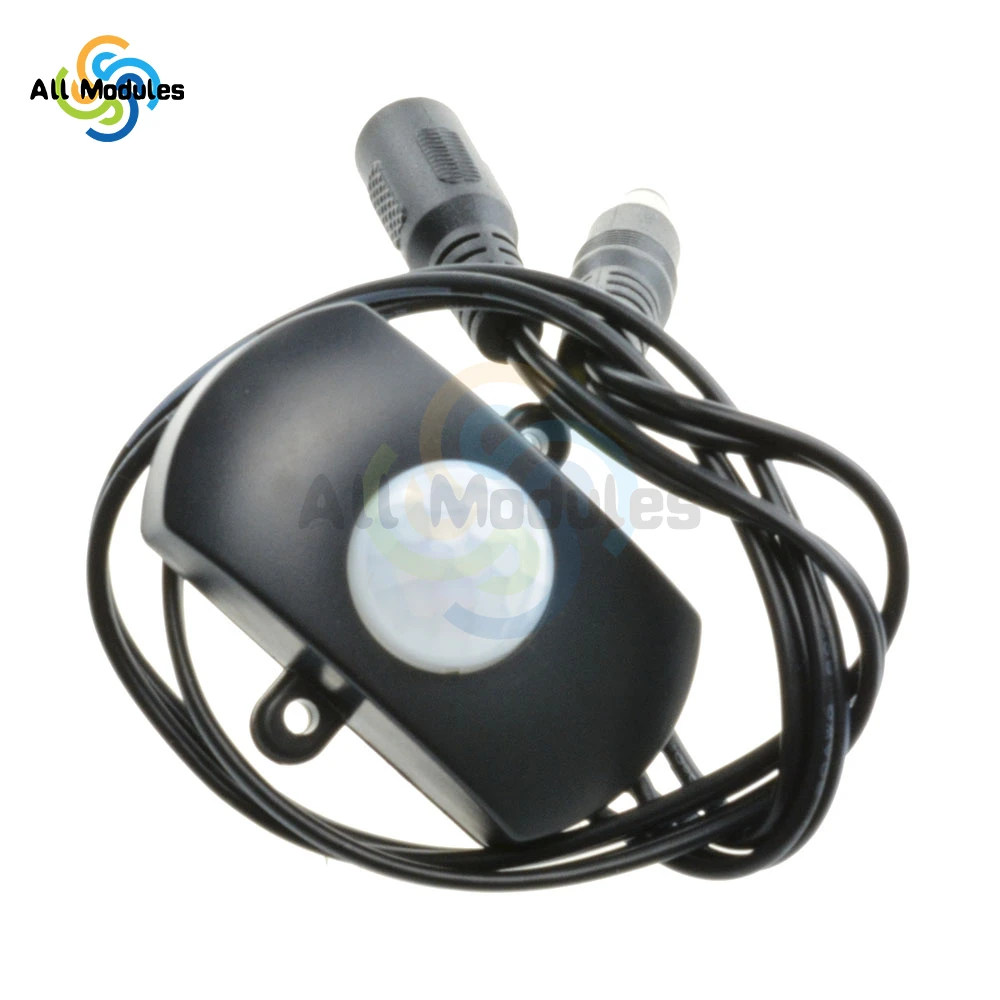

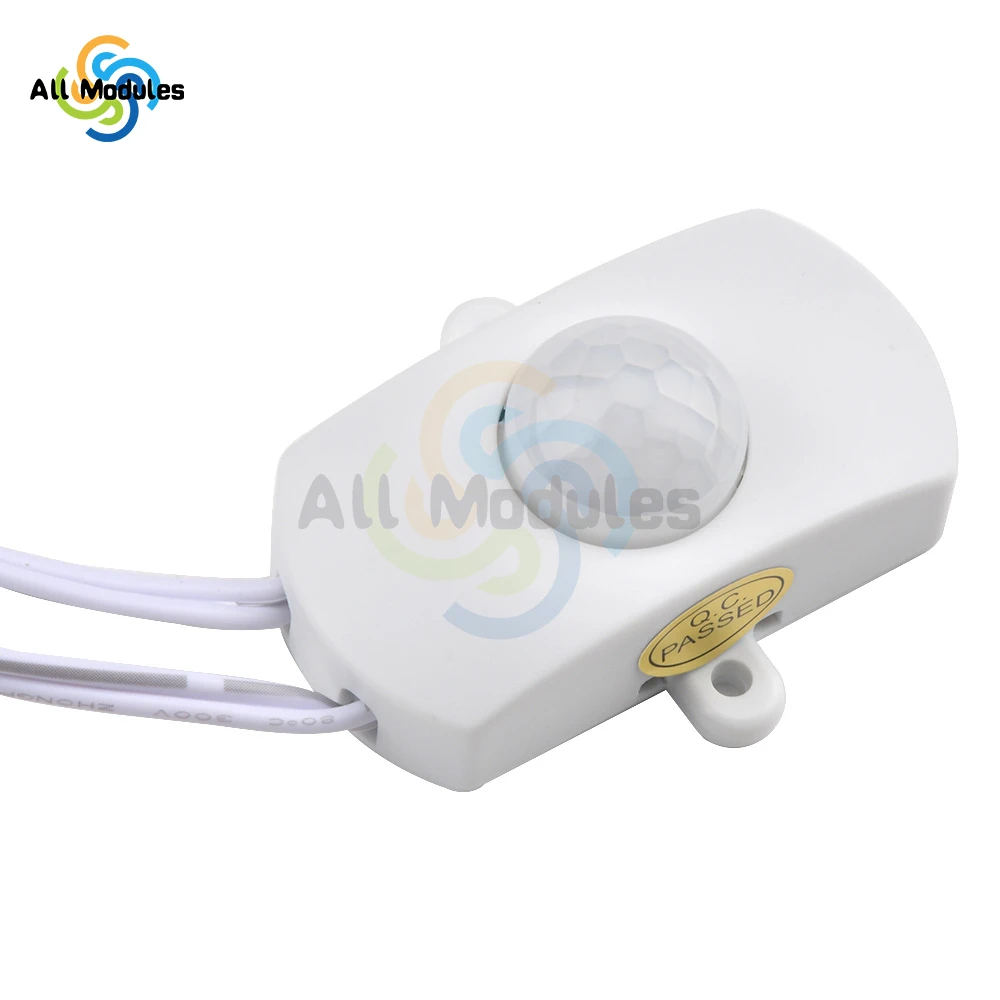

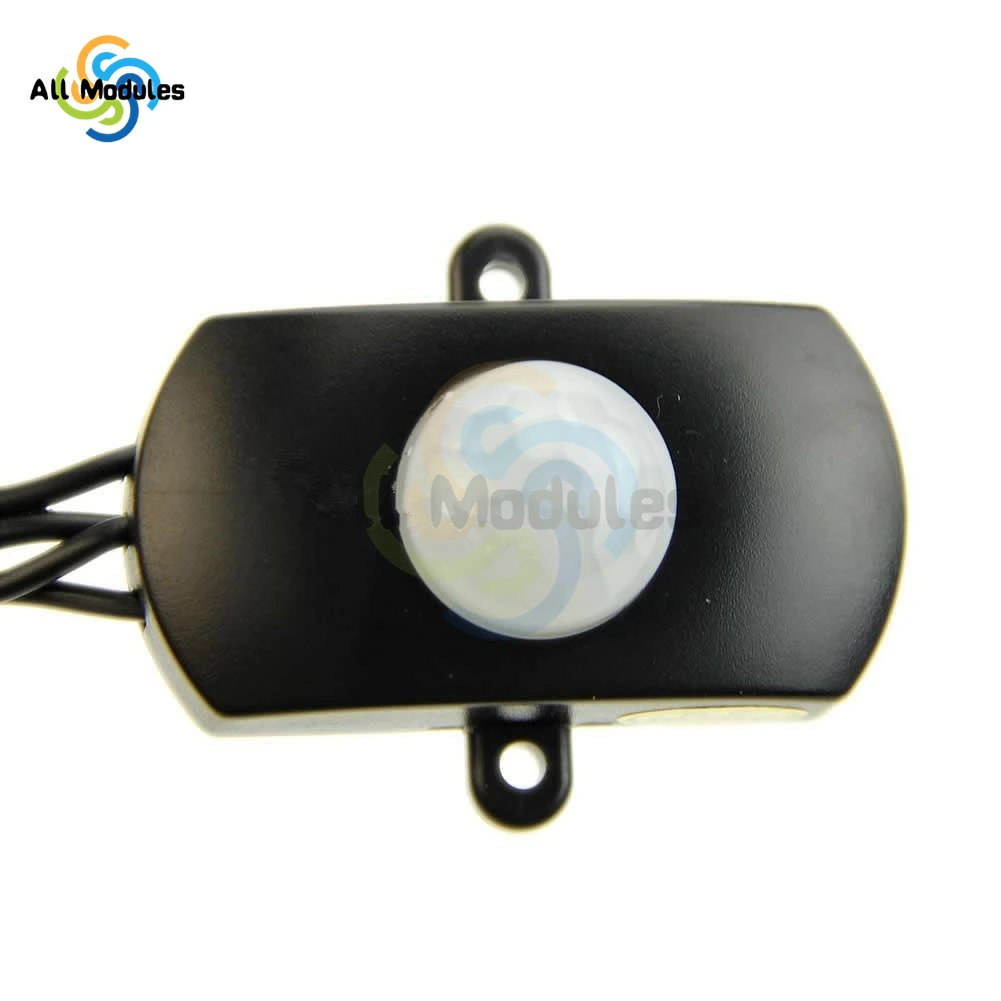

Product color: black/white

Power consumption: <0.5W

Product weight: net weight 30g/gross weight 36g

Working voltage: DC5V-24V

Standby current: ≤100uA

No light perception: 24 hours work

Working humidity: <93%RH

Installation height: 1.8-2.5M

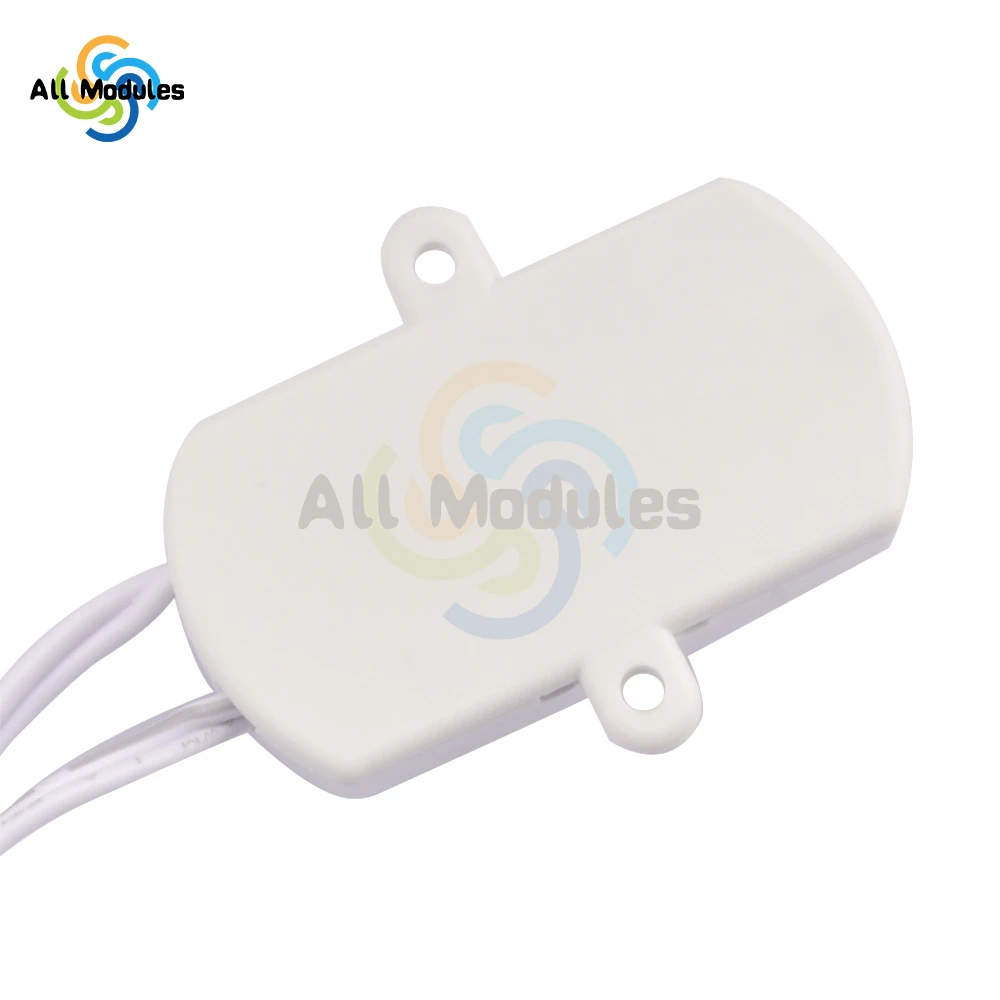

Installation method: screw or 3M glue fixed installation

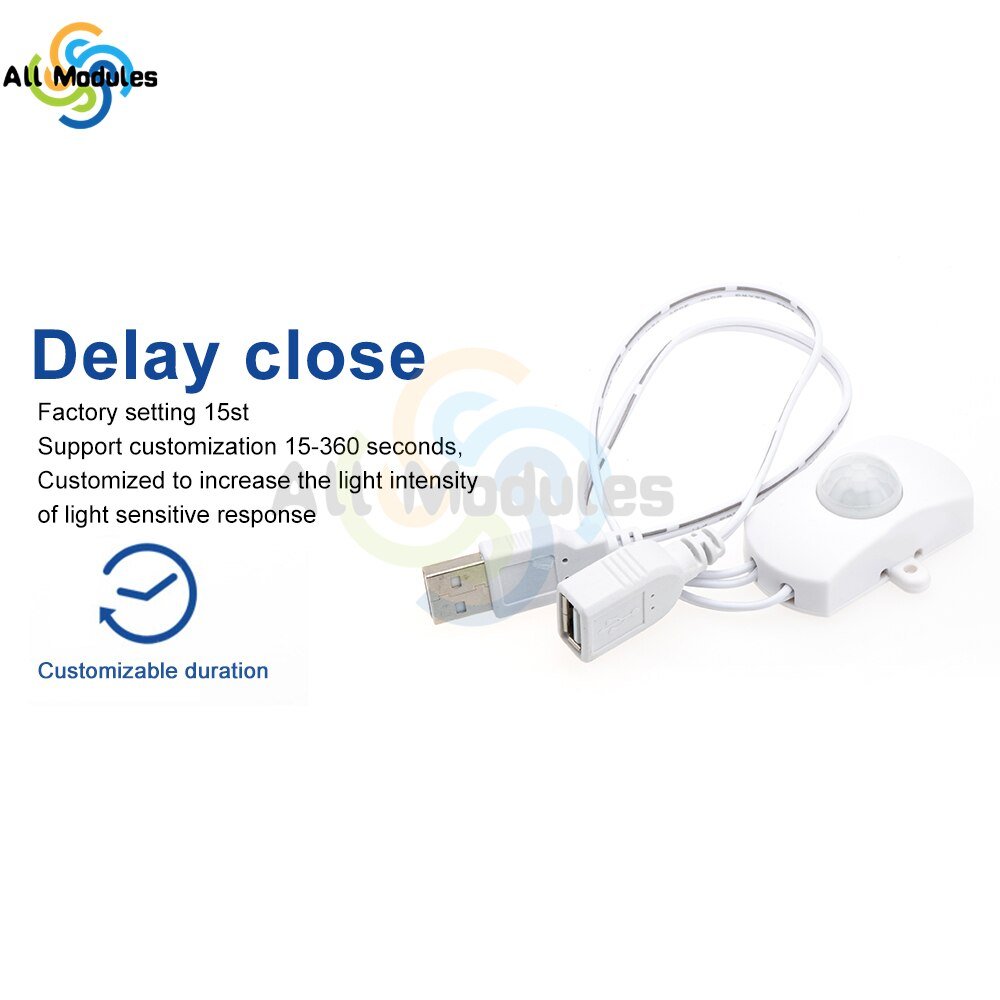

Delay time: factory setting 15S (15-360 seconds adjustable)

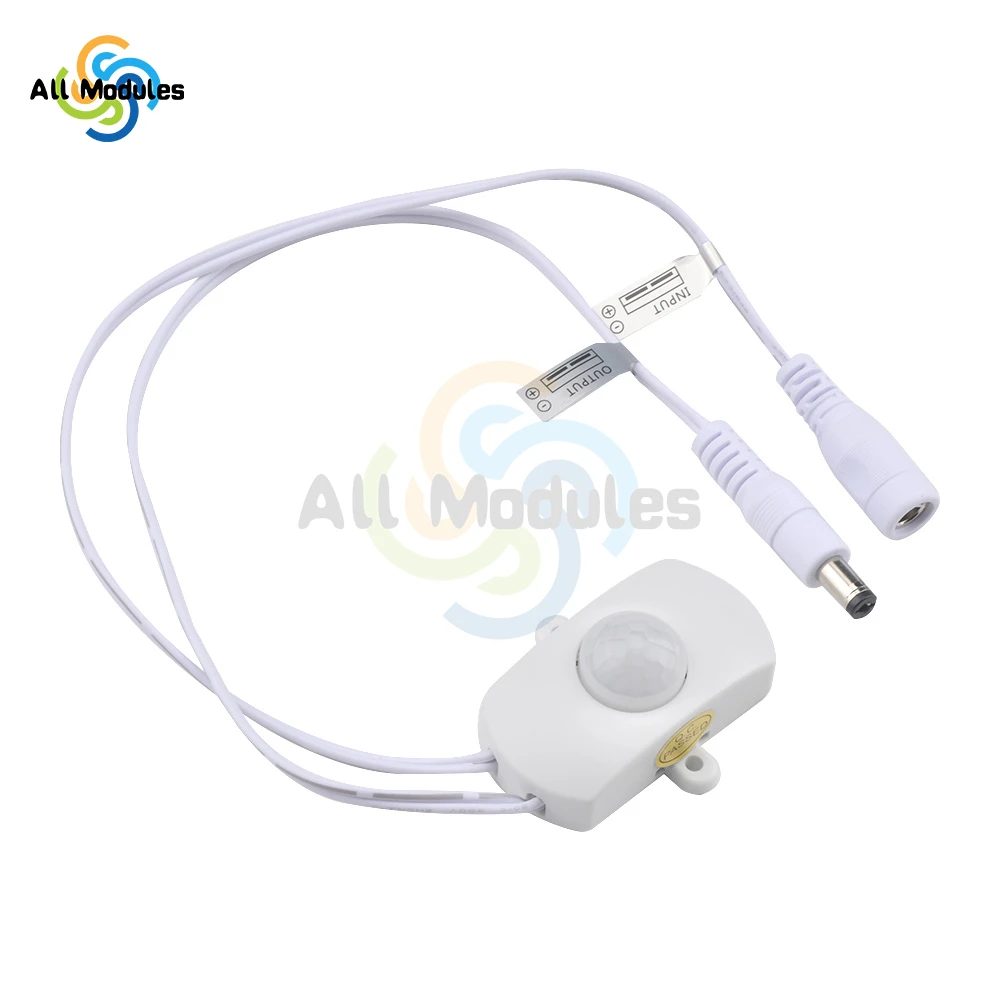

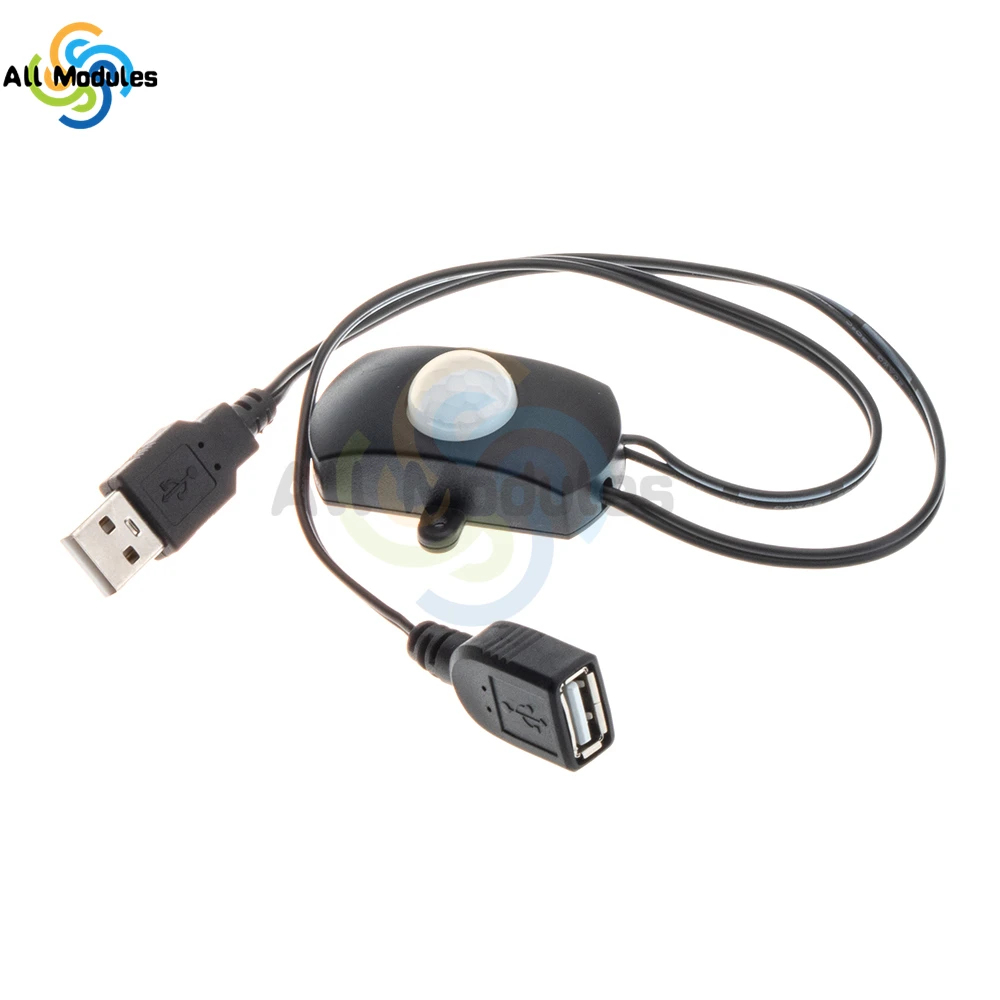

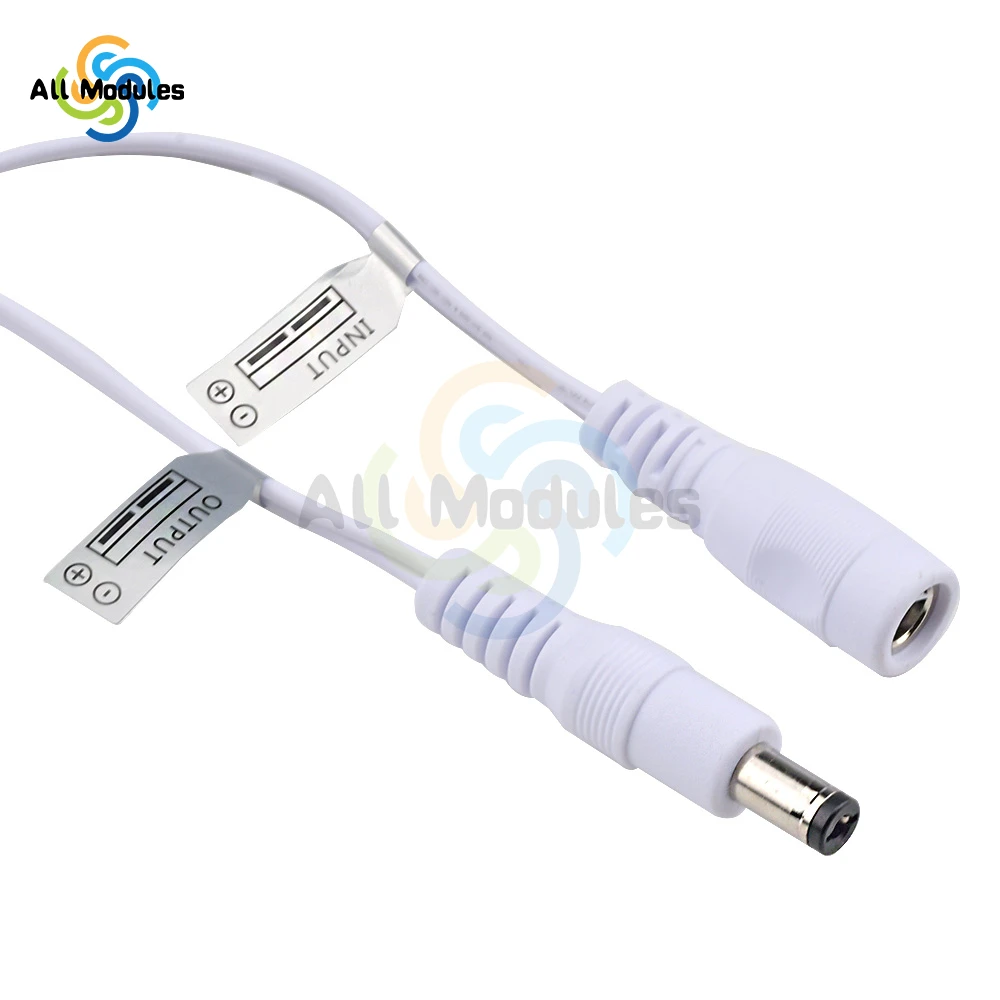

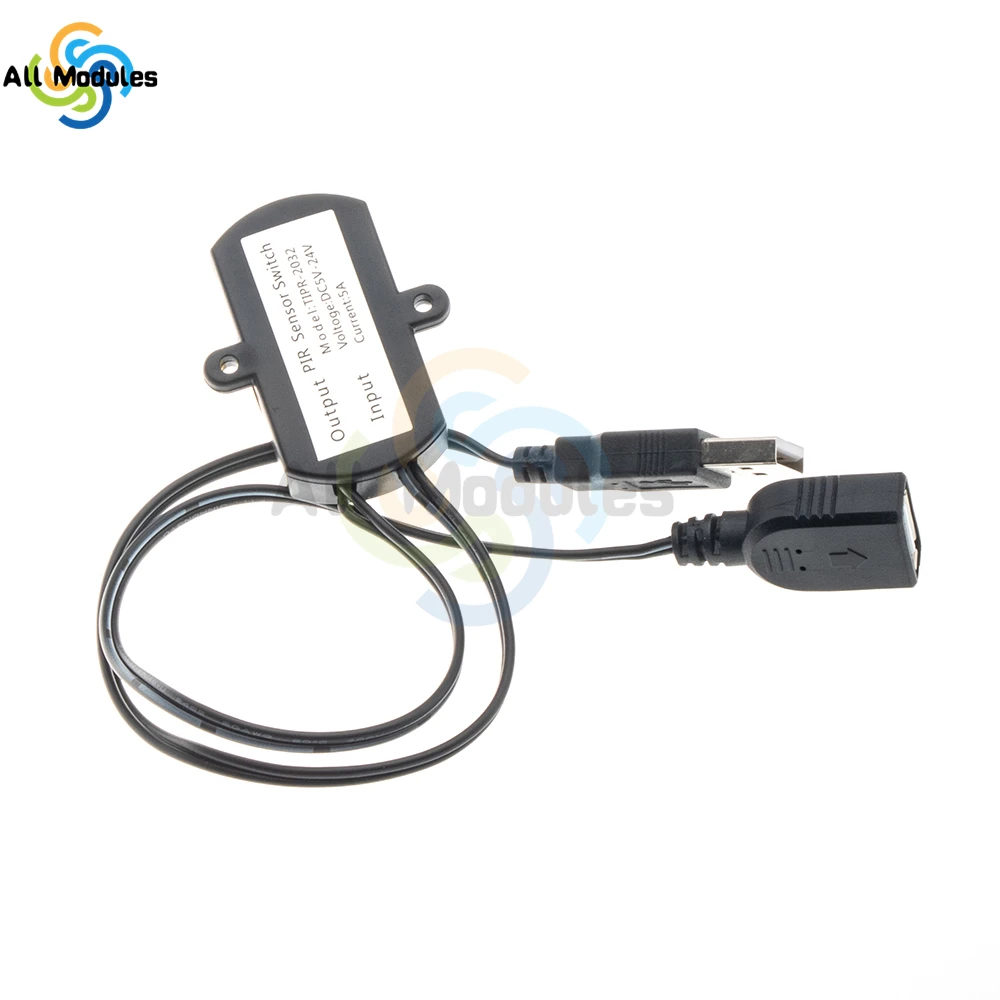

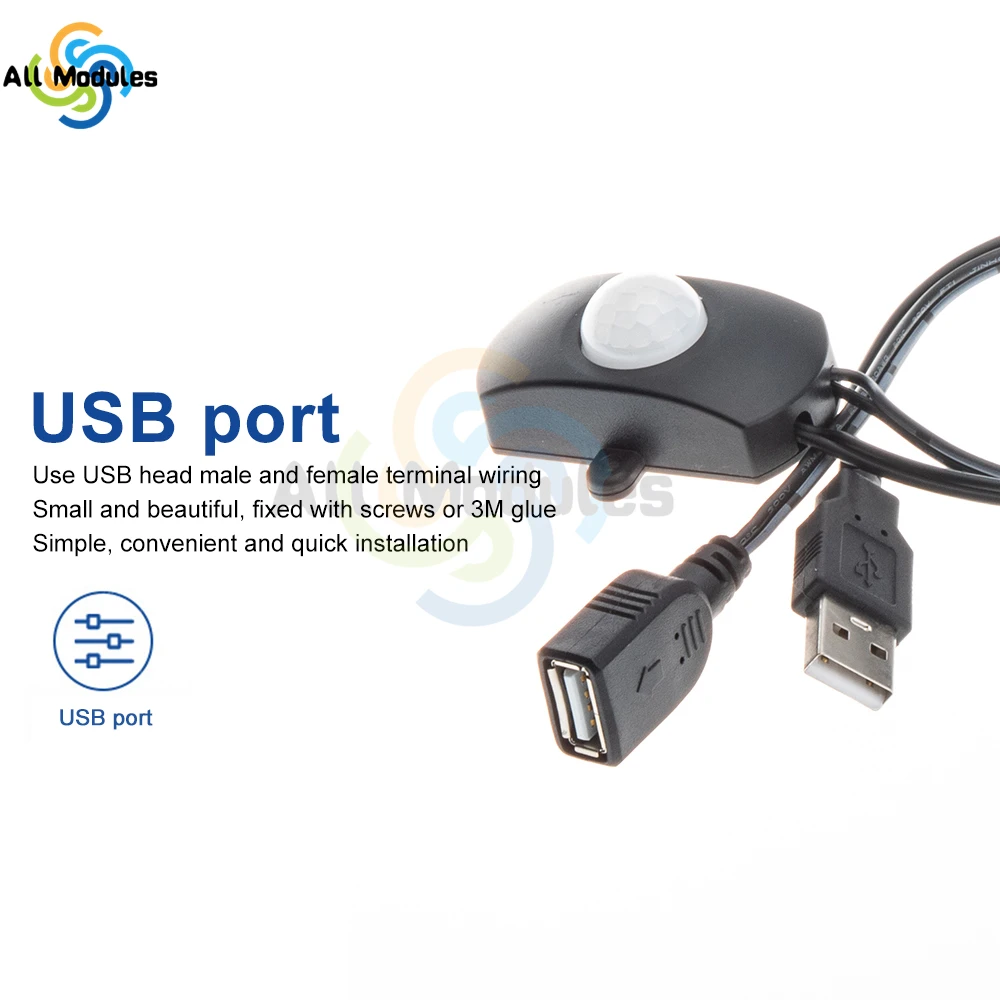

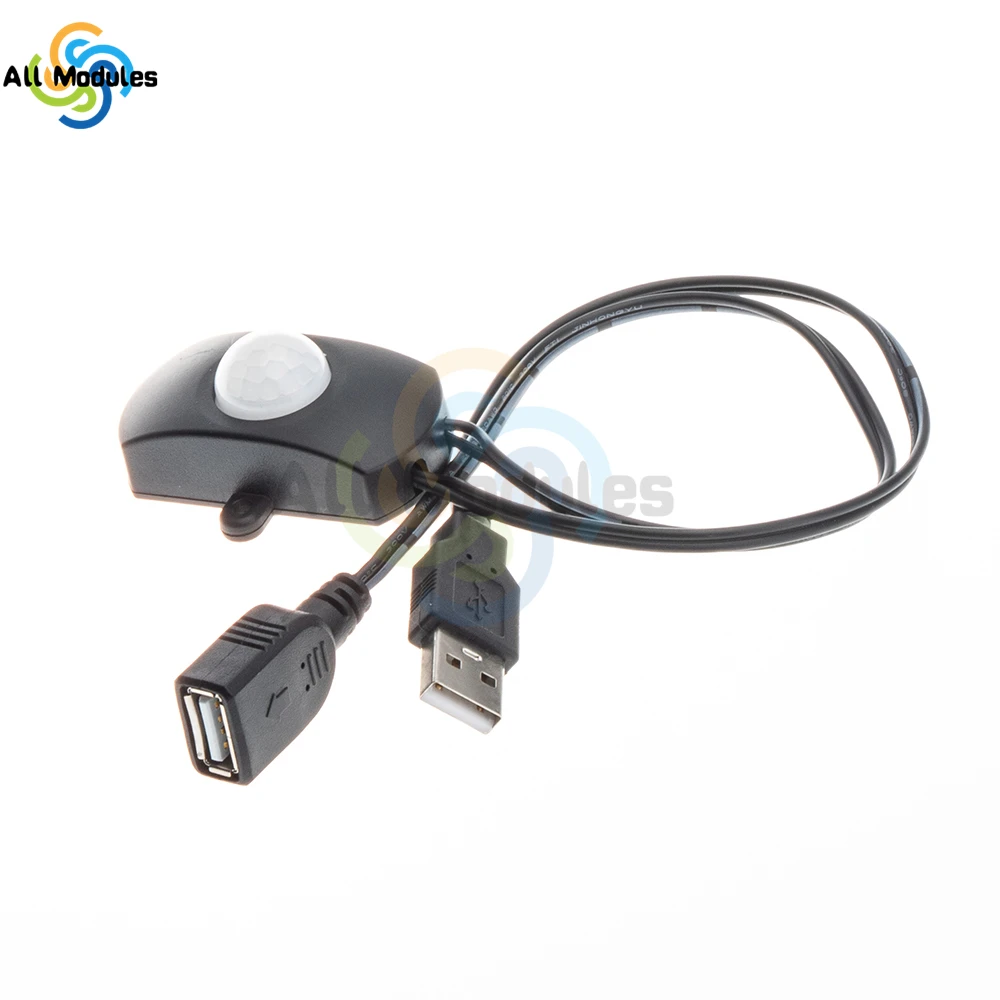

Wiring instructions: Wiring adopts USB port, female input, male output

Package Include:

1*DC/USB with cable 5-24V sensor light with infrared human body sensor switch
