- Model Number: PIR Motion Sensor Switch
- Origin: Mainland China
- Certification: NONE
- Smart home platform: Other
6A
Product selling point
1: Sensitive
2: stable performance
3: Energy saving and environmental protection
4: Small appearance, easy installation
5: Wide range of applications, can be used in public places such as stairs, aisles, corridors, toilets, cabinets, office buildings, schools, communities, etc. in various buildings – switch control of light strips and low-voltage lamps
The sensor is suitable for low-voltage light strips. When someone enters the sensing range, the sensor detects
The change of the infrared spectrum of the human body, the switch automatically turns on the load, the light is on when people arrive, and the light is off when people leave, which is friendly and convenient, safe and energy-saving.
Product parameters
Product name: LED light with sensor switch
Material: flame retardant ABS
Detection angle: 120°
Delay time: 1-10 minutes (adjustable)
Detection distance: 8M (24℃)
Installation height: 2-3.5M
Working temperature: -20℃~+60℃
Rated load: 6A
Product color: black/white
Product size: 76*45*34 mm
Product weight: net weight 40g/gross weight 50g
Power consumption: <0.5W
Working voltage: DC12V24V
Working frequency: 50/60Hz
No light perception: 24 hours work
Working humidity: <93%RH
Installation method: screw fixing, 2 fixing holes (the distance between the installation holes is 66mm)

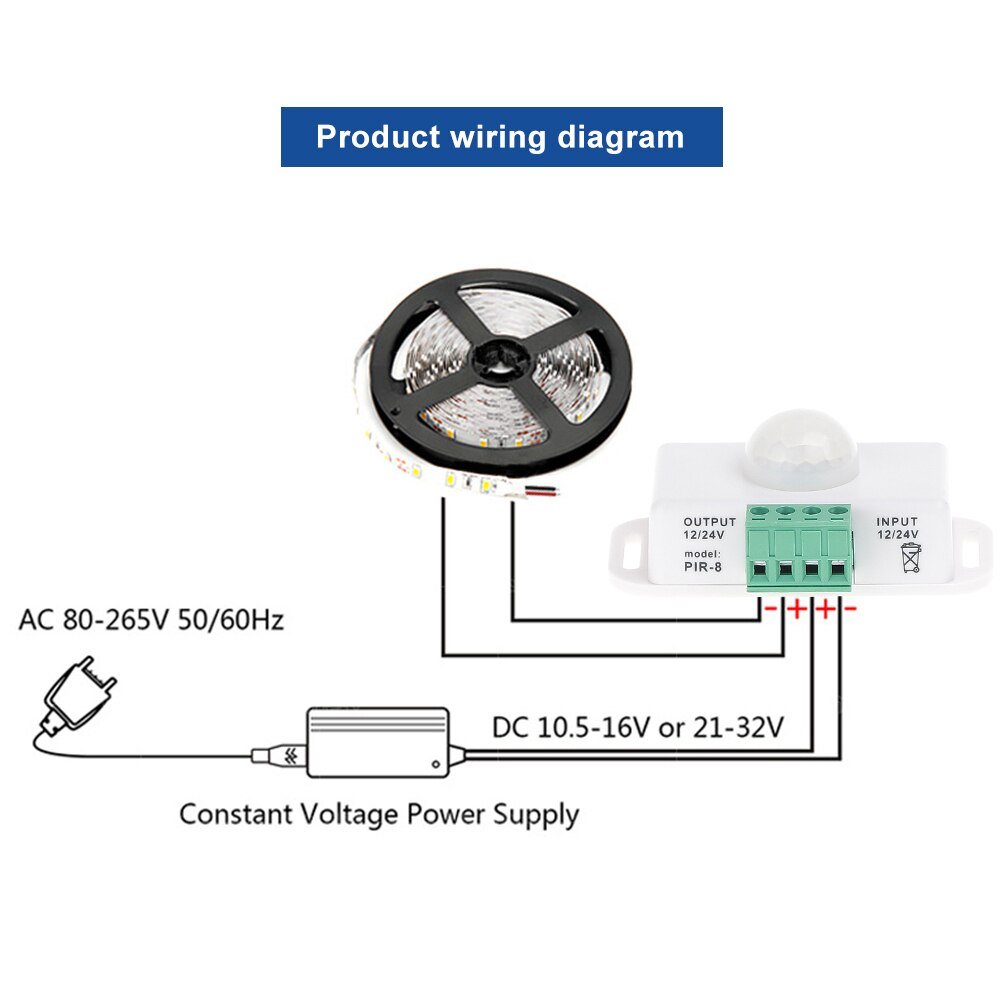

Wiring Instructions
INPUT-power input interface-connect DC12-24V power supply
OUTPUT-load output interface-connect the light strip
Package Include:
1*6A infrared human body sensor switch, wide voltage 12V24V
8A
Material:plastic and metal
Type:Pir Switch.
Easy to install and simple to use.
Adjust the light soft and stable, no flickering.
Mainly use to control LED light lamps and LED Strip.
You can conveniently to let the light auto on/off .
The switch can detect human body’s infrared , and use infrared to control the load.
Users according to actual needs, the human body sensors installed in the appropriate environment.
Incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp and other kinds of loads
|
Induction distance |
5 ~ 8 M |
|
Induction angle |
120 degrees |
|
Working temperature |
-20-60 |
|
Input |
12-24V |
|
Output current |
8A |
|
Static power consumption |
<1W |
|
Output power |
12V: <96W, 24V: <192 W |
|
Delay Time |
60-120 ms |
|
Dimensions |
76x45x35 mm (LxWxH) |
|
Weight |
30 g |
|
Color |
Black |
Package Include:
1 x Automatic DC 12V-24V 8A Infrared PIR Motion Sensor Switch For LED light Stylish
