- is_customized: Yes
- Theory: Motion Sensor
- Model Number: HC-SR501 Adjust IR Pyroelectric Infrared PIR Motion Sensors
- Material: Metal
- Type: Sound Sensor
- Output: Motion Sensor
- Brand Name: XLZMYQ
- Origin: Mainland China

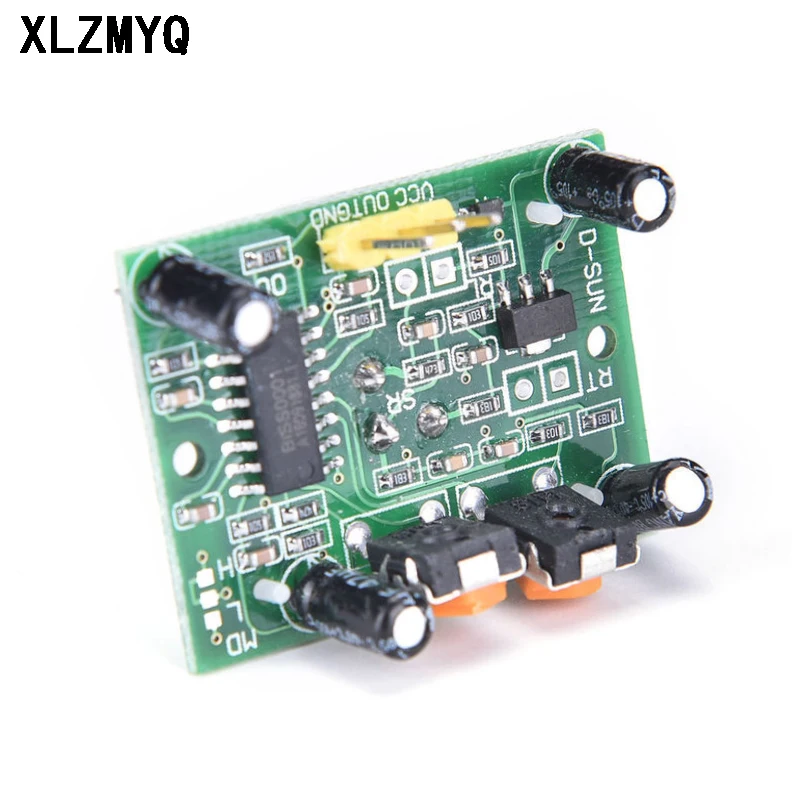

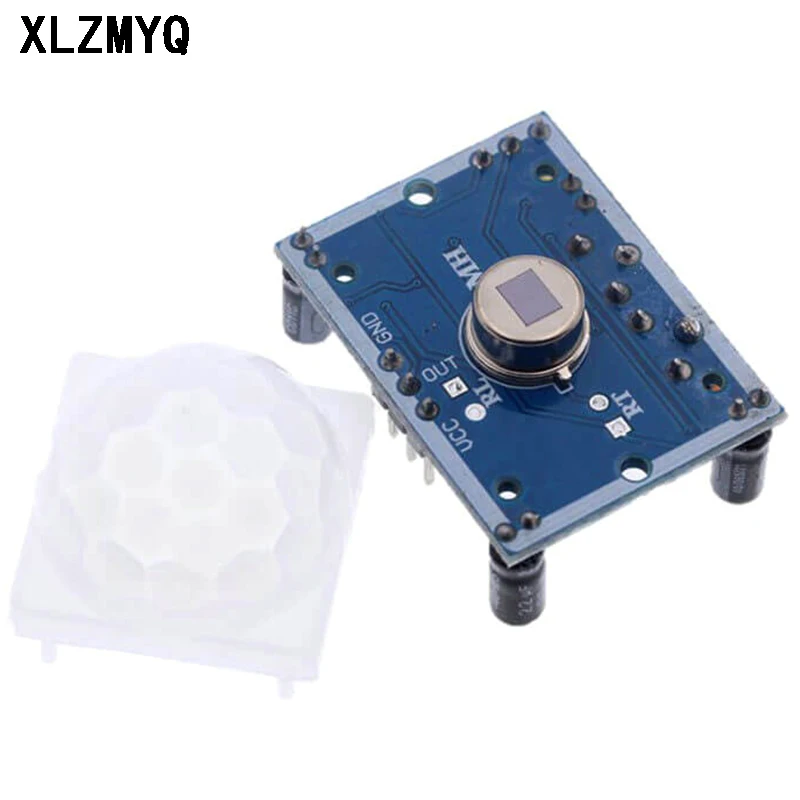

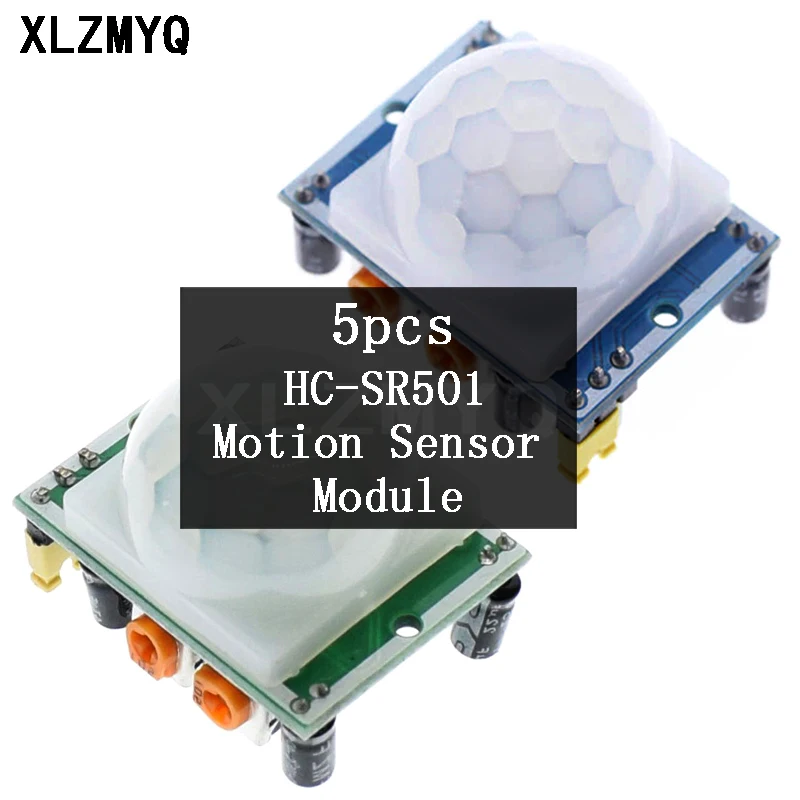

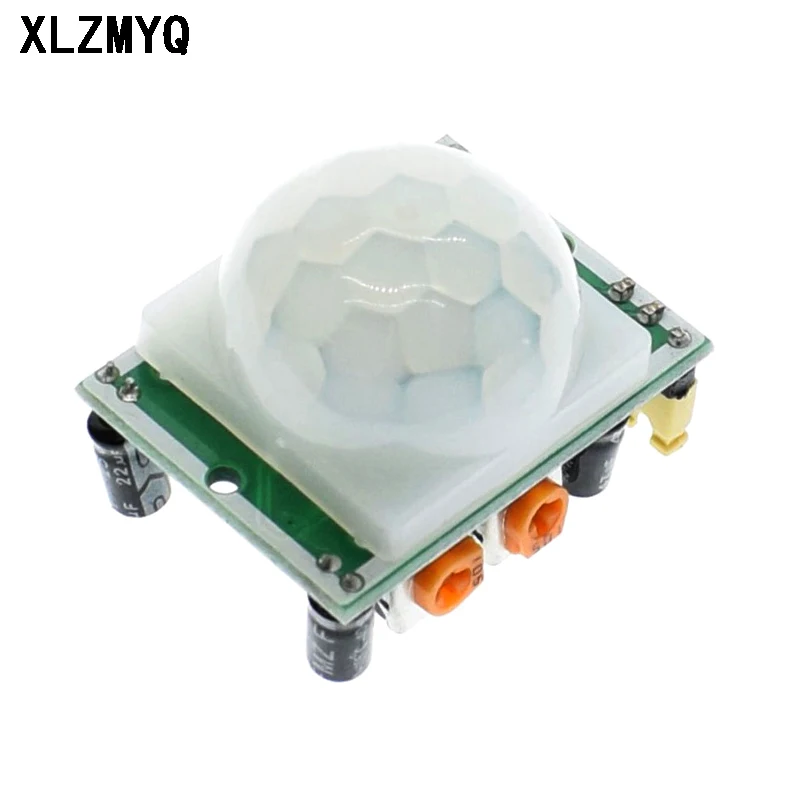

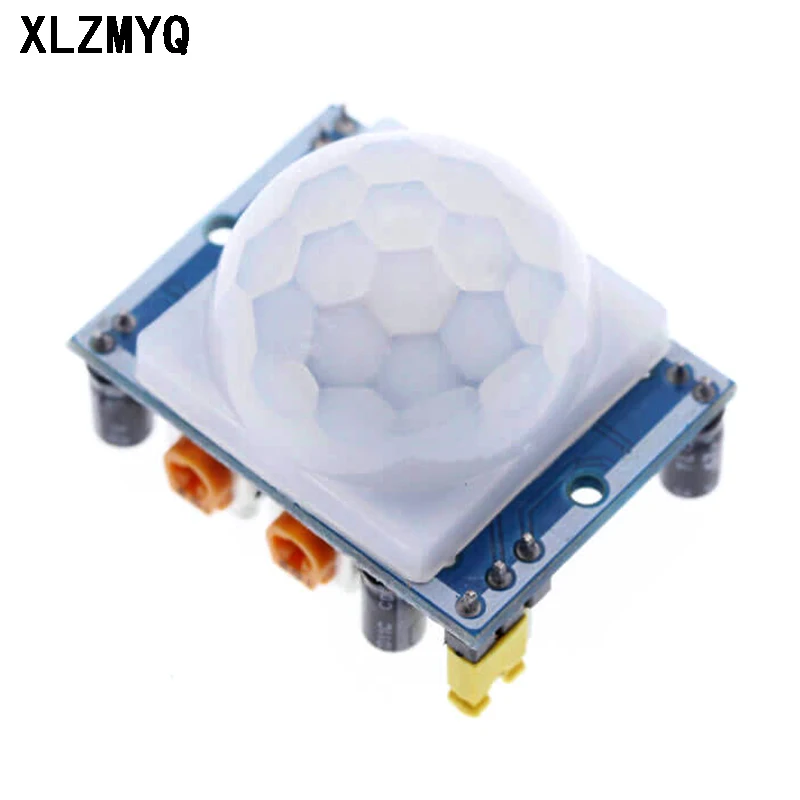

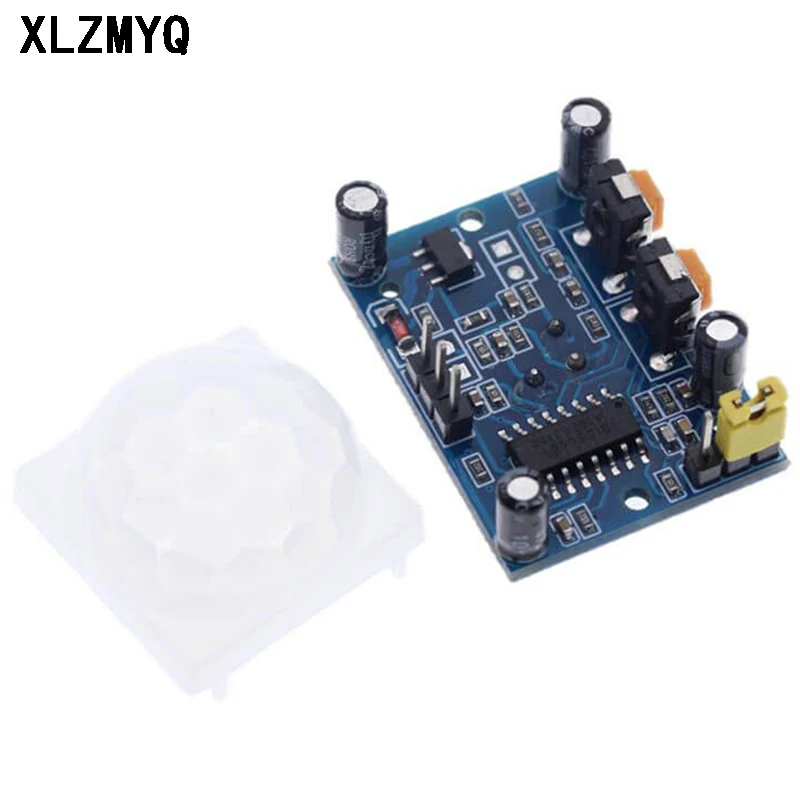

5pcs/lot HC-SR501 Motion Sensor Module SR501 Adjust IR Pyroelectric Infrared PIR Motion Sensors Module For Arduino DIY Kit
Description:
Dimension: 3.2cm x 2.4cm x 1.8cm (approx)
Infrared sensor with control circuit board

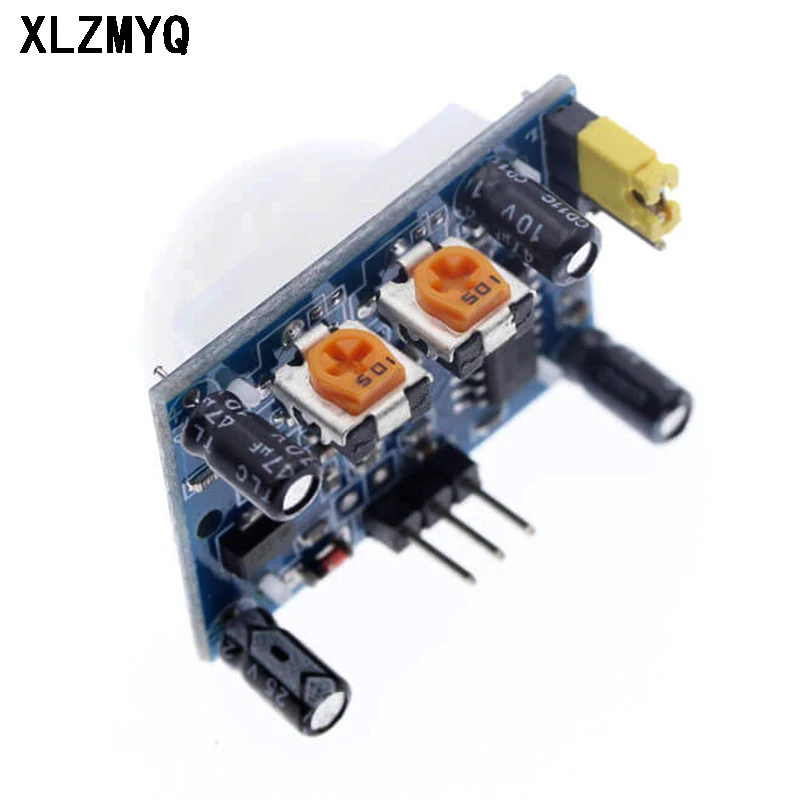

The sensitivity and holding time can be adjusted
Working Voltage Range: DC 4.5V- 20V
Current drain:<60uA
Voltage Output: High/Low level signal:3.3V TTL output
Detection distance: 3–7M(can be adjusted)
Detection range: <140°
Delay time: 5-200S(can be adjusted, default 5s +-3%)
Blockade time: 2.5 S (default)
Trigger: L: Non-repeatable trigger H: Repeat Trigger (default)
Work temperature:-20-+80°C
Dimension: 3.2cm x 2.4cm x 1.8cm (approx)
Infrared sensor with control circuit board
The sensitivity and holding time can be adjusted
Working Voltage Range: DC 4.5V- 20V
Current drain:<60uA
Voltage Output: High/Low level signal:3.3V TTL output
Detection distance: 3–7M(can be adjusted)
Detection range: <140°
Delay time: 5-200S(can be adjusted, default 5s +-3%)
Blockade time: 2.5 S (default)
Trigger: L: Non-repeatable trigger H: Repeat Trigger (default)
Work temperature:-20-+80°C
