- is_customized: Yes
- Theory: Optical Sensor
- Model Number: 180 Degree Outdoor PIR Infrared Motion Sensor
- Material: Mixture
- Type: Optical-Electronics Sensor
- Output: Switching Transducer
- Brand Name: diymore
- Origin: Mainland China

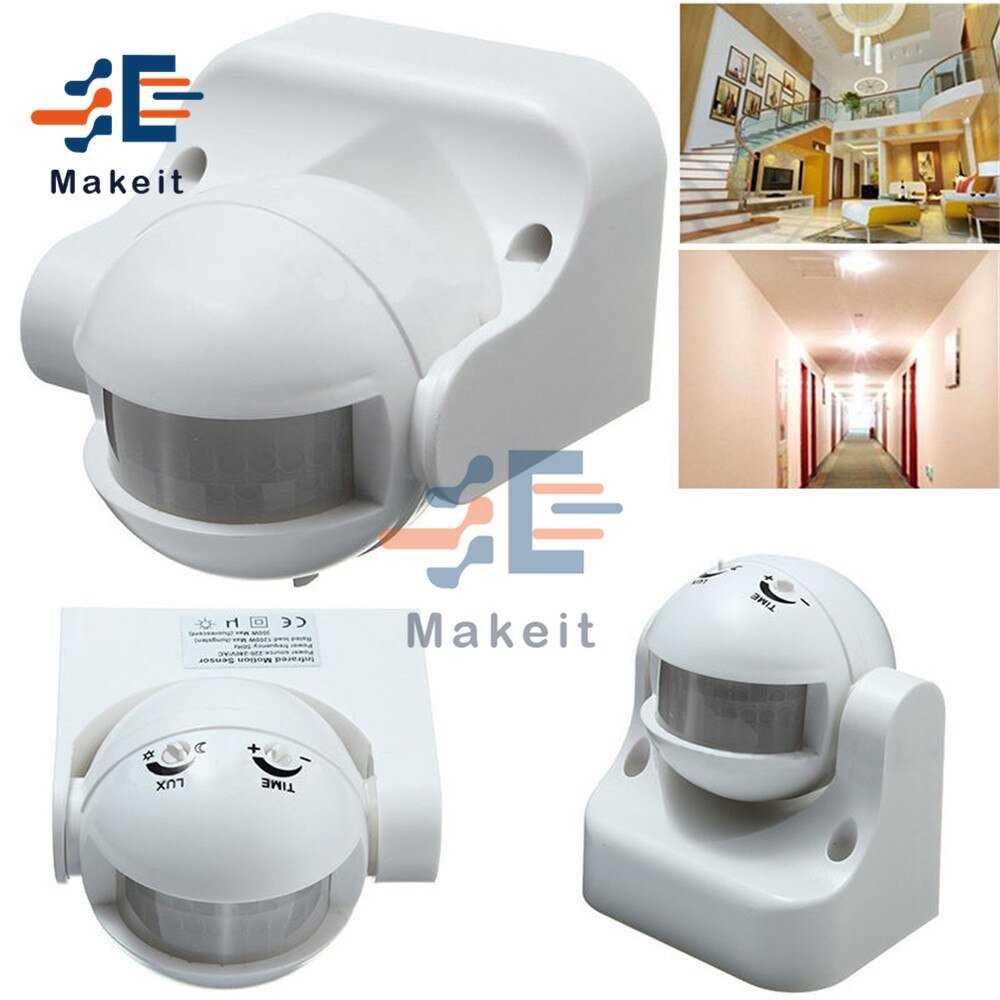

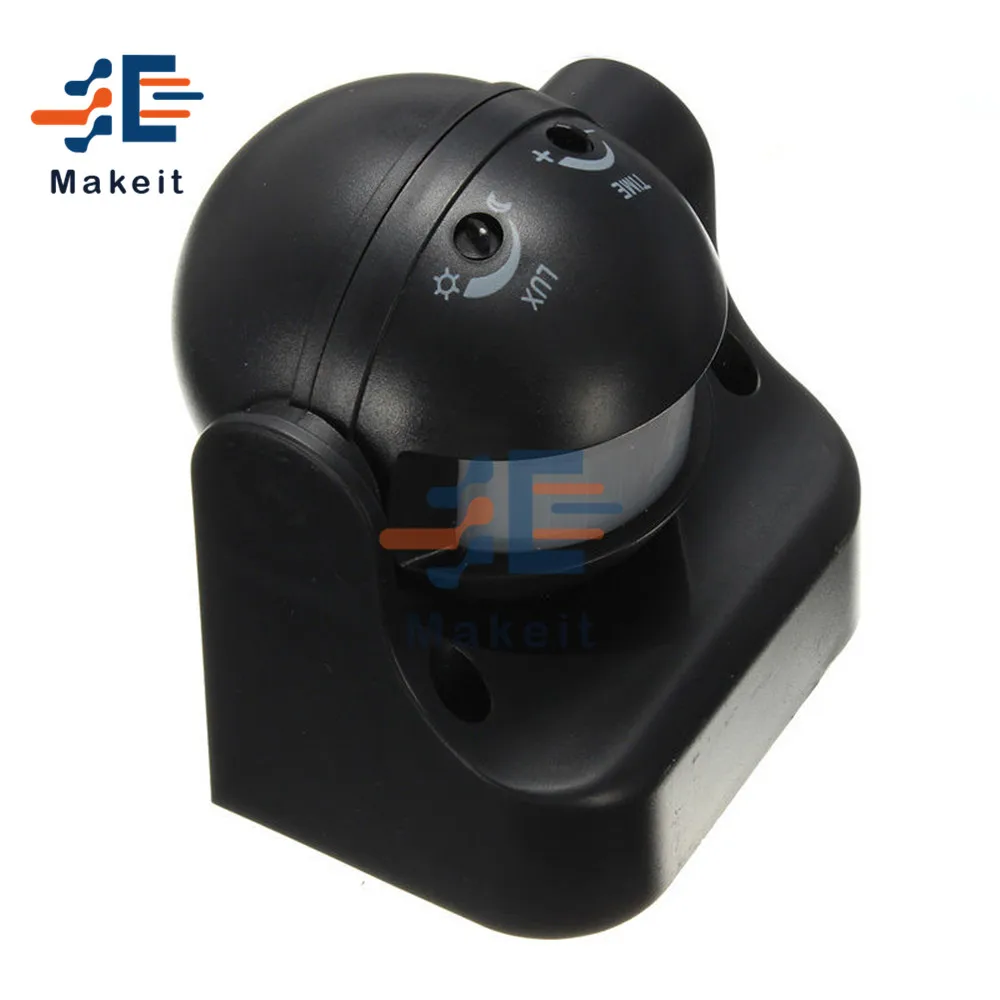

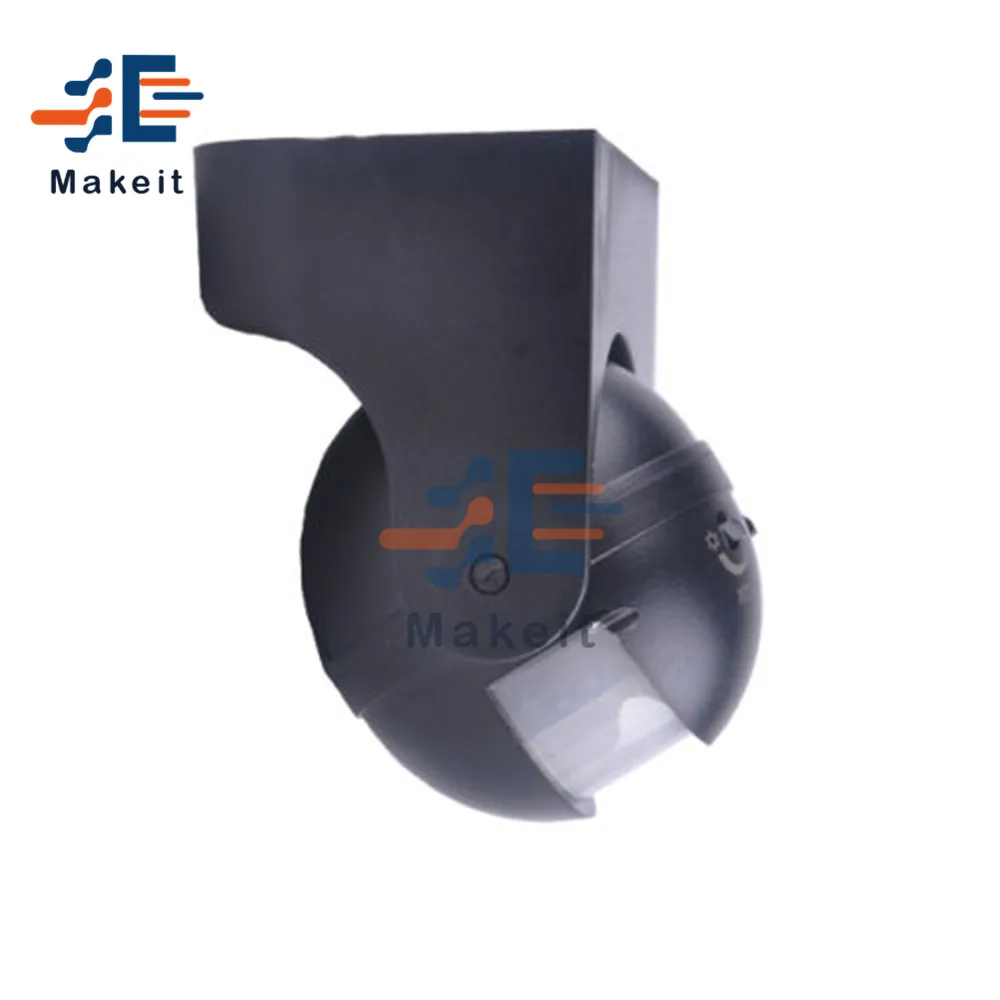

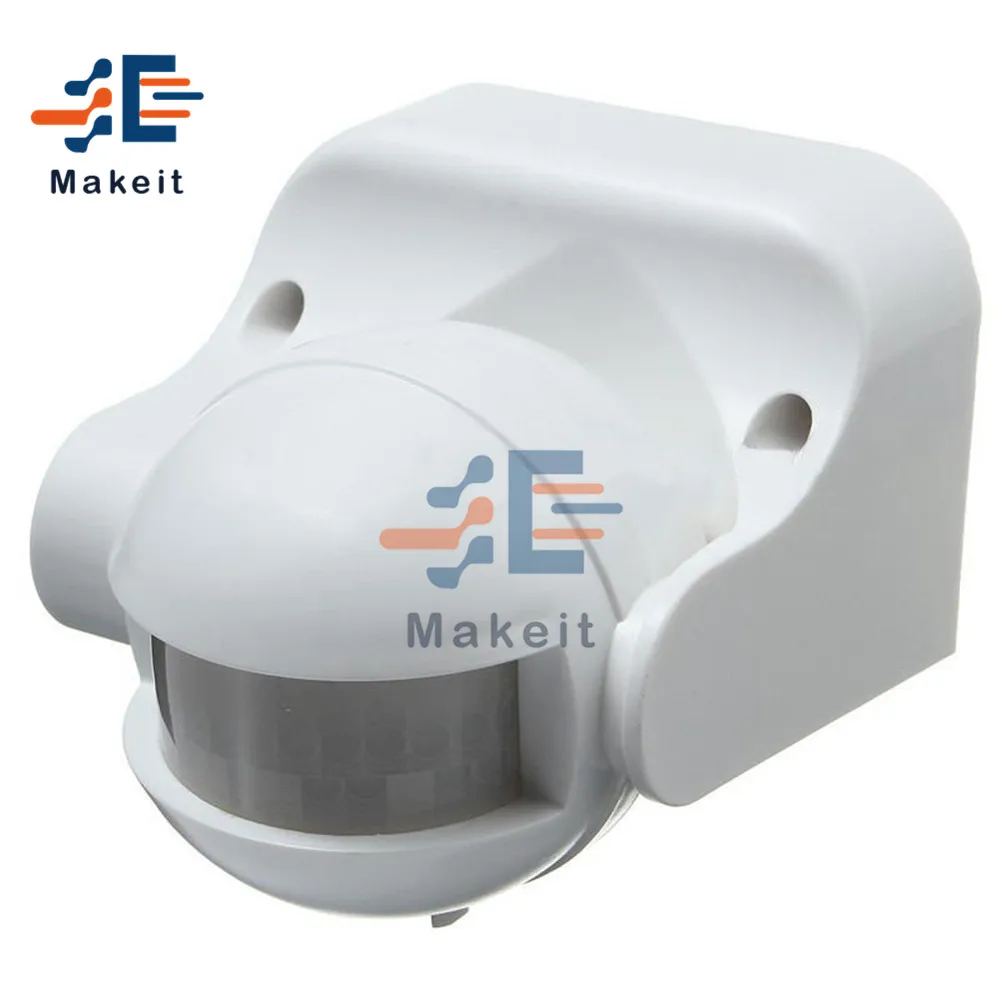

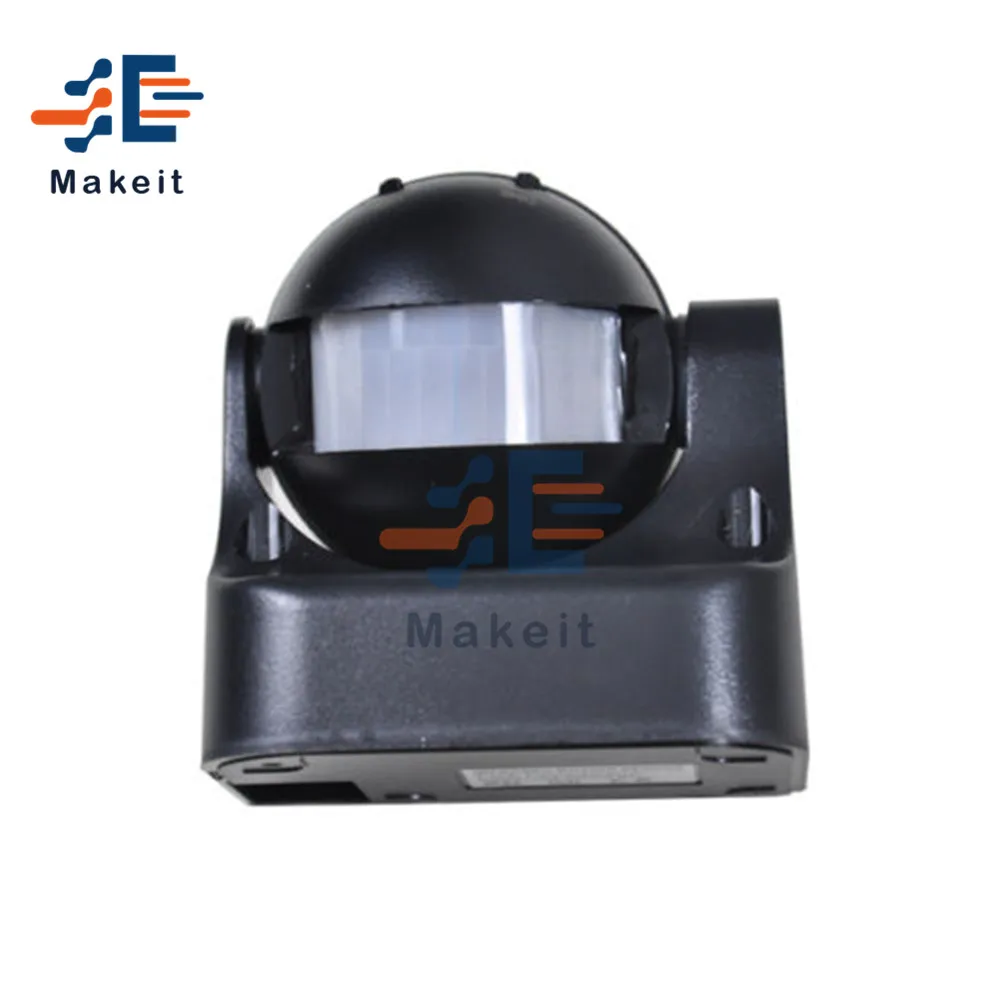

180 Degree Outdoor PIR Infrared Motion Sensor Detector Movement Switch AC 220V-240V IP44 Security Motion Sensor 50Hz 3-2000LUX
Description :
This product is a new type of energy-saving lighting switch,it
adoptshigh sensitivity detector,integrate circuit and SMT. It gathers
automatic,convenient,safe,energy-saving,practical functions. It has wide
detection range made up of up and down,left and right zervices field. It can identify day and night automatically.It is easy to install and its usage is wide.It has the function of power indiction and detection indication.
Specification:
Power source: 220-240V AC
Detection angle: 180°
Detection distance: 12m Max(<24℃)
Power frequency: 50Hz
Ambient light:3-2000LUX(adjustable)
Working temperature:-20~+40℃
Time-delay: min:10s betwen 5s Max:10min betwen 2min
Working humidity:<93%RH
Installation height:1.8m-2.5m
Rated load: 300-1200W
Power consumption:0.45W (static 0.1W)
Detection motion speed:0.6-1.5m/s
Comes with fixing screws and instructions
Note:Should be installed by electrician or experienced person.
Package Contents
1PCS Outdoor 180 Degree PIR Motion Movement Security Sensor Detector Switch 12 Meter
