- Brand Name: diymore
- Origin: Mainland China
Features:
1.Stable performance, intelligent light control, delayed shutdown
2.High sensitivity, 360 °full range detection without blind spots
3.Ceiling mounted, bottom bracket design, quick wiring for easy installation and disassembly
4.Fireproof and flame-retardant material: effectively preventing fire hazards, not deformed, not easily oxidized, safe, durable, and durable
5.Wide application range: can be used for switch control of lighting fixtures in various buildings, such as stairs, corridors, restrooms, school communities, etc
Parameters:
Product name: Ceiling mounted mini sensor 802
Working voltage: AC85-265V
Detection angle: 360 °
Working temperature: -10 ° C~+40 ° C
Detection distance: 6-8 meters
Working frequency: 50/60Hz
Environmental light: 10-2000LUX (adjustable)

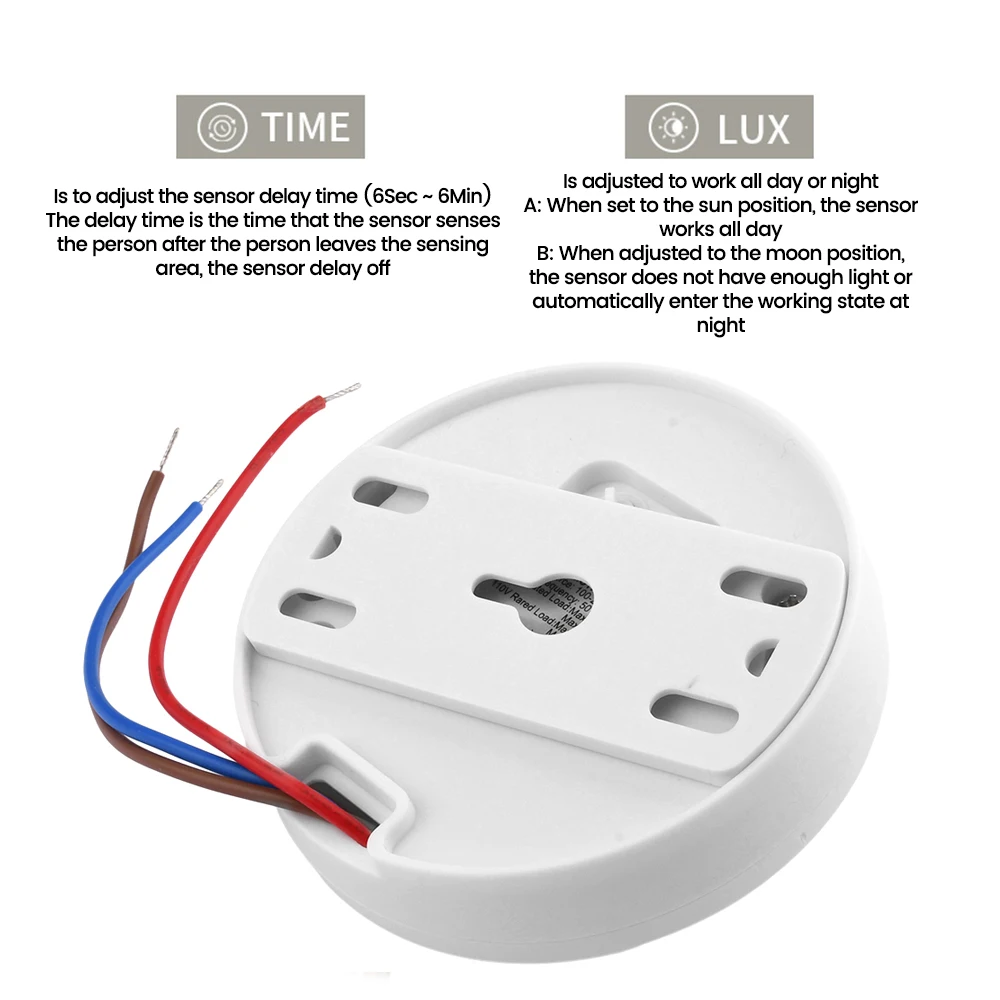

Delay time: 8 seconds to 10 minutes (adjustable)
Installation height: 1.8-2.5M
Rated load: 1000W tungsten filament lamp energy-saving lamp 200W LED lamp
Material: ABS+PC
Check movement speed: 06. -1.5M/s
Waterproof grade: IP20
Power consumption: 0.5W (static 0.1W)
Product Description

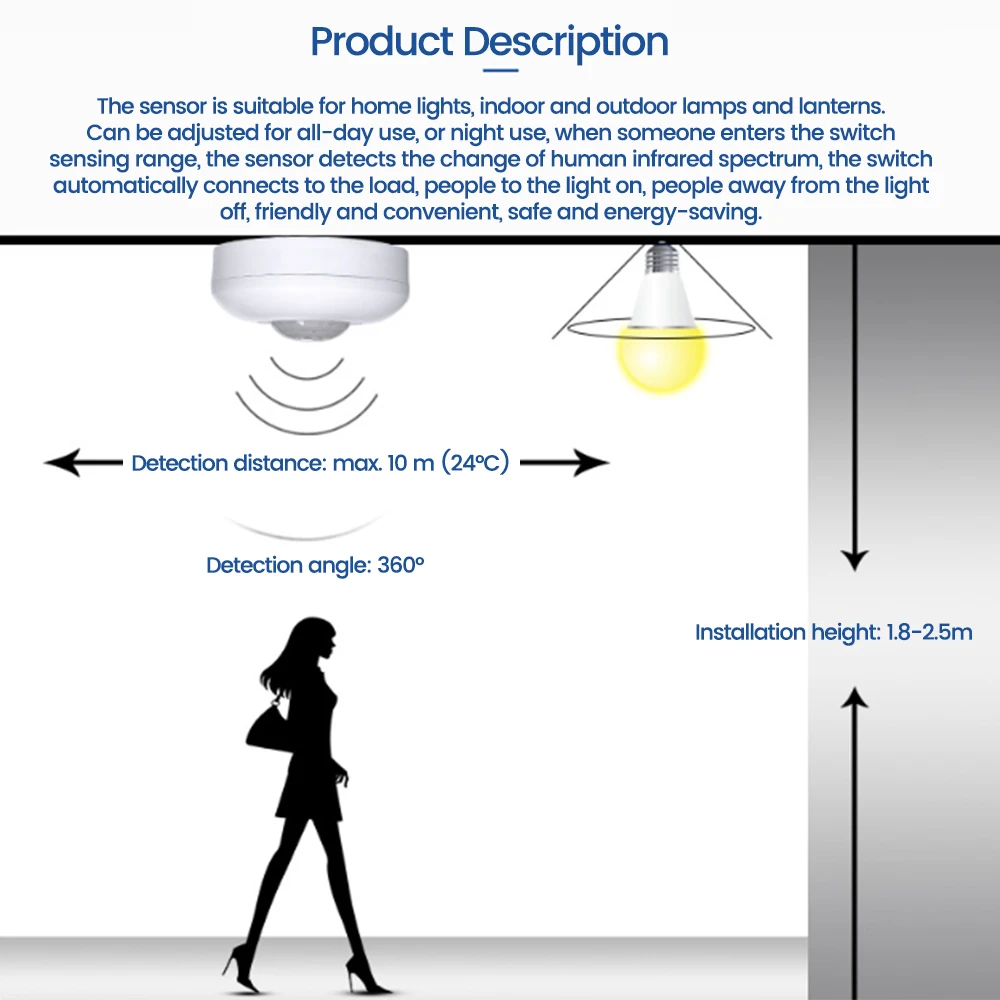

The sensor is suitable for home lighting, indoor and outdoor lighting fixtures. It can be adjusted to be used all day or at night. When someone enters the sensing range of the switch, the sensor detects changes in the infrared spectrum of the human body, and the switch automatically switches on the load. The light turns on when the person arrives, and the light turns off when the person leaves. It is friendly, convenient, safe, and energy-saving.

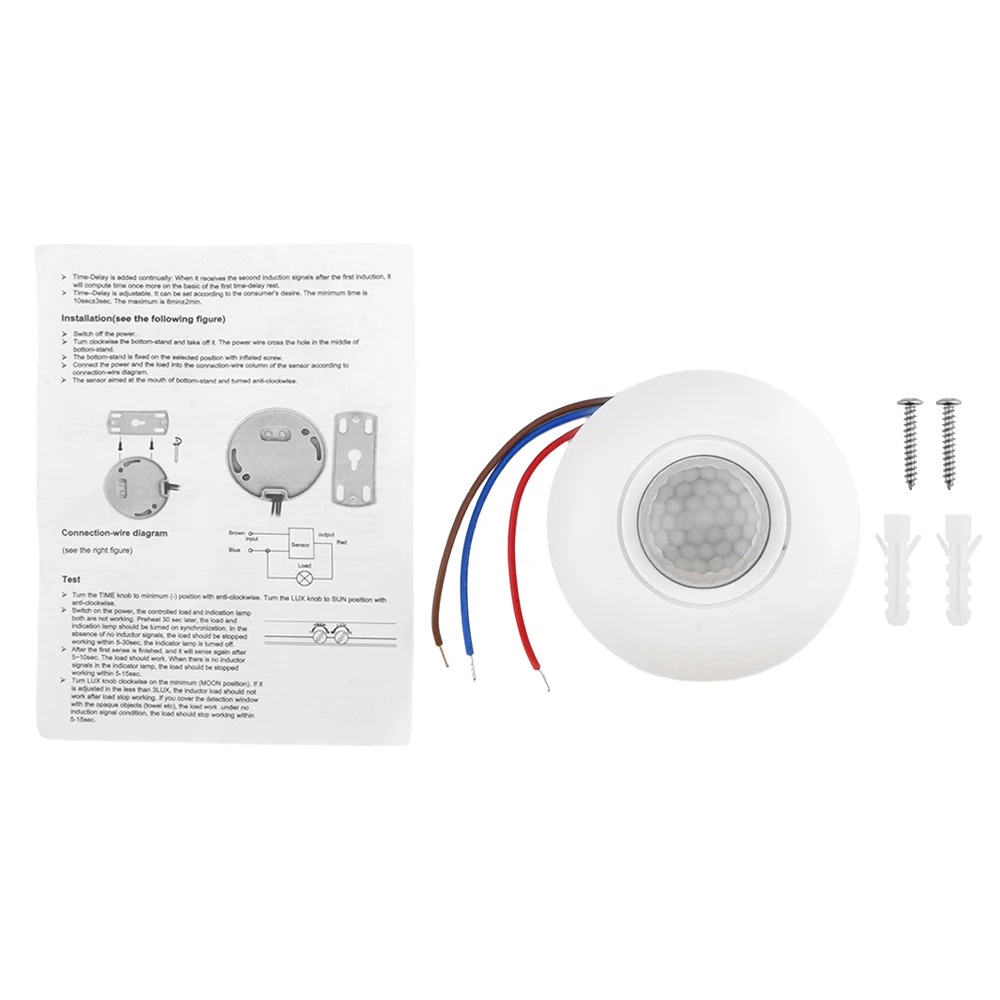

Package include:
Sensor * 1
Screw * 2
Nut * 2
