- Usage: Timer Switch
- Theory: Watering Sprinkler
- Model Number: Irrigation Timer
- Type: Irrigation Controller
- Brand Name: meterk
- Origin: Mainland China
- Certification: CE

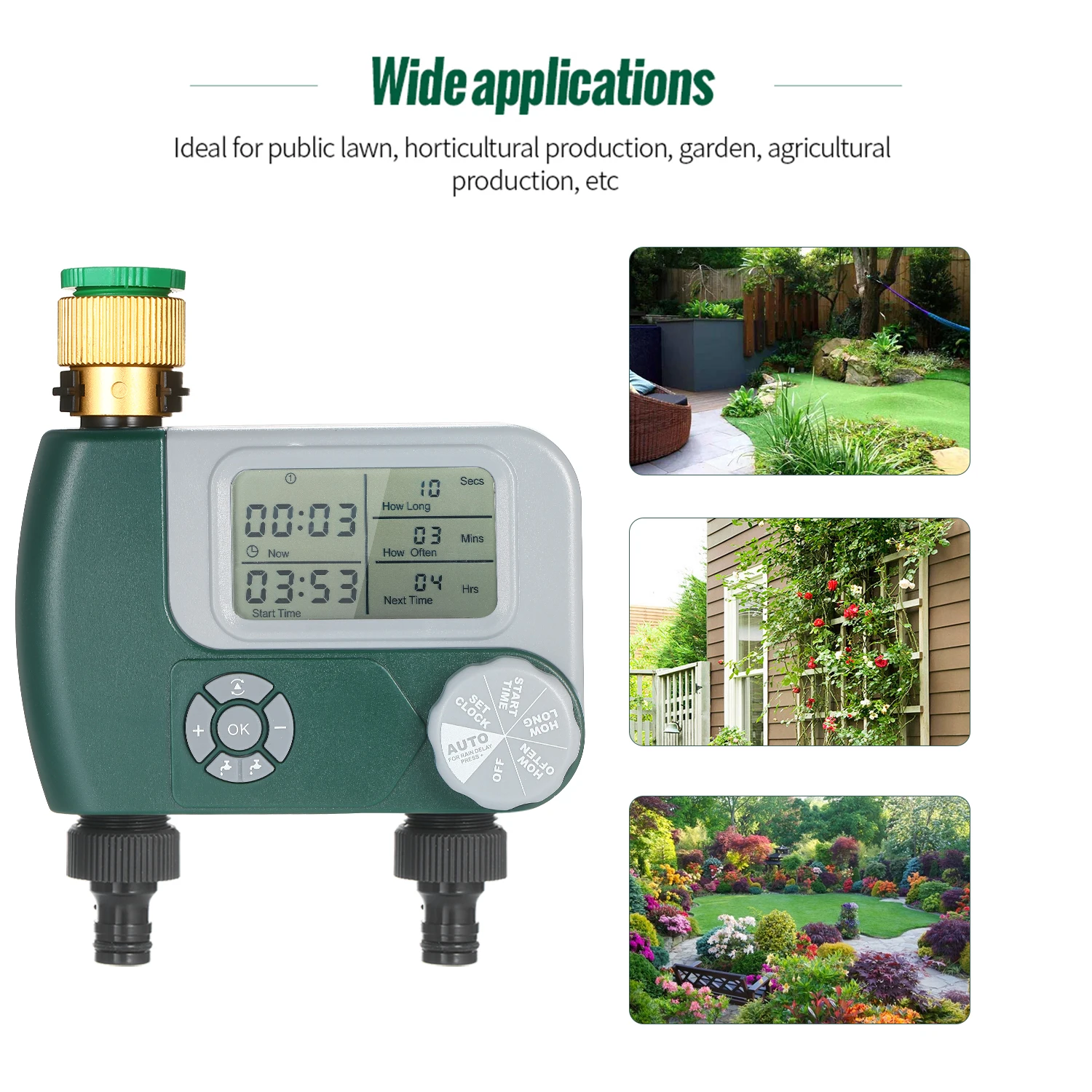

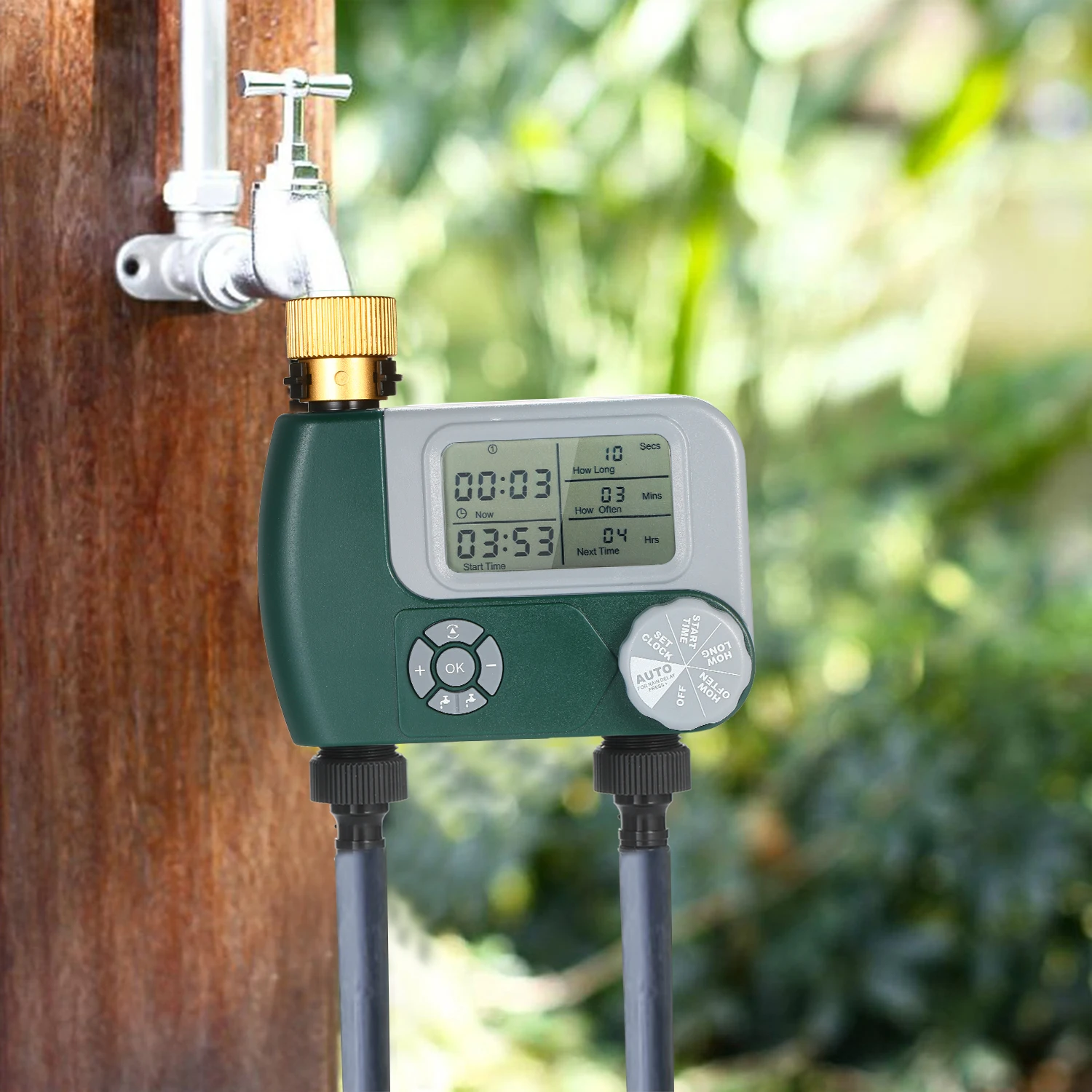

With this programmable watering timer, no more soggy lawns or dead plants in garden because of your forgetfulness.
Features:
[Timed Watering] Watering time is 5-55 seconds per 5 seconds, 1-59 minutes per 1 minute, 1-99 hour per 1 hour.
[2 Outlets] Each port can be set independently. Manual bypass allows you to use faucet instantly without interrupting your set program.
[Digital Display] Large digital screen and legible digits ensure good visiblity in low-light area or even in darkness.
[Weatherproof] Waterproof shell enables you to use it outdoors, no worry of rainy days.
[User-Friendly] Easy to use and set without complicated installation and operation. Simply twist the knob and press the button, that’s it!
[Reliable Quality] Solid metal faucet connection is more tight and durable than ever. Improved inner pipe and solenoid valve make no more leaking.Â
Note:
*Batteries are not included.
*When battery is first connected, it takes up to 1 minute for the battery indicator to assess the battery strength.
Improvements:
1. Plastic faucet connection is replaced with a solid metal one. → to avoid the faucet connection loosing from the timer caused by sudden water pressure.
2. Inner pipe and solenoid valve are modified. → effectively solves the problem of failed programmed schedules due to the leaking pipe.

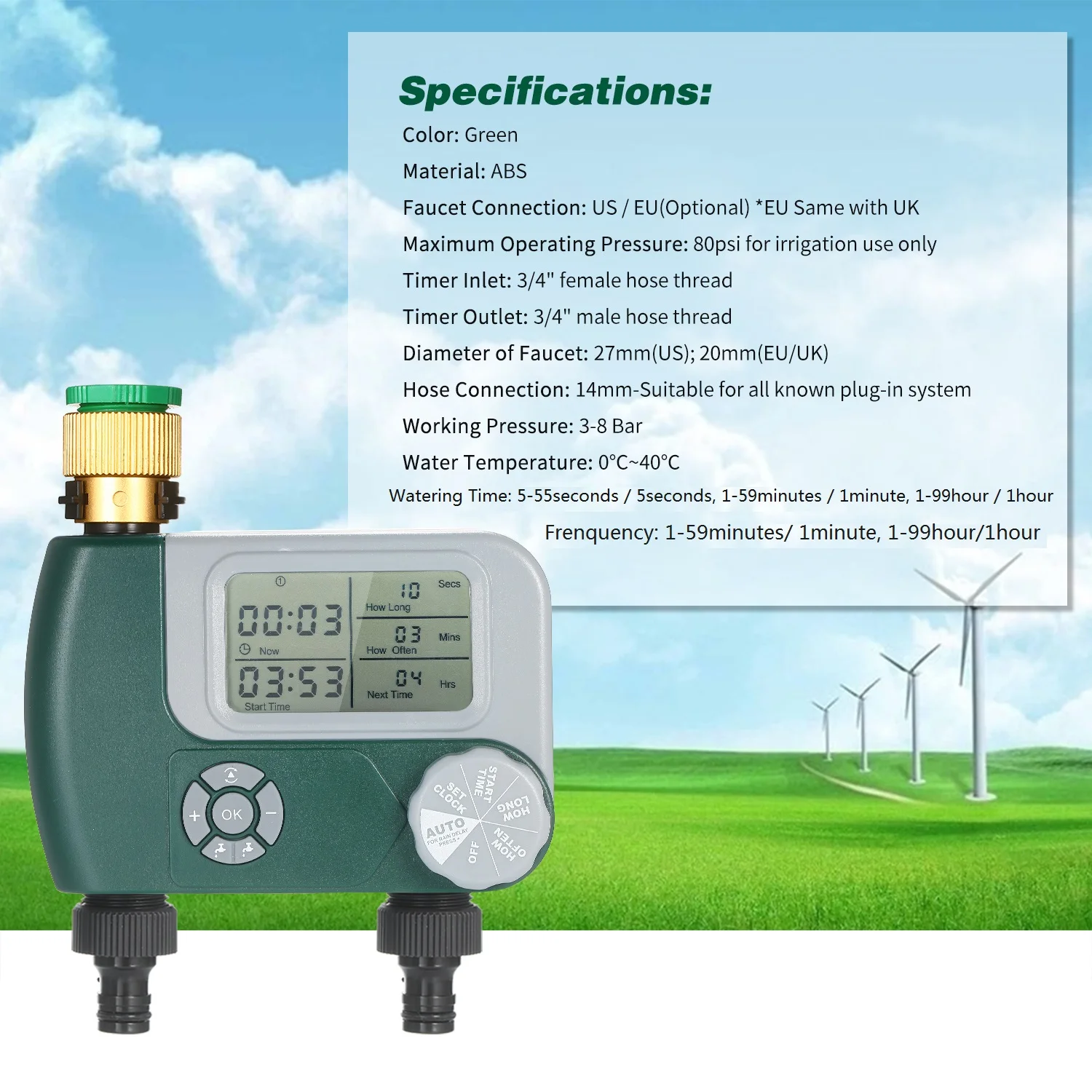

Specifications:
Color: Green
Material: ABS, Metal

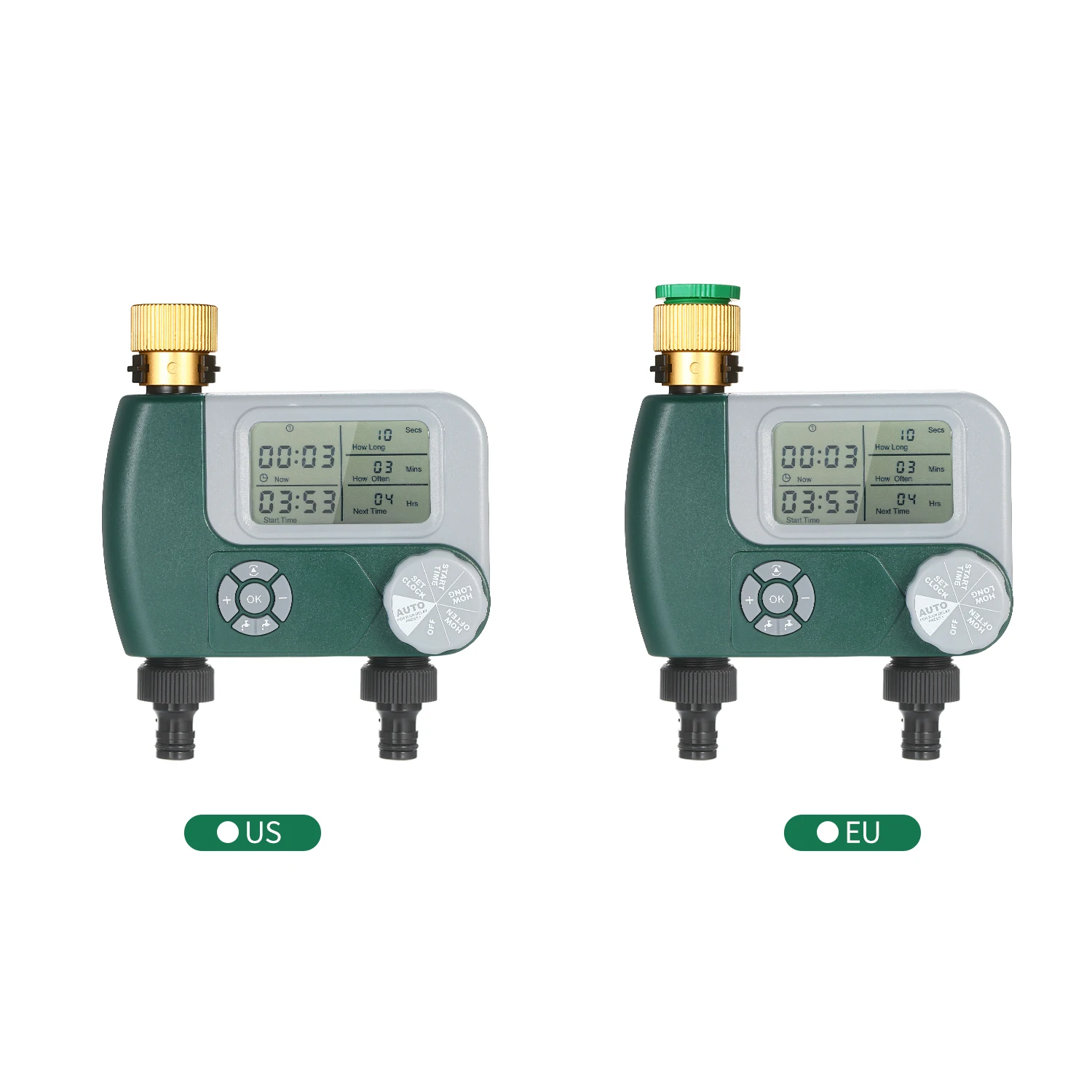

Faucet Connection: US / EU(Optional)
*EU Same with UK
Maximum Operating Pressure: 80psi for irrigation use only
Timer Inlet: 3/4" female hose thread
Timer Outlet: 3/4" male hose thread
Diameter of Faucet: 27mm(US); 20mm(EU/UK)
Hose Connection: 14mm-Suitable for all known plug-in system
Working Pressure: 3-8bar
Water Temperature: 0℃~40℃
Watering Duration: adjustable 1~300 minutes
Frequency: 5-55 seconds per 5 seconds, 1-59 minutes per 1 minute, 1-99 hour per 1 hour
Power Supply: 2 * AA Alkaline Batteries(not included)

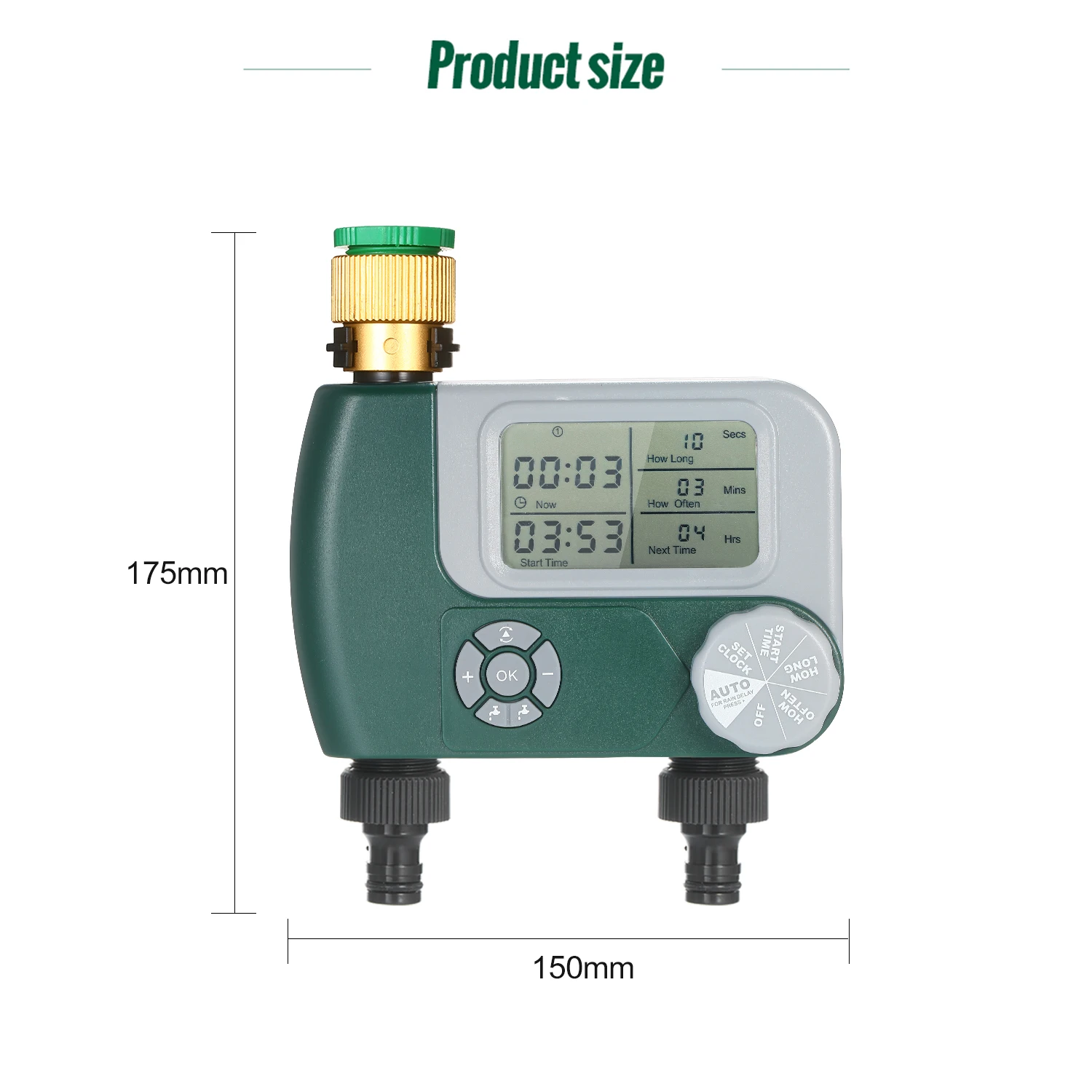

Item Size: 14.5*13.2*5.5cm / 5.7*5.19*2.16in
Package Size: 14.6*9.4*4.2cm / 5.74*3.7*1.65in
Item Weight: 424g / 14.95oz
Package Weight: 447g / 15.76oz(US); 452g / 15.94oz(EU/UK)

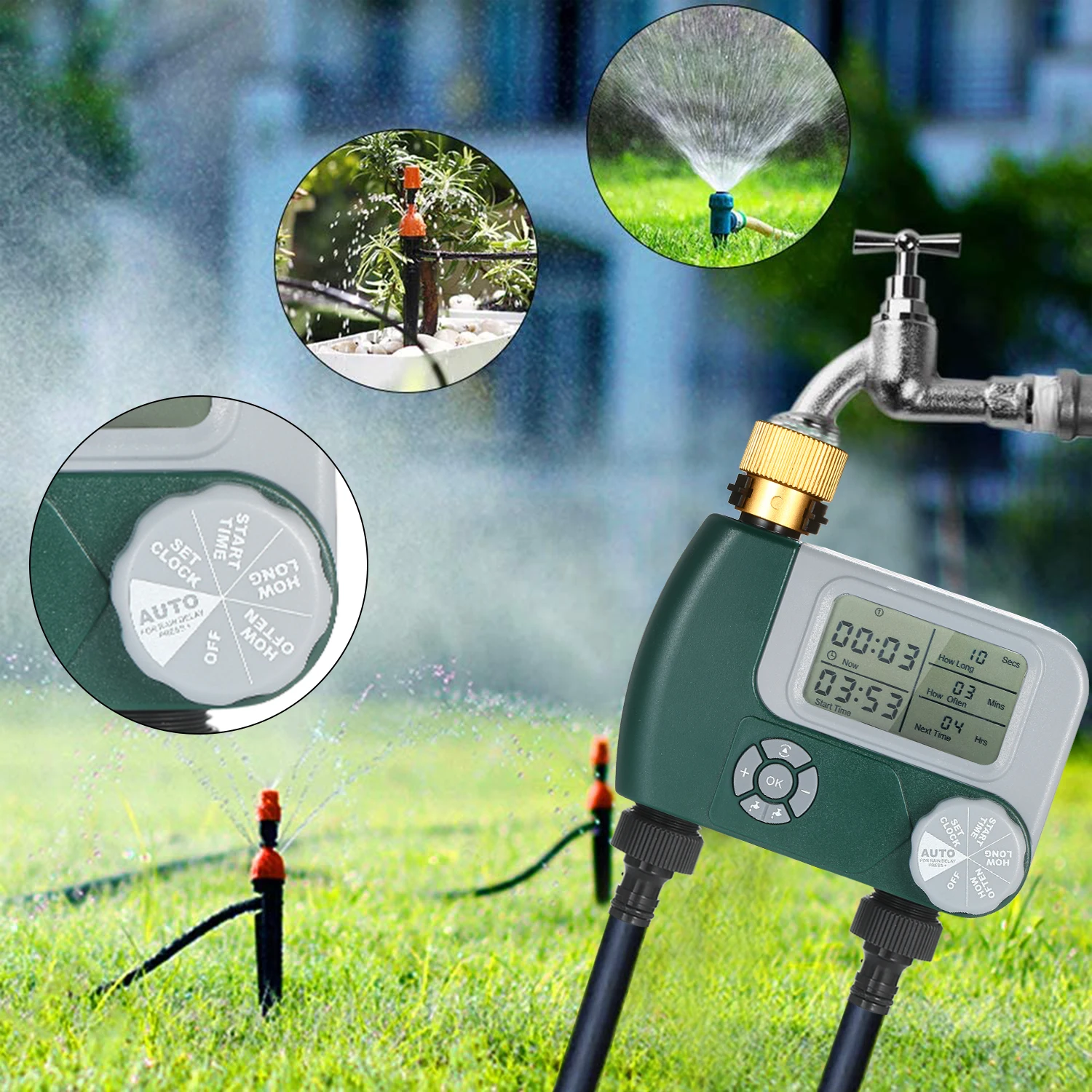

Button setting instructions:
AUTO: Timer waters according to your customized schedule
SET CLOCK: Set the time of day
START TIME:Â Â Select what time you would like watering to START
HOW LONG: Determine how long to water
HOW OFTEN: Choose how often you will water
OFF: Turn off all watering

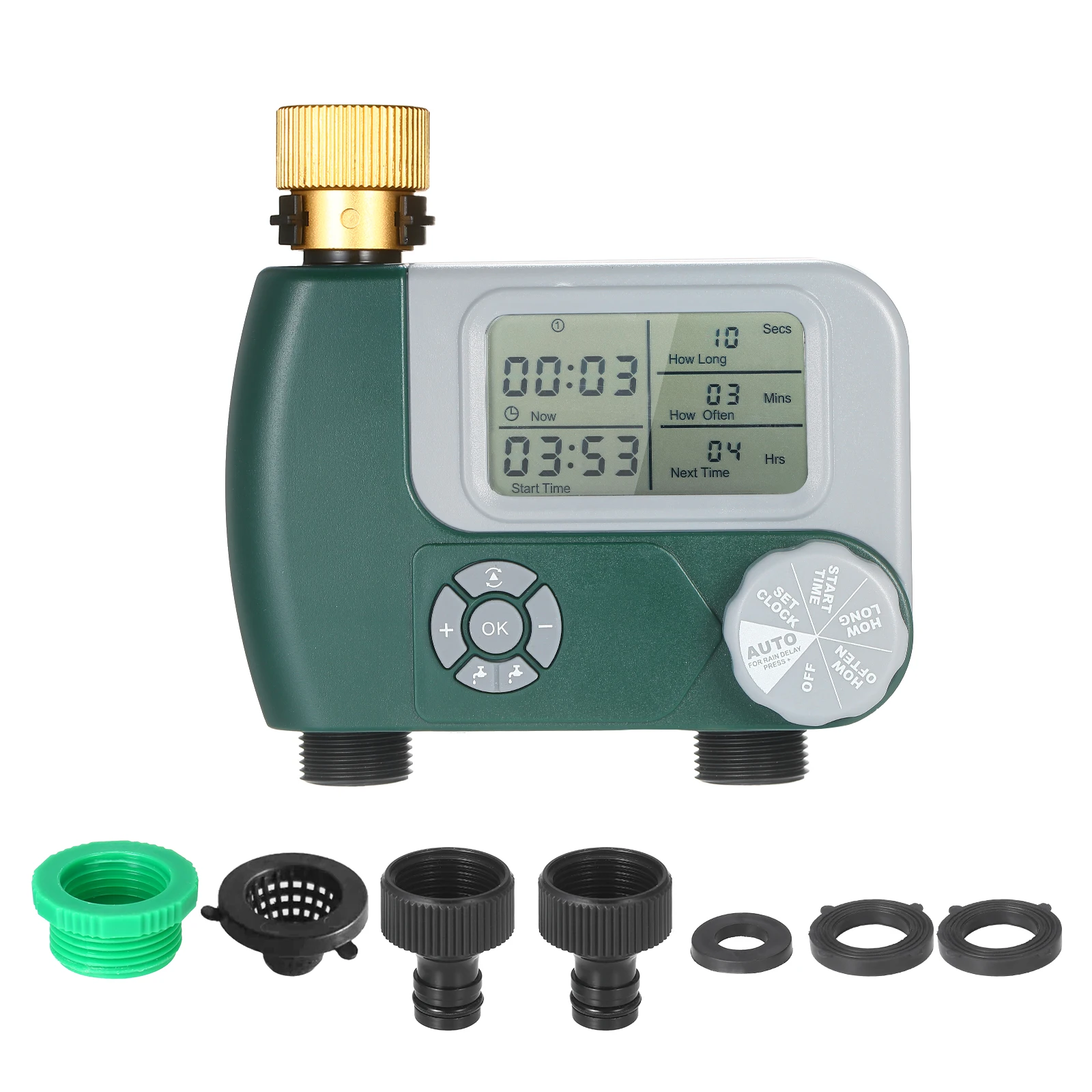

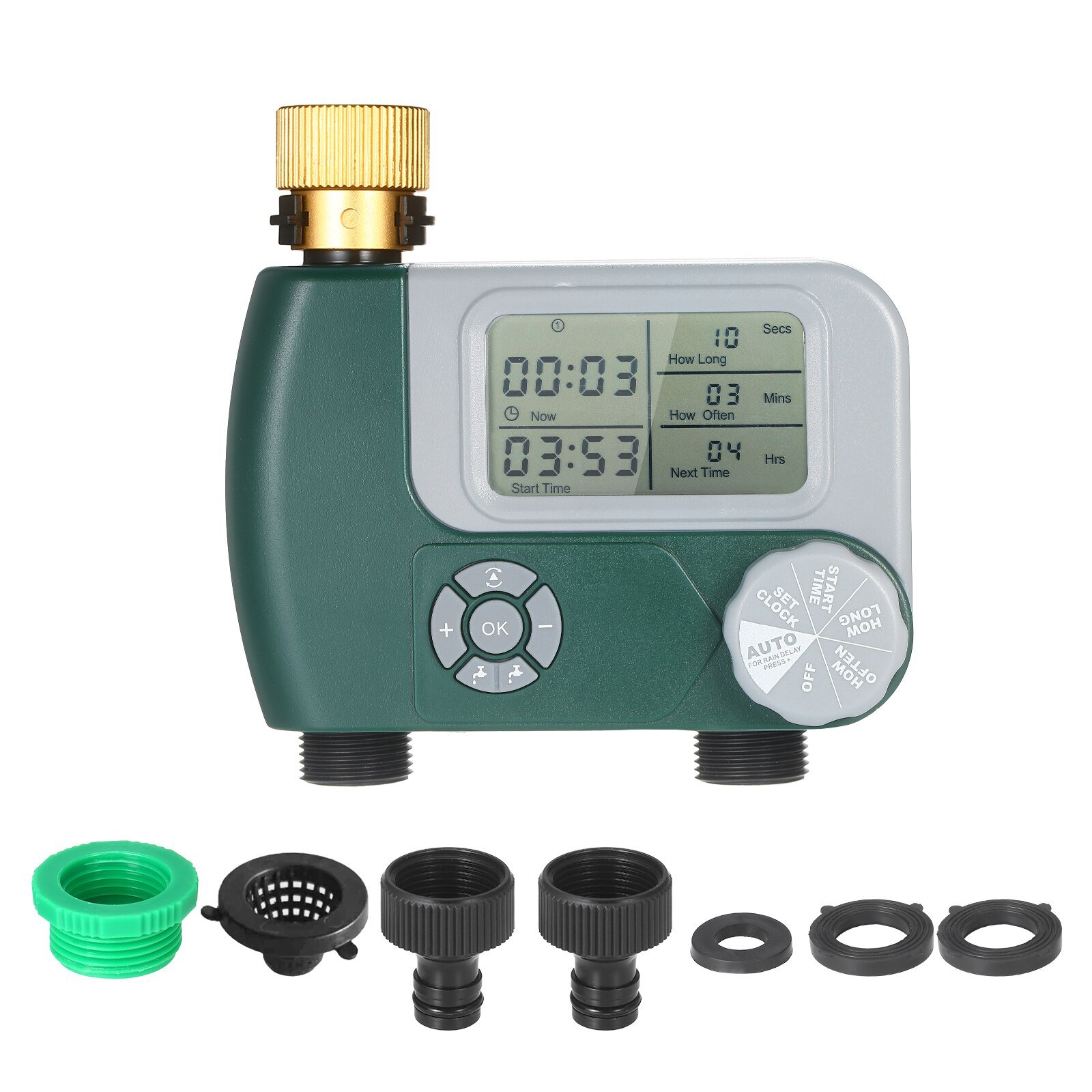

Packing List:
1 * Water Timer(batteries not included)
1 * Filter
2 * Hose Connector
1 * User Manual(English)
