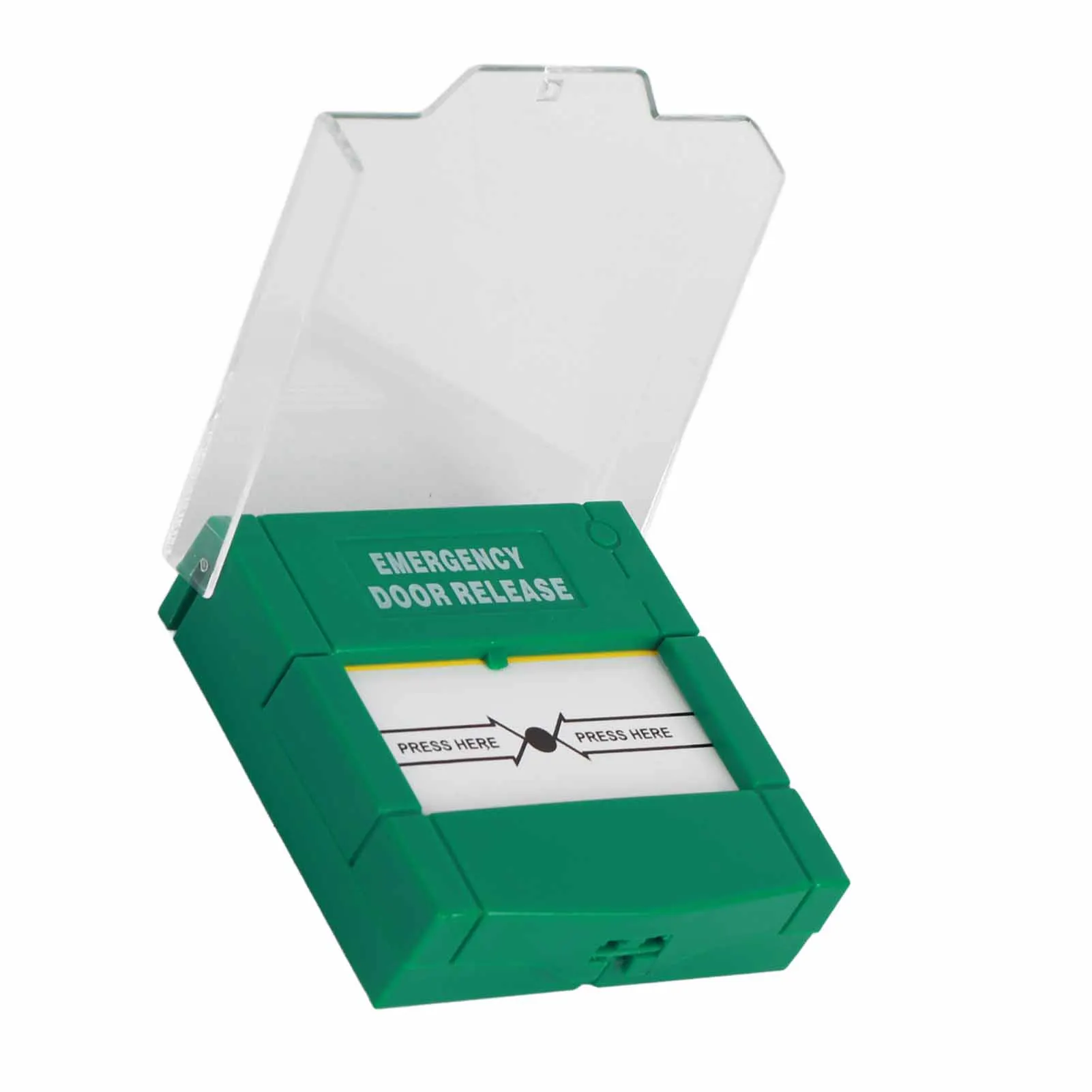

ZRE-HLMT Break Glass Fire Alarm Emergency Door Release Button Switch Control Access Switch alarm systems security home

• The alarm button Release Emergency Break Glass helps to save lives in emergency situations.

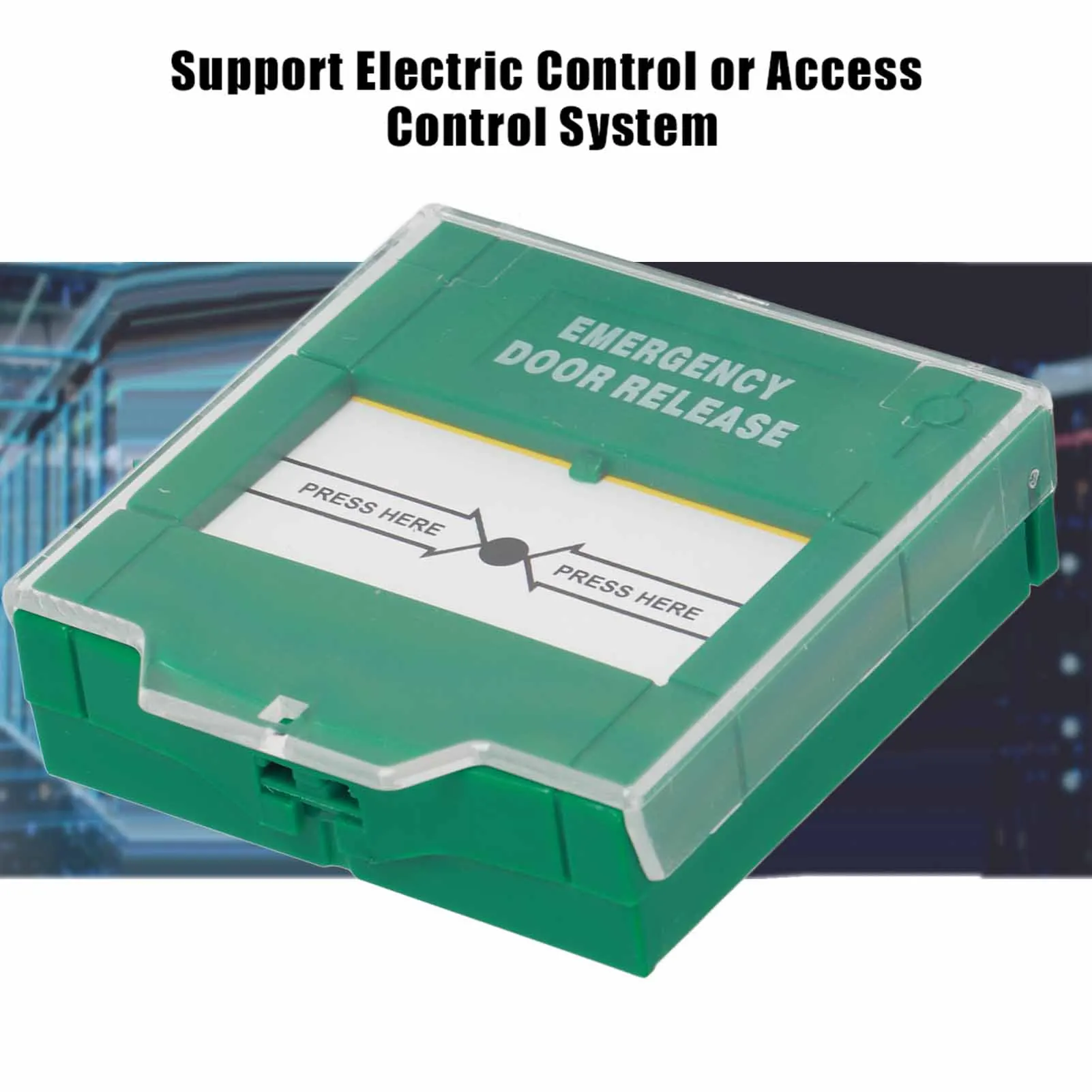

• Support Electric Control or Access Control System.
• Made of flame-retardant PC material, very convenient and safe.
• Witnesses only need to break the panel glass of the fire safety alarm button to send the fire alarm signal to the controller and send part of the fire alarm signal.
• It is a better protector at home, shop and other places, and if they take preventive measures and prepare in advance, it is much better for the public and for us.

Specifications:
Control mode: glass breakage trigger
Connection Port: Common End, Normally Closed End, Normally Started
Transmission current: <3A(220V)
Transmission power: <4000W
Transmission Voltage Range: 1V-250V
Use temperature: – 50 ~65 ℃
Plastic Material: New Flame Retardant PC Plastics
Contact Output: Normally Open and Normally Closed (NO/NC) Interface
Standard structure: imported high quality stainless steel
Electrical Performance: Maximum Durable Current 3A@36V DC
Durability Tests: 1 million Durability Life
Applicable temperature: -10 ~55 ℃ (14-131F)
Applicable humidity: 0-95% (relative humidity)
Application Type: Hollow Door Frame and 86 Embedded Electric Box
Size: 8.6*8.6cm/3.4*3.4in
Package Weight: 147g/5.2oz

Package List:
1 * Emergency Button
1 * Installation Kit
1 * User Manual
