- Zone Number: Work with wireless alarm control panel
- Model Number: Konlen Series of Wireless detectors
- Kit Configuration: Door/Window Sensor
- Size: See Description
- Power: Battery Powered
- Connection Type: Wireless
- Arming Type: FR Remote-controller
- Video Interface: No
- Display: No
- Password Keyboard: No
- Brand Name: KONLEN
- Origin: Mainland China
- Wireless Frequency: 433MHZ
- Chip Code: EV1527
- Timing Resistor: 330K
- Compatibility: Work with KONLEN Alarm System
​​​​​Please Note : All the wireless accessories can only work with our KONLEN alarm system kit in the store
1. KLN-H25 Tuya Smart WIFI + GSM Alarm System
Support 11 kinds of languages: English, French, Romanian, Italian, German, Portuguese, Polish, Greek, Spanish, Russian and Chinese
Compatible with Google Home/Alexa
2.KLN-H22 Tuya Smart WIFI + GSM Alarm system
There are 5 types of voice prompt language for option: English, Russian, Spanish, French, Italian.
Compatible with Google Home /Alexa
3. KLN-H36 WIFI + GSM Alarm system
The H36 control panel built in 8 kinds of langauges: English, Spanish, Russian, German, Polish, Italian, French, Chinese
Voice Languages has English, Spanish, French, Russian,Polish, Italian for your option
4. KLN-H37 WIFI + GSM + PSTM Alarm system
Voice Languages has English, Spanish, French, Russian,Polish, Italian for your option
Features : support 99 wireless zone and 4 wired zone , can connect with wireless detectors and wired detectors.
5. KLN-H24 GSM Alarm system
Note:
1. If you buy accessories together with our alarm systems kit at same time in one shipment, all types of door sensors, remotes, wireless sirens include batteries, but others, such as PIR detectors and smoke detectors don’t include batteries.
2. But if you only buy accessories separately (without alarm systems kit), all the accessories without batteries except of wireless strobe sirens
3. Both wireless indoor siren and outdoor siren include backup battery and externa power adapter.

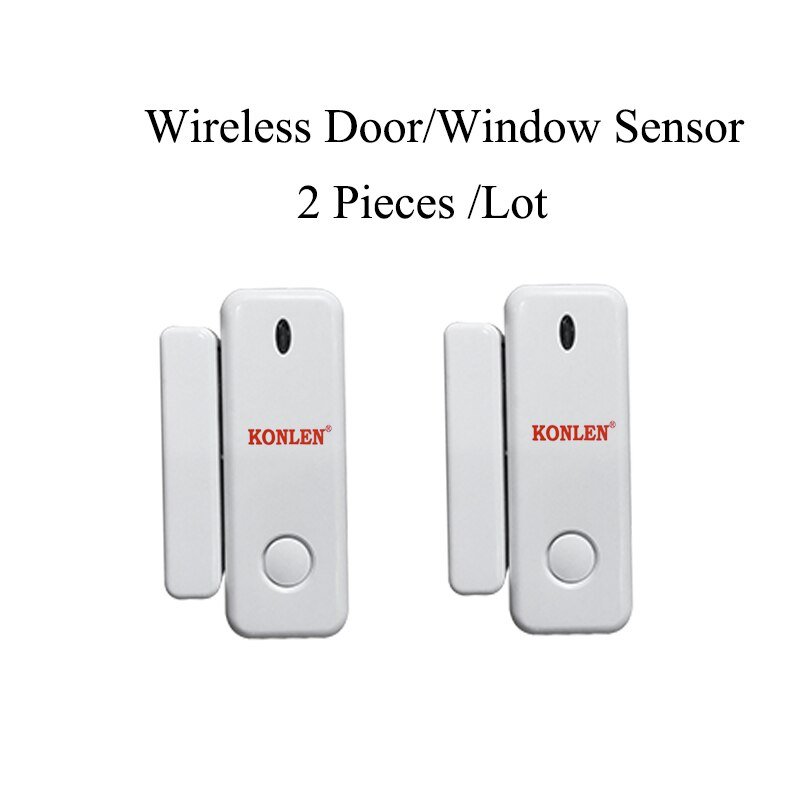

Wireless Door Sensor :
The specification of D01/02/D03
Wireless Radio frequency: 433mhz
Chip Cod Form: EV1527 with 330K resistor
Transmission Distance: About 20 to 40M indoor;100m in open area(no obstacle)
Wireless Pir motion sensor
The specification of P01/P02/P03 PIR
Powered by 1.5V AA or 1.5V AAA battery (Battery not included)
Wireless Radio frequency: 433mhz
Chip Cod Form: EV1527 with 330K resistor
Transmission Distance: About 20 to 50M indoor;120m in open area(no obstacle)
Detection Range: Horizontal 110°, Vertical 45° to 60°
Detection Distance: About 6 to 10M
Installation Height: 1.8 to 2.5m (2.2m is recommanded)
Please note : all the pir sensor do not include battery .

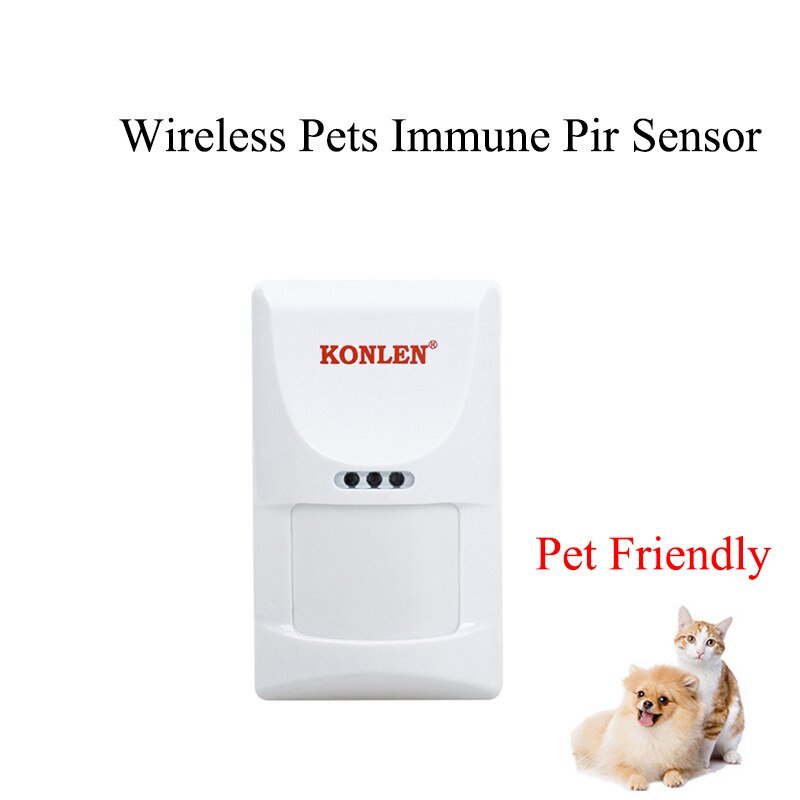

Wireless Pet Immune pir sensor :
Powered by 2*1.5V AA battery ( Battery Not included)
Operation current: 20uA(stand by); 14mA (alarm)
Installation height:1.8m-2.4m
Detection distance: 12m*12m @ 110 degree
Wireless transmission distance: Over 200m in open area (no obstacle)
Sensitivity: High or Low adjustable
Pet immunity: 20Kg Max

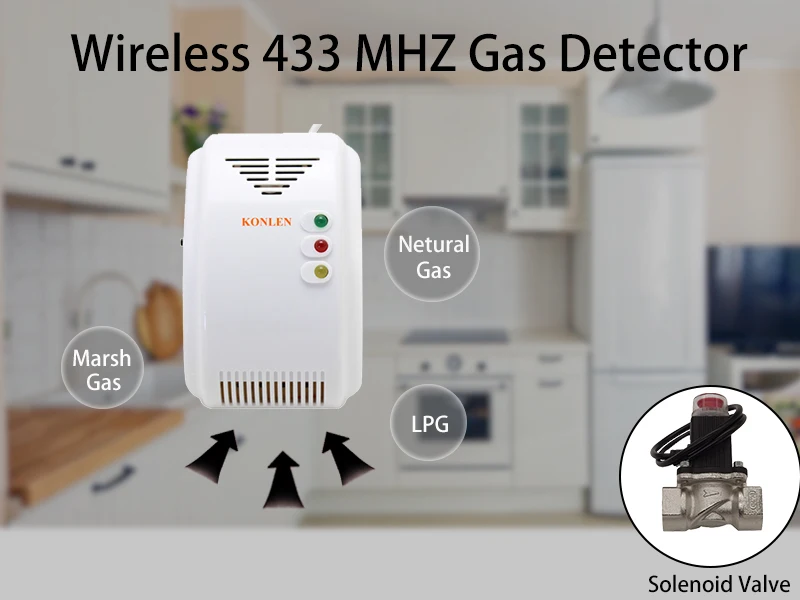

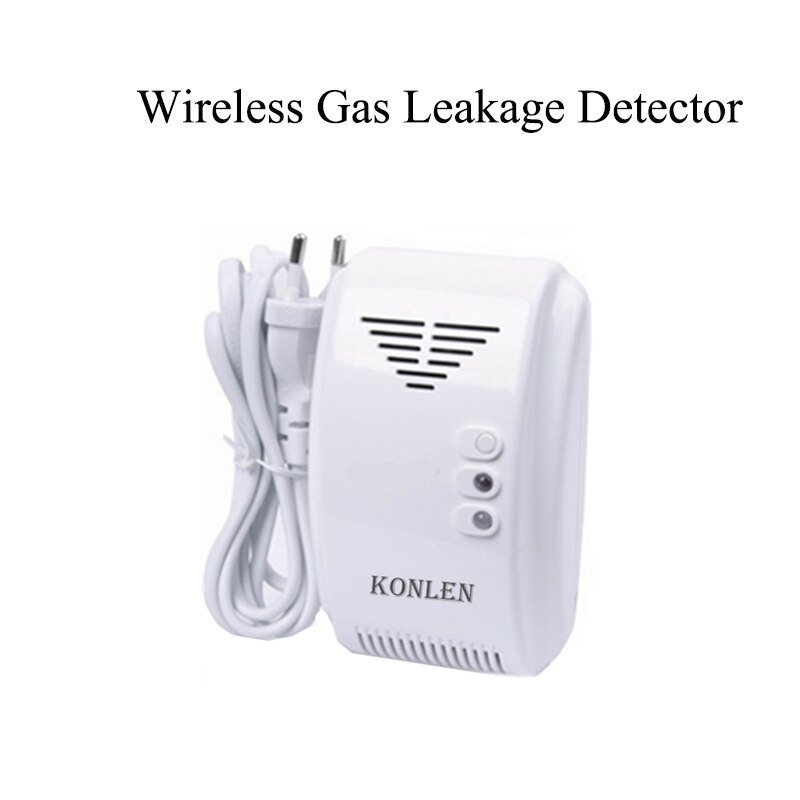

Wireless Gas Leak detector :
Mainly used in flammable gases (such as LPG gas, natural gas, methane, etc.) leak places, to detect whether the leakage of combustible gas, to protect the personal and property safety!
* Support to work with solenoid valve , If you want to buy solenoid valve ,please contact us to buy .
Powered by AC100v to 240V,
EU/US power plug optional
Wireless Radio frequency: 433mhz
Chip Code Form: EV1527 with 330K resistor
Transmission Distance: About 20 to 40M indoor;100m in open area(no obstacle)
Installation of gas detector
Installation should be according to gas weight.
a. For natural gas and mash gas etc, which are a bit lighter than air, gas detector should be installed under ceiling 0.3m to 1.2meters and within the rang of 1.5m semidiameter from gas sources.
b. For liquefied petroleum gas (LPG), which is a bit heavier than air and sink down to a lower level, the gas detector should be installed above 0.3—1.2meters from floor and within the range of 1.5m semidiameter from gas sources.

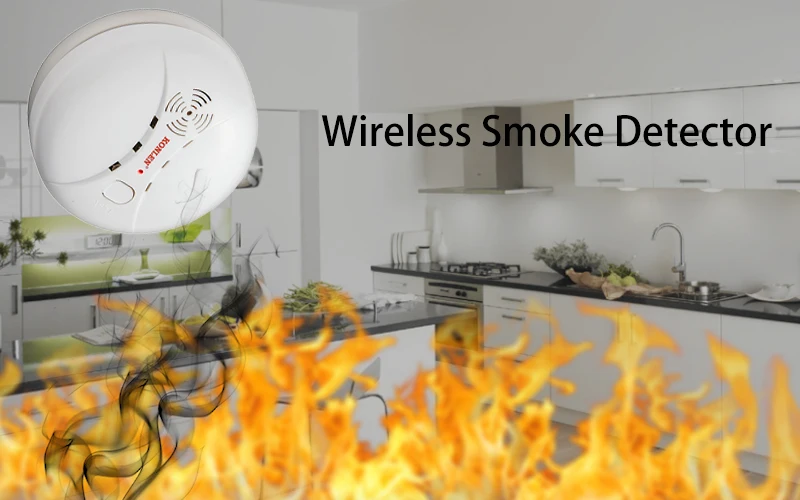

Wireless Smoke Detector :
Powered by 9V 6F22 Battery (battery not included)
Static Current: less than 10uA
Alarm Current: less than 20mA
Alarm Indication: Red LED flash
Sound Level: More than 85dB/m
Detecting Area: 20 square meter
Wireless Radio frequency: 433mhz
Chip Code Form: EV1527 with 330K resistor
Transmission Distance: About 20 to 40M indoor;100m in open area(no obstacle)
Wireless indoor Strobe Siren :
Power output: DC5V 1A, AC100 to 240V
Standby current: ≤13mA
Alarm current: ≤230mA
Wireless Frequency: 433MHz
Backup Battery: 3.7V/280mA
Siren Volume: 110db more or less
Backup battery and external power adapter included

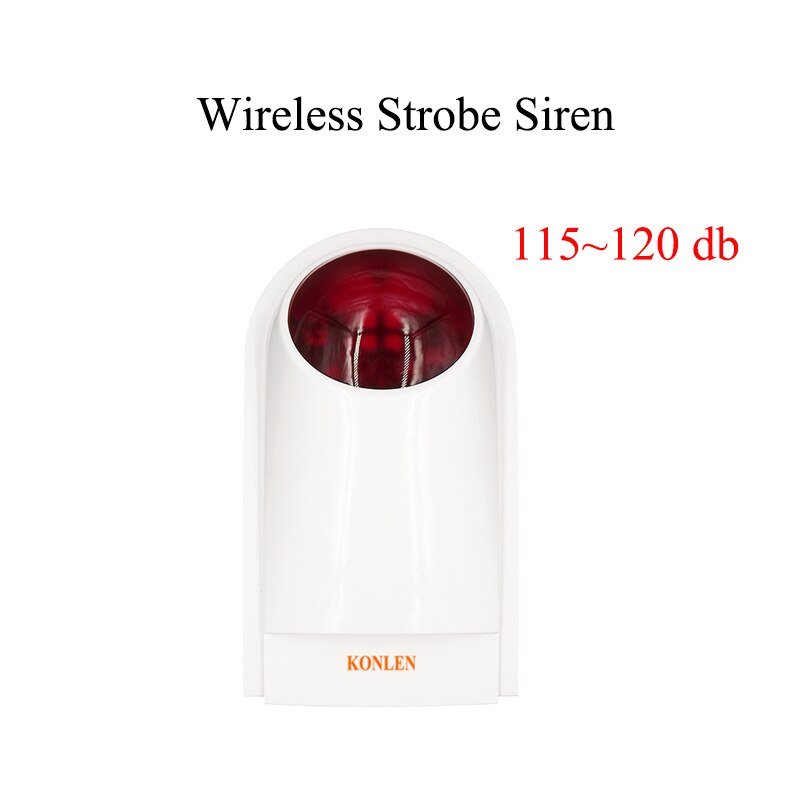

Wireless outdoor Strobe Siren :
Input Voltage : DC12V, AC100-240V
Standby battery : NI-HI AAA*6 DC7.2V
Sound Volume : 115 ~120 db
Backup battery and external power adapter included
