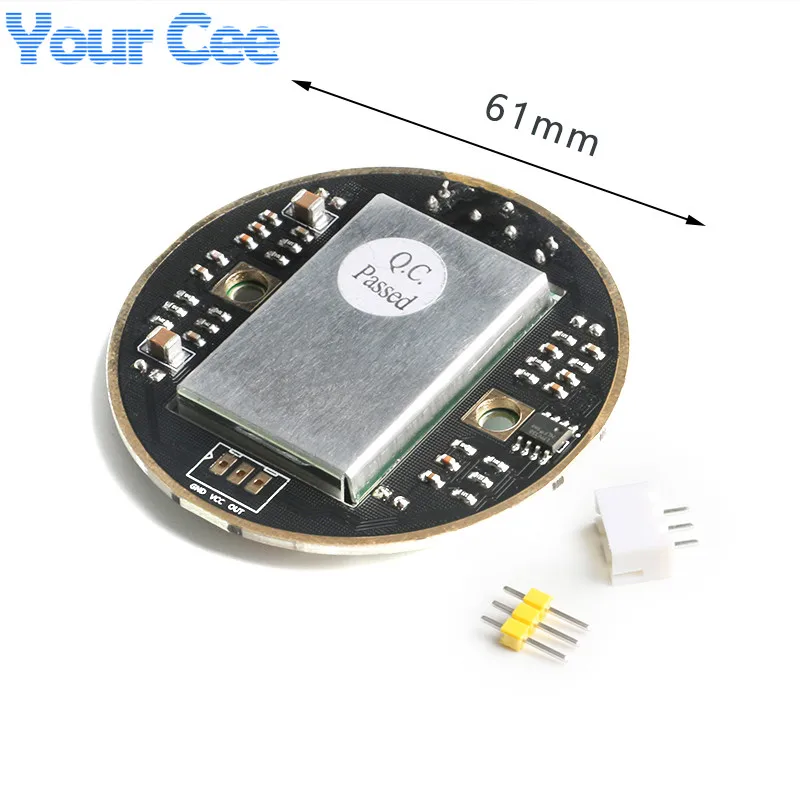

HB100
Â
Product features and uses
Â

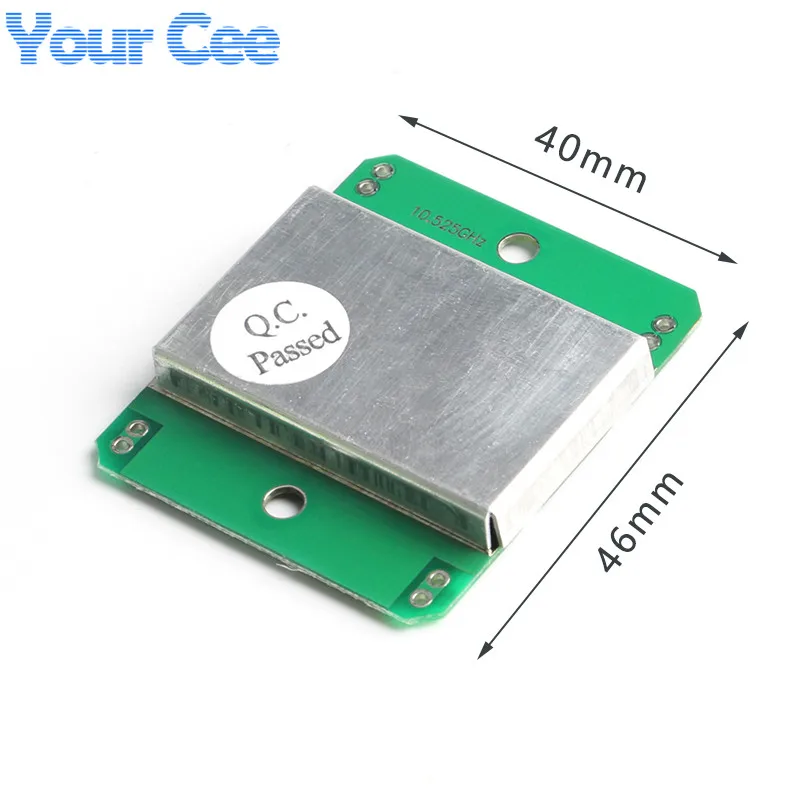

   The HB100 microwave module is a 10.525GHz microwave moving object detector designed using the principle of Doppler radar. Compared with other detection methods, this detection method has the advantage of not being affected by temperature, humidity, noise, airflow, dust, light, etc., and is suitable for harsh Environment; This product is mainly used in automatic sensor lights, automatic door control switches, security systems, automatic video control systems for ATM cash dispensers, etc., and it can also expand its application fields, such as cooperating with image monitoring, identifying drive alarm systems It is widely used in prison monitoring, airport monitoring, important storage sites, hospital ICU and other important places. Has a wide range of applications and market prospects.
Â
Parameter:
Â
Operating frequency: 10.525 GHz
Working voltage: DC 5V ± 5%
Maximum working current: 45mA
Typical working current: 35mA
Average power consumption: 50mW
Antenna gain: 8dBi
Detection range: horizontal 85 ° (maximum adjustable 160 °); vertical 40 °
Detection distance: 10 meters
Working temperature: -30 ℃ ~ + 70 ℃
Working humidity <93% RH
Â
24GHZ/24G Module

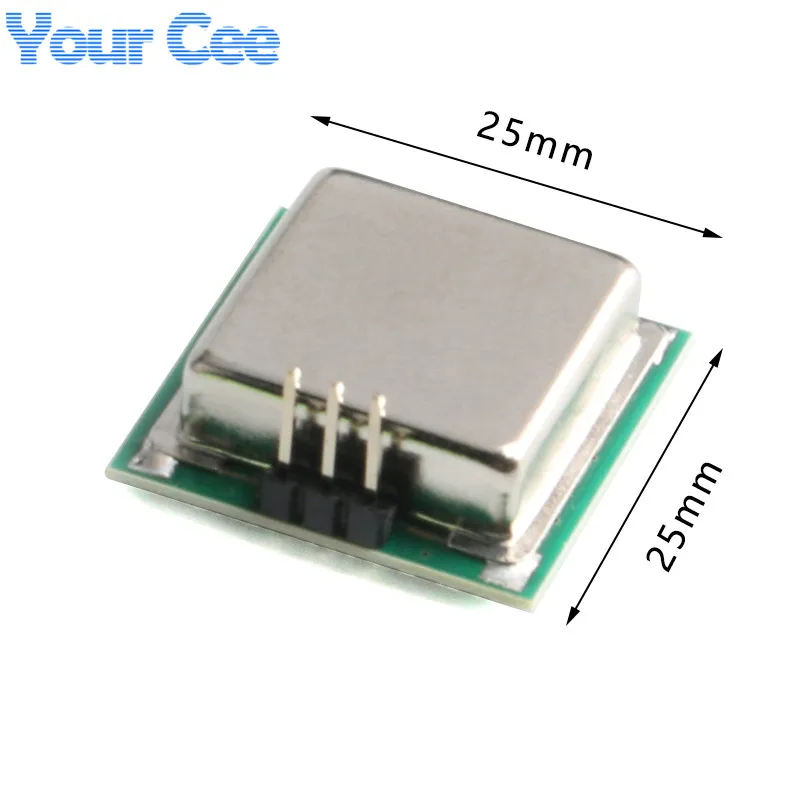

1.Transmitting Frequrency: min:24GHz typ:24.125GHz max:24.25GHz
2.Output Power:16dbm (tpy)Â
3.Operating Temperature:-20–60℃
4.Operating Current: tpy:30MA, max:40MA
5.Operating Voltage: tpy:5.5V
6.Pulse Width: tpy:10US
7.IF Output:-300–300MV
8.Appearance Size:25*25*7mm
Function Features:
1.Noncontact detection,moving object detecting
2.Transmitting frequency:24GHZ,can be widely applied in business,industries,word controlling etc
3.Provide various frequency range standards:-UK,-F.advanced low consumption PHEMT oscillator
4.Independent transmitting and receiving route, can get the biggest gain,single channel operation
5.High sensibility,high flexibility,low cost,operating distance:15m
6.Not influenced by temperature,humidity,noise,air flow,dust,ray etc,adaptive to terrible environment
7.Strong radio frequency interference resistance,stable performance,swift response,high sensibility
8.Out put power is 5mW,does no harm to human bodies
9.Long distance detection range:15m
10.Small volume,easy to install
11.Radar wave can penetrate through non metallic object,such as board,glass,plastics,fabric textile etc,unless there are concrete wall or metal board to obstruct
12.Human beings or objects facing the sensor to move wil receive the best detection result
Notice:
1.Don’t operate during the power on in case of maloperation,wrong circuit or electric shock
2.Avoid installing the product in exposed place to prevent damage or affecting using longevity
3.Install the product far away from magnetic field in case of maloperation
4.Install the product far waay from moving conductors in case of maloperation

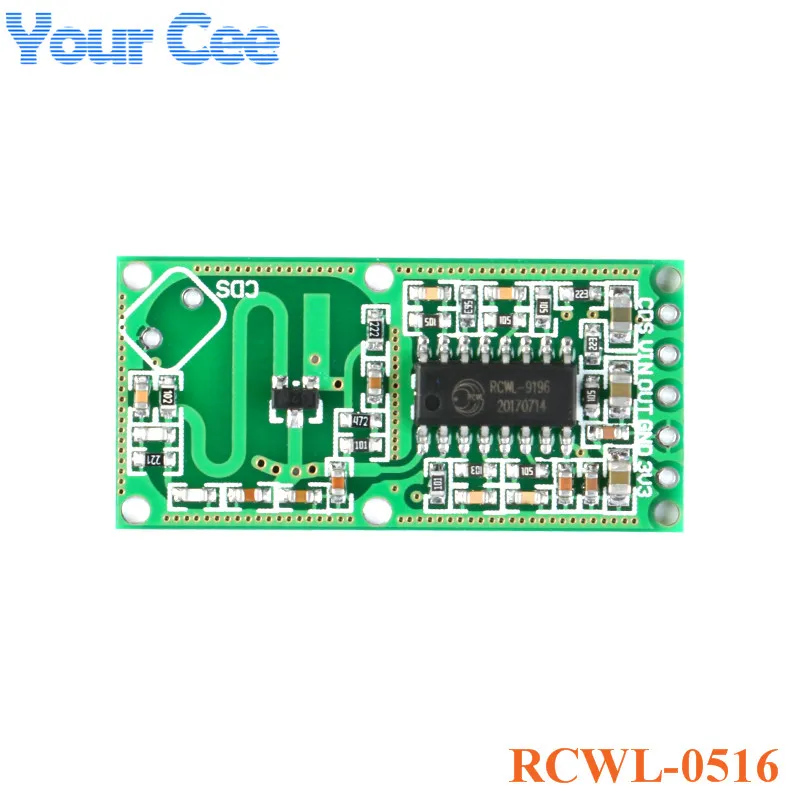

RCWL-0516
-
Features:transmission signal processing control chip RCWL-9196wide operating voltage range: 4.0-28.0Vcompared with the traditional infrared feeling PIR, with the penetrating detection capabilityblock time, distance adjustableoutput 3.3V power supplyApplication Design Note:1, the sensing face in front of the gold without any shelter.2, front and rear sensing surface space to set aside more than 1CM3, the module carrier plane and install as flat line4, a certain application of effective detection area5, the component side of the module is positive sensing face, the opposite is negative sensing surface. Negative sensing surface sensing less effective6, microwave modules can not be large-scale applications in the same area, otherwise there will be mutual interference. Between single individuals over distance greater than 1M
