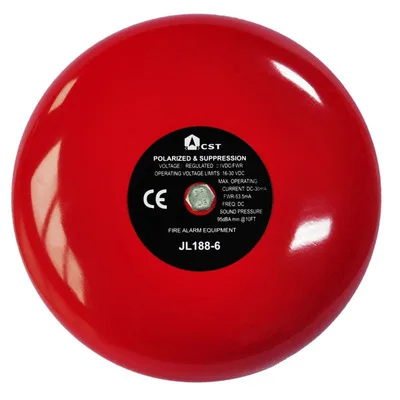

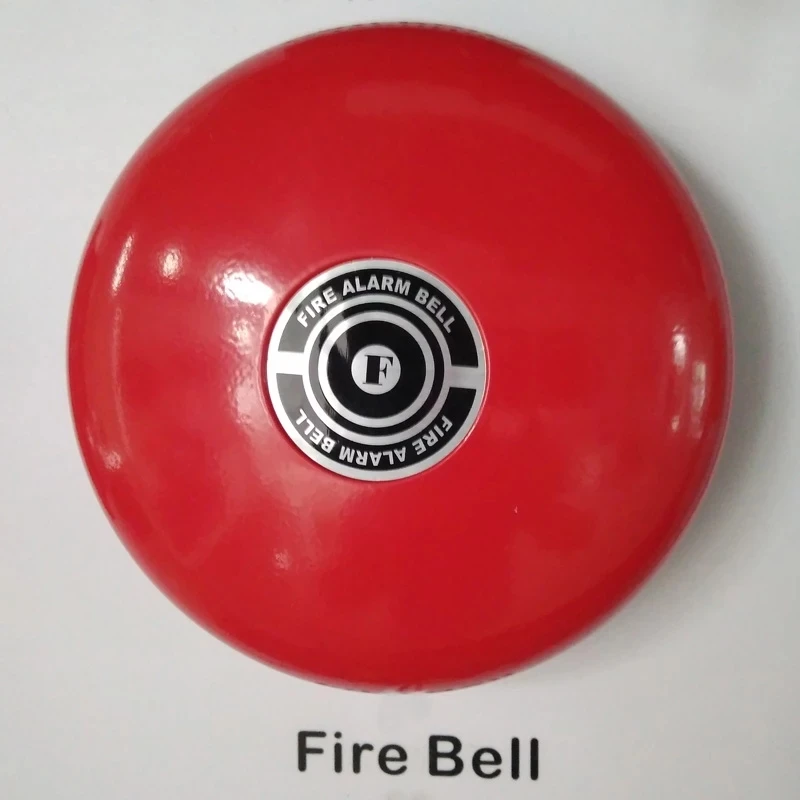

ZRE-FRLM Fire Alarm Bells DC24V 6 Inch Bell Electric Fire Bell For Fire Alarm Security Sytem

JL188-6

For wall and ceiling applications, indoors and outdoors. They are designed to be used in 24 volt DC systems.

Key Specifications/Special Features

Operating Voltage : DC24V
Alarm Current: Maximum 70 mA
Alarm Sound Intensity: Minimum 95dB
Conventional Electric Bell

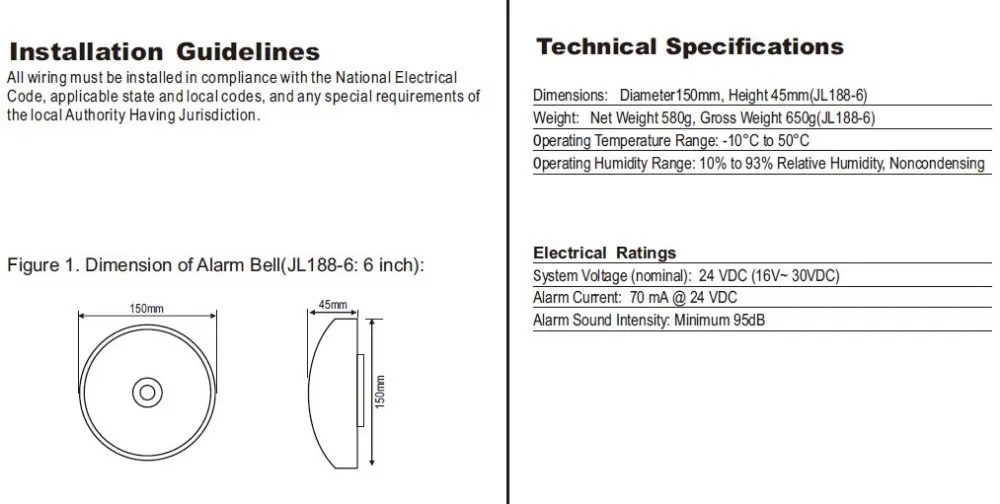

SPECIFICATIONS
Operating Voltage Range: DC24V
Alarm Current Maximum 70 mA @ 24 VDC
Alarm Sound Intensity: Minimum 95dB
Operating Humidity Range: 10% to 93% Relative Humidity, Non-condensing
Operating Temperature Range: -10°C to 50°C (14°F to 122°F)
Input terminal Wire Gauge: 12 to 18 AWG
Dimensions: Diameter 150mm, Height 45mm
Weight: Net Weight 670g, Gross Weight 720g
BEFORE INSTALLING
NOTICE: This manual should be left with the
owner/user of this equipment.
GENERAL DESCRIPTION
The JL188 Electric bell of notification appliances offers a
wide range of Sound, for wall and ceiling applications,
indoors and outdoors. They are designed to be used in 24
volt DC systems.

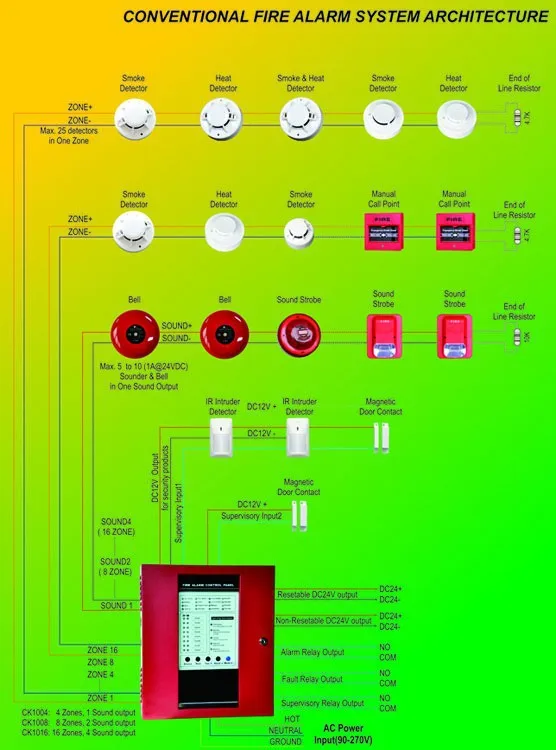

Loop Design and Wiring
The system designer must make sure that the total current
drawn by the devices on the loop does not exceed the
current capability of the panel supply, and that the last
device on the circuit is operated within its rated voltage.
When calculating the voltage available to the last device,
it is necessary to consider the voltage drop due to the
resistance of the wire. The thicker the wire, the smaller
the voltage drops. Wire resistance tables can be obtained
from electrical handbooks.
INSTALLATION
NOTE: All wiring must conform to applicable local
codes, ordinances, and regulations.

Mounting Indoor Wall or Ceiling Products
1. Attach mounting plate to junction box.
2. Connect field wiring to terminals
3. To attach product to mounting plate.
4. Secure product by tightening the two mounting screws
in the front of the product housing.
