- Zone Number: 20
- Alarm Type: The Alarm
- Output Number: 20
- Model Number: 105W
- Kit Configuration: Door/Window Sensor
- Size: 90*90 * 100mm
- Power: 12V
- Connection Type: Wireless
- Arming Type: FR Remote-controller
- Video Interface: No
- Display: No
- Password Keyboard: No
- Origin: Mainland China

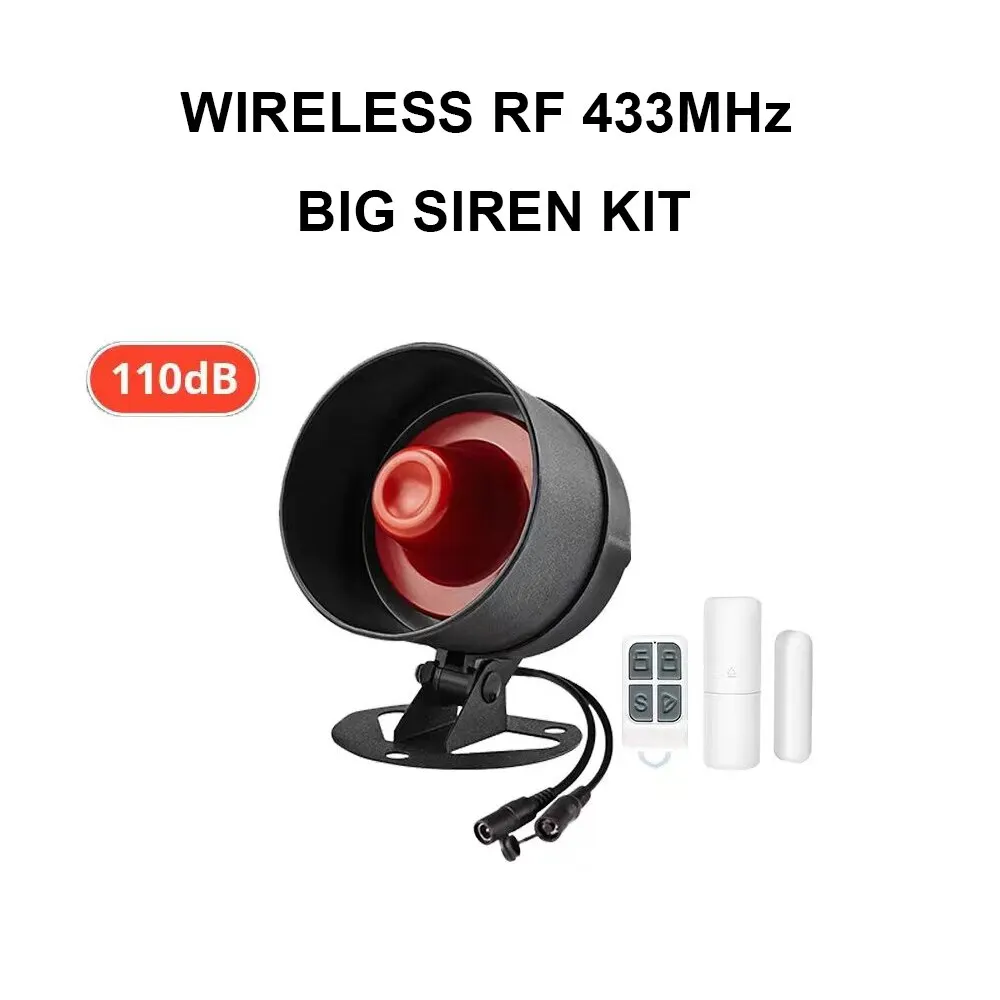

433MHz Wireless RF Siren Alarm System 110dB Indoor Outdoor Siren Horn Siren Loud Speaker for Home Burglar Security Alarm System
The siren can be used as an on-site alarm. You can add wireless accessories to it, such as remote control, wireless magnetic door contact, wireless PIR detector, wireless smoke detector, wireless gas detector.
In the arming status, when the detector is triggered, the siren will alarm withbig sound.It is widely used in banks, hospitals, power stations, schools, factories, shops and so on, to protect the personnel and property security.
Operation Instruction as On-Site alarm system
Add remote control or detector
1. After power on with beeps, siren enter normal working state.
2. Press ‘button’ 1 second, siren beep once, and then press any key of remote control or trigger the detector to send a signal to siren, respond beep twice means add successfully, if only beep once means the remote control or detector had been added before, beep three times means the accessories has already fulfilled its maximum quota or exit the configure mode.
3. Press ‘button’ or wait 20 seconds to exit configure mode.
Delete remote control or detector
Press ‘button’ 1 second, beep once to enter the configuration mode , then hold the ‘button’ 5 seconds,siren will respond with beep six times, and then release “Learn” button means delete all remote controls and detectors.
Restore factory setting
Disconnect the power of siren, then press and hold the ‘button’ while power-on. Siren will respond with beep six times, then release the ‘button’, restore factory setting successfully.
Remark: This feature will restore all settings to factory default, all accessories & transmitters will be deleted.
Standard Package
1* Siren, 1*Adapter, 1*Door Sensor, 1* Remote Control and 1*User guider
1. Support 20pcs Wireless sensors and 10pcs wireless remote controls
2.Sound level: 110dB
3. Waterproof
4. Input Voltage:DC12V 1A
5. Wireless frequency: 433MHz (±75MHz)
6. On-site High-decibel alarm product, will make big soud when be activated

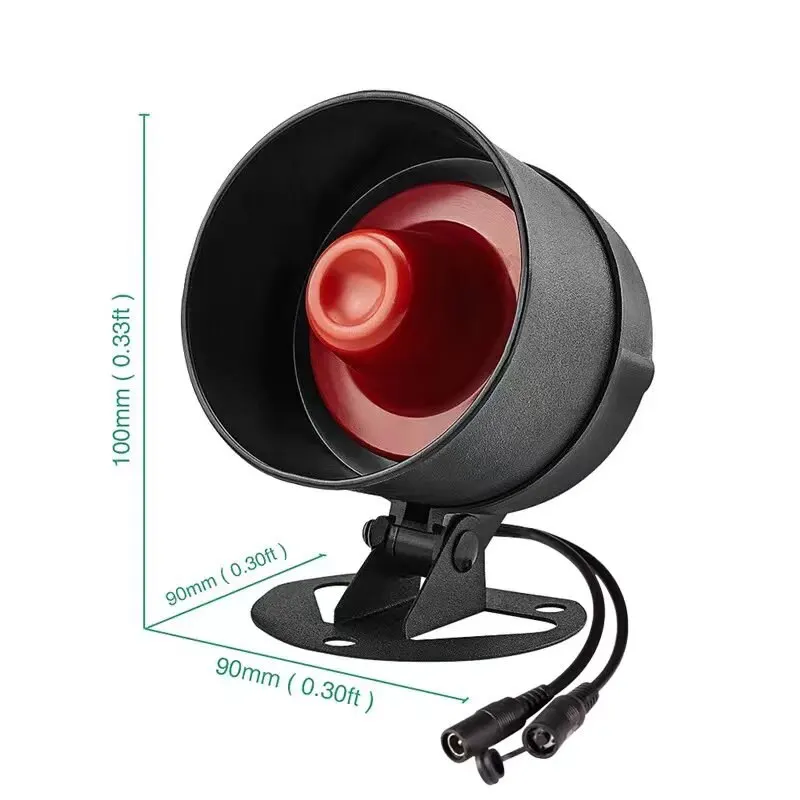

7. Product size: 100*90*90mm(siren)
1. Built-in Battery: 12V 23A
2. Low-battery remind function
3. Emitting distance: 100m (Open area)
4. Working distance: ≥15mm
5. Emitting frequency: 433MHz (1527/2264 code)
6. Battery Life: 4-6 months
1. Built-in Battery: 1*3V Lithium cell CR2032
2. Emitting distance: 50m (Open area)
3. Emitting frequency: 433MHz (1527/2264 code)
4. Battery Life: 15-18 months
Only Support EU or USA adapter now (Please choose the correct one when you need), and only offer English version user manual…
