- Quantity: 1 pcs
- Wheelbase: Screws
- Technical parameters: Value 7
- Model Number: KV2200 30A ESC 6035
- For Vehicle Type: Airplanes
- Tool Supplies: Grinded
- Four-wheel Drive Attributes: Motors
- Remote Control Peripherals/Devices: ESC
- Upgrade Parts/Accessories: Universal Joint
- RC Parts & Accs: Motors
- Material: Metal
- Brand Name: Skyquist
- Origin: Mainland China
- Recommend Age: 12 y
- Use: Vehicles & Remote Control Toys

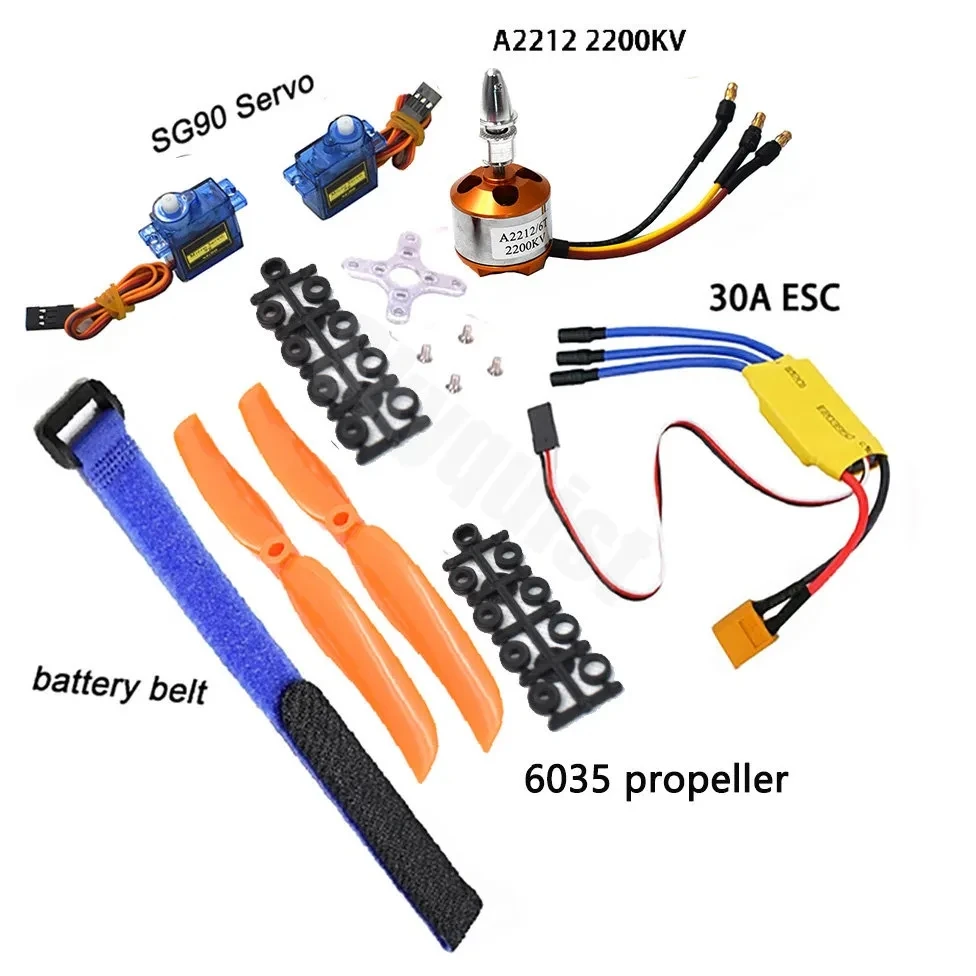

SG90A 9G Micro Servo
This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.
Key features:
• Translucent body
• Lightweight
• Less noise
TS90A 9G servo parameters:
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V

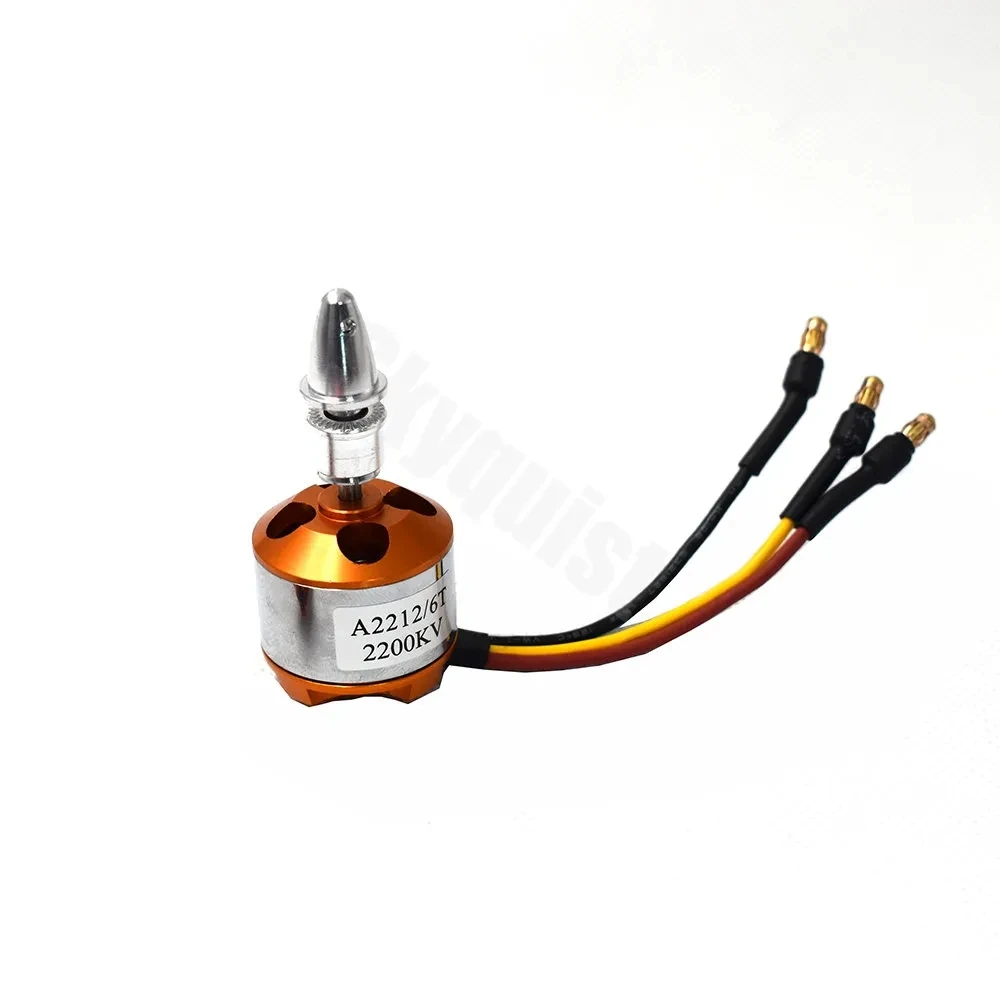

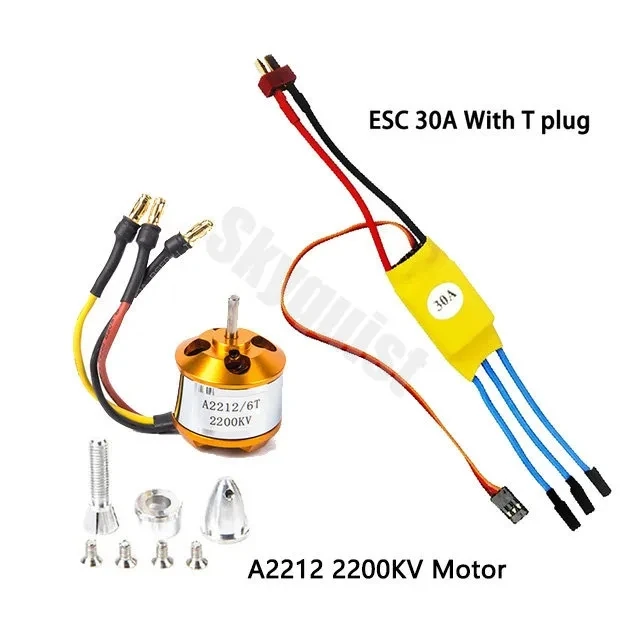

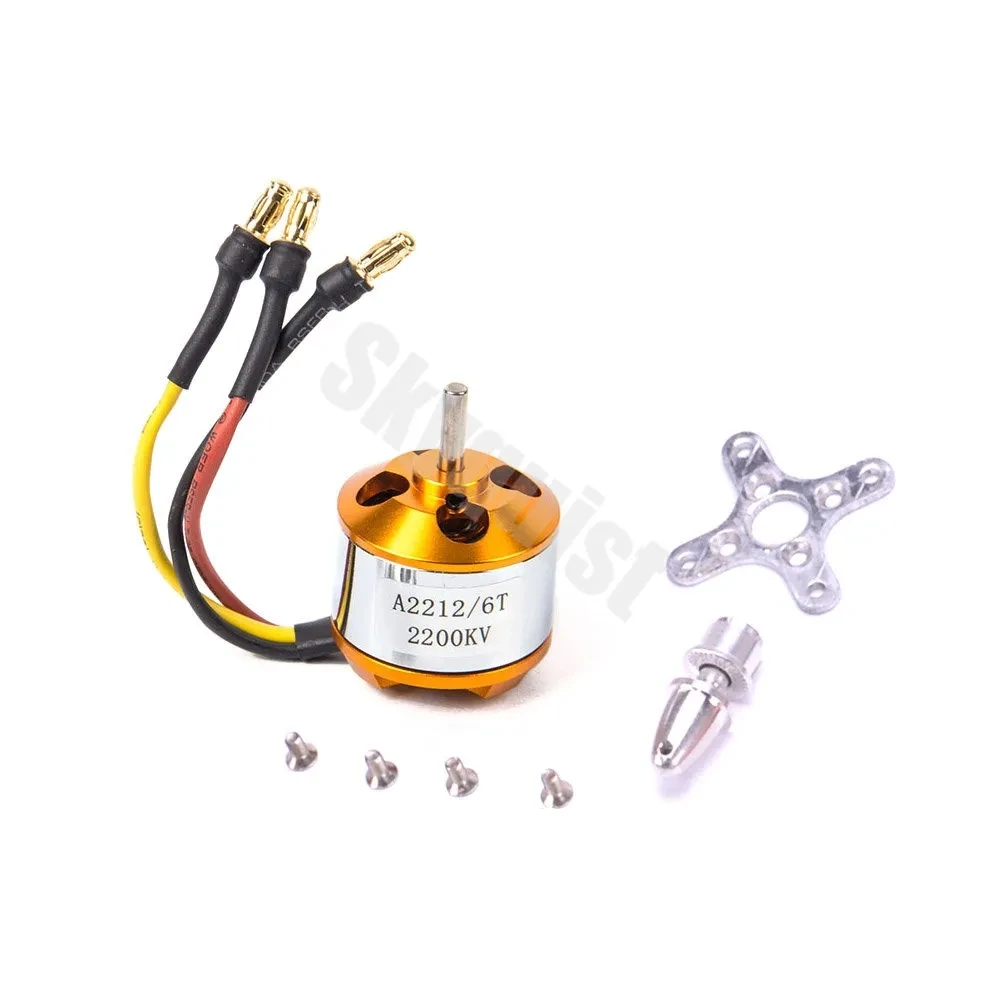

A2212 2200kv Motor Specification:
KV: 2200
Ri(M Ω): 0.033
Battery: 2-3Li-Po
Max Power: 342W
Test Prop: 7×3/7×4
Motor Size: 27.5x38mm/1.08”x1.5”
Shaft Diameter: 3.17mm/0.12”

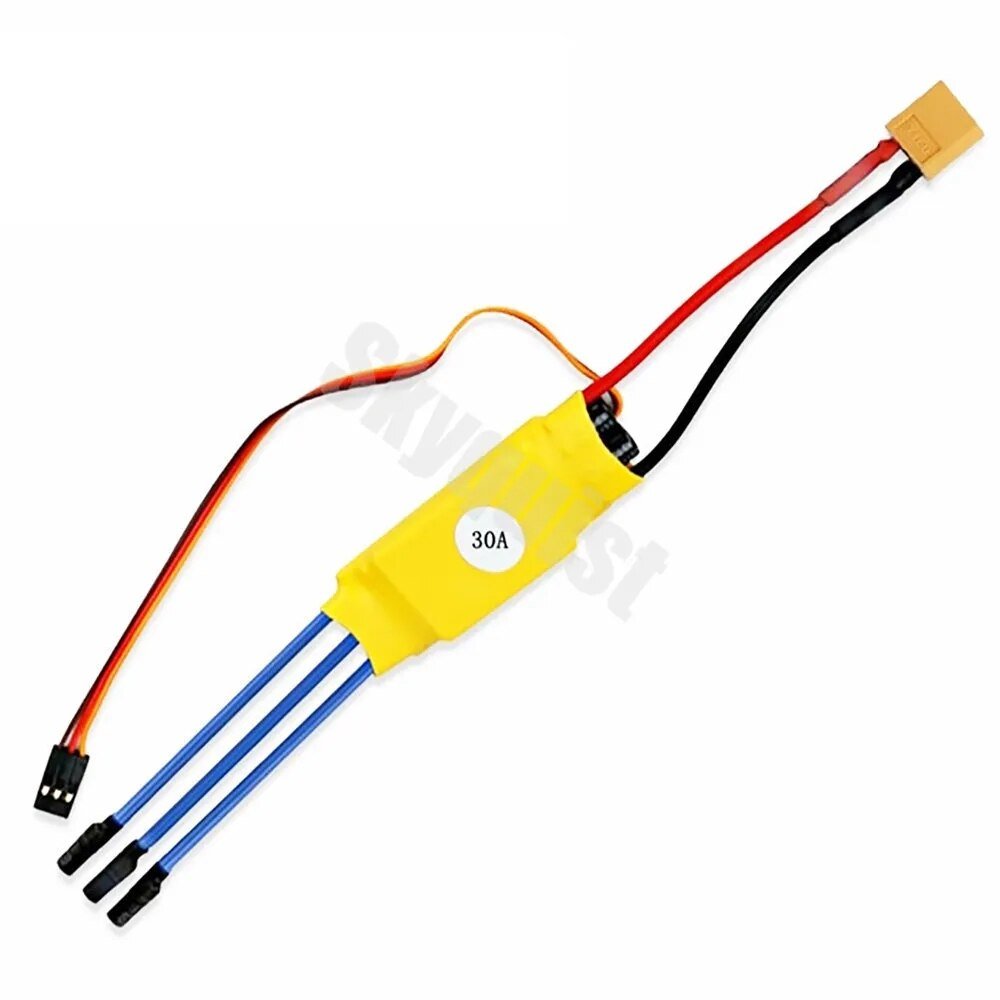

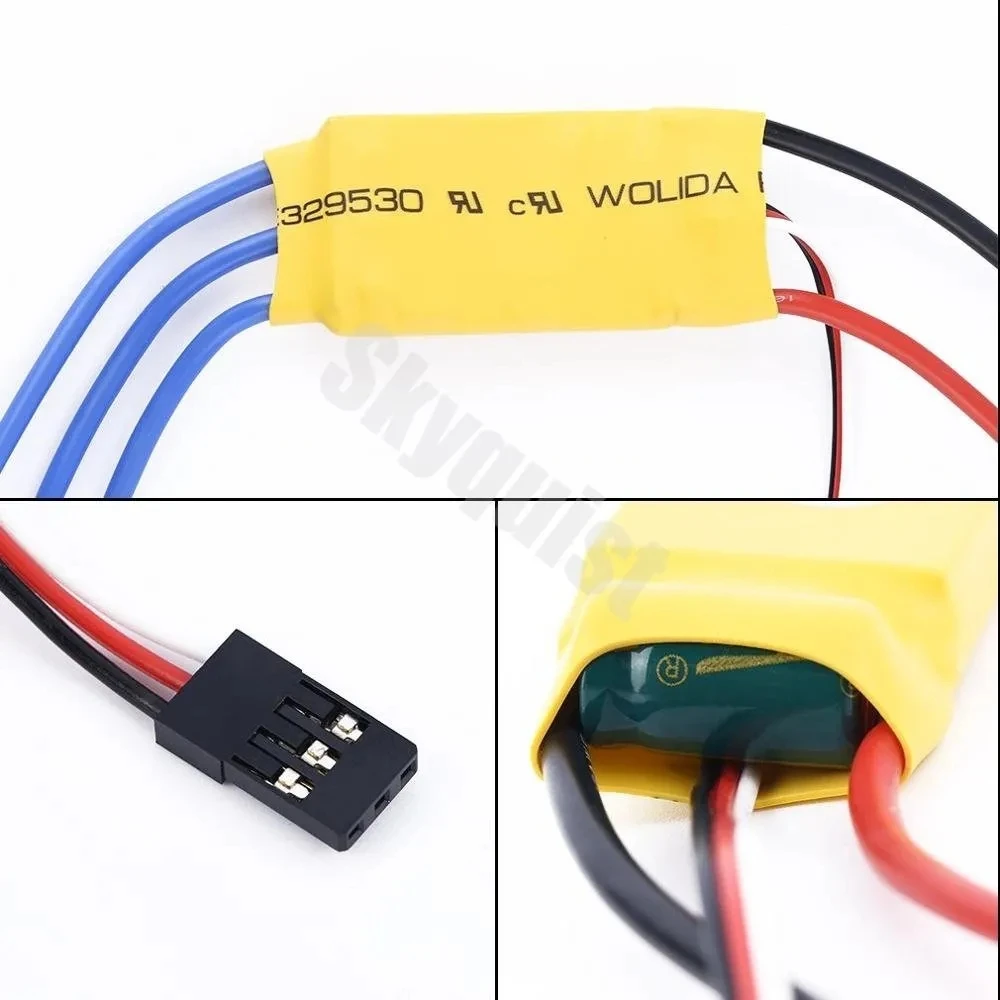

30A Brushless speed controller ESC MultiCopter Quad-rotor X-copter
Specification:
Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter
-Output: Continuous 30A, Burst 40A up to 10 Secs.
-Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
-BEC: 2A / 5V (Linear mode).
-Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: BrushLess Motor)
With T plug and 3.5mm banana connectors
