- Quantity: 1 pcs
- Size: 3508
- Technical parameters: Value 2
- Model Number: QM4208
- For Vehicle Type: Airplanes
- Tool Supplies: Battery
- Four-wheel Drive Attributes: Motors
- Remote Control Peripherals/Devices: ESC
- Upgrade Parts/Accessories: Lithium Battery
- RC Parts & Accs: Engines
- Material: Metal
- Origin: Mainland China
- Recommend Age: 14 y
- Use: Vehicles & Remote Control Toys
- brand: QX-MOTOR
- attribute 1: QM4208 = 3508 380KV / 680KV
- attribute 2: use 40A ESC
- attribute 3: for s550 x4 dz550
- attribute 4: use fs-i6 at9s remote control
- attribute 5: 380KV / 6S lipo 680kv / 4S lipo

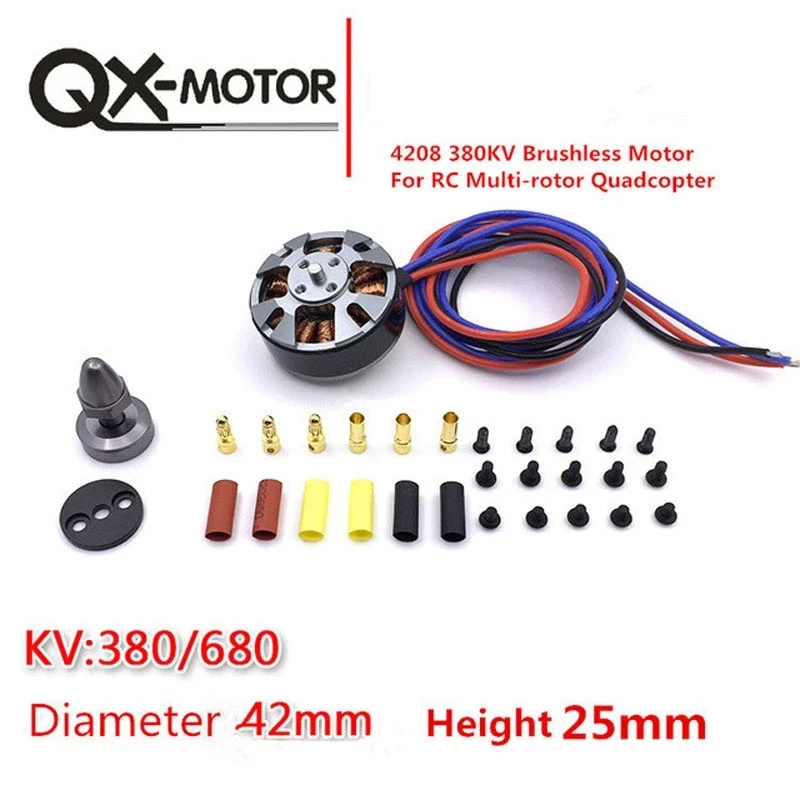

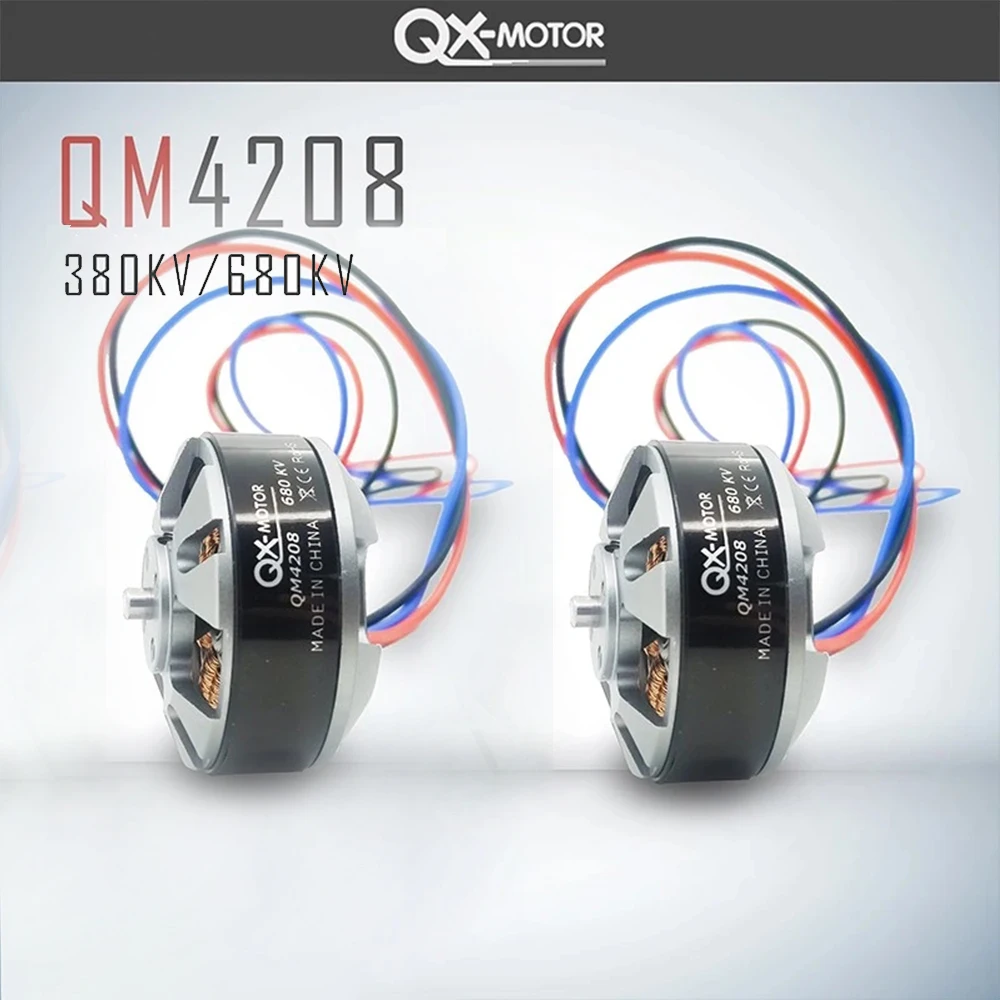

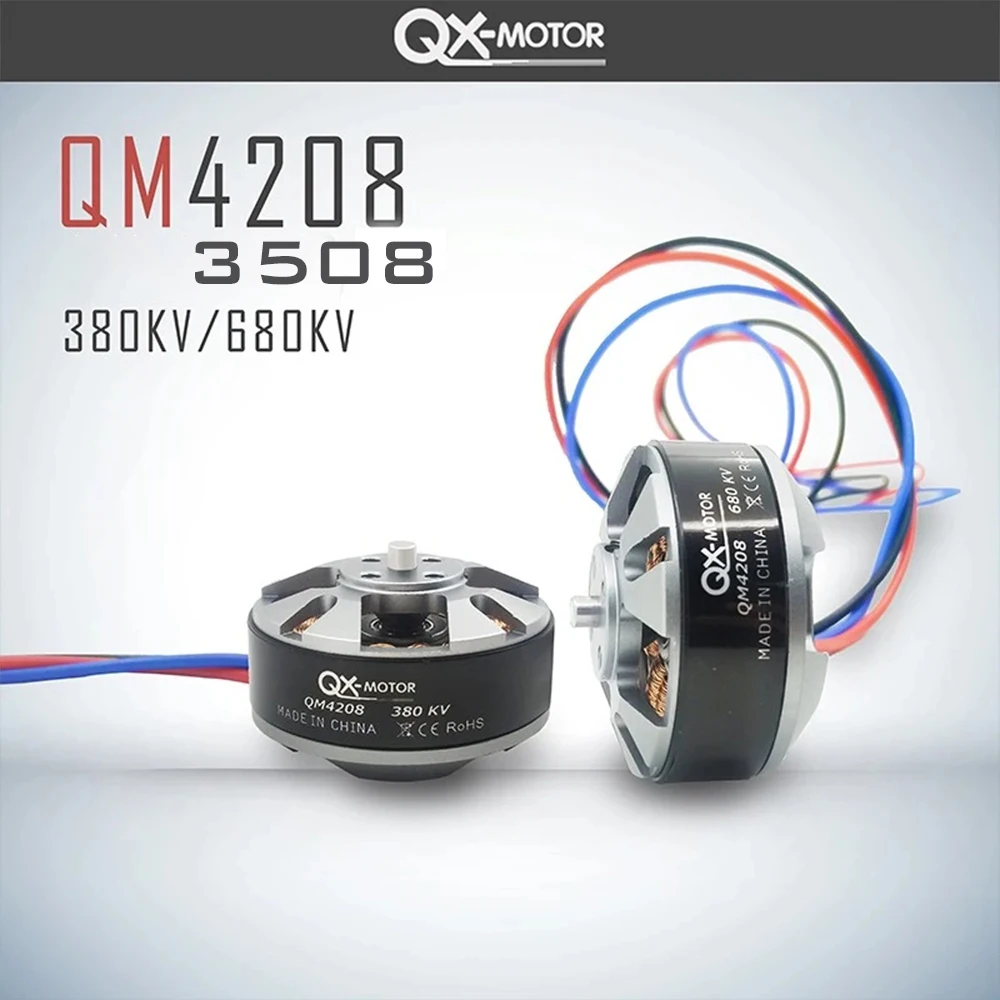

Hot Sale QX-MOTOR 3508 QM4208 380/680KV Brushless Motor Accessories For DIY RC Quadcopter Multi-Axis Drone Part
It is recommended to use 1147 1238 1447 paddles or 11-15 inch propellers
|

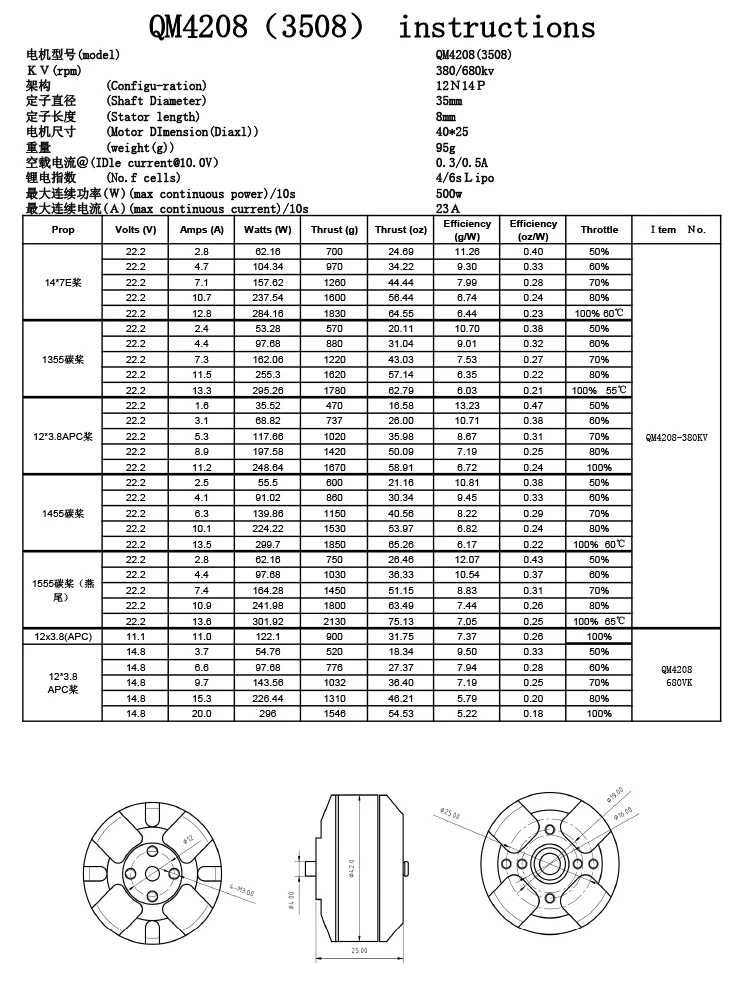

model |
QM4208(3508) |
||||||||
|
ＫＶ(rpm) |
380/680kv |
||||||||
|
Configu-ration |
12Ｎ14Ｐ |
||||||||
|
Shaft Diameter |
35mm |
||||||||
|
Stator length |
8mm |
||||||||
|
Motor DImension(Diaxl) |
40*25 |
||||||||
|
weight(g) |
95g |
||||||||
|
IDle current@10.0V |
0.3/0.5A |
||||||||
|
No.f cells |
4/6sＬipo |
||||||||
|
(Ｗ)max continuous power/10s |
500w |
||||||||
|
(Ａ)max continuous current/10s |
23Ａ |
||||||||
|
Prop |
Volts (V) |
Amps (A) |
Watts (W) |
Thrust (g) |
Thrust (oz) |
Efficiency |
Efficiency |
Throttle |
ＩtemＮo. |
|
14*7E |
22.2 |
2.8 |
62.16 |
700 |
24.69 |
11.26 |
0.40 |
50% |
QM4208 380KV |
|
22.2 |
4.7 |
104.34 |
970 |
34.22 |
9.30 |
0.33 |
60% |
||
|
22.2 |
7.1 |
157.62 |
1260 |
44.44 |
7.99 |
0.28 |
70% |
||
|
22.2 |
10.7 |
237.54 |
1600 |
56.44 |
6.74 |
0.24 |
80% |
||
|
22.2 |
12.8 |
284.16 |
1830 |
64.55 |
6.44 |
0.23 |
100% |
||
|
1355 |
22.2 |
2.4 |
53.28 |
570 |
20.11 |
10.70 |
0.38 |
50% |
|
|
22.2 |
4.4 |
97.68 |
880 |
31.04 |
9.01 |
0.32 |
60% |
||
|
22.2 |
7.3 |
162.06 |
1220 |
43.03 |
7.53 |
0.27 |
70% |
||
|
22.2 |
11.5 |
255.3 |
1620 |
57.14 |
6.35 |
0.22 |
80% |
||
|
22.2 |
13.3 |
295.26 |
1780 |
62.79 |
6.03 |
0.21 |
100%55℃ |
||
|
12*3.8APC |
22.2 |
1.6 |
35.52 |
470 |
16.58 |
13.23 |
0.47 |
50% |
|
|
22.2 |
3.1 |
68.82 |
737 |
26.00 |
10.71 |
0.38 |
60% |
||
|
22.2 |
5.3 |
117.66 |
1020 |
35.98 |
8.67 |
0.31 |
70% |
||
|
22.2 |
8.9 |
197.58 |
1420 |
50.09 |
7.19 |
0.25 |
80% |
||
|
22.2 |
11.2 |
248.64 |
1670 |
58.91 |
6.72 |
0.24 |
100% |
||
|
1455 |
22.2 |
2.5 |
55.5 |
600 |
21.16 |
10.81 |
0.38 |
50% |
|
|
22.2 |
4.1 |
91.02 |
860 |
30.34 |
9.45 |
0.33 |
60% |
||
|
22.2 |
6.3 |
139.86 |
1150 |
40.56 |
8.22 |
0.29 |
70% |
||
|
22.2 |
10.1 |
224.22 |
1530 |
53.97 |
6.82 |
0.24 |
80% |
||
|
22.2 |
13.5 |
299.7 |
1850 |
65.26 |
6.17 |
0.22 |
100%60℃ |
||
|
1555 |
22.2 |
2.8 |
62.16 |
750 |
26.46 |
12.07 |
0.43 |
50% |
|
|
22.2 |
4.4 |
97.68 |
1030 |
36.33 |
10.54 |
0.37 |
60% |
||
|
22.2 |
7.4 |
164.28 |
1450 |
51.15 |
8.83 |
0.31 |
70% |
||
|
22.2 |
10.9 |
241.98 |
1800 |
63.49 |
7.44 |
0.26 |
80% |
||
|
22.2 |
13.6 |
301.92 |
2130 |
75.13 |
7.05 |
0.25 |
100%65℃ |
||
|
12×3.8APC |
11.1 |
11.0 |
122.1 |
900 |
31.75 |
7.37 |
0.26 |
100% |
QM4208 680VK |
|
12*3.8APC |
14.8 |
3.7 |
54.76 |
520 |
18.34 |
9.50 |
0.33 |
50% |
|
|
14.8 |
6.6 |
97.68 |
776 |
27.37 |
7.94 |
0.28 |
60% |
||
|
14.8 |
9.7 |
143.56 |
1032 |
36.40 |
7.19 |
0.25 |
70% |
||
|
14.8 |
15.3 |
226.44 |
1310 |
46.21 |
5.79 |
0.20 |
80% |
||
|
14.8 |
20.0 |
296 |
1546 |
54.53 |
5.22 |
0.18 |
100% |
||
