ZRE-DRONE LANNRC 1505 PLUS 2650KV 3750KV Brushless Motor 3~6S Lipo 1.5mm Shaft for 3~4 inch Long-Distance Traversing Drones OddityRC XI25

$44.49$80.05

1PC 1505 2650KV
1PC 1505 2650KV
1PC 1505 3750KV
1PC 1505 3750KV
4PCS 1505 2650KV
4PCS 1505 2650KV
4PCS 1505 3750KV
4PCS 1505 3750KV
Compare
Continue Shopping SKU: ZREDRN100038 Category:
  • Size: 21.3*15.5mm
  • Model Number: 1505 PLUS
  • For Vehicle Type: Airplanes
  • Four-wheel Drive Attributes: Motors
  • Remote Control Peripherals/Devices: Motor
  • RC Parts & Accs: Motors
  • Material: Composite Material
  • Brand Name: SPARKHOBBY
  • Origin: Mainland China
  • Recommend Age: 12 y
  • Use: Vehicles & Remote Control Toys

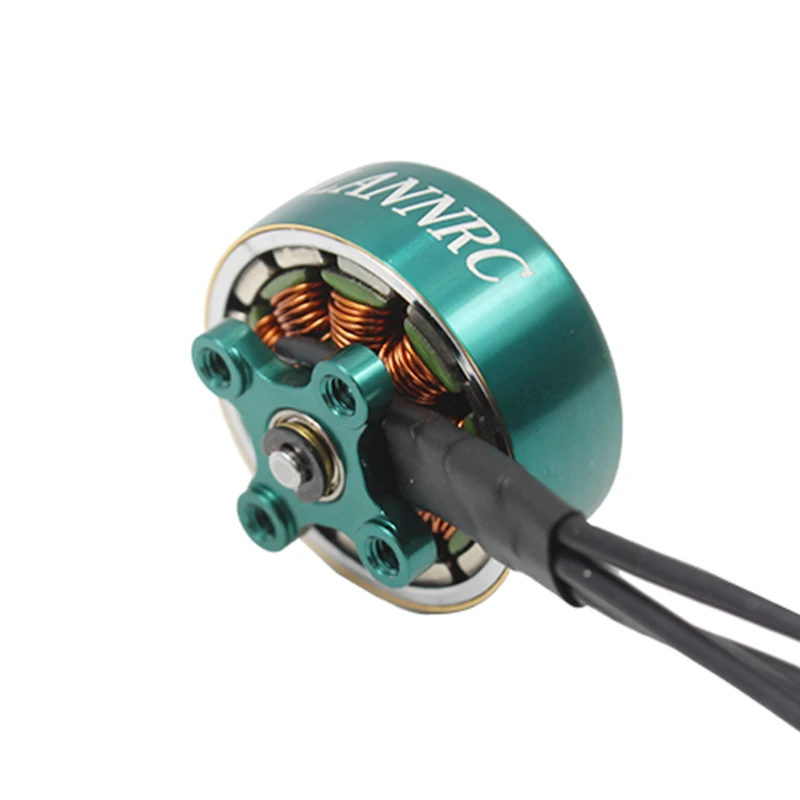

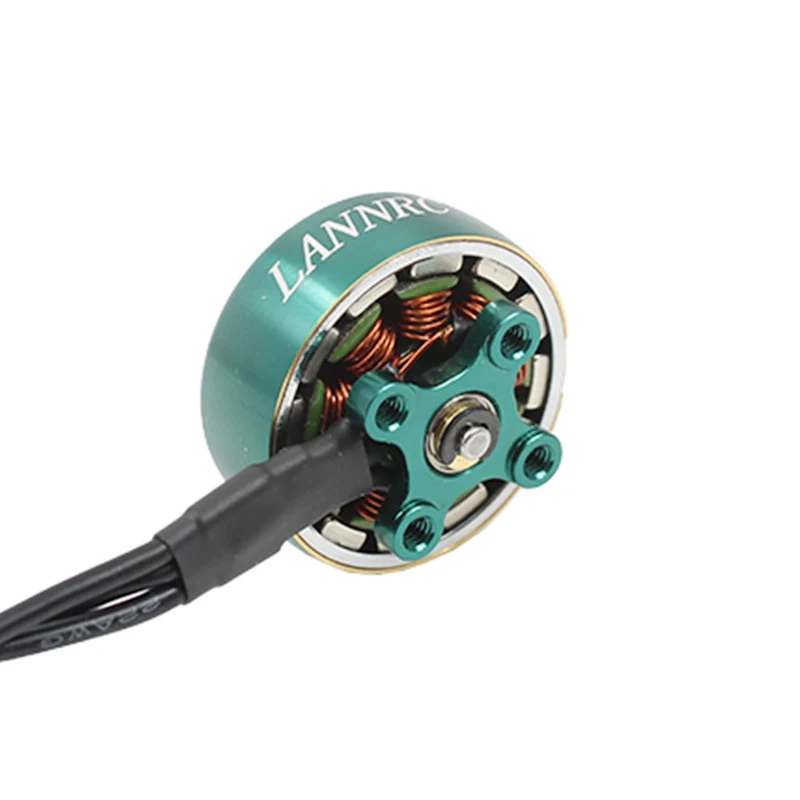

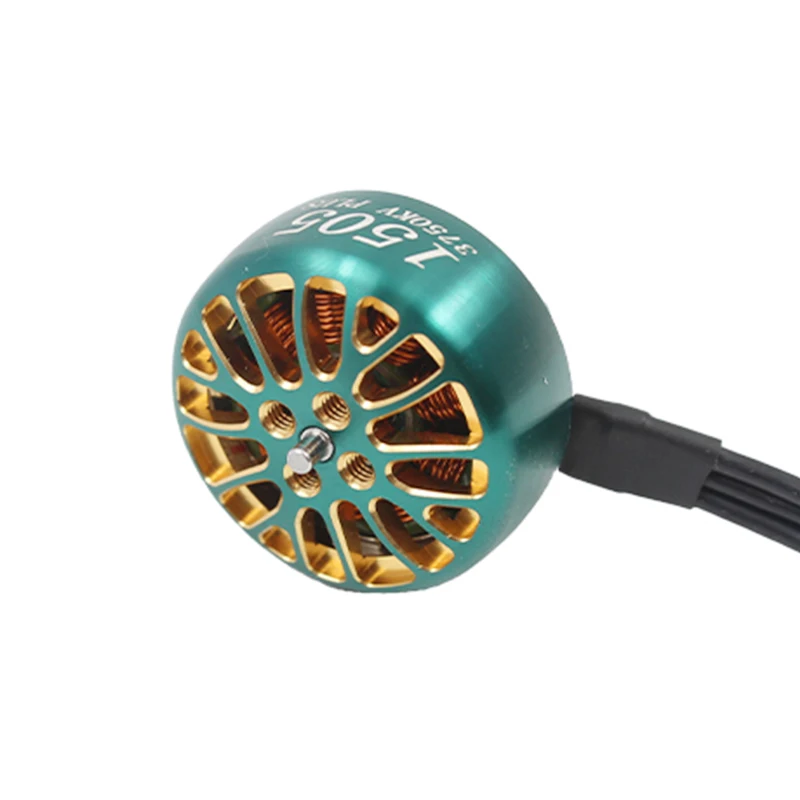

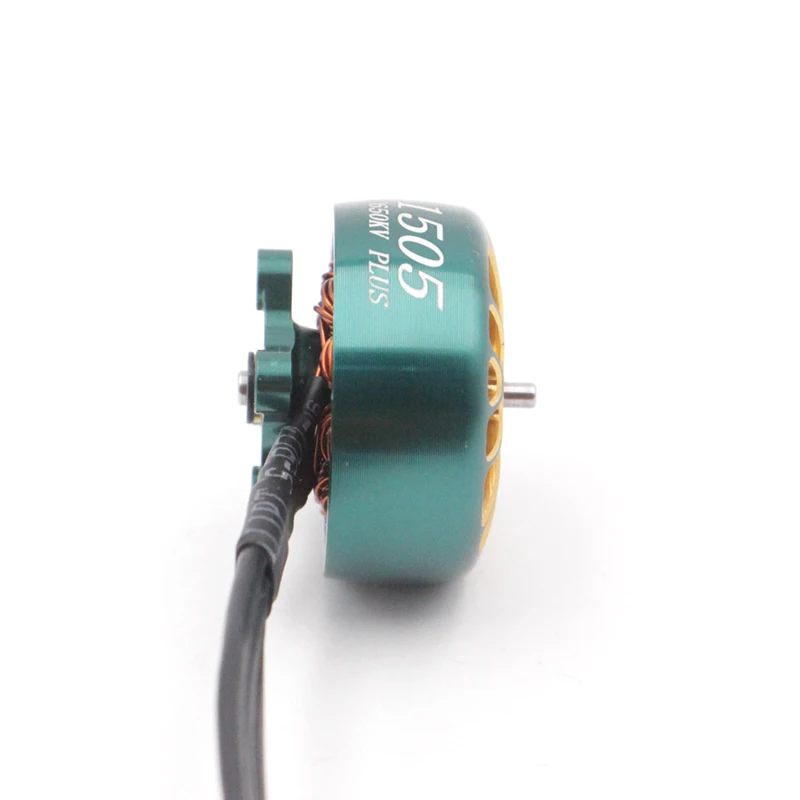

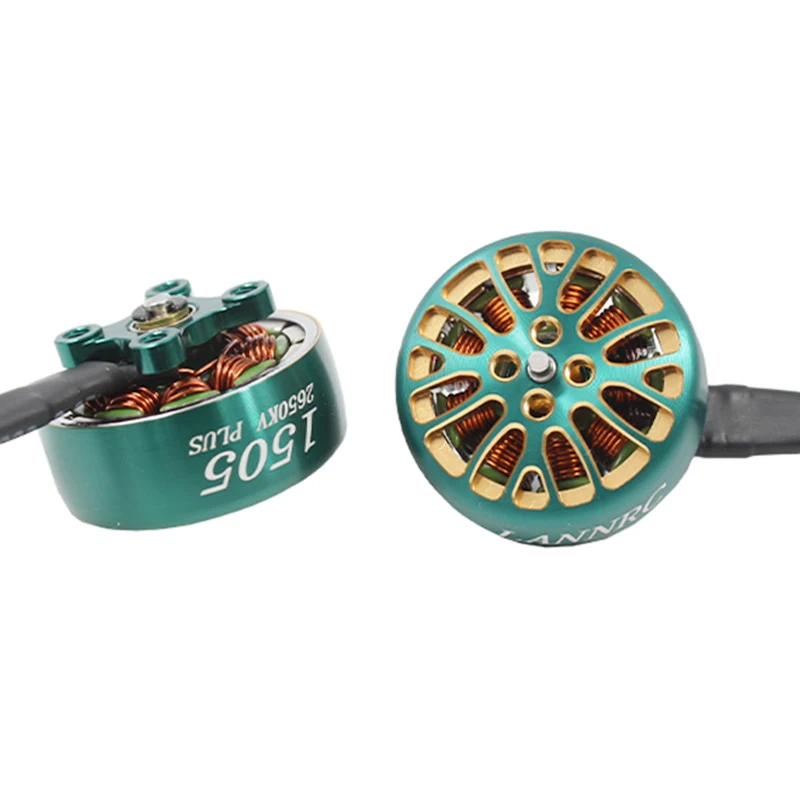

Item Name:LANNRC 1505 PLUS Brushless Motor

Product Parameters:
Brand: LANNRC
Model: 1505 PLUS
KV: 2650KV / 3750KV
Color: Green + Gold
Version: CW screw thread
Cable length: 22AWG 150mm

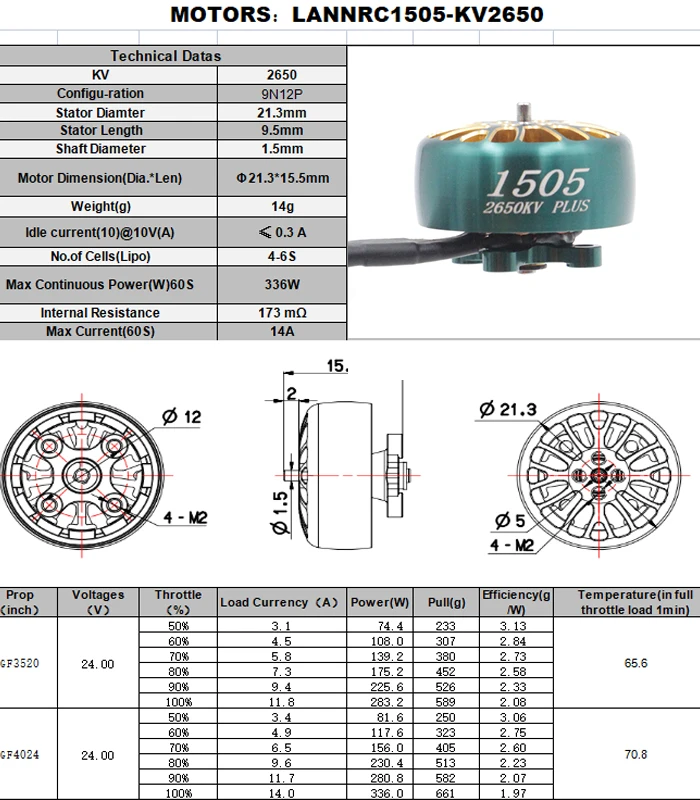

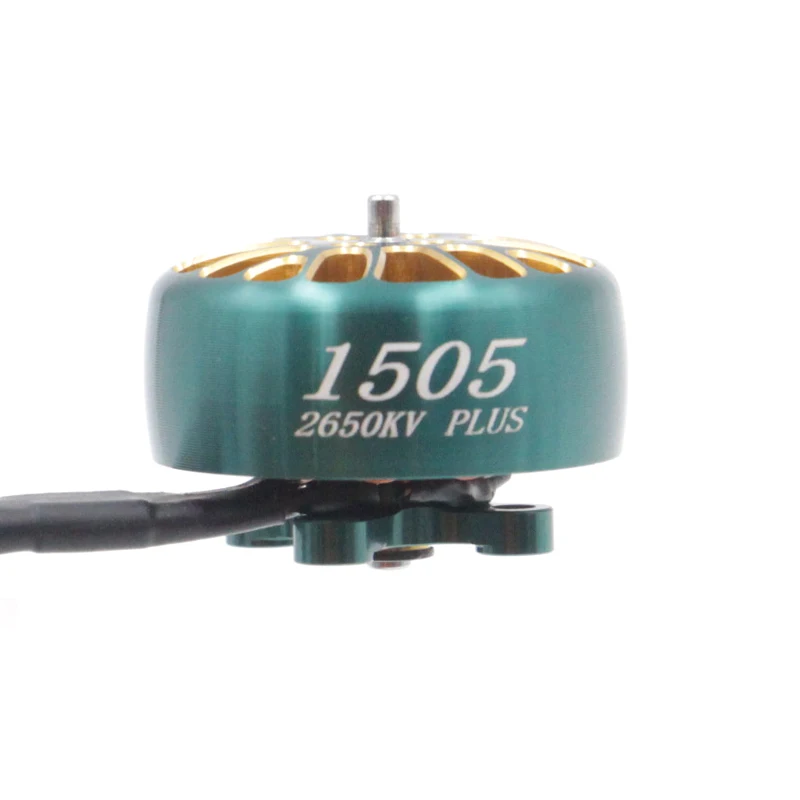

2650KV
Confign Ration:9N12P
Stator Diameter:21.3mm
Stator Length:9.5mm
Shaft Diameter:1.5mm
Size: Φ21.3×15.5mm
Weight: 14g
Idle Current(10)@10V ≤0.3A
NO.of Cells(LIPO):4-6S
Max Contimous Power(W)60S:336W
Internal Resistance:173mΩ
Max Current(60S):14A

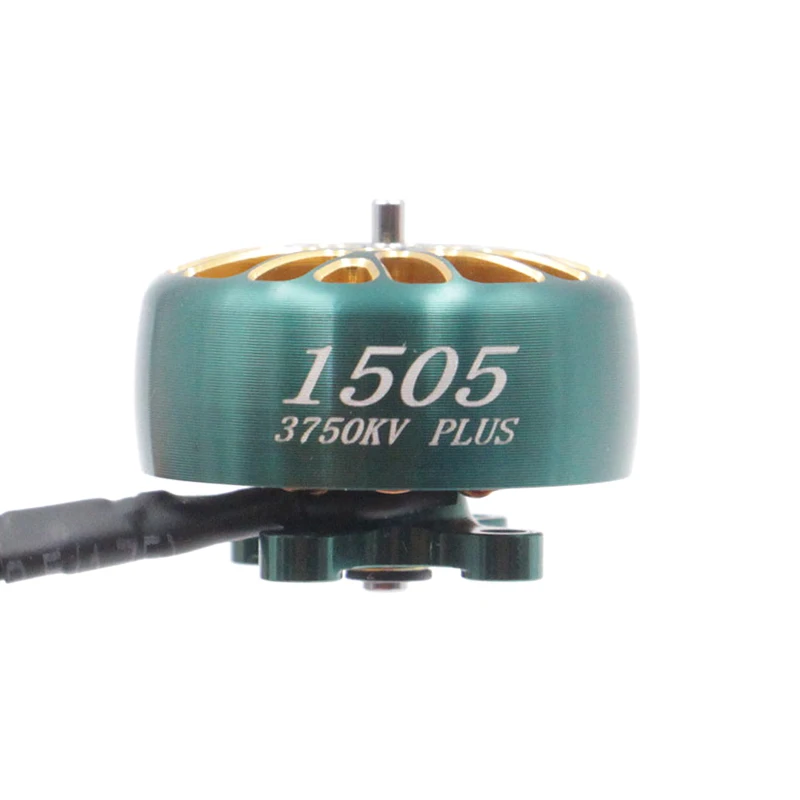

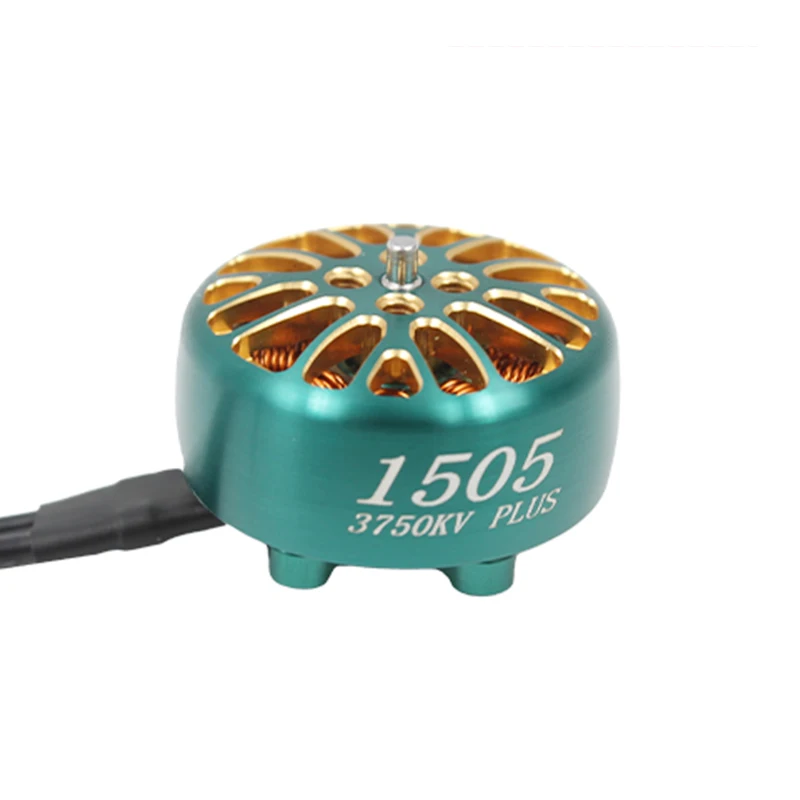

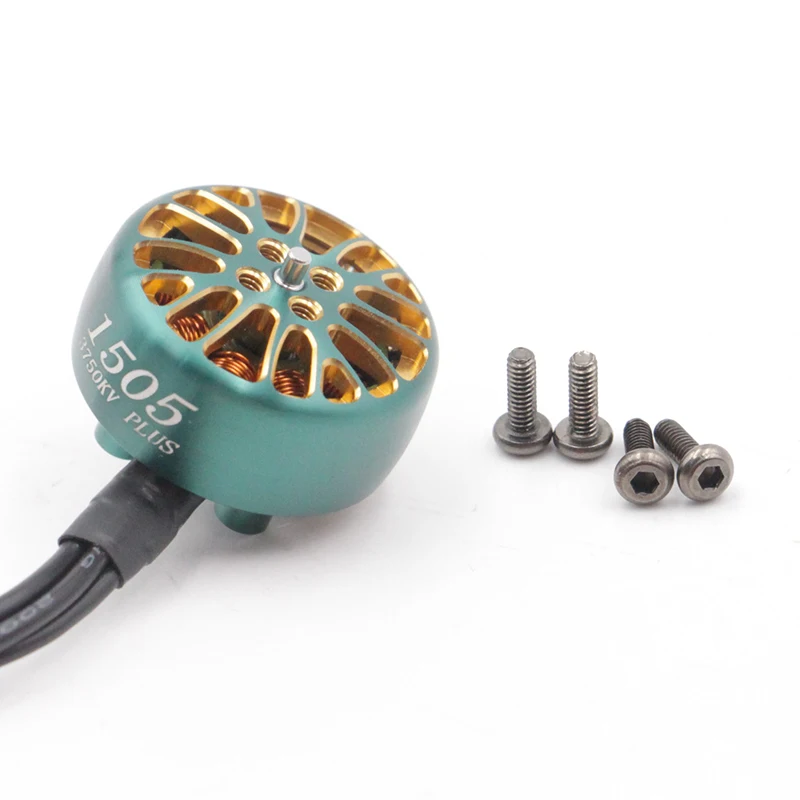

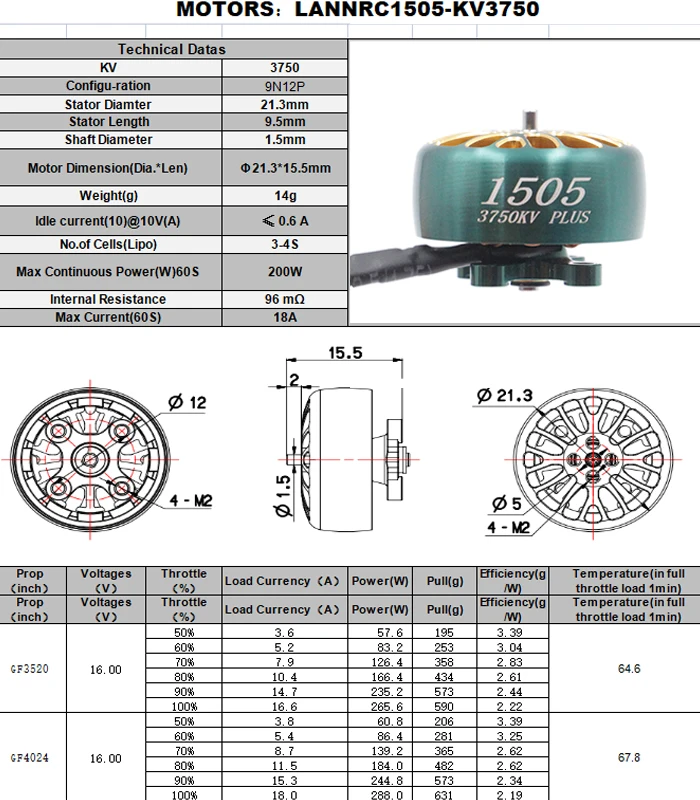

3750KV
Confign Ration:9N12P
Stator Diameter:21.3mm
Stator Length:9.5mm
Shaft Diameter:1.5mm
Size: Φ21.3×15.5mm
Weight: 14g
Idle Current(10)@10V ≤0.6A
NO.of Cells(LIPO):3-4S
Max Contimous Power(W)60S:200W
Internal Resistance:96mΩ
Max Current(60S):18A

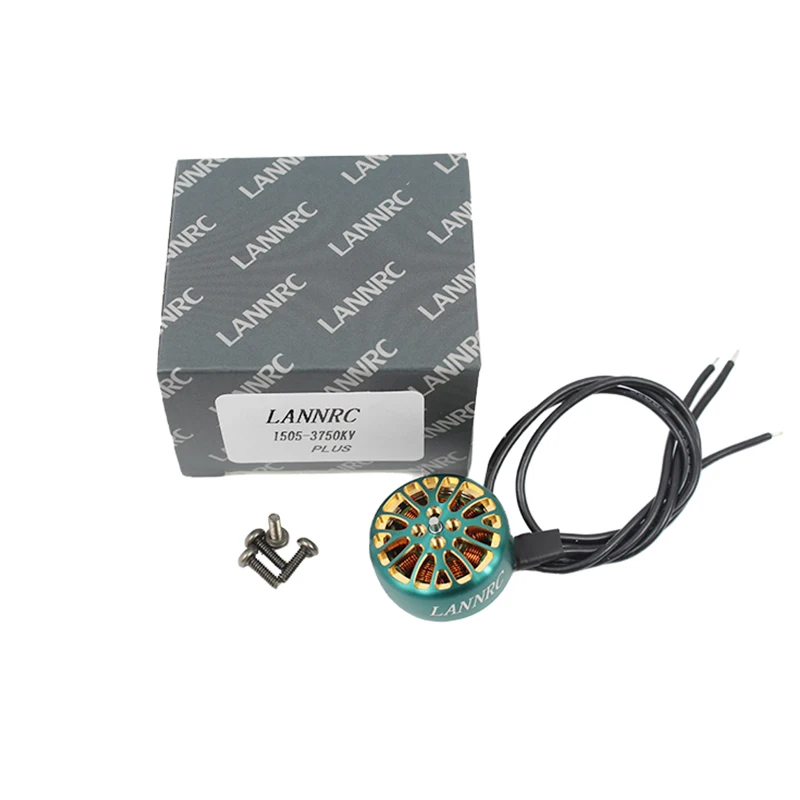

  • Package Included:
  • LANNRC 1505 PLUS 2650KV Brushless Motor x 1
    or
    LANNRC 1505 PLUS 2650KV Brushless Motor x 4
    or
    LANNRC 1505 PLUS 3750KV Brushless Motor x 1
    or
    LANNRC 1505 PLUS 3750KV Brushless Motor x 4
