- Size: 19.5*9.4mm
- Model Number: AEOLUS 1404
- For Vehicle Type: Airplanes
- Four-wheel Drive Attributes: Motors
- Remote Control Peripherals/Devices: Motor
- RC Parts & Accs: Motors
- Material: Composite Material
- Brand Name: SPARKHOBBY
- Origin: Mainland China
- Recommend Age: 12 y
- Use: Vehicles & Remote Control Toys

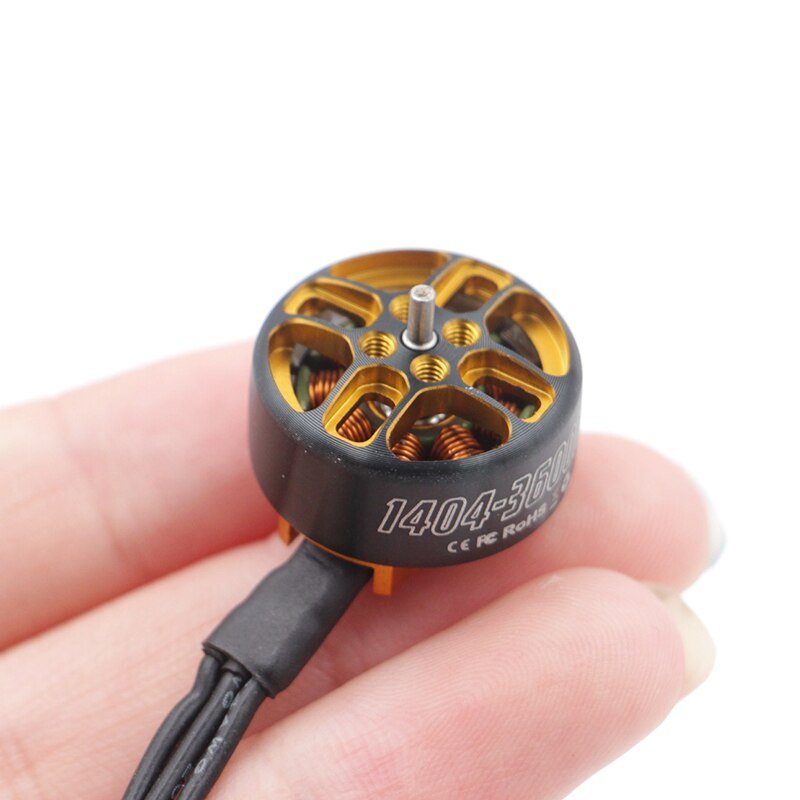

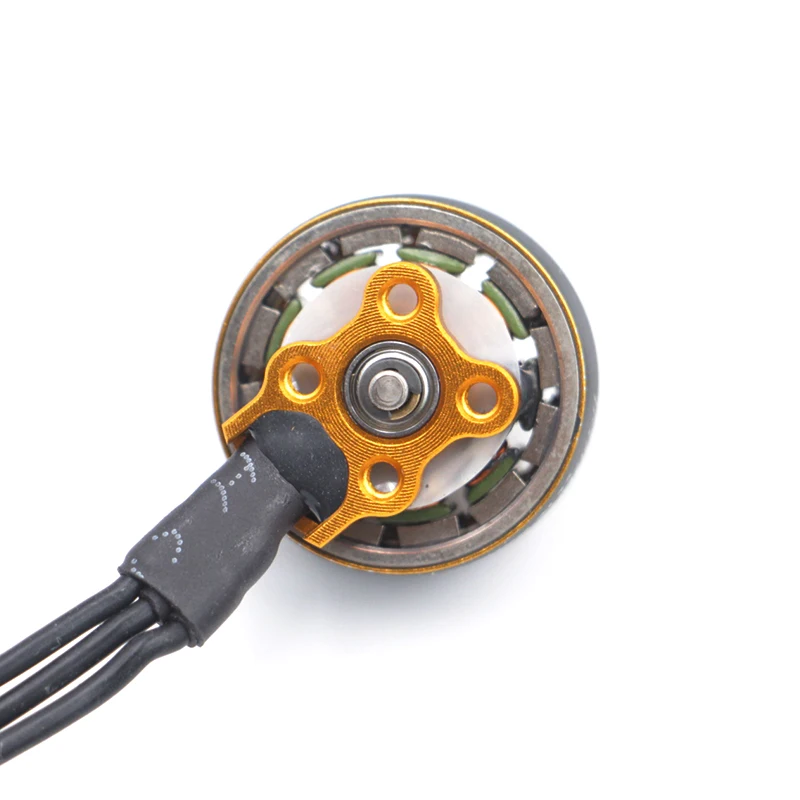

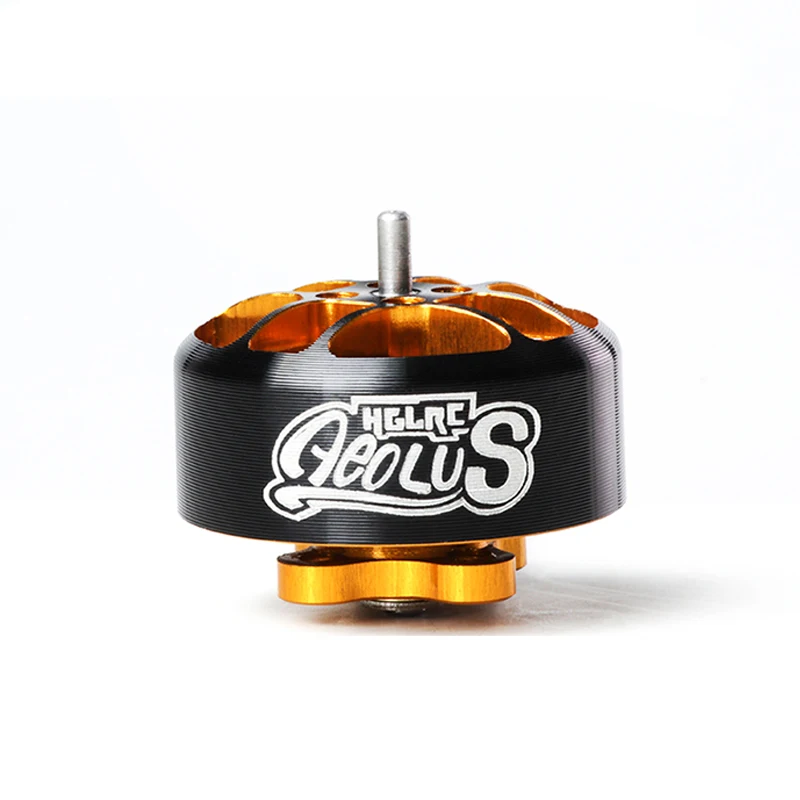

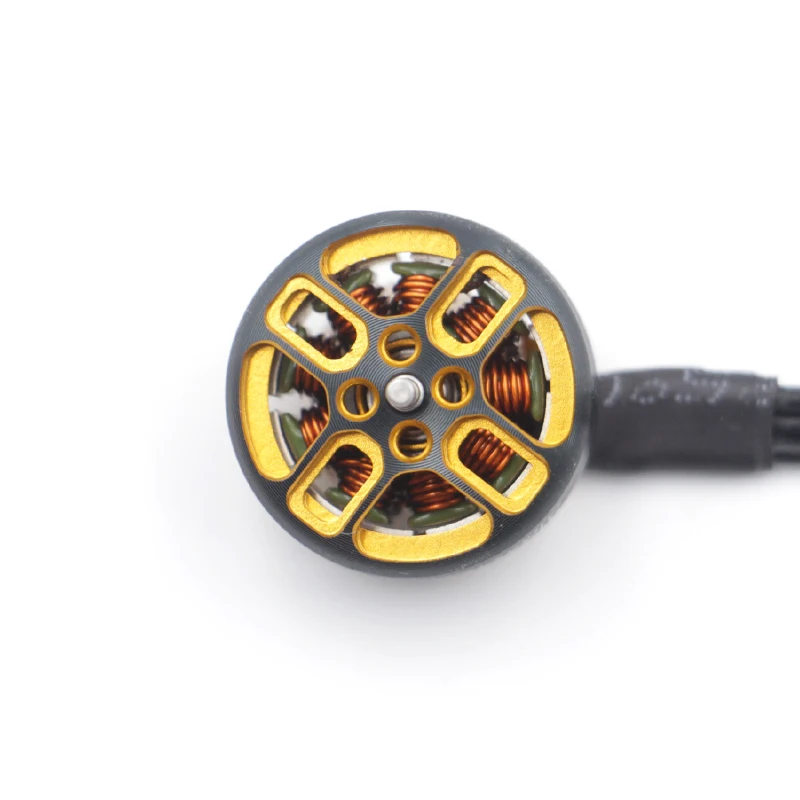

Item Name:HGLRC AEOLUS 1404 Brushless Motor
Product Parameters:
Brand: HGLRC
Model: AEOLUS 1404
KV: 2800KV / 3600KV / 4800KV
Color: Black + Gold
Version: CW screw thread
2800KV
Slot pole: 9N12P
Motor Resistance:287mΩ
Max Continuous Current:8.58A
Maximum Power:128.2W
No-load Current:10V/0.3A
Support Battery:4~6S
Recommended Prop(inch):2-4Inch
Motor Dimension:Φ19.5m x 9.4mm

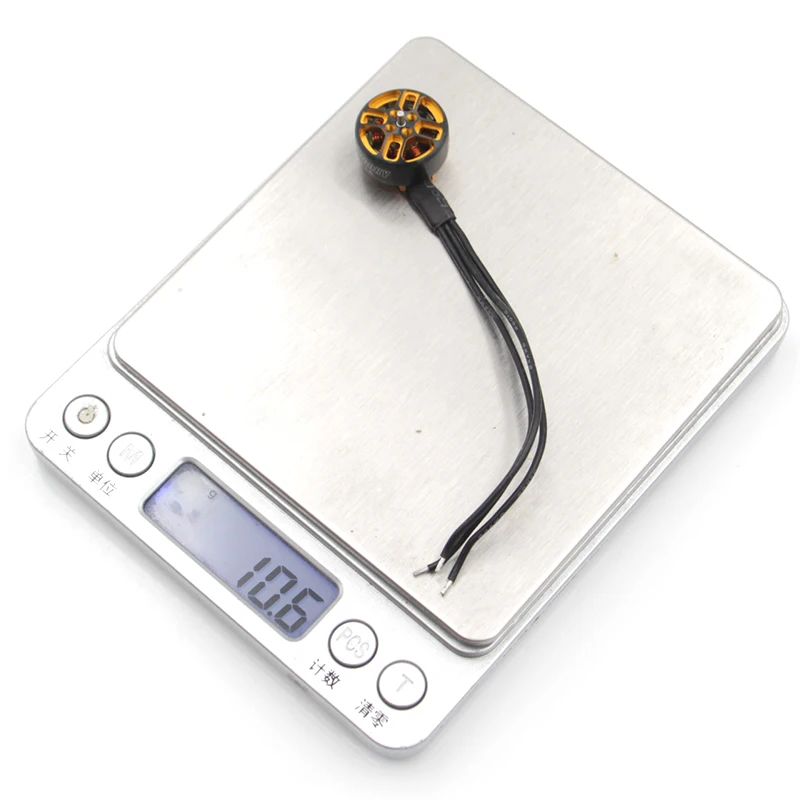

Weight:10.6g

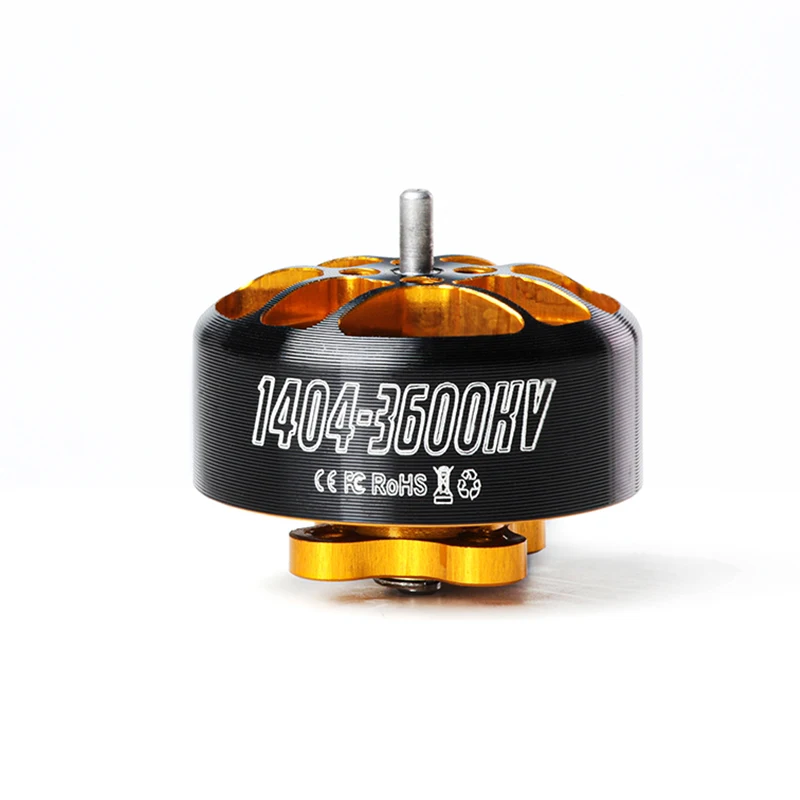

3600KV
Slot pole: 9N12P
Motor Resistance:185mΩ
Max Continuous Current:13.14A
Maximum Power:193.6W
No.of Cells(Lipo):14.8-25.2V(4-6S)
ESC:>25A
Recommended Prop(inch):2-4Inch
Motor Dimension:Φ19.5m x 9.4mm
Weight:10.6g

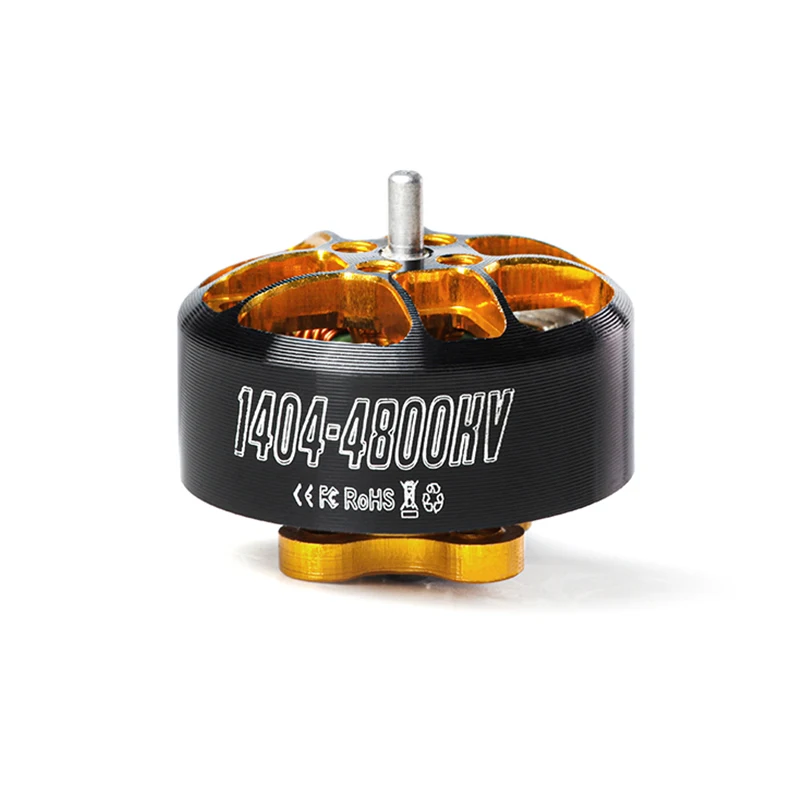

4800KV
Slot pole: 9N12P
Motor Resistance:126mΩ
Max Continuous Current:19.21A
Maximum Power:291.5W
No.of Cells(Lipo):14.8V(4S)
ESC:>25A
Recommended Prop(inch):2-4Inch
Motor Dimension:Φ19.5m x 9.4mm
Weight:10.6g
Features:
1.Disc Type Design. The operation is more stable.
2.Ultra light long range drone /First choice for toothpick drone.
- Package Included:
- HGLRC AEOLUS Brushless Motor 1404 2800KV x 1
or
HGLRC AEOLUS Brushless Motor 1404 2800KV x 4
or - HGLRC AEOLUS Brushless Motor 1404 3600KV x 1
or
HGLRC AEOLUS Brushless Motor 1404 3600KV x 4
or
HGLRC AEOLUS Brushless Motor 1404 4800KV x 1
or
HGLRC AEOLUS Brushless Motor 1404 4800KV x 4
