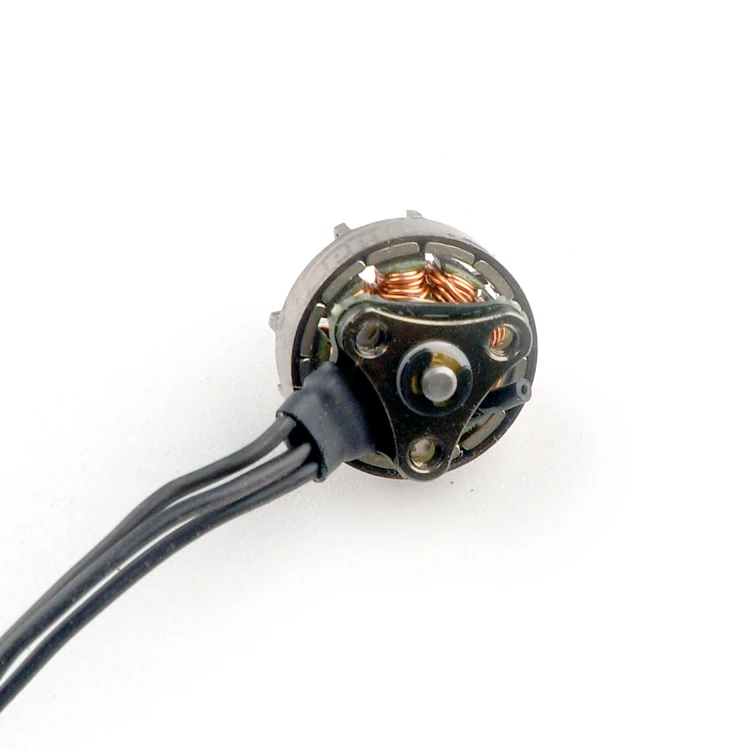

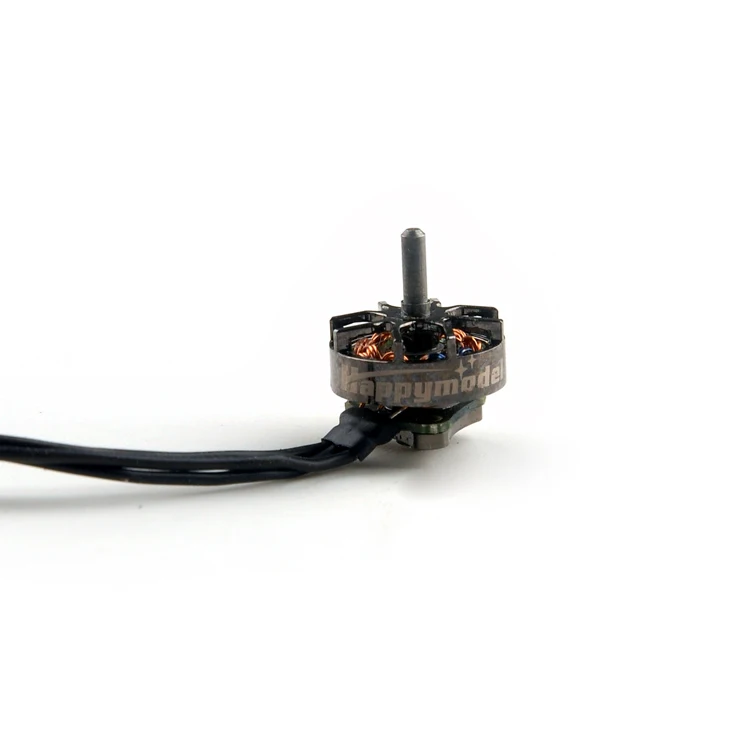

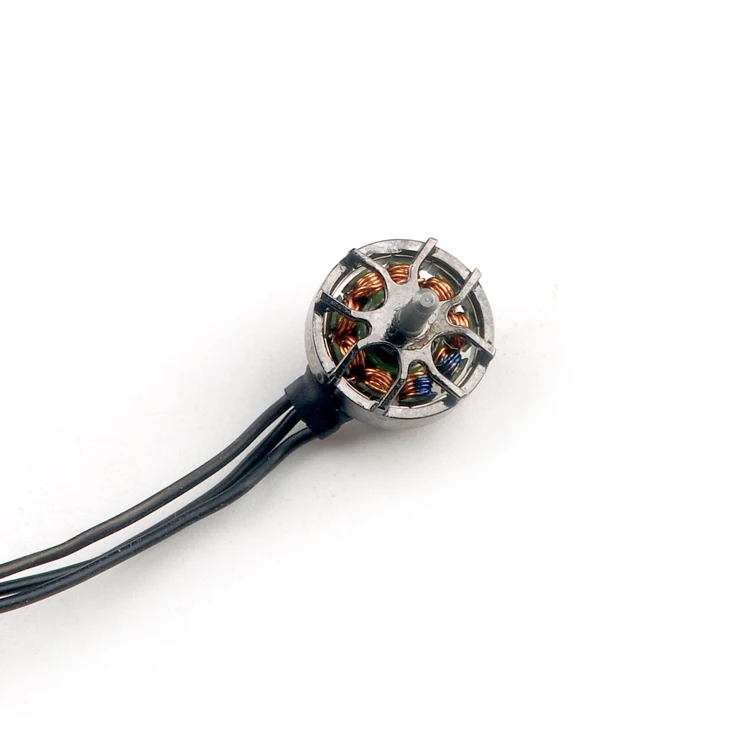

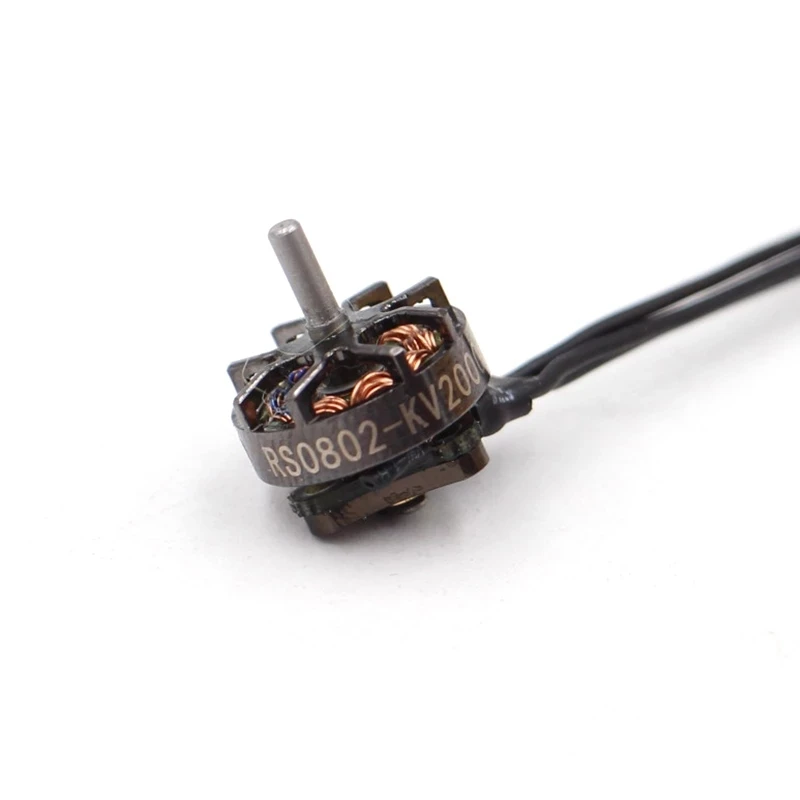

Happymodel RS0802 20000KV Miniature Brushless Motor
Product Parameters:
Brand: Happymodel
Model: RS0802 1S brushless motor
KV value: 20000kv (Mobula7 1S original motor)
Motor shaft: 1.5mm
Slot class: 9N12P
Stator diameter: 8mm
Stator length: 2mm
Motor size: diameter φ10.5mm* length 13.5mm
Terminal: JST 1.25mm Crazybee series flight control straight plug
Outlet length: 30mm (excluding terminals)

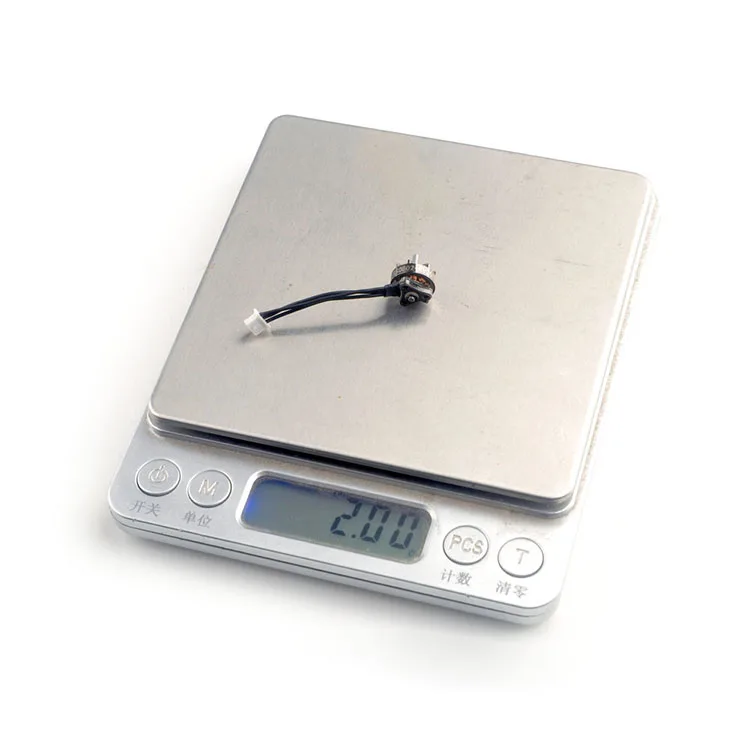

Weight: 2g
Compatible for Mobula7 and Mobula7 HD 1S Version
The black wire (the plug is marked with a red dot) is used with Crazybee series flight controllers, and it is CW steering
The black wire (with no red dot on the plug mark) is used with Crazybee series flight controllers, it is CCW steering

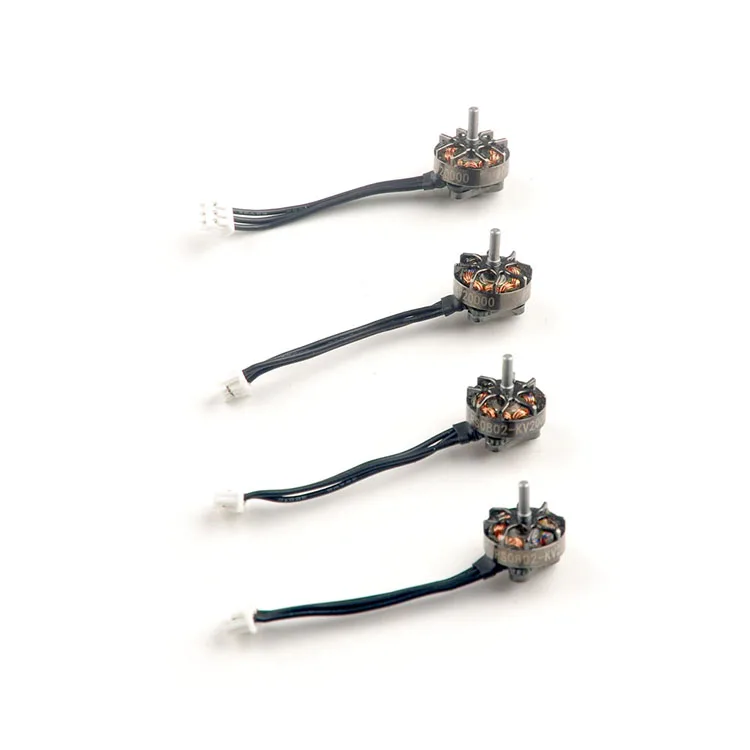

Package Included:
Happymodel RS0802 20000KV CW Brushless Motor x 1
or
Happymodel RS0802 20000KV CCW Brushless Motor x 1
or
Happymodel RS0802 20000KV CW Brushless Motor x 2
Happymodel RS0802 20000KV CCW Brushless Motor x 2
