- Quantity: 1 pcs
- Wheelbase: Screws
- Size: GR1106
- Model Number: GEP-GR1106 7500KV
- For Vehicle Type: Helicopters
- Tool Supplies: Assembled class
- Four-wheel Drive Attributes: Assemblage
- Remote Control Peripherals/Devices: Motor
- Upgrade Parts/Accessories: Gear
- RC Parts & Accs: Motors
- Material: Metal
- Brand Name: Auloda
- Origin: Mainland China
- Recommend Age: 12 y,14 y
- Use: Vehicles & Remote Control Toys
- Certification: CE

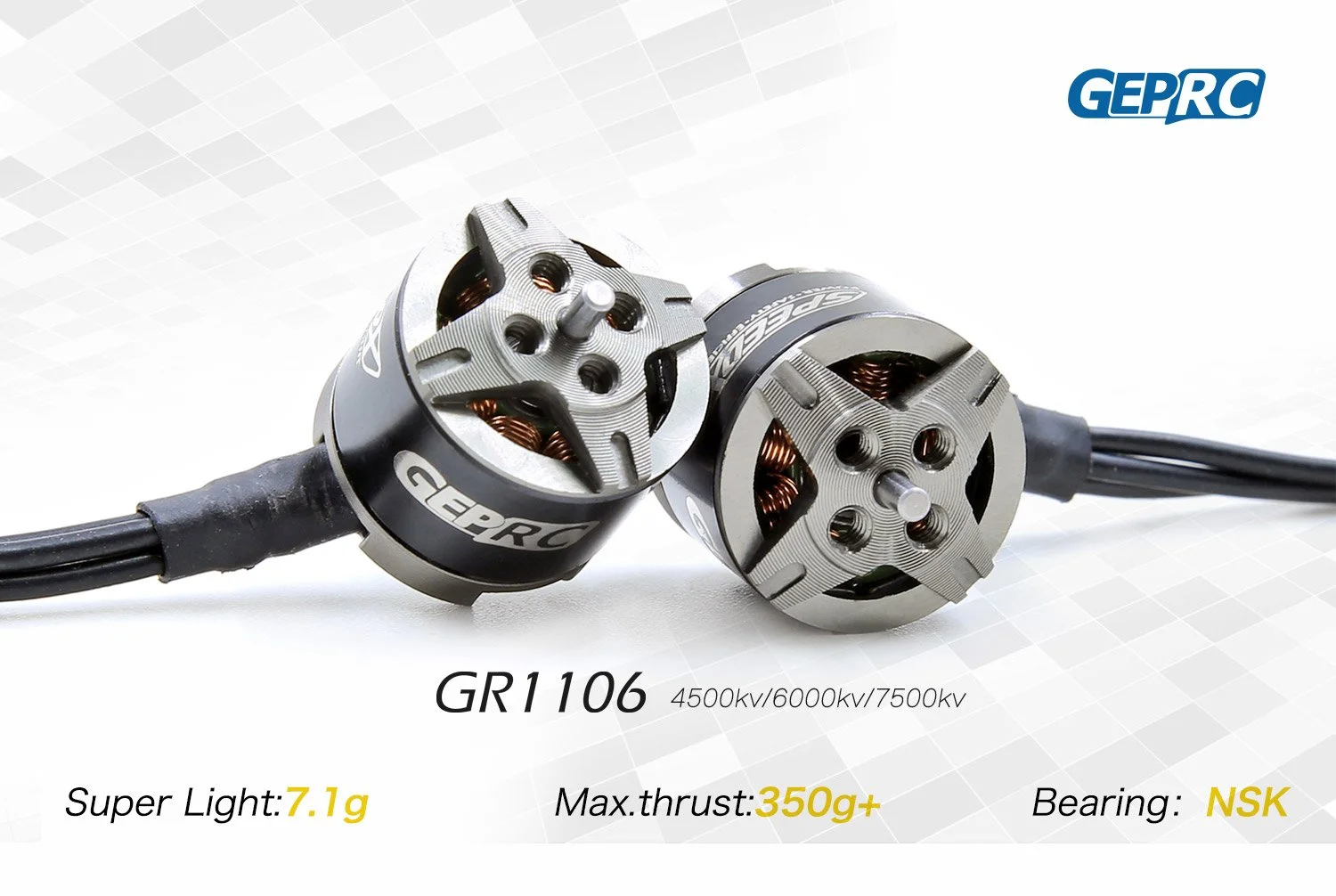

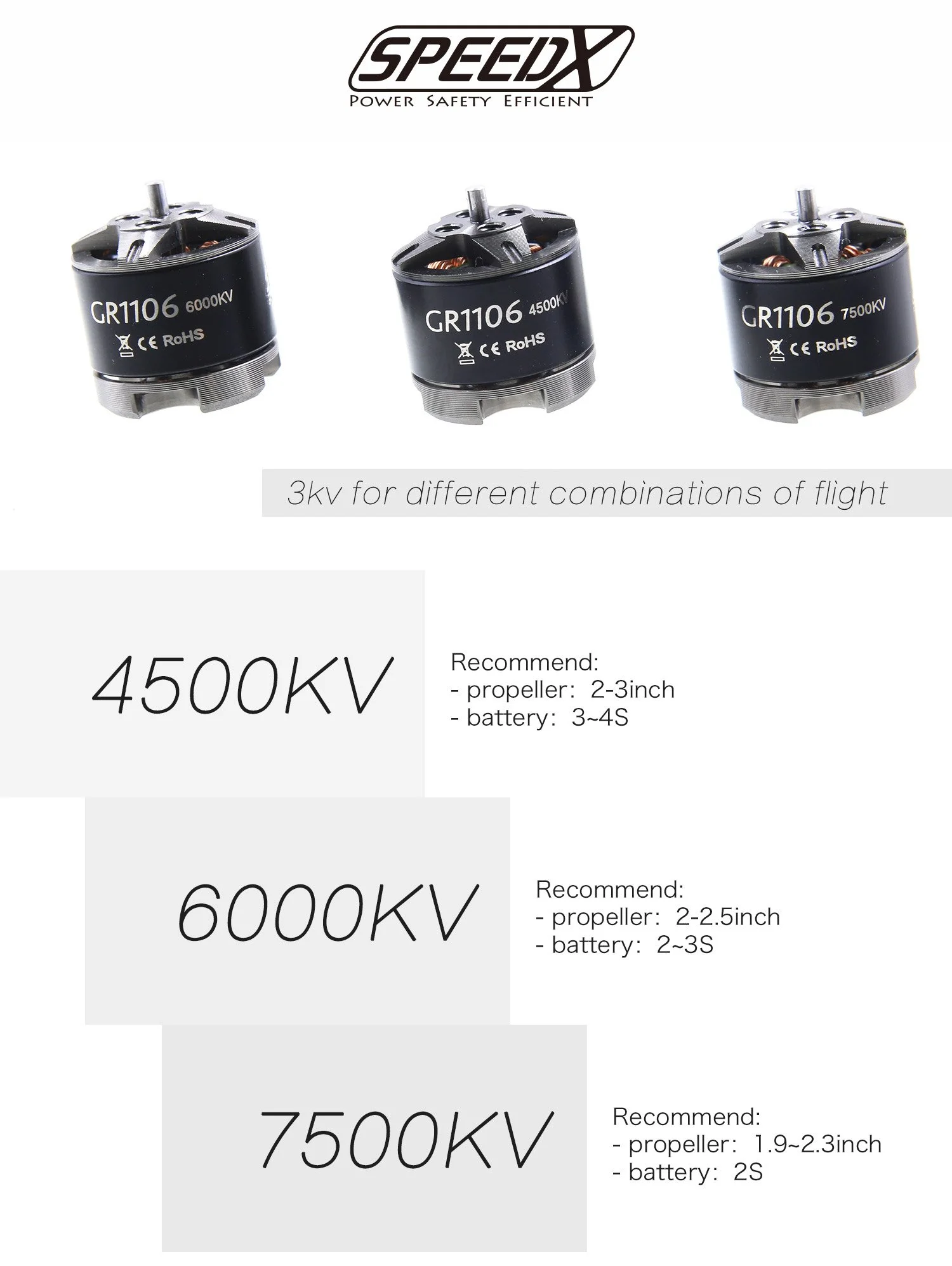

GEP-GR1106 is a small motor designed by our GEPRC team for interior design, which have three kv choice. It’s 4500kv, 6000kv, 7500kv. Each KV has its own usage and collocation.4500kv is recommended to use 2-3 inch propeller, 3-4s battery.6000kv is recommends 2-2.5 inch propeller, 2-3s battery.7500kv is recommends 1.9-2.5 inch propeller, 2s battery.

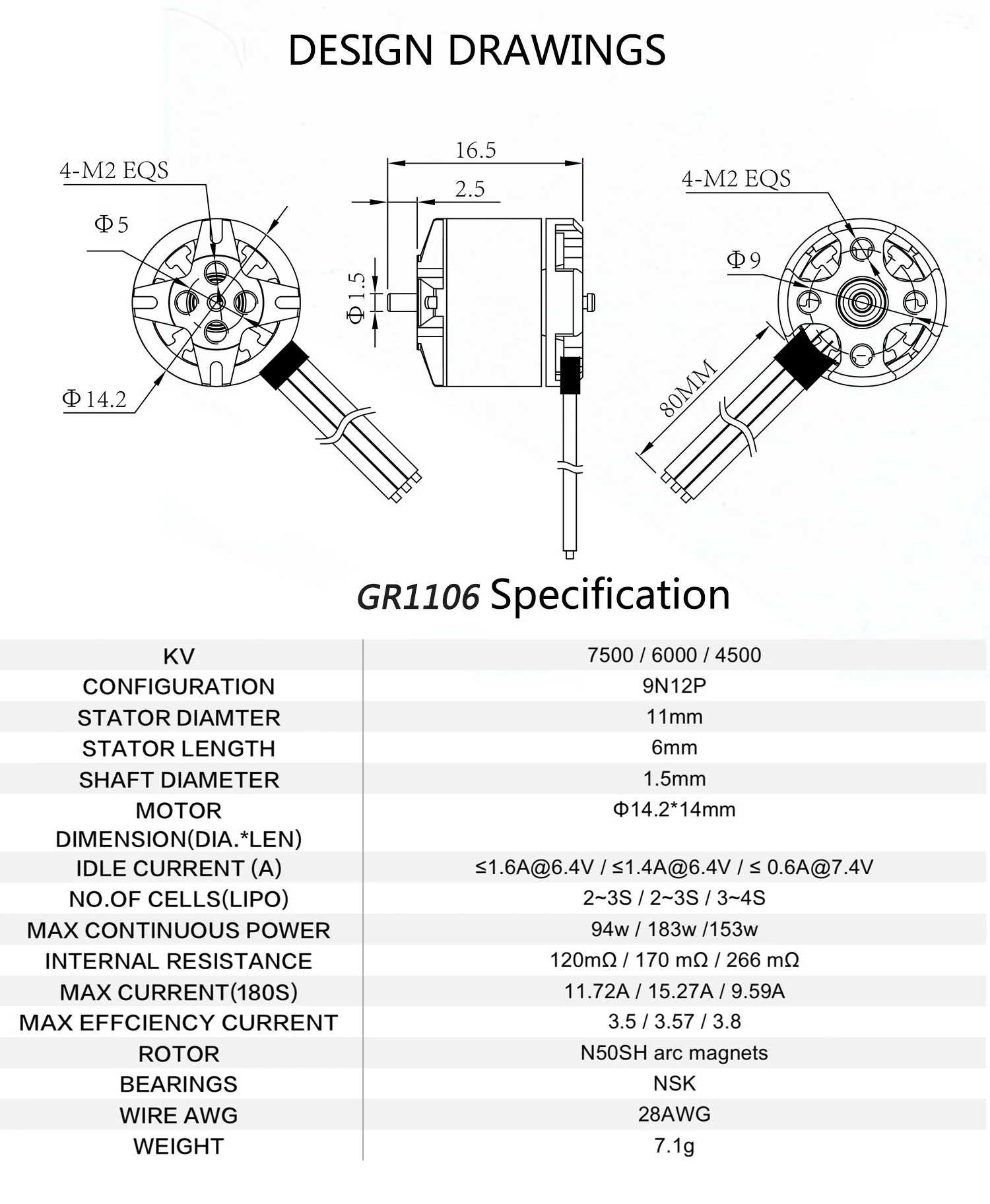

Specifications
KV: 7500 / 6000 / 4500
CONFIGURATION: 9N12P
STATOR DIAMTER: 11mm
STATOR LENGTH: 6mm
SHAFT DIAMETER: 1.5mm
MOTOR DIMENSION(DIA.*LEN): Φ14.2*14mm
IDLE CURRENT (A): ≤1.6A@6.4V / ≤1.4A@6.4V / ≤ 0.6A@7.4V
NO.OF CELLS(LIPO): 2~3S / 2~3S / 3~4S
MAX CONTINUOUS POWER: 94w / 183w /153w
INTERNAL RESISTANCE: 120mΩ / 170 mΩ / 266 mΩ
MAX CURRENT(180S): 11.72A / 15.27A / 9.59A
MAX EFFCIENCY CURRENT: 3.5 / 3.57 / 3.8
ROTOR: N50SH arc magnets
BEARINGS: NSK
BASE CASING: Al6061
WIRE AWG: 28AWG
WEIGHT: 7.1g
Features

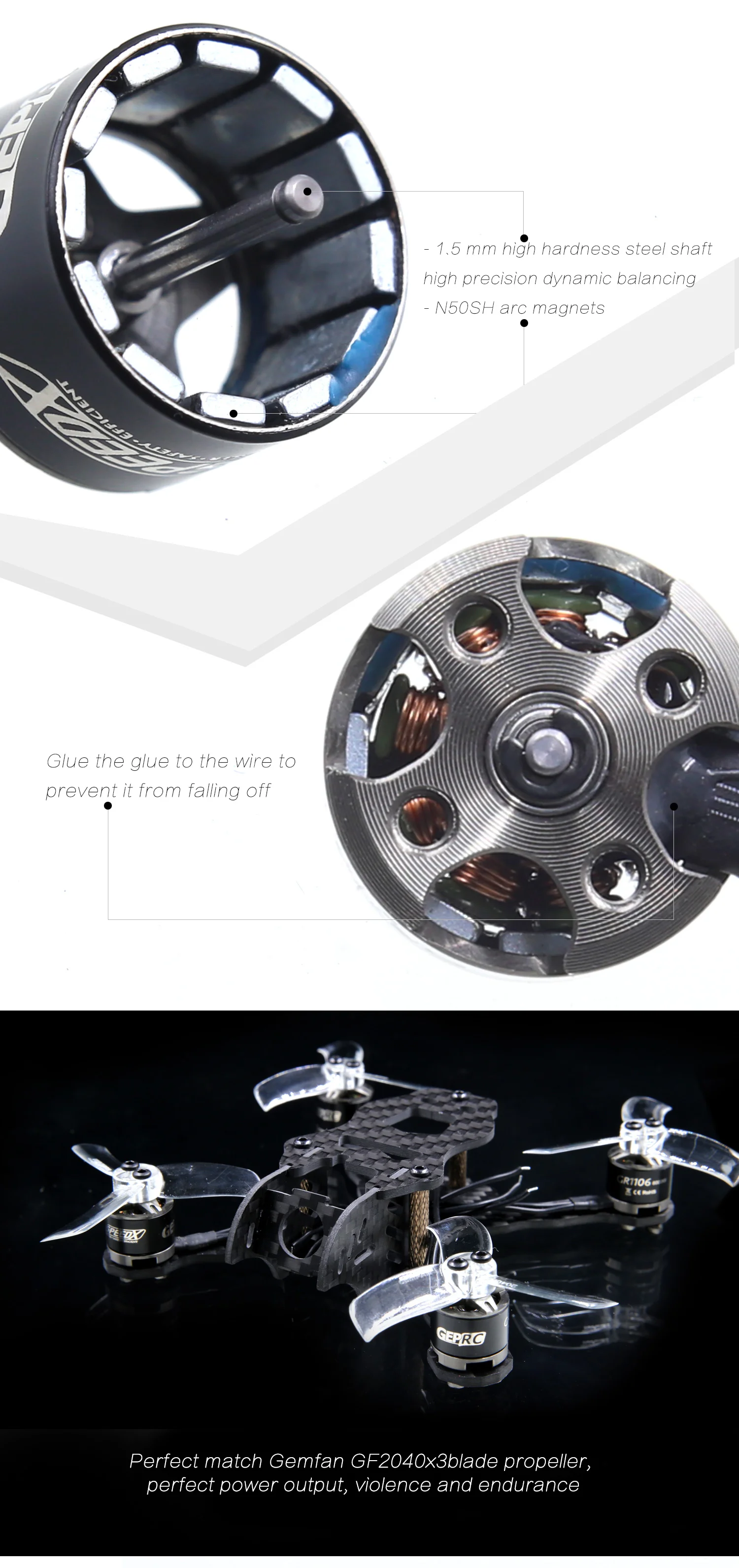

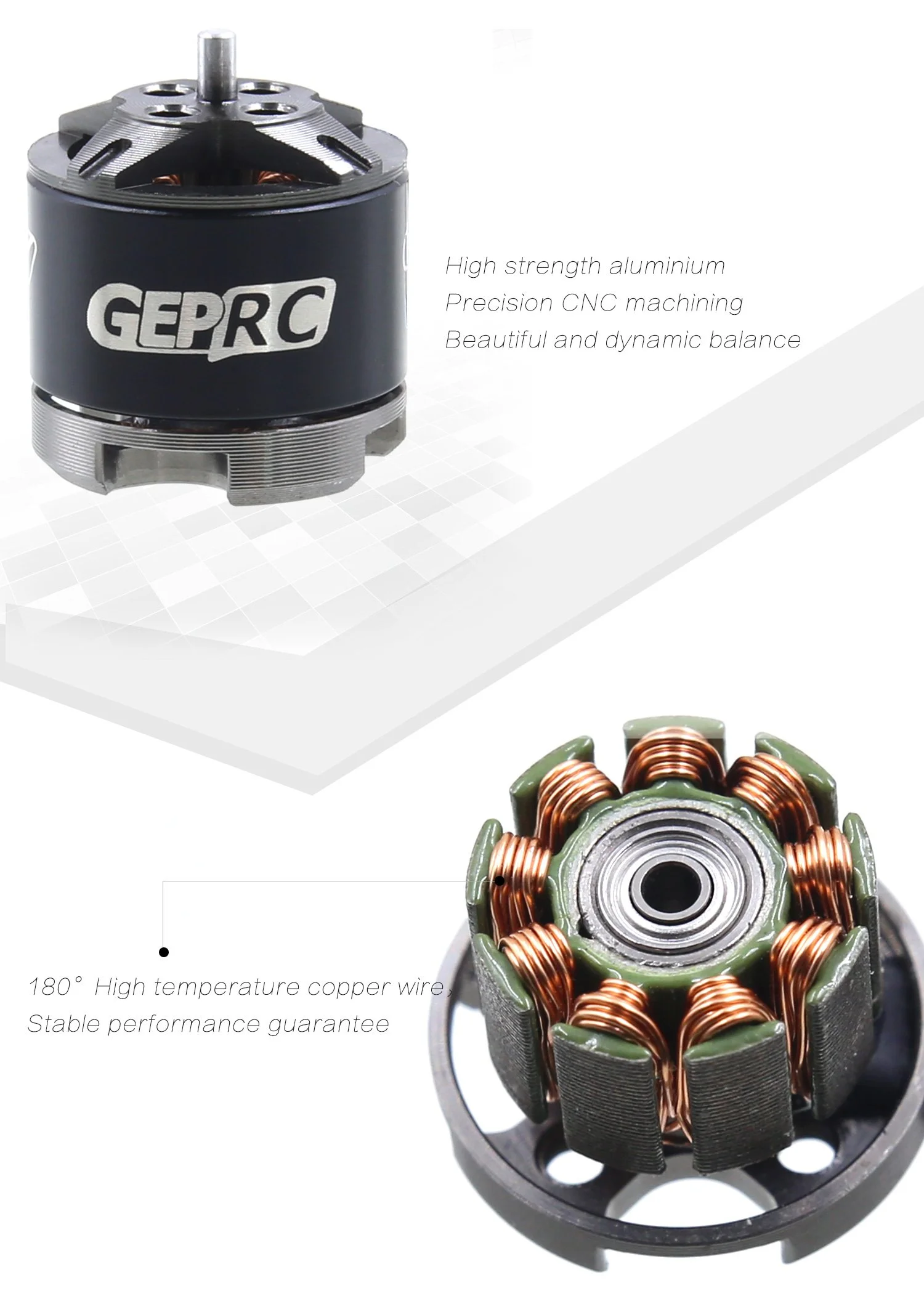

Full-body high precision CNC machining, high accuracy, high strength
The N50SH magnetic material is adopted to ensure the torsion and high temperature
The maximum pulling force through 340g+
Japan NSK bearing, ensure the smooth running of the motor
Weight only 6.8g (excluding wire)
