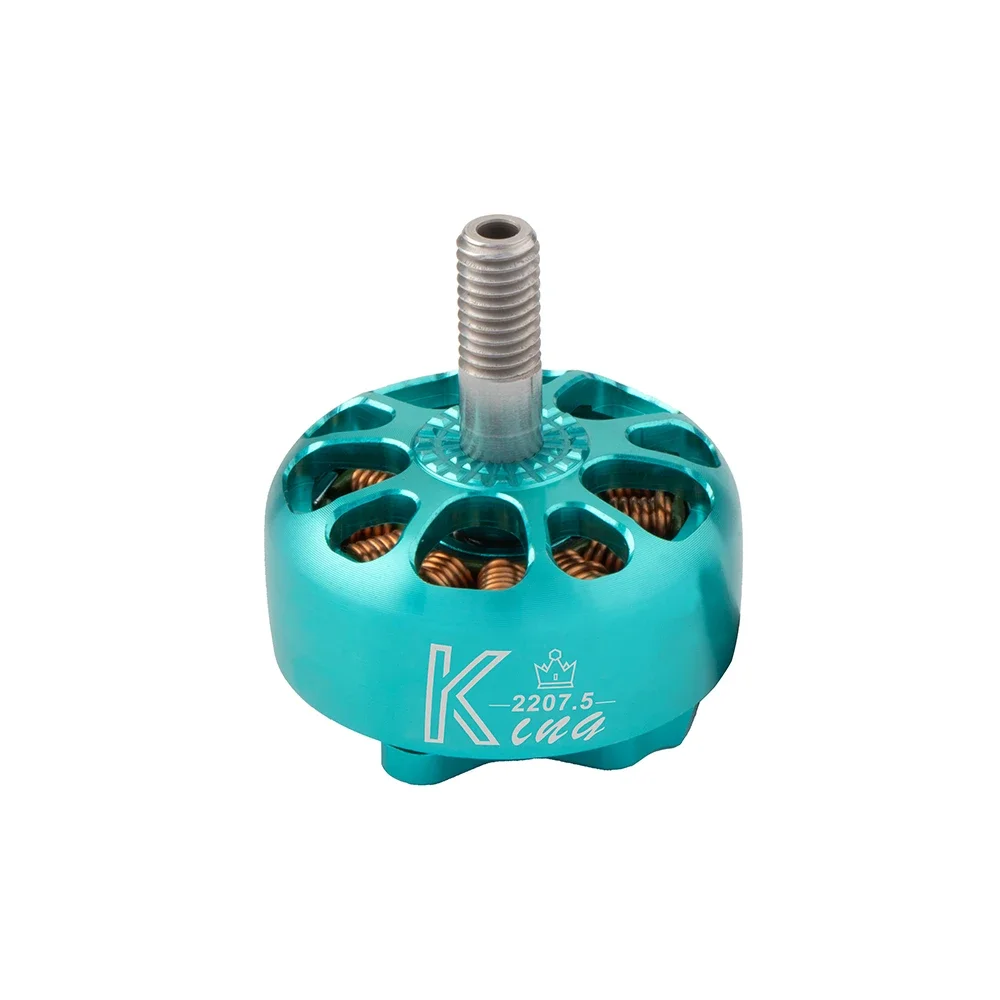

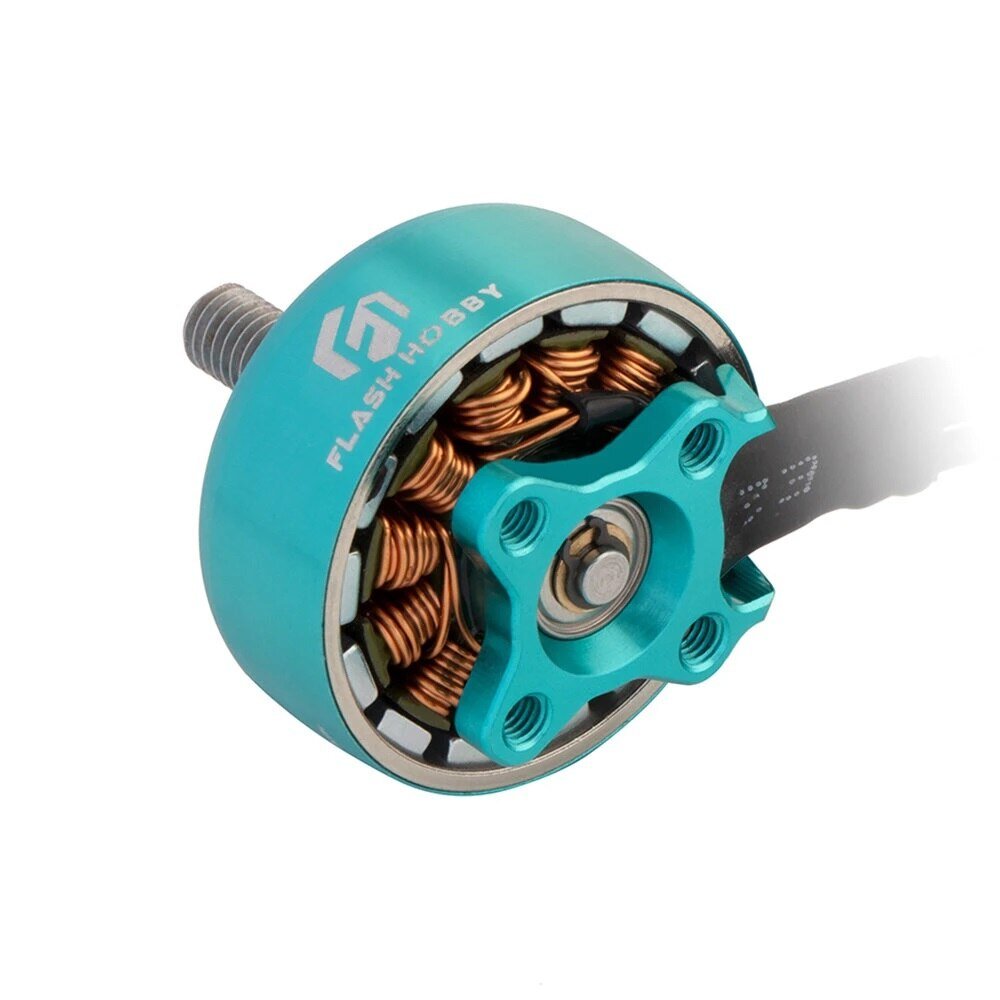

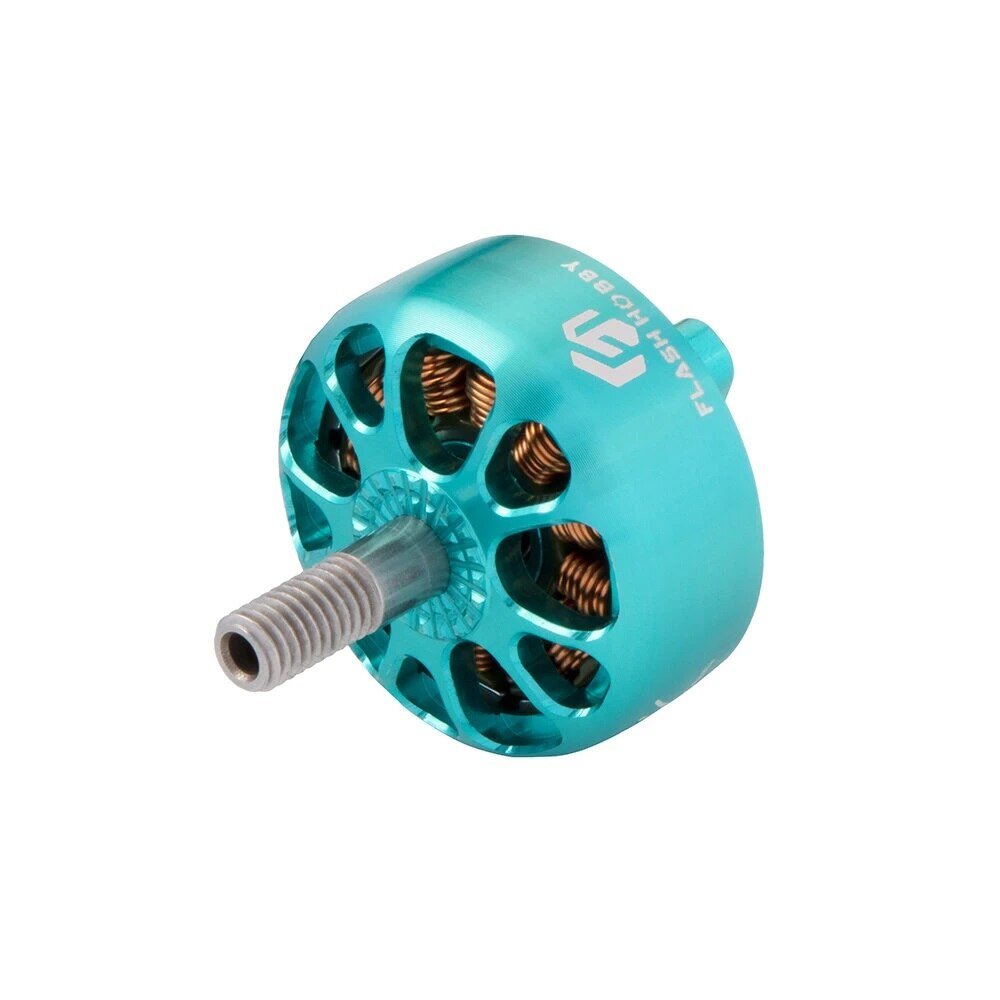

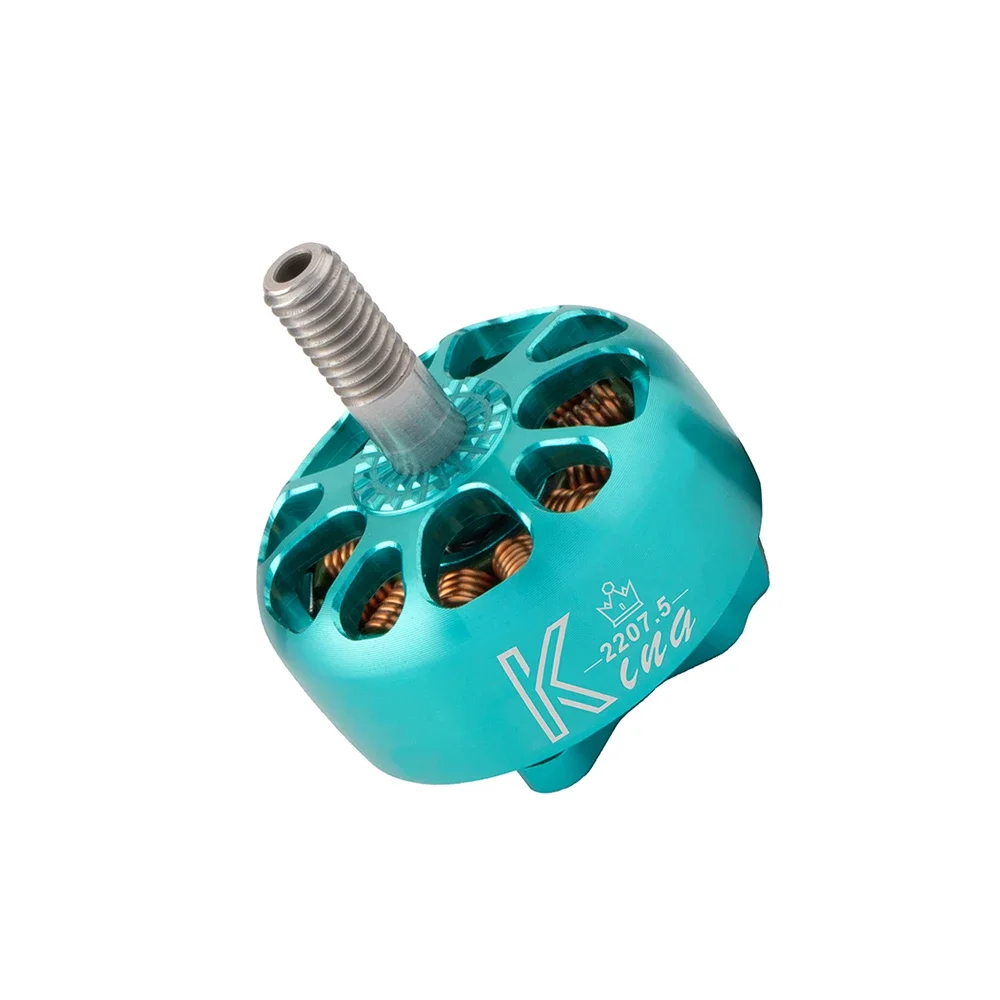

ZRE-DRONE FLASH HOBBY King K2207.5 1900KV 3-6S / 2500KV 3-5S / 2750KV 3-4S Brushless Motor for RC FPV Racing Drone

Original price was: $29.39.Current price is: $19.51.

1PCS 1900KV
1PCS 1900KV
1PCS 2500KV
1PCS 2500KV
1PCS 2750KV
1PCS 2750KV
Clear
Compare
Continue Shopping SKU: ZREDRN100378 Category:
  • Quantity: 1 pcs
  • Wheelbase: Bottom Plate
  • Size: NA
  • Technical parameters: KV1100
  • Model Number: FLASH HOBBY King Serise K2207.5
  • For Vehicle Type: Airplanes
  • Tool Supplies: Assembled class
  • Four-wheel Drive Attributes: Assemblage
  • Remote Control Peripherals/Devices: Remote Controller
  • Upgrade Parts/Accessories: Brushless Motor
  • RC Parts & Accs: Motors
  • Material: Metal
  • Origin: Mainland China
  • Recommend Age: 12 y
  • Use: Vehicles & Remote Control Toys
  • Certification: CE
FLASH HOBBY King K2207.5 1900KV 3-6S / 2500KV 3-5S / 2750KV 3-4S Brushless Motor for RC FPV Racing Drone

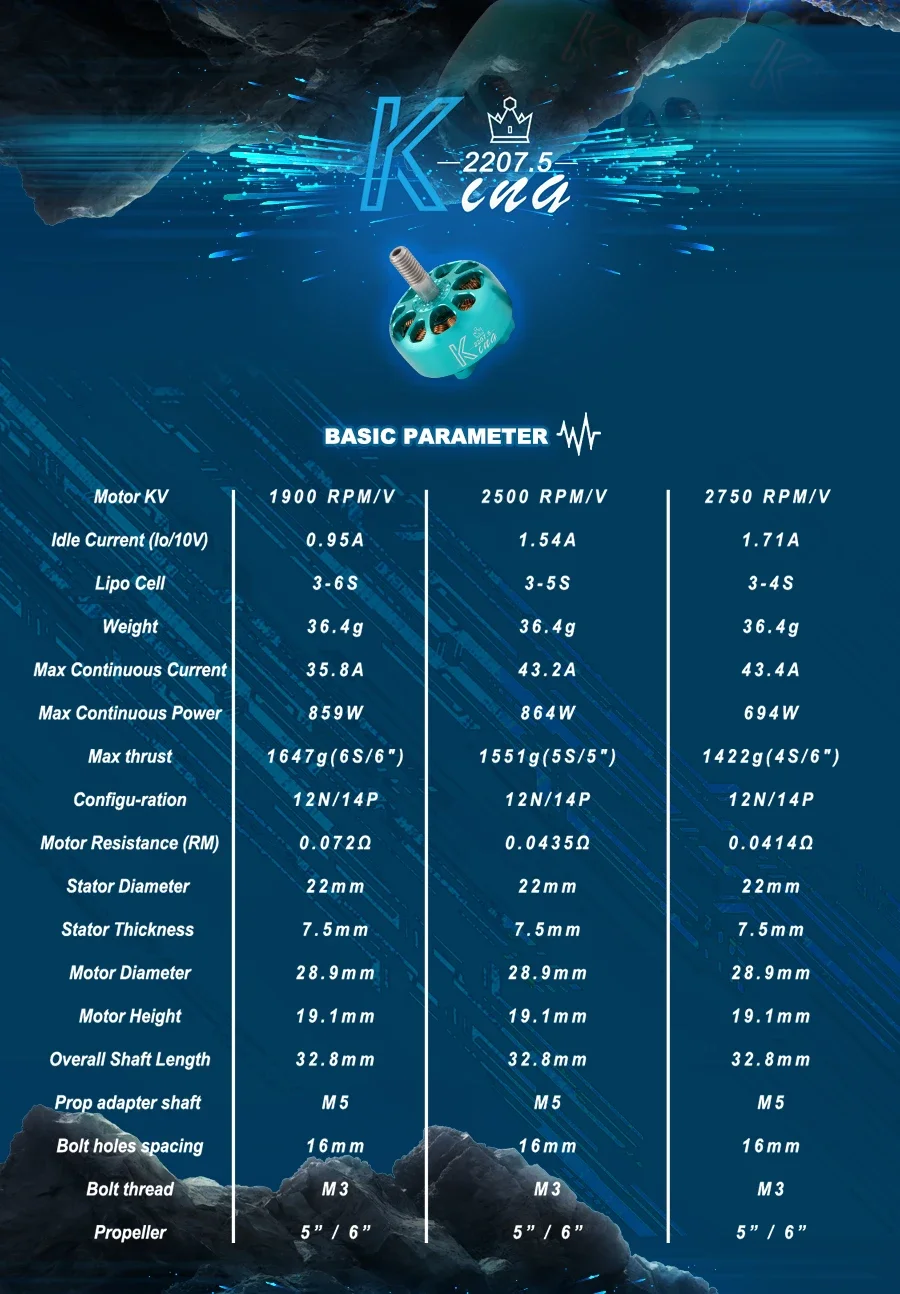

Specification:

  • Brand: Flashhobby
  • Model: K2207.5
  • Item Name: 2207.5 1900KV / 2500KV / 2750KV Brushless Motor
  • KV: 1900KV/ 2450KV/ 2750KV ( Optional)
  • Configuration: 12N14P
  • Quantity: 1 PC
  • Version: CW Screw Thread
  • Motor Size: Ñ„28.9 x 19.1mm
  • Motor Cable: 20#AWG  150mm
  • Overall Shaft Length: 32.8mm
  • Shaft Diameter: 3mm
  • Stator Diameter: 22mm
  • Stator Thickness: 7.5mm
  • Bolt Holes Spacing: 16mm
  • Bolt Thread: M3
  • Prop Mount Shaft Dia.: M5

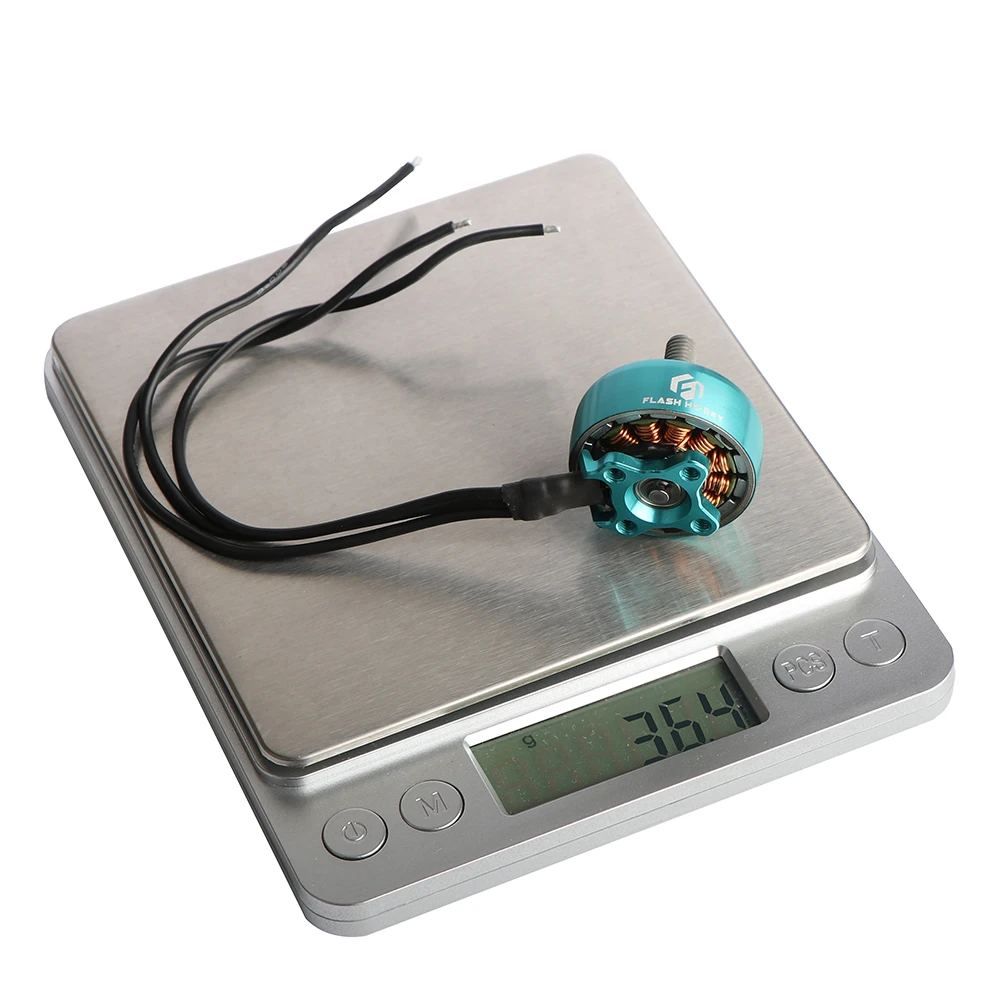

  • Weight: 36.4g(including the cables)

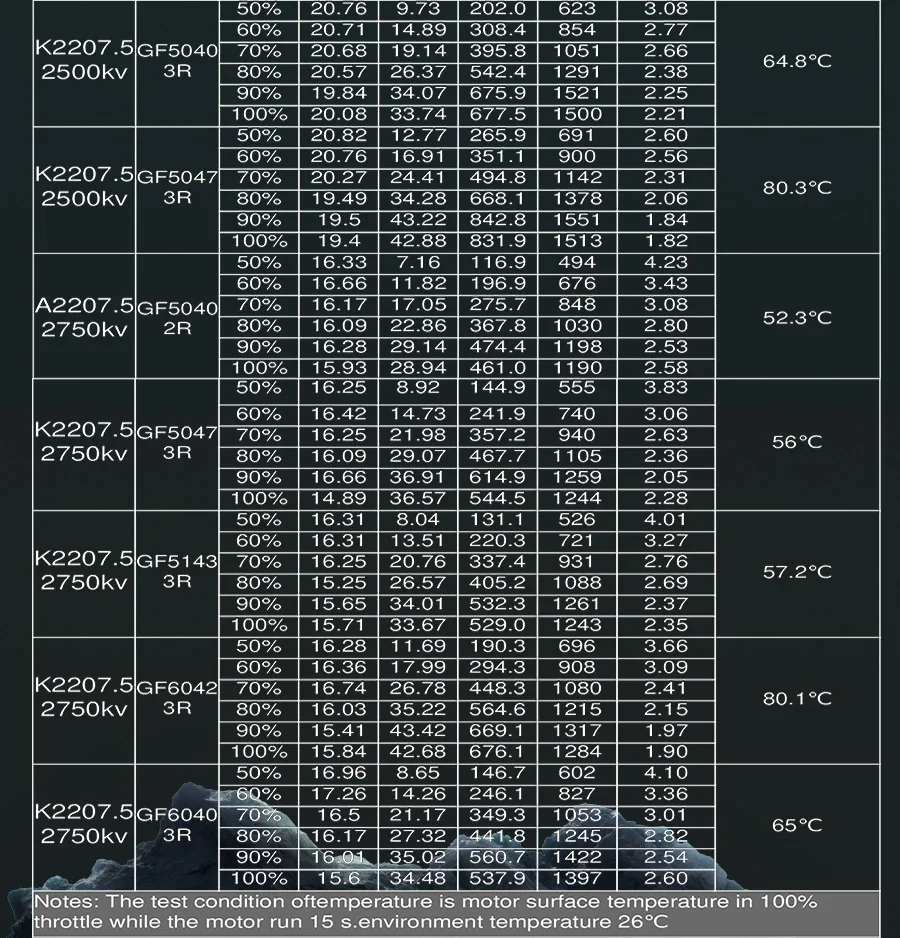

1900KV Version

Ldel Current(lo/10V): 0.95A

 Lipo Cell: 3S~6S

 Max Continuous Current: 35.8A

 Max Continuous Power: 859W

 Max Thrust: 1647g (6S/6″)

 Motor Resistance(RM): 0.072Ω



2500KV Version

Ldel Current(lo/10V): 1.54A

 Lipo Cell: 3S~5S

 Max Continuous Current: 43.2A

 Max Continuous Power: 864W

 Max Thrust: 1551g (5S/5″)

 Motor Resistance(RM): 0.0435Ω

2750KV Version

 Ldel Current(lo/10V): 1.71A

 Lipo Cell: 3S~4S

 Max Continuous Current: 43.4A

 Max Continuous Power: 694W

 Max Thrust: 1422g (4S/6″)

 Motor Resistance(RM): 0.0414Ω

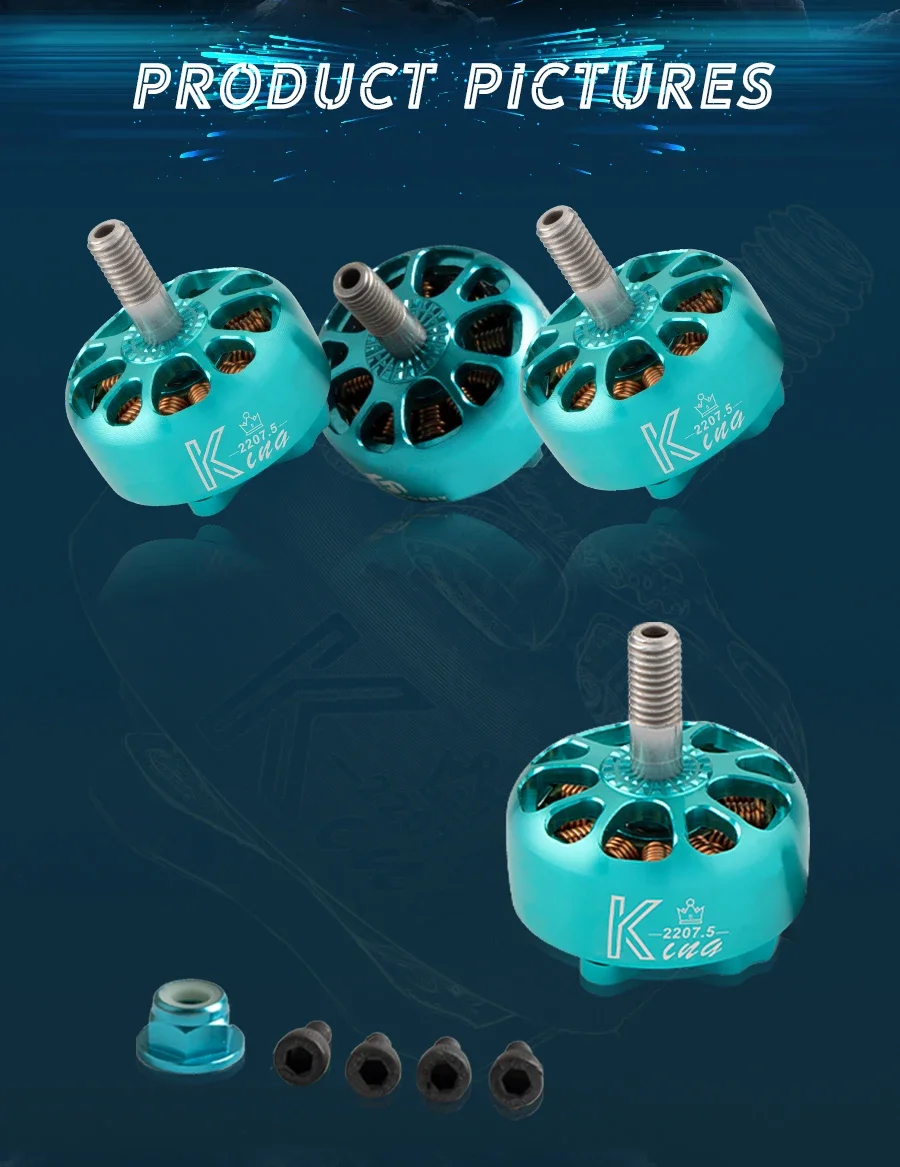

Package Included:

  • 1x K2207.5 Motor
  • 1x Motor Nut
  • 4x Screws
