- Quantity: 1 pcs
- Wheelbase: Screws
- Size: 30.5*30.5mm
- Technical parameters: Value 2
- Model Number: F4 V3S FC Flight Controller Board
- For Vehicle Type: Airplanes
- Tool Supplies: BLHELI_S 45A 4 in 1 ESC
- Four-wheel Drive Attributes: BLHELI_S 60A 4 in 1 ESC
- Remote Control Peripherals/Devices: ESC
- Upgrade Parts/Accessories: BLHELI_S 30A 4 in 1 ESC
- RC Parts & Accs: Speed Controllers
- Material: Composite Material
- Brand Name: U-Angel-1988
- Origin: Mainland China
- Recommend Age: 14 y
- Use: Vehicles & Remote Control Toys
F4 V3S FC Flight Controller Board with 30A 45A 60A 4in1 Brushless ESC for RC QAV/ZMR 210 230 250MM Drone FPV Racing
F4 V3S PLUS FC
Â
Specification:
Â
Item name: F4 V3 PLUS Flight Controller
Size: 36x36mm
Mounting holes: 30.5×30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
Gyro:BMI270
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
BEC:5v3a 9V3A
On-board video filters (only 5V to VTX and camera)
Â
Â
Â
30A ESC:
Â
Special Edition Wizard X220S FPV Racer RC Spare Part Drone 4 in 1 30A ESC BLHeli_S 2-6S Dshot600 RC Racing Drones Quadcopter Accessories
Â
Description:
Item name: 4 in 1 30A BLHeli_S ESC
Con. current: 30A
Peak current (10s): 35A
Input voltage: 2-6 S
BEC: 5V output
Programming: YES
Firmware: blheli_s
Weight: 9g
Size: 36 * 36 MM
Â
Â
45A ESC
Â
BLHELI_S 45A 4IN1 3-6S Brushless ESC Support DShot300-600/Multishot/Oneshot/PMW 30.5*30.5mm For RC FPV Racing Drone
45A 4-in-1 ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm (3mm hole diameter after installing the shock-absorbing ball)
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PMW
Current sensor: Support
Â
Â
Â

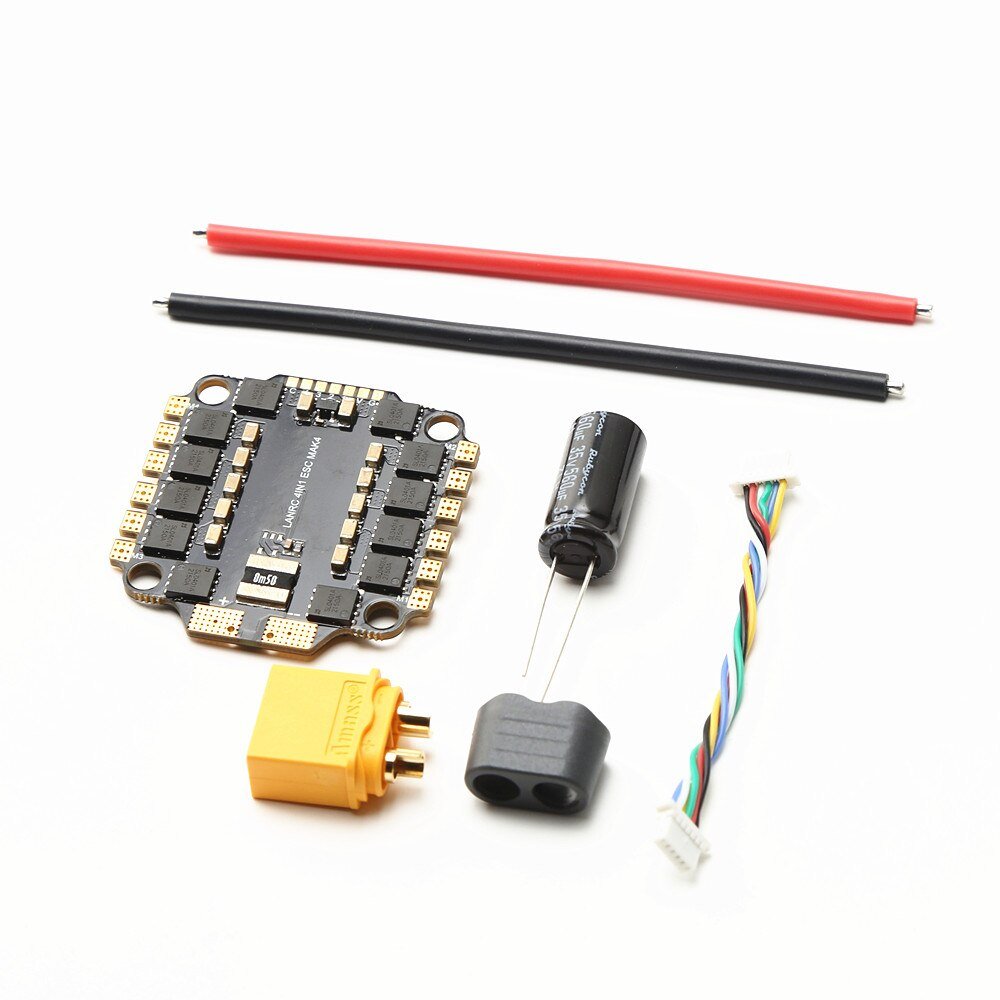

60A ESC
Â
Description
60A 4-in-1 ESC
The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation
ESC onboard current sensor.
Continuous current: 60A
Instantaneous current [5 seconds]: 70A
Firmware: BLS J_H_30_REV16_7
The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize
the battery voltage, and protect the precision components of the flight control ESC
Â
![](https://ae01.alicdn.com/kf/S9f38de4956d9468d8170f2cb617edccdn.jpg)
![](https://ae01.alicdn.com/kf/Se7a53c52359e4fb1ae58418e3e5467b0C.jpg)
![](https://ae01.alicdn.com/kf/Scf07ba35fa7b49848ab44781c5d6078bz.jpg)
![](https://ae01.alicdn.com/kf/S6f73d6e60d634a1a8aa21039493e5b16W.jpg)
![](https://ae01.alicdn.com/kf/S1d82c1a6d87a49b79fa532b6411ef112y.jpg)
![](https://ae01.alicdn.com/kf/Saba19d03c6ca4815ba652f798204810fu.jpg)
![](https://ae01.alicdn.com/kf/S7a7945a51a85413780c0663a8452923bK.jpg)
![](https://ae01.alicdn.com/kf/Sdf3bd78794ff459680eab02b8420a370C.jpg)
![](https://ae01.alicdn.com/kf/S61988efe677449c3b60048b08a8df949n.jpg)
![](https://ae01.alicdn.com/kf/S3338bfb202a2453ea9bd1c048e1ff6fet.jpg)
![](https://ae01.alicdn.com/kf/S35925c2c74aa42498db94cd1b639fa986.jpg)
![](https://ae01.alicdn.com/kf/S76fbc8a697a540618bfcbb1d9f4078bb4.jpg)
![](https://ae01.alicdn.com/kf/Se5ffeabf835846698f6469d184f0540b4.jpg)
![](https://ae01.alicdn.com/kf/Sf41f86ae1f754547b363aee1ef043702o.jpg)
![](https://ae01.alicdn.com/kf/Sba0023cb81ee4d4f8e5b6b863fac8e3d9.jpg)
