- Quantity: 1 pcs
- Wheelbase: Screws
- Technical parameters: KV1100
- Model Number: Emax ECO II Series 2306 Motor
- For Vehicle Type: Helicopters
- Tool Supplies: Assembly Category
- Four-wheel Drive Attributes: Motors
- Remote Control Peripherals/Devices: Motor
- Upgrade Parts/Accessories: Adapter
- RC Parts & Accs: Motors
- Material: Composite Material
- Origin: Mainland China
- Recommend Age: 14 y
- Use: Vehicles & Remote Control Toys
Brand: Emax

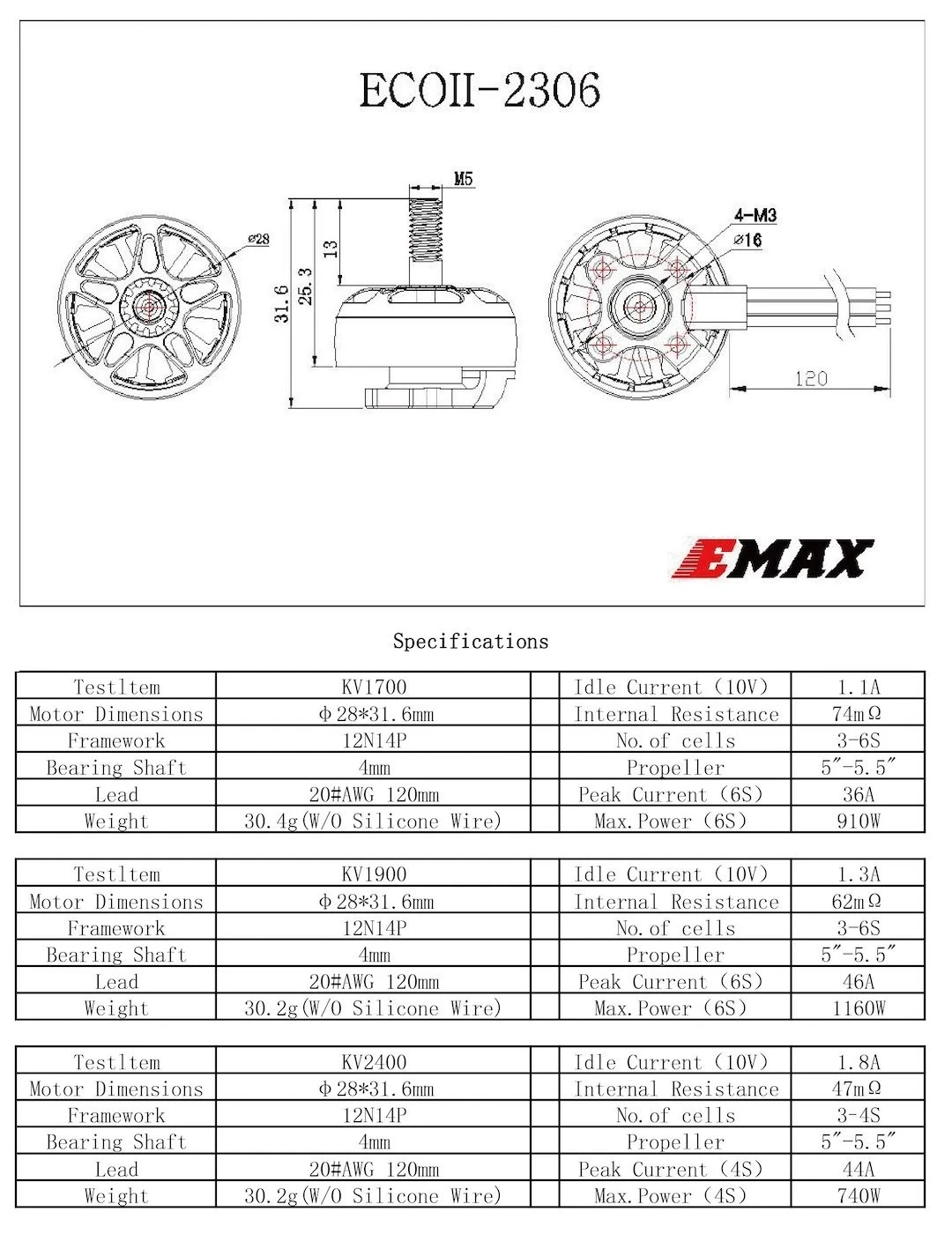

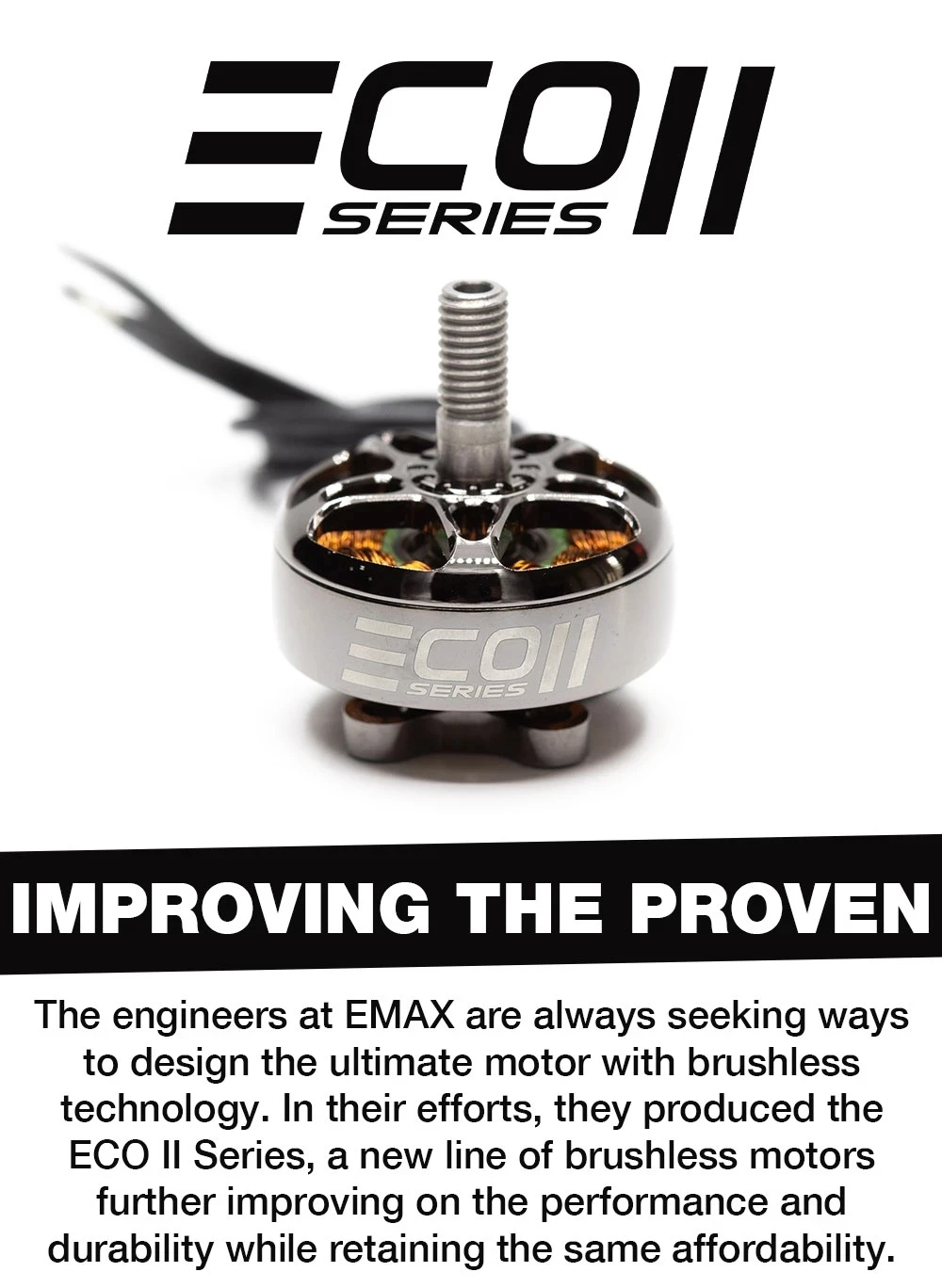

Item Name: EMAX ECOII 2306 Motor
KV: 1700KV/1900KV/2400KV (Optional)
Framework: 12N14P
Length: 31.6mm
Diameter: 28mm
No.of cells: 3-6S 1700KV
No.of cells: 3-6S 1900KV
No.of cells: 3-4S 2400KV
Propeller: 5″-5.5″
Weight: 30.4g(W/O Silicone Wire) 1700KV
Weight: 30.2g(W/O Silicone Wire) 1900KV
Weight: 30.2g(W/O Silicone Wire) 2400KV
Prop adapter shaft thread: M5
Bearing Shaft:4mm
Shaft Thread:CW
Feature:
Precision bearing
Steel shaft
Anodizing
16*16mm hole pattern
Multi-strand winding
120mm 20 AWG silicone wire

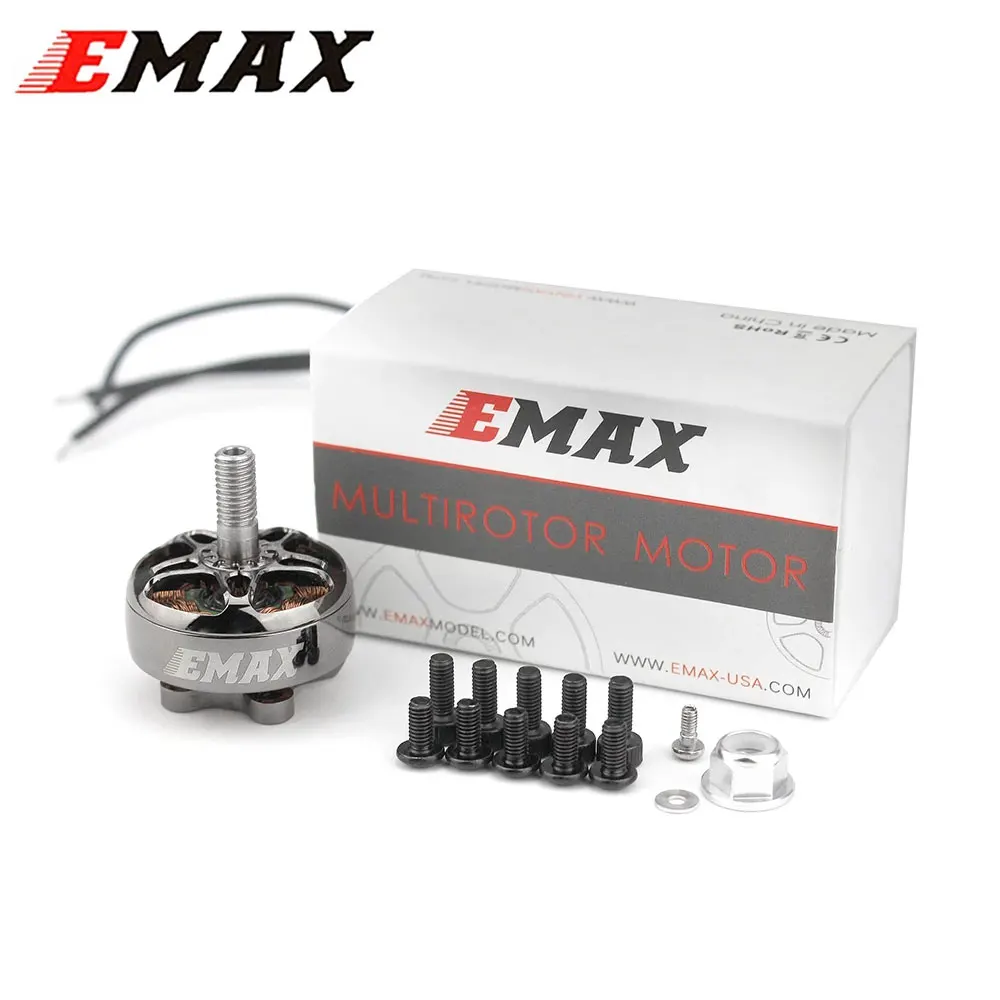

Package Included:
1/2/4 EMAX ECOII 2306 Motor
5/10/20* M3*8 Screw
5/10/20* M3*7 Screw
5/10/20* M3*6 Screw
1/2/4* Aluminum M5 nylock nut
1/2/4* Washer and Screw for shaft
