ZRE-DRONE EMAX 1103 1105 1106 1104 4300KV Brushless motor 2-4S 2-3inch for FPV Racing RC Drone Quadcopter BabyHawk KINGKONG 2345 AVAN 2.3

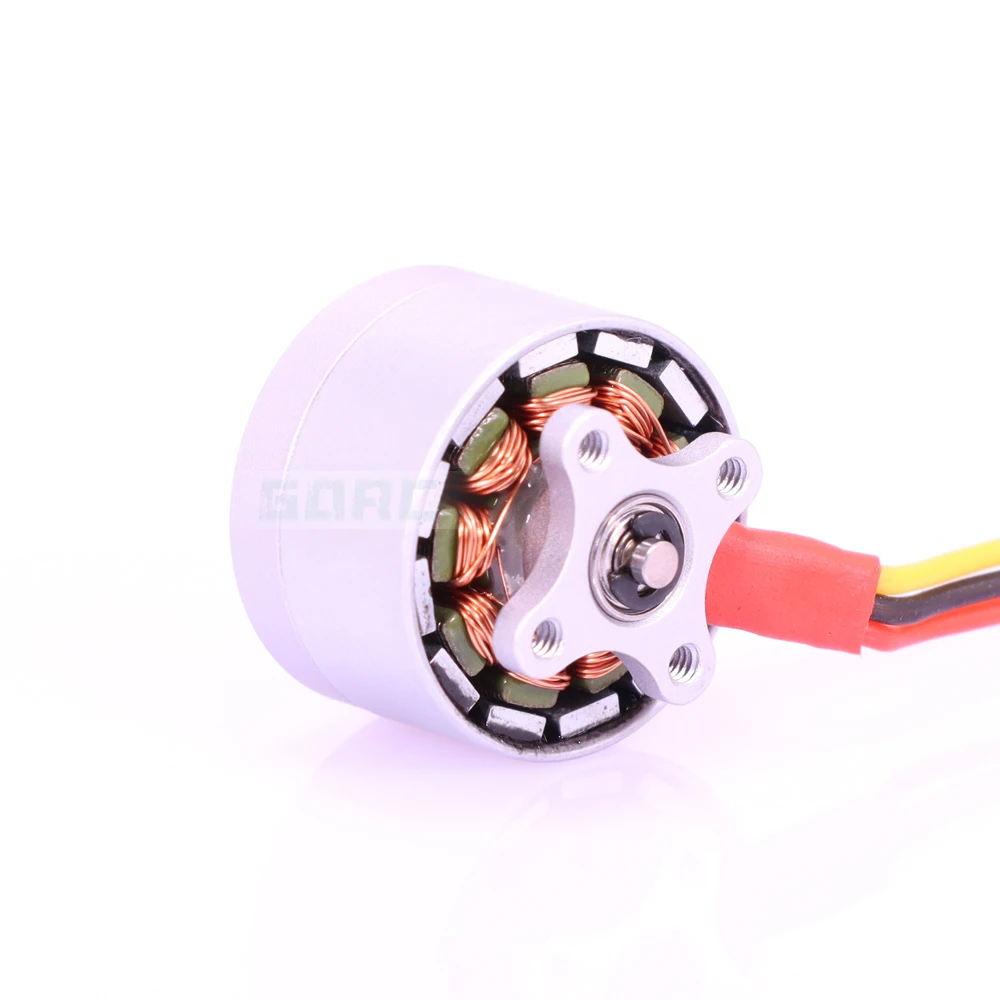

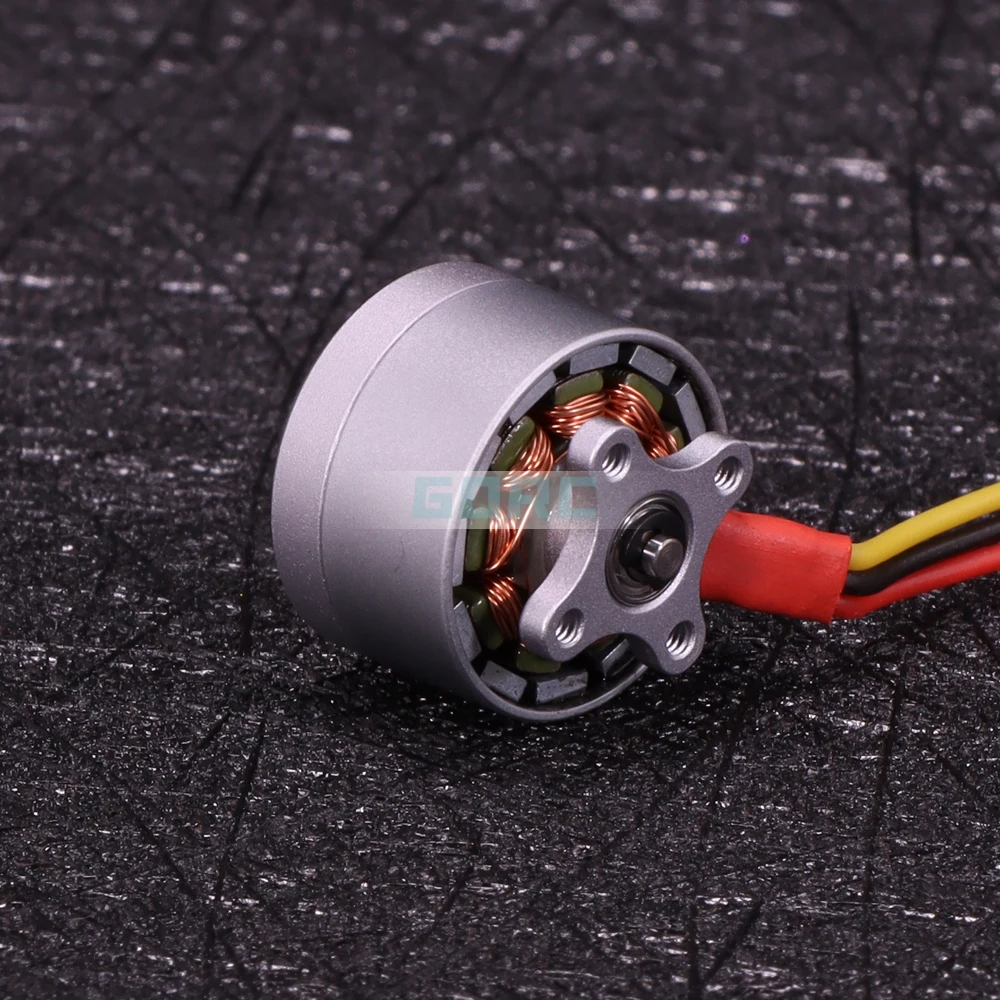

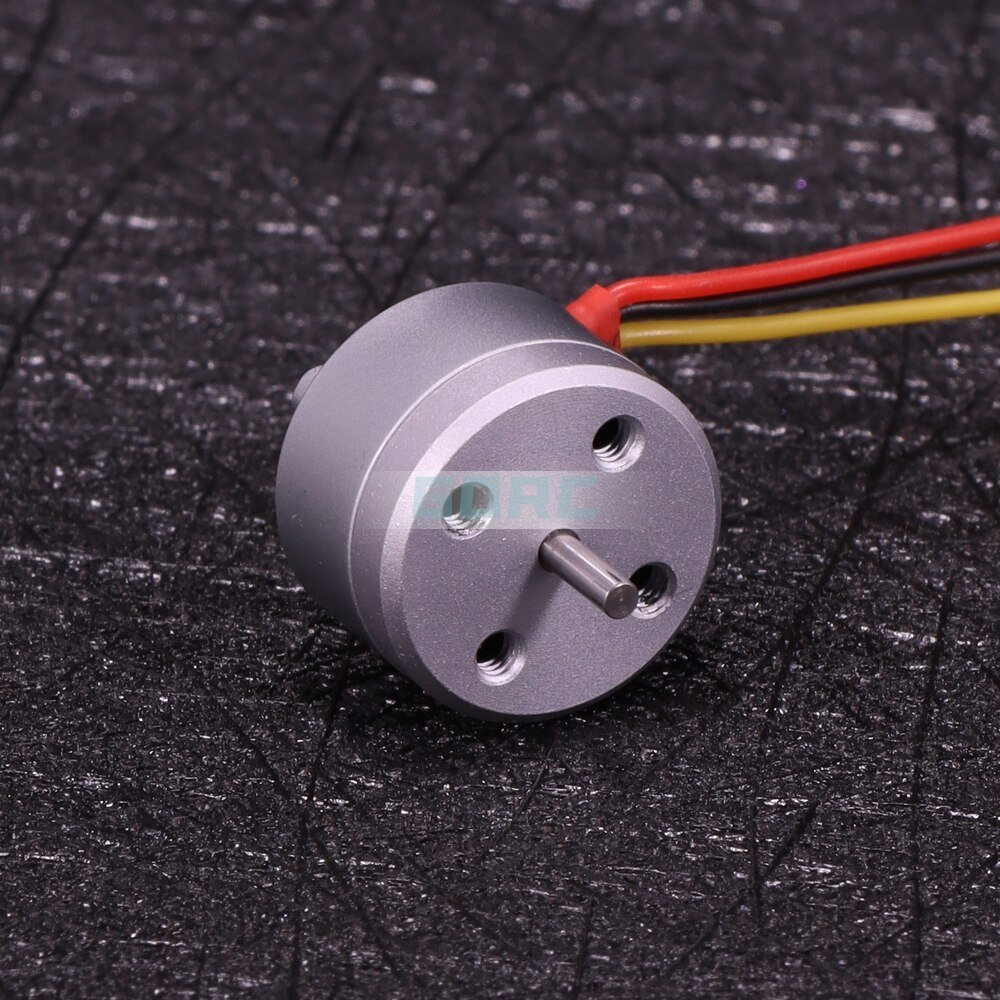

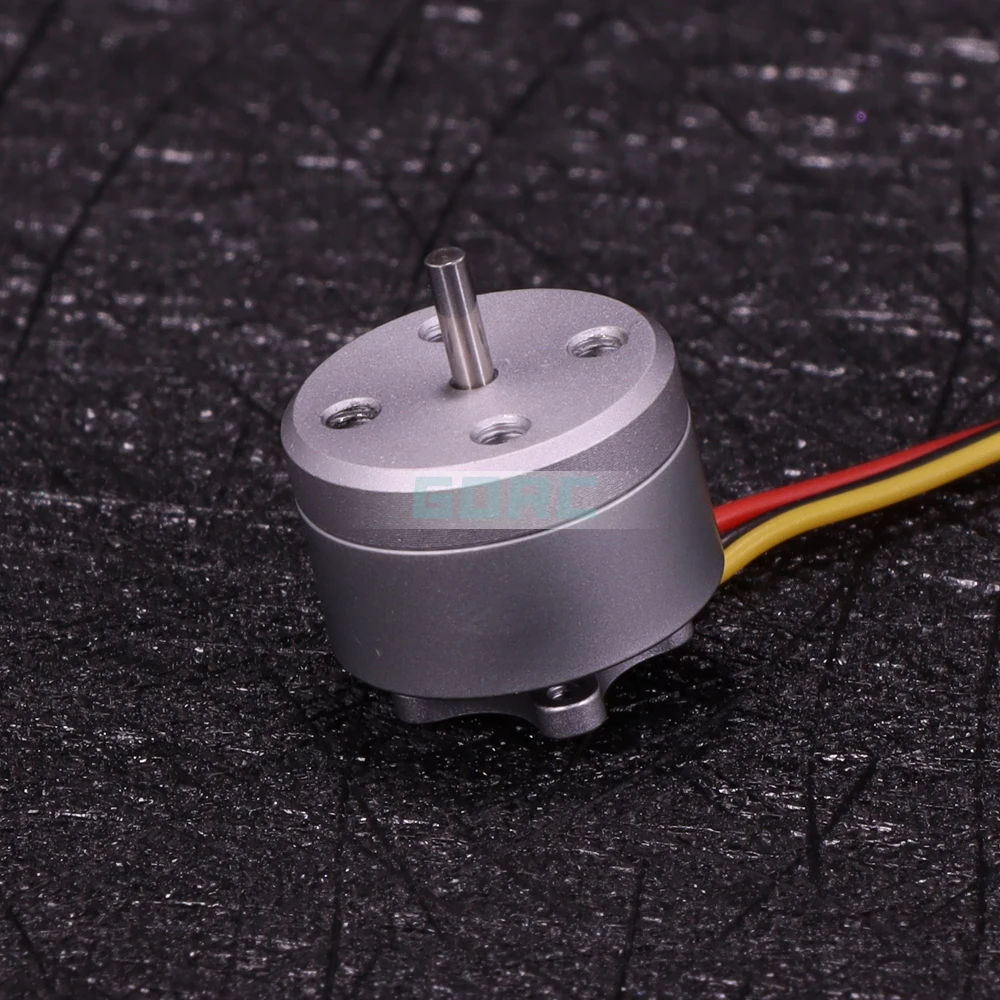

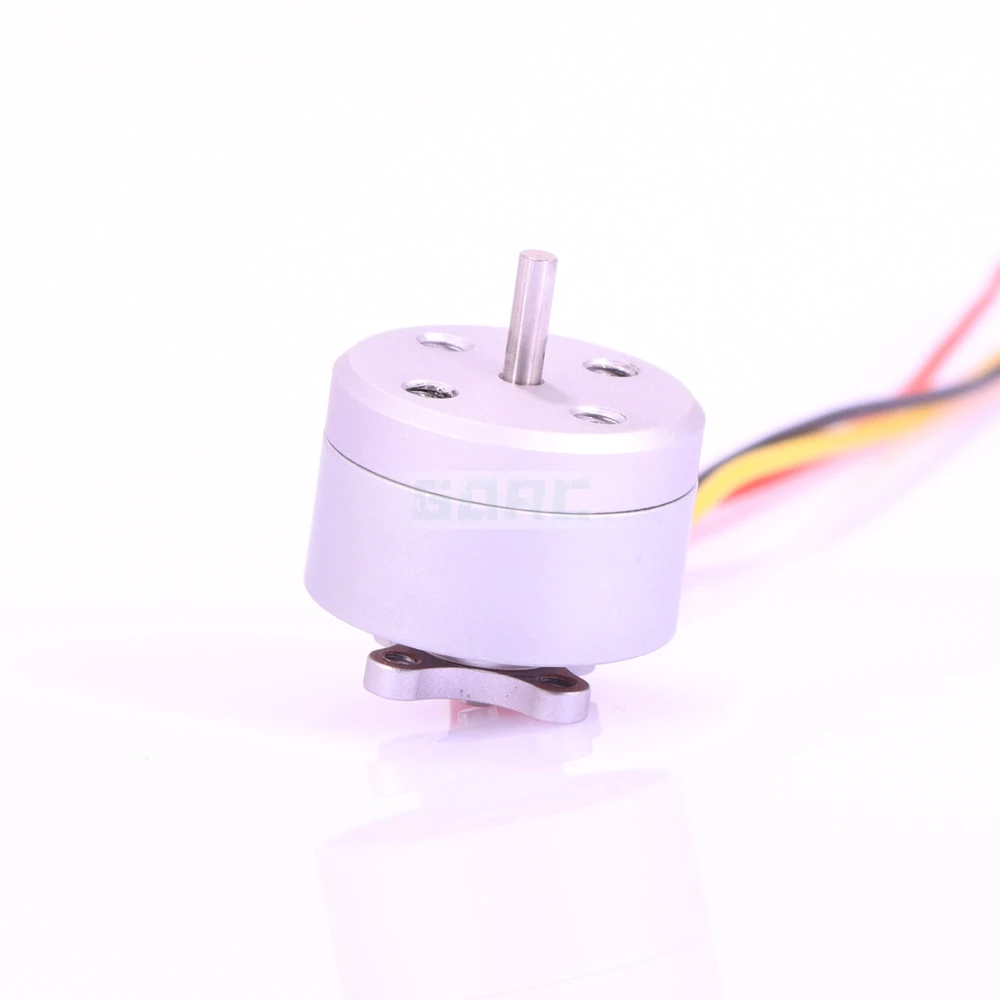

Brand new EMAX 1104 4300KV brushless motor

1PCS or 4 PCS only one wrench

Yinyan Motor has good workmanship quality,
The outer rotor drives dynamic balance correction,

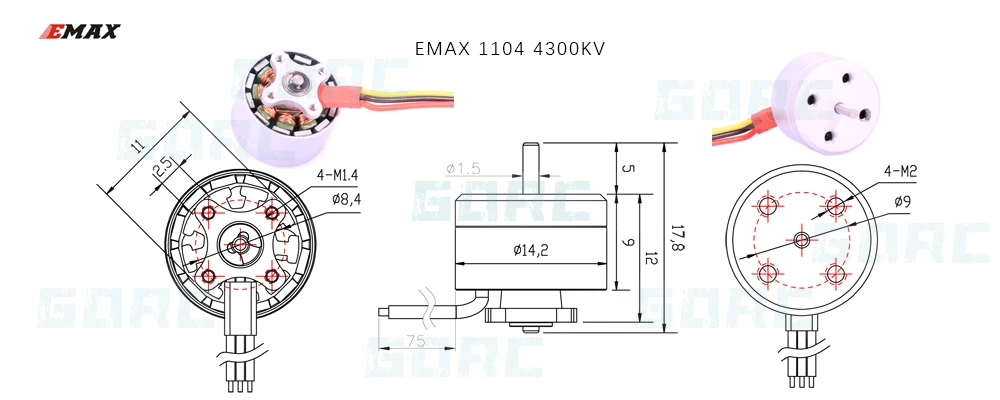

The motor only weighs 5.5 grams,
Motor head shaft 1.5mm,
The shaft length is 5mm,
The motor cable is about 70mm long,

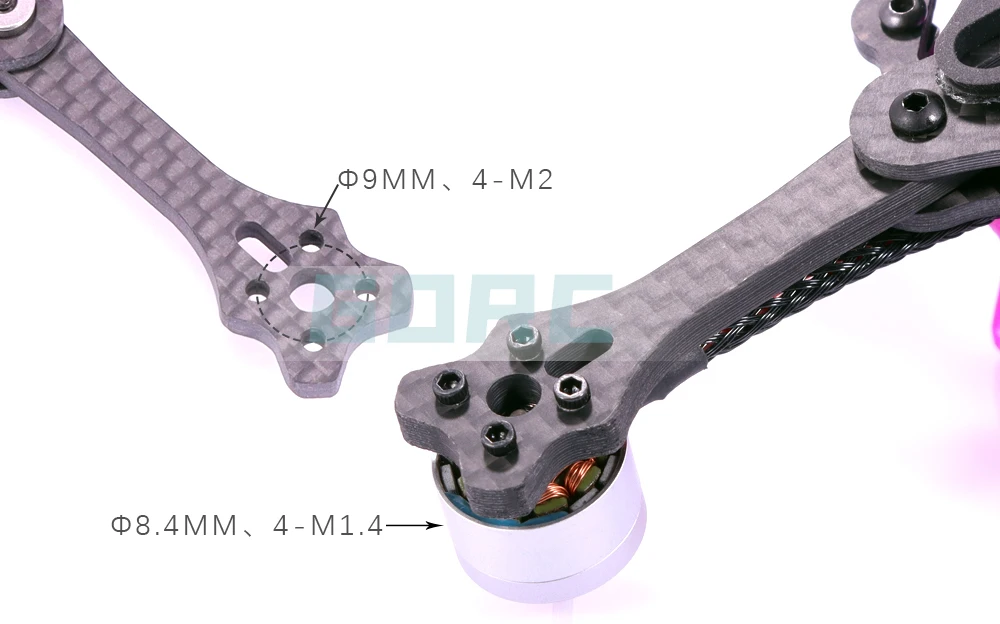

Standard 9mm pitch of propeller fixing holes,
The propeller can choose GEMFAN D63-3/D63-5、KINGKONG 2345、AVAN 2.3 propeller or 3 inch three blade propeller,Pay attention to choose 9mm pitch,
Brushless motor can also be used in other RC（For example: small fixed wing aircraft model），

The specific modification needs to be studied by yourself.
The motor should be more suitable for 1-4S lithium battery.
It mainly depends on matching the size of the blades.

Recommend Parts(Not included):
ESC: 6-40A Brushless ESC.
Battery: 1-4S lithium battery.
Propeller: 2.3-3 inch(Hole distance:9MM).

*The motor is equipped with fixing screws, but does not contain the fixing screws of the propeller, please be aware.

*Please pay attention to the installation of the fixing screws of the motor. If you touch the copper wire of the rotor, the motor will be damaged.

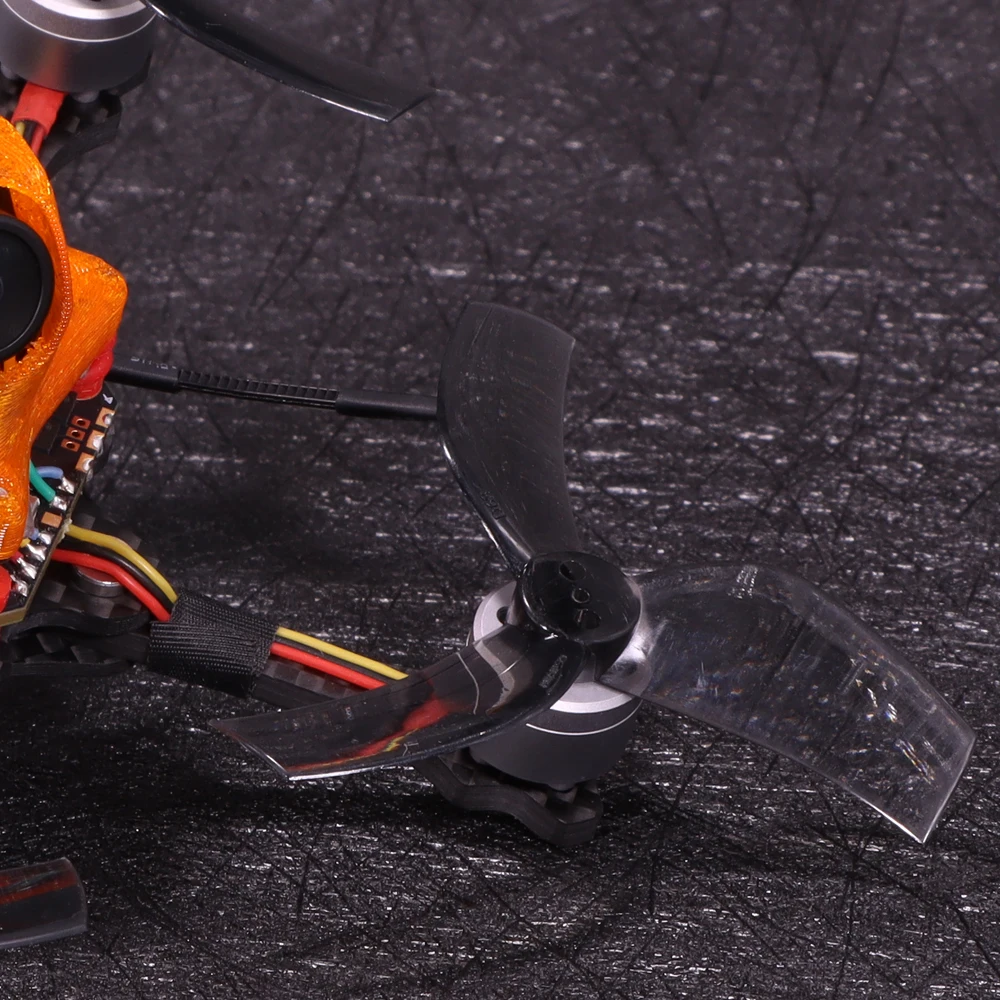

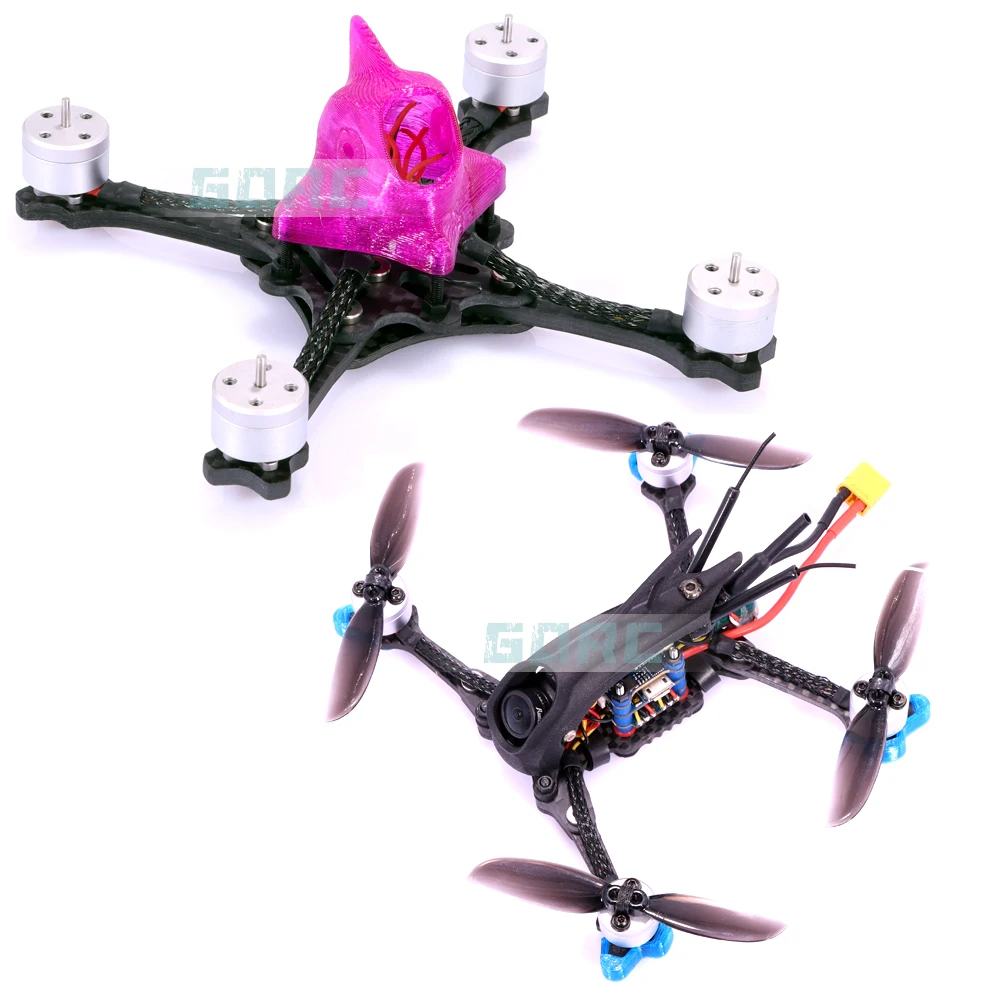

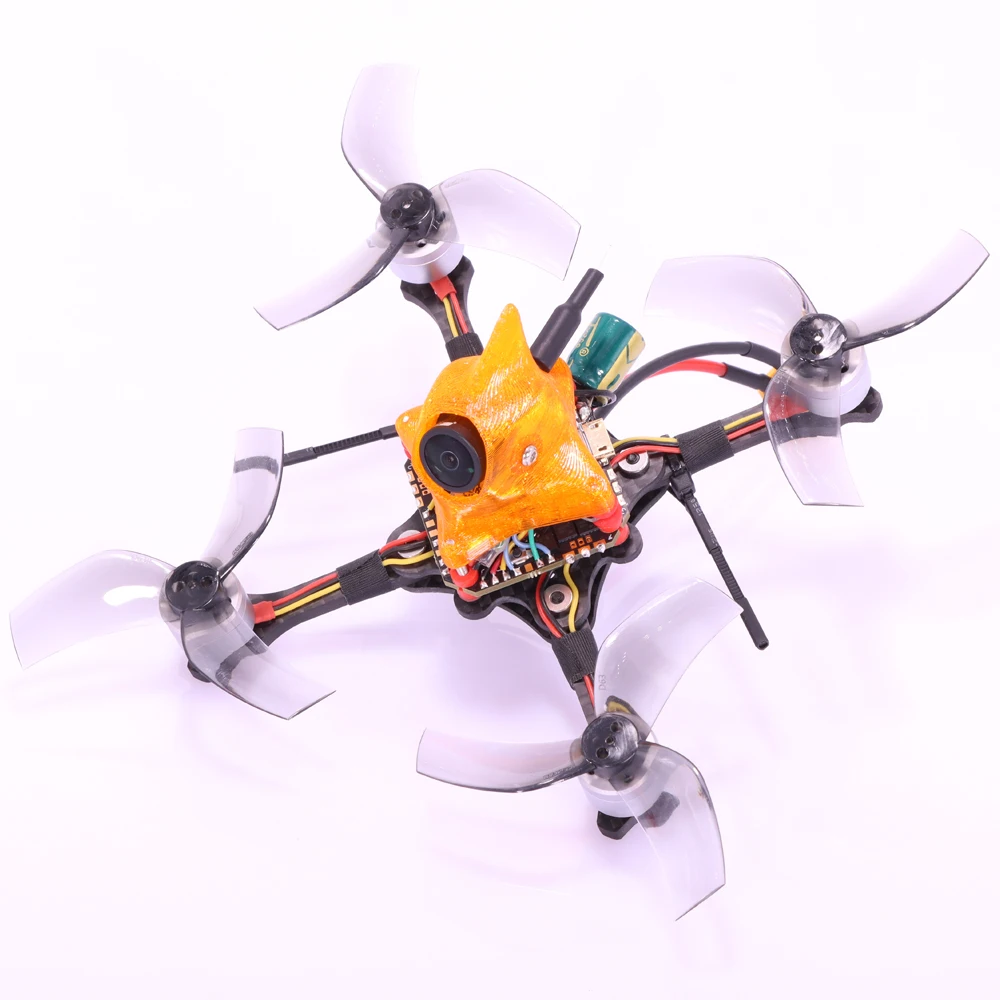

Show but not included ↓↓↓

Recommend GEMFAN D63-3/D63-5, KINGKONG 2345, AVAN 2.3 propellers
