- Size: 22.2x15mm
- Model Number: TOKA 1606
- For Vehicle Type: Airplanes
- Four-wheel Drive Attributes: Motors
- Remote Control Peripherals/Devices: Motor
- RC Parts & Accs: Motors
- Material: Composite Material
- Brand Name: SPARKHOBBY
- Origin: Mainland China
- Recommend Age: 12 y
- Use: Vehicles & Remote Control Toys

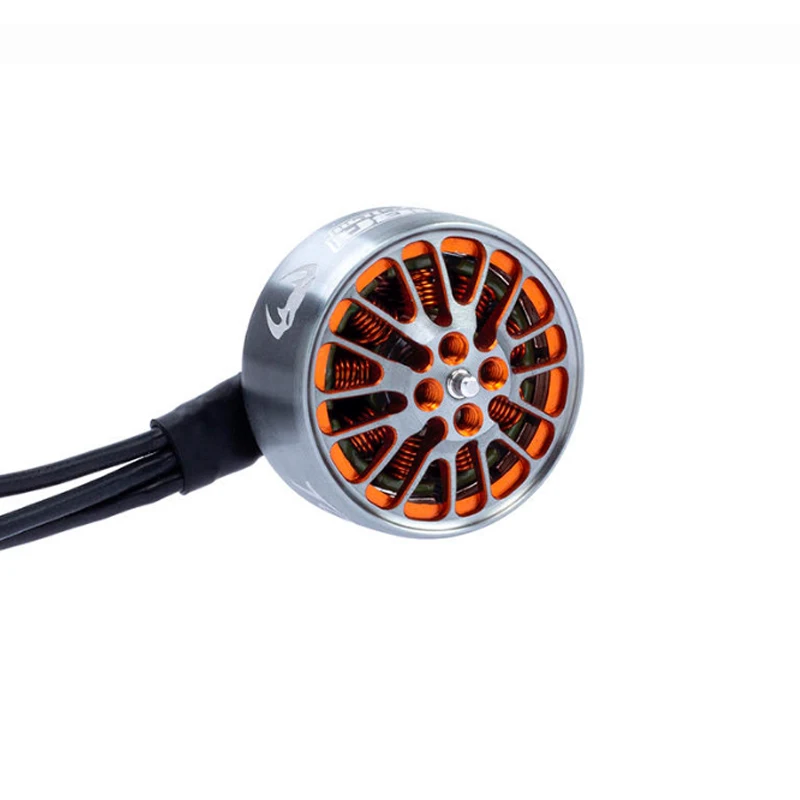

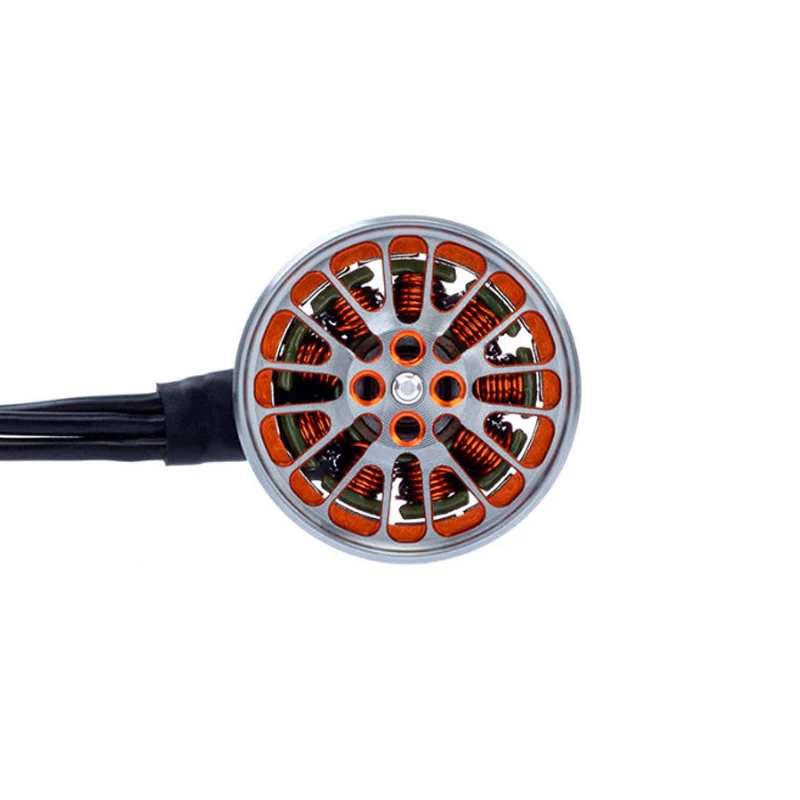

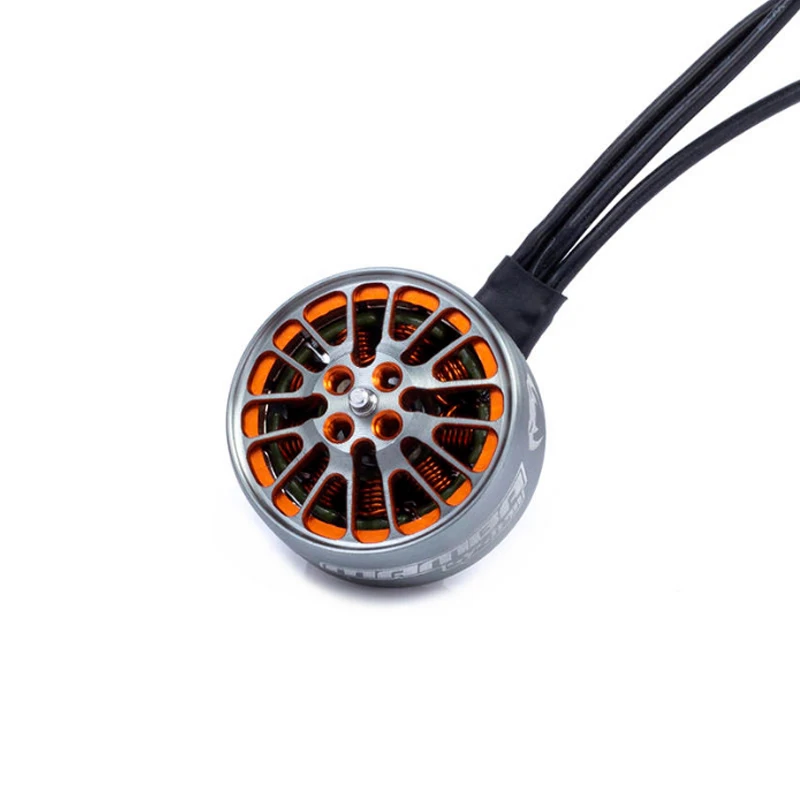

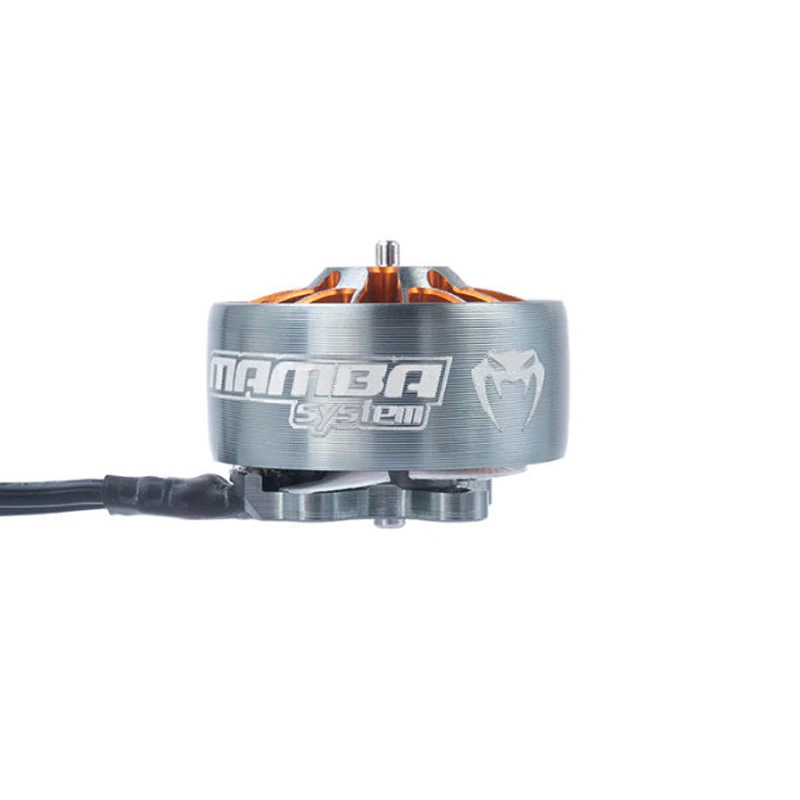

Item Name:Diatone MAMBA TOKA 1606 Brushless Motor

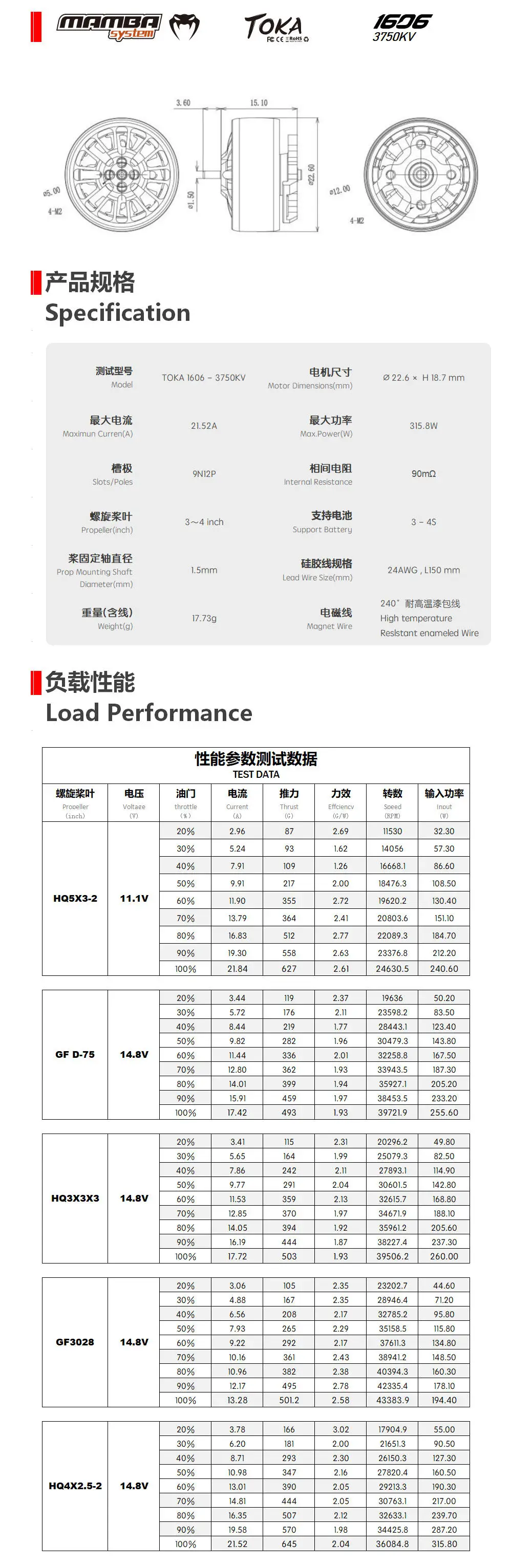

Product Parameters:

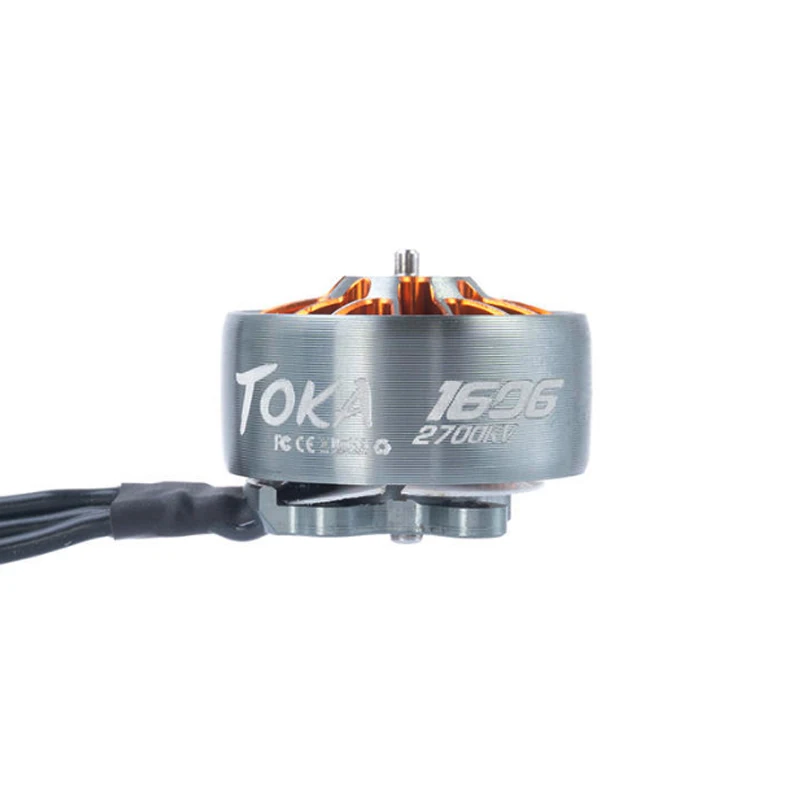

2700KV
Overall Dimension:Φ22.2×15mm

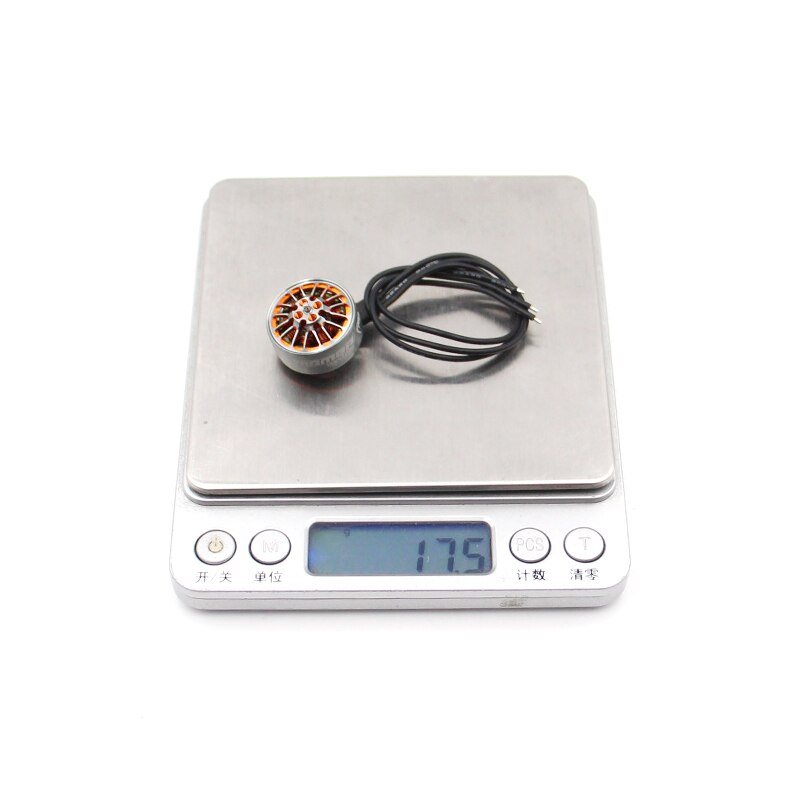

Weight:17.5g
Shaft Diameter:1.5mm
Installation hole position:12×12mm,M2
Prop:3inch~4inch
Bearing:5*2*2.5
Shaft Diameter:2mm

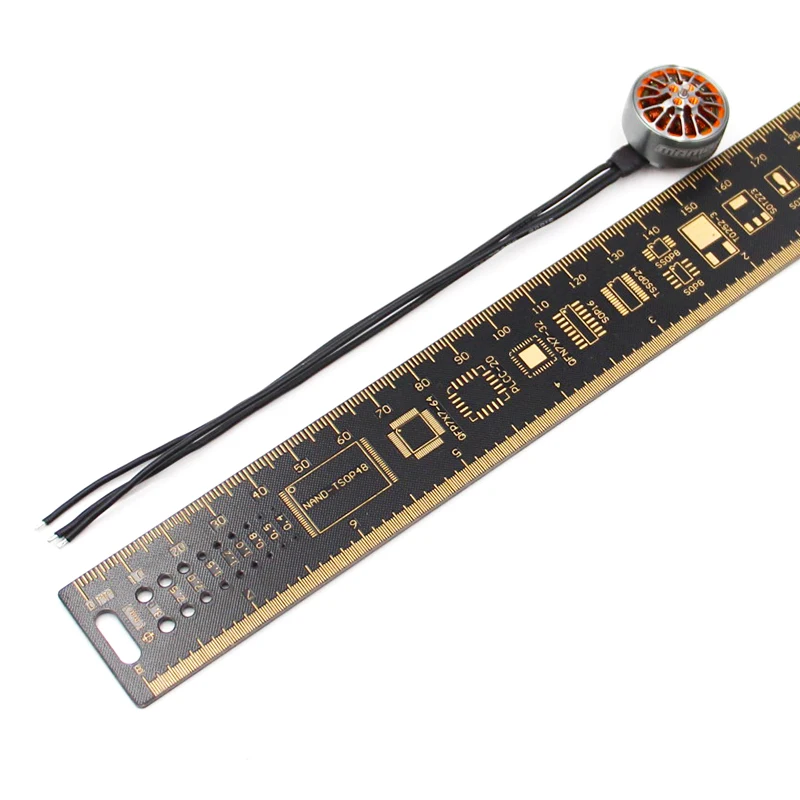

Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire:Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage:4~6S (12.6V~25.2V)
Peak Current:17.6A
ldle Current:10V/0.5A
Maximum Power:409W
Internal Resistance:164mΩ

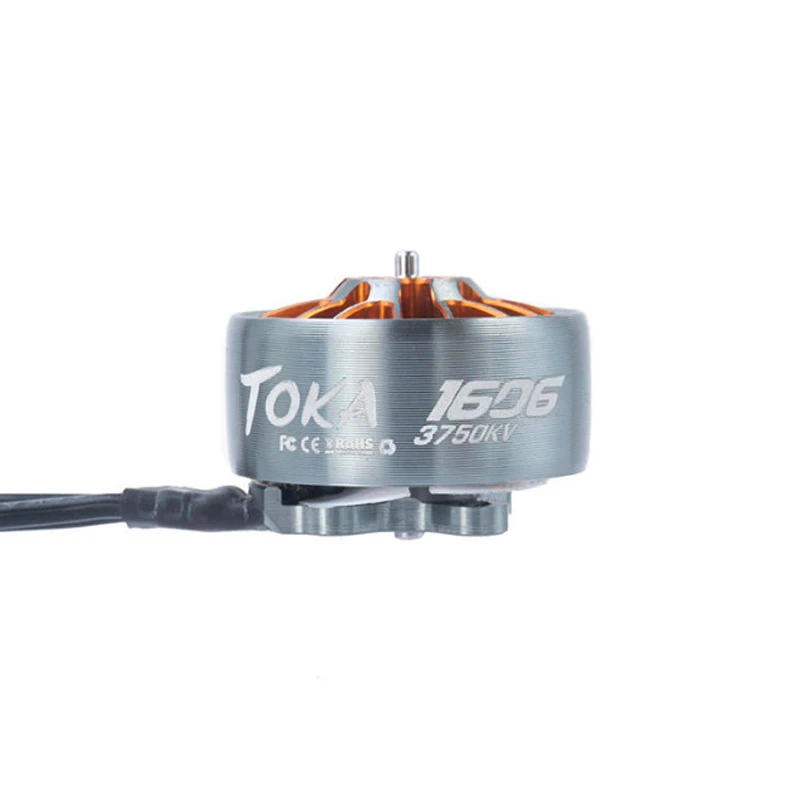

3750KV
Overall Dimension:Φ22.2×15mm
Weight:17.5g
Shaft Diameter:1.5mm

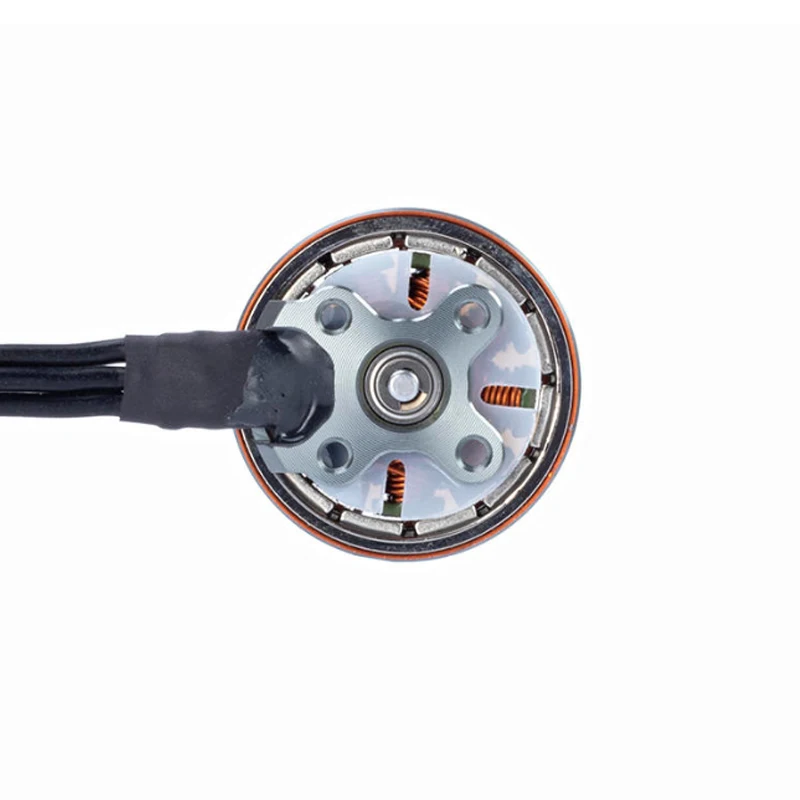

Installation hole position:12×12mm,M2
Prop:3inch~4inch
Bearing:5*2*2.5
Shaft Diameter:2mm
Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire:Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current:21.1A
ldle Current:9v/0.8A
Maximum Power:338W
Internal Resistance:114mΩ
- Package Included:
- Diatone MAMBA TOKA 1606 Brushless Motor x 1/4
M2*5 screw x 4/16
M2*6 screws x 4/16
M2*7 screws x 2/8
(Quantity, Model Optional)
