ZRE-DRONE AOKFLY AM2312-A 2312 980KV 1400KV 2450KV Long Shaft Brushless Motor 3S~4S Lipo for RC Airplane Fixed Wing Multirotor Drones

Item:  AOKFLY AM2312-A 980KV 1400KV 2450KV Brushless Motor
AM2312-A brushless motor is suitable for fixed wing ,selected high temperature resistant arc magnetic steel ,providing efficiency and powerful power. High-strength, high-tension ,linear throttle design ,whether it is applied to 3D drone,exercise drone or gliders are the best choice.

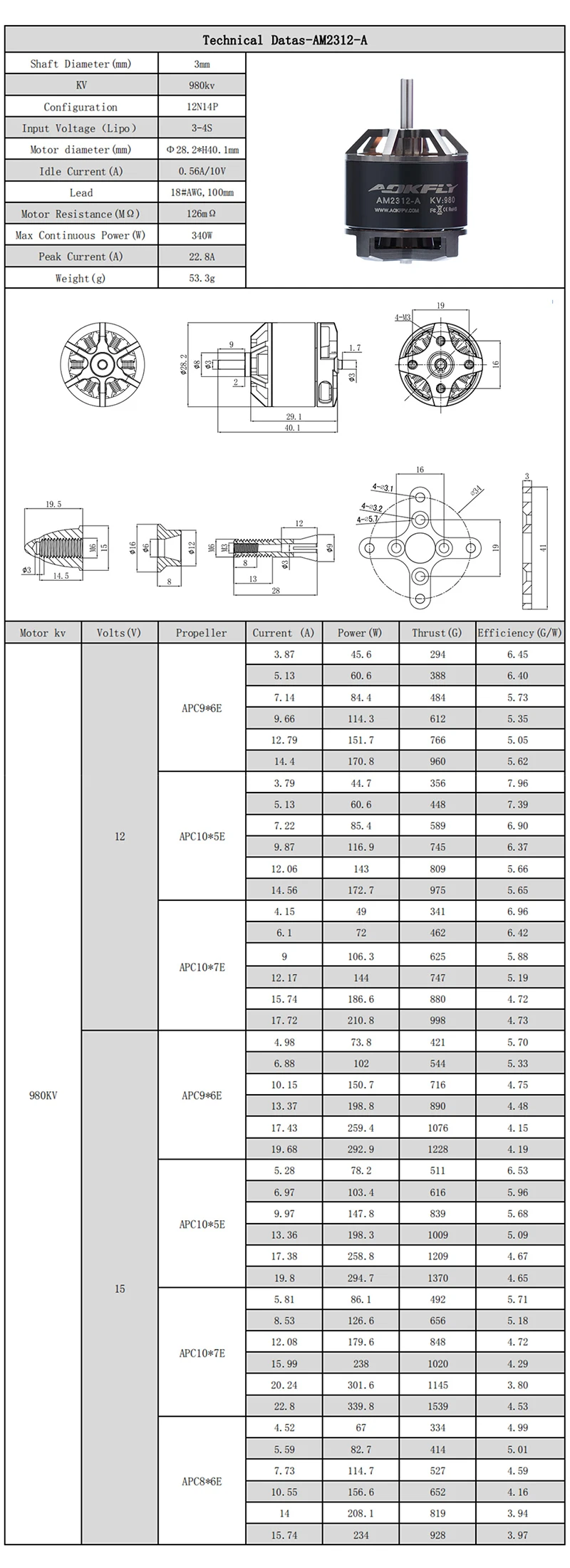

Parameters:

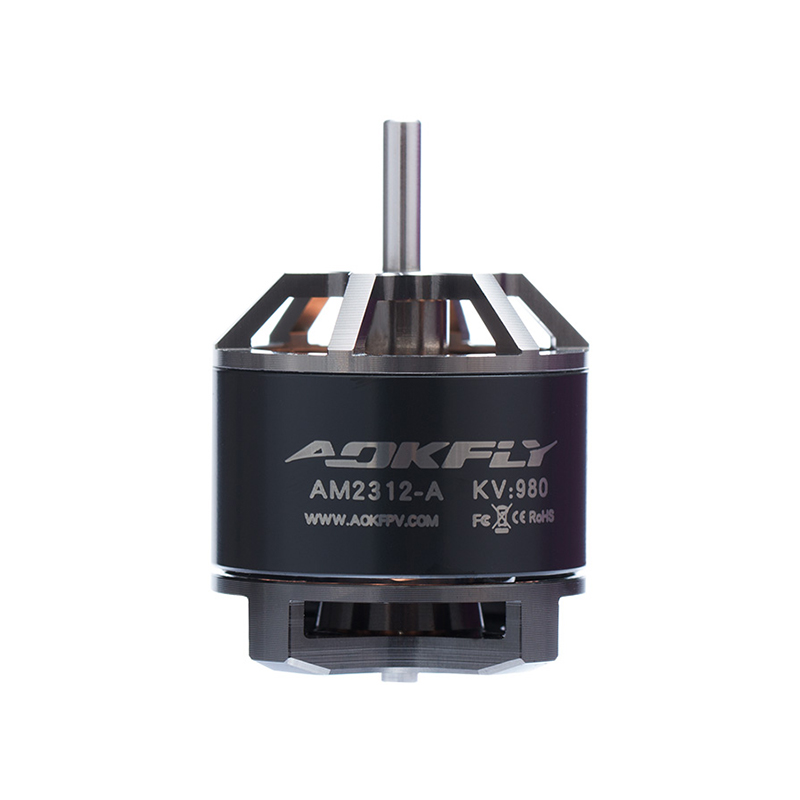

980KV
Shaft Diameter:3mm
Configuration:12N14P
Input Voltage:3~4S Lipo
Overall Dimension:Φ28.2×40.1mm
ldle Current:0.56A/10V
Lead Wire:18#AWG,100mm
Internal Resistance:126mΩ
Maximum Power:340W
Peak Current:22.8A

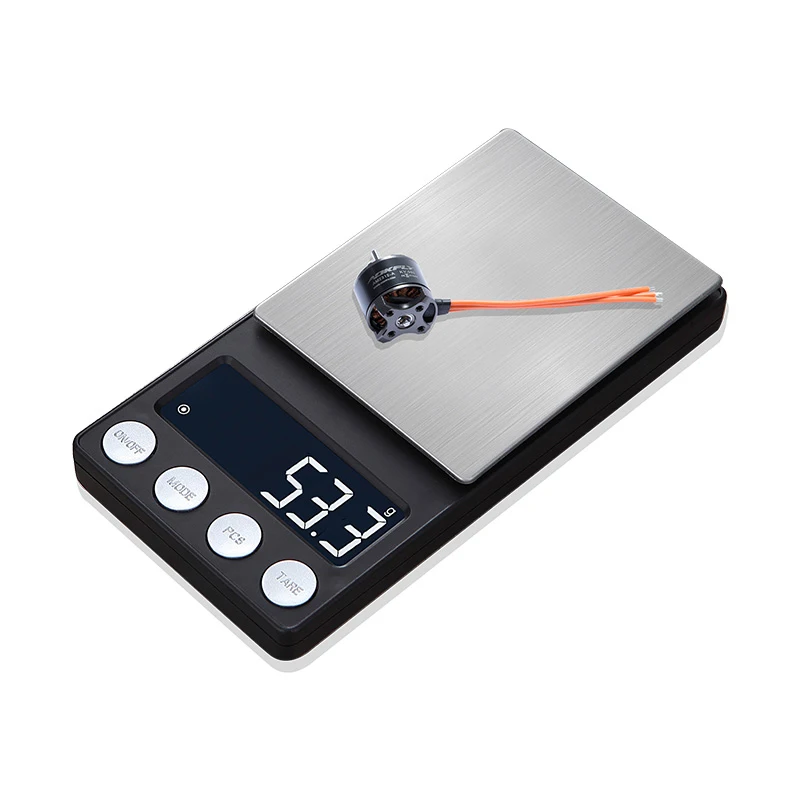

Weight:53.3g

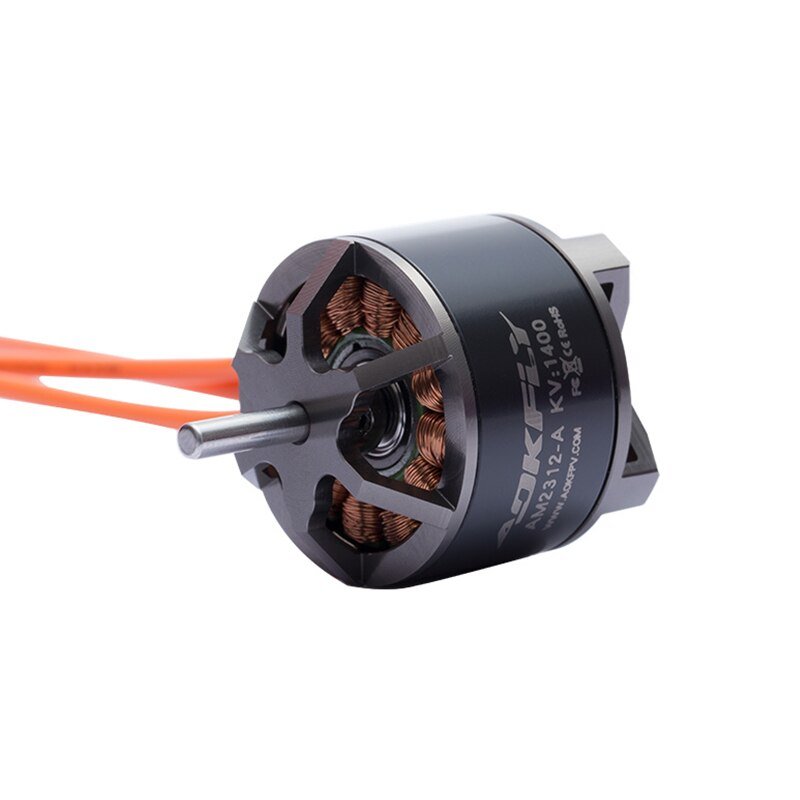

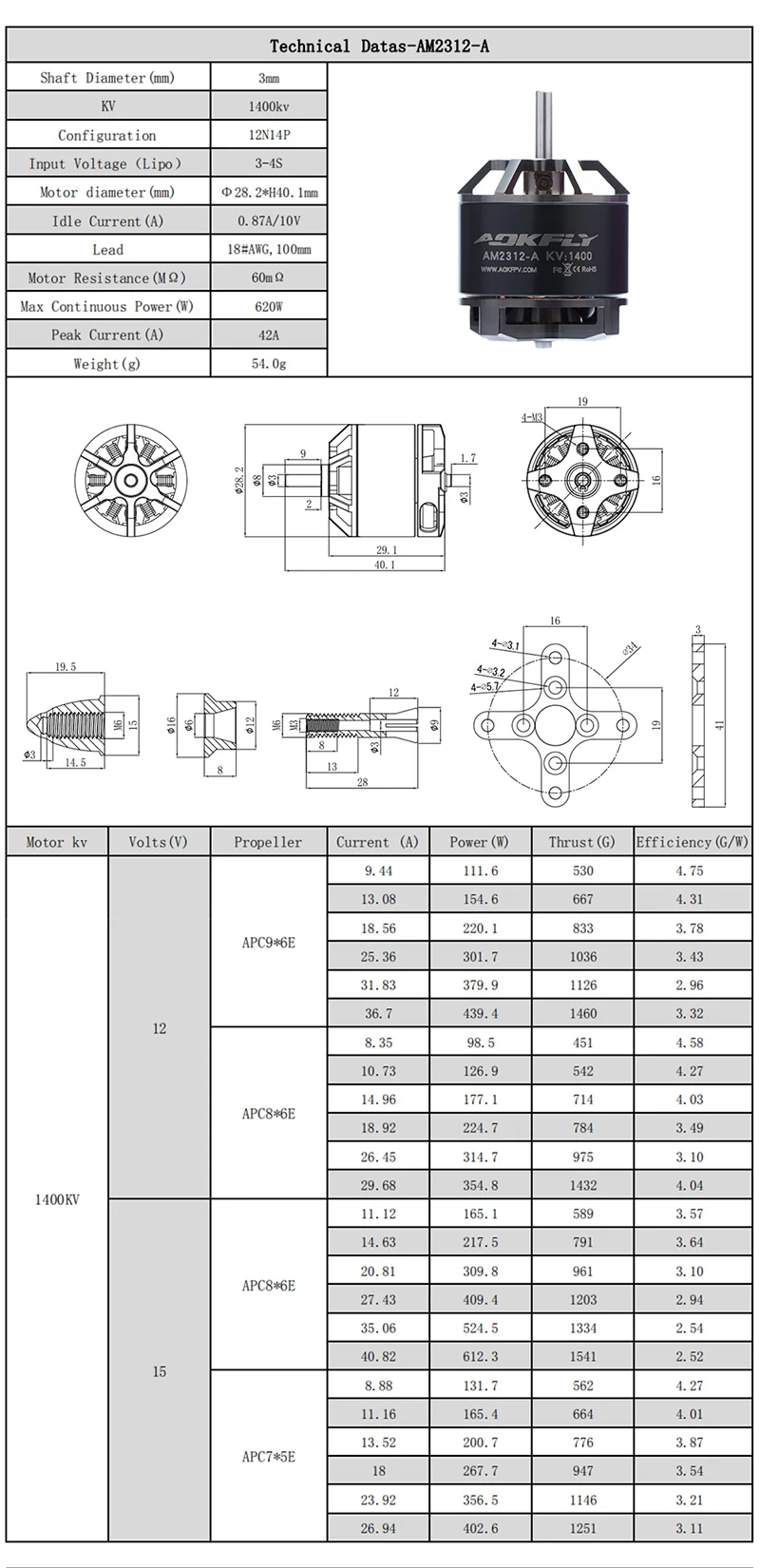

1400KV
Shaft Diameter:3mm
Configuration:12N14P
Input Voltage:3~4S Lipo
Overall Dimension:Φ28.2×40.1mm
ldle Current:0.87A/10V
Lead Wire:18#AWG,100mm
Internal Resistance:60mΩ
Maximum Power:620W
Peak Current:42A
Weight:54g

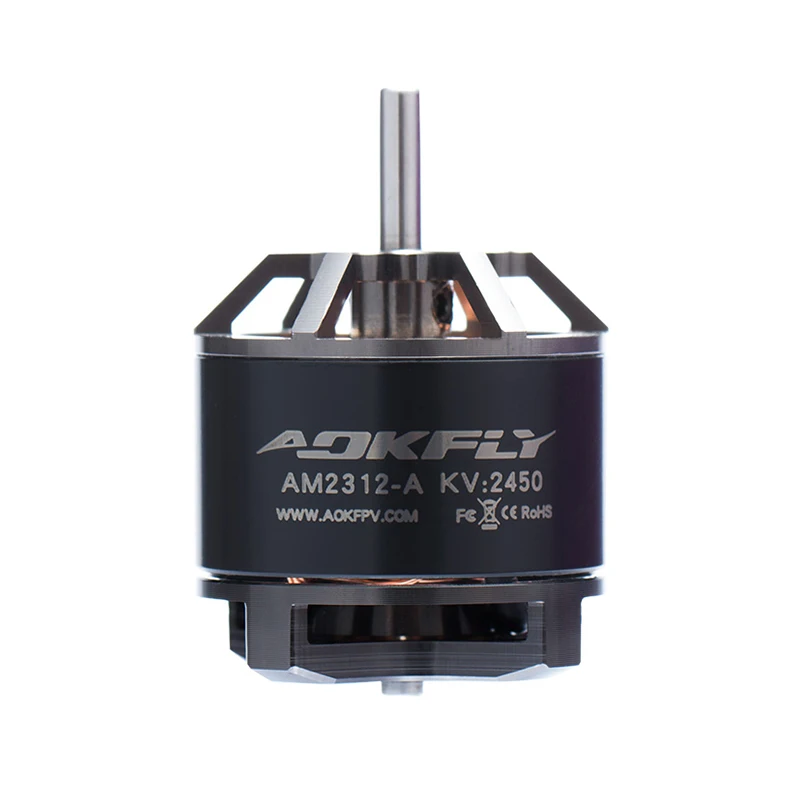

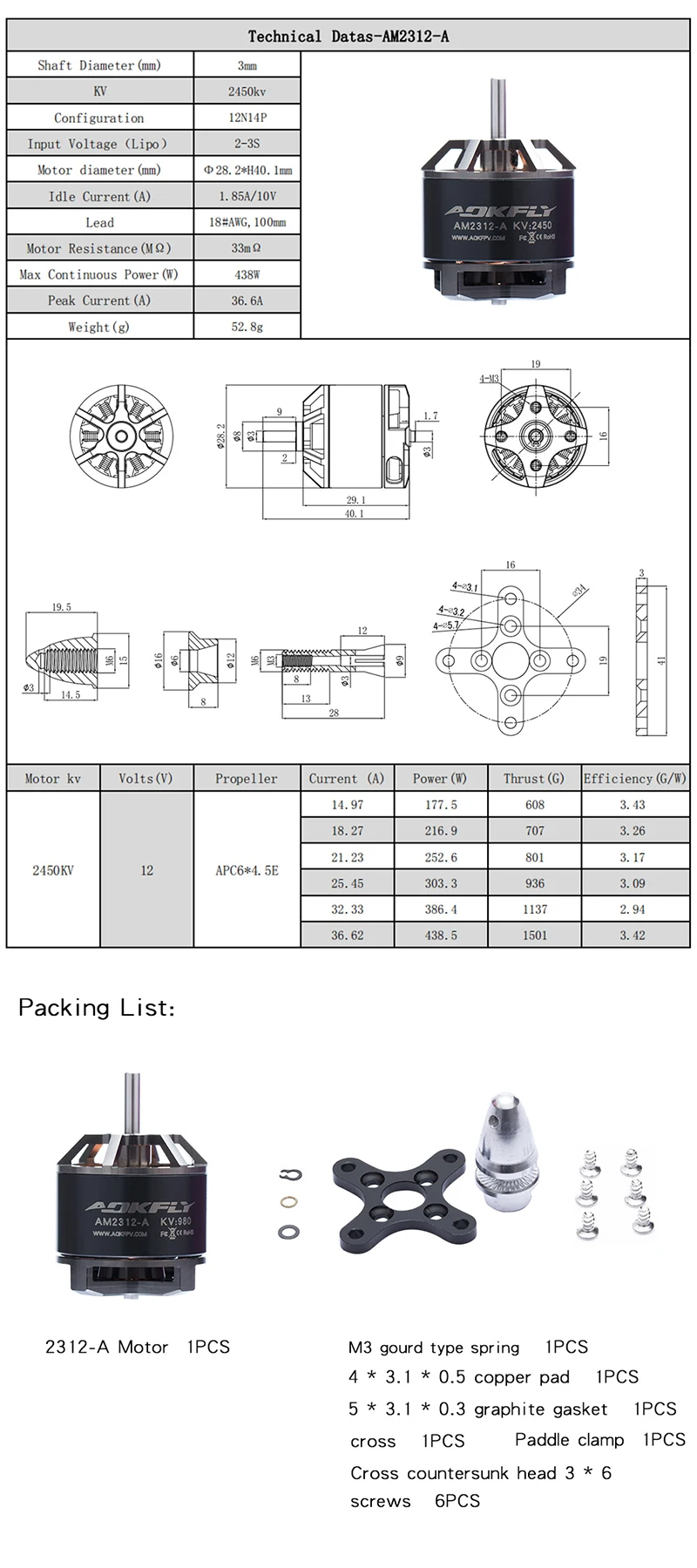

2450KV
Shaft Diameter:3mm
Configuration:12N14P
Input Voltage:2~3S Lipo
Overall Dimension:Φ28.2×40.1mm
ldle Current:1.85A/10V
Lead Wire:18#AWG,100mm
Internal Resistance:33mΩ
Maximum Power:438W
Peak Current:36.6A
Weight:52.8g

Features:
1.12 Slot 14 pole high torque and high efficiency electromagnetic design
2. Designed for fixed wing aircraft, suitable for 2~4S batteries
3. Open hollow design, lighter weight and better heat dissipation effect
4. High-precision CNC machining, 7075 aluminum alloy shell to ensure strength
5. Japan JFE’s 0.2mm ultra-thin silicon steel sheet has greater torque and higher efficiency conversion
6. The motor uses three high-quality Japanese NSK bearings, which is smooth against falling and has a longer service life
7. Rotor balancing technology with rotor unbalance value less than 0.01mg satble running and small vibration
8. Small motor inertia, faster response speed,enjoy zero delay
9. Optimize magnetic circuit design to ensure smooth and delicate motor operation,remote control instructions are accurately completed for each action
10.Single-sided curved magntic steel design,the sound is more crisp,while providing greater torque for the propeller
11. High temperature resistant arc magnetic steel design, power will not decline

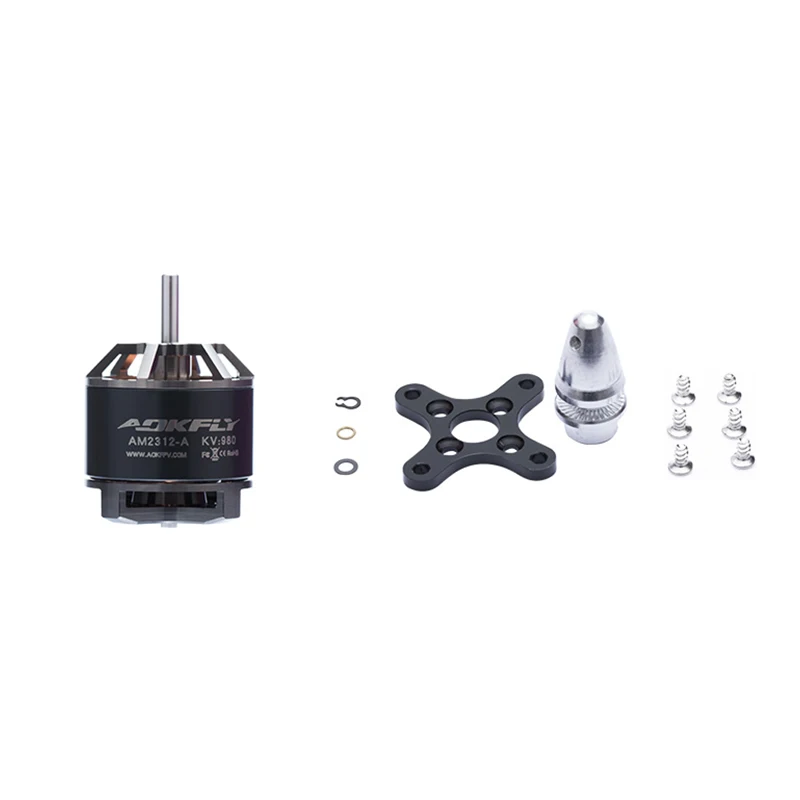

• Package Included:
• AOKFLY AM2312-A 980KV Brushless Motor x 1
  or
  AOKFLY AM2312-A 1400KV Brushless Motor x 1
• or
  AOKFLY AM2312-A 2450KV Brushless Motor x 1
