- Quantity: 1 pcs
- Model Number: 30A XXD ESC and 820kv Motor
- For Vehicle Type: Airplanes
- Tool Supplies: Assembled class
- Four-wheel Drive Attributes: Motors
- Remote Control Peripherals/Devices: ESC
- Upgrade Parts/Accessories: Frame
- RC Parts & Accs: Propellers
- Material: Metal
- Brand Name: ZENCHANSI
- Use: Vehicles & Remote Control Toys
100% brand new

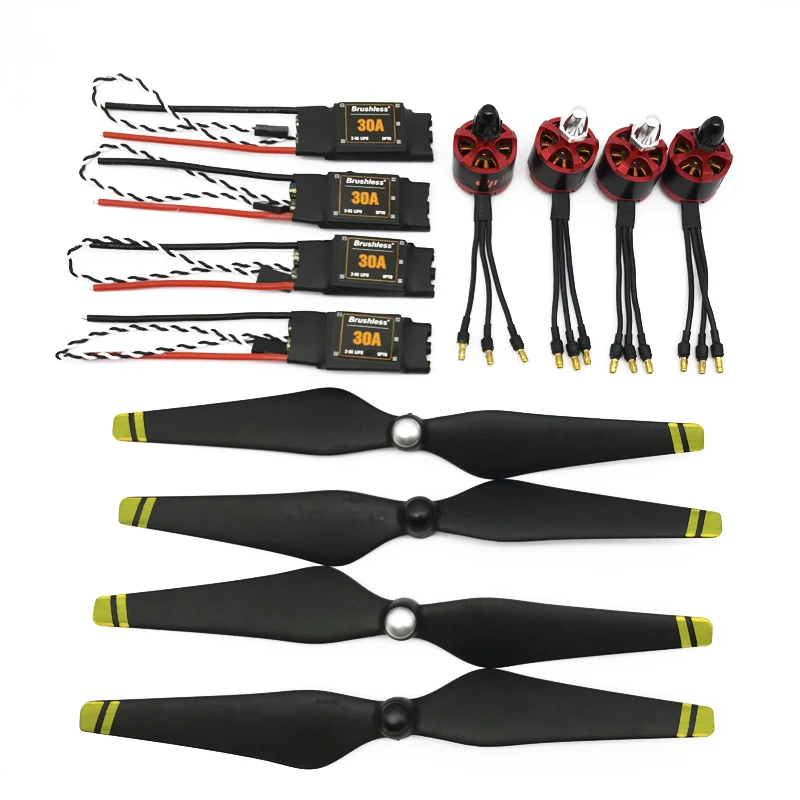

2212 920kv Motor
– Type : 22 x 12mm
– KV: 920rpm/V
– Voltage: DC 7-12V
– Weight: 53g
Propeller:
9450 self-locking propeller
Materials：Pastic(white)
9450 self-locking propeller
Materials：Carbon fiber (black)
Self-locking tension enhanced propeller(CW and CCW) for DJI multicopter
You can use the propeller easily
It is self-tightened. So you don’t worry to lost it when your drones are flying
The design is more reasonable
Specifications:
Size: 9.4 x 5.0 in
Total Weight:22 g
Package weight:26 g
30A XXD ESC：
Feature
30A: an instant 45 A, 40A continuous 10 seconds
Size: 30A-45 X 24 X 8mm
voltage range: 4 V-22V
battery number : 2-6LIPO
BEC output: 30A,
Weight: 23g / pcs
security started, throttle position does not prohibit started temperature protection, the surface temperature of 110 degrees downtime; out of control
protection, without Signal one second after the shutdown.
Property Description: speed limit, within a 2 to as high as 300,000 to 12 to 50,000, to a very, very foreign to the 14 to 42,000. 8KHz PWM control,
the use of speed control curve. Automatically adapt to the accelerator, more suitable for remote control devices.
The use of opto, MCU separate power supply, a more stable work.
Notice: this 30A can not be programmed , becuse we have programed it when producing .
After the power on the throttle hit the maximum, followed by hearing 2 didi, 3 didi, 4 didi loop. Heard 2 didi throttle minimum is to learn the throttle stroke, heard 3 didi throttle minimum open/close synchronous rectification, heard 4 didi throttle minimum open/close brake
Soldered with 3pcs 3.5mm gold female plug, very convenient to connect motor.
Size: 55x26x8mm (length 145mm including power cable)
Weight: ~24g
Package Including: (same with picture which one selected)
Specification:
100% Brand New,high quality!
Color: White
Material: Plastic
Compatible Model: F450 / F550 / S500 / S550
Weight: 135.8g g

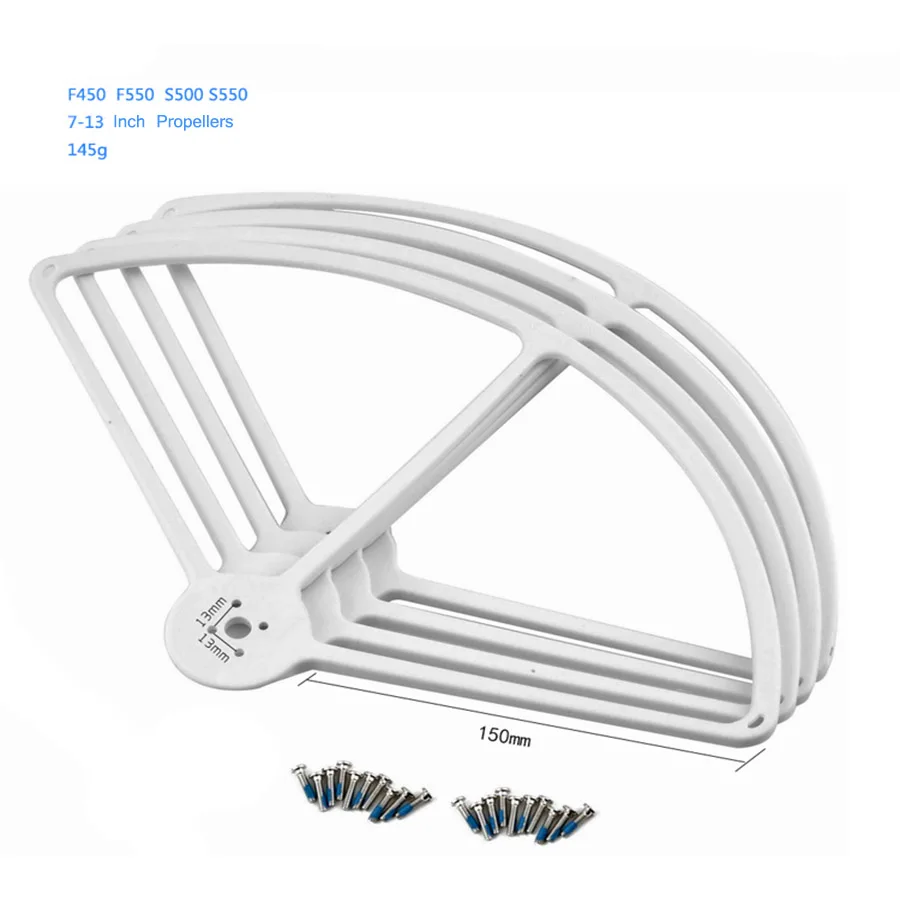

With these prop guard, you will never break your props and crash your F450 F550 by accidently bump into trees, walls, or any other obstacles.
Package include:
4 x Protective Rings
8 x Fixed screws
F450 F550 Frame Landing Gear Landing Skid FPV Aerial Photography Gimbal Damping Tall Foot Stool-black
Features:
Item name: Aerial Photography Gimbal Damping Tall Foot Stool
Color: black
Hole spacing of top center: 68mm
The span of the bottom: 330mm
Height: 190mm
The diameter of instal tube: 8mm
The diameter of foot stool: 8mm
Usage: for DJI F450 F550,quadcopter,6-axis product and other multirotor frame
Foot stool product description :
Four inner six angle cylinder head screw M3*12
Four inner six angel cylinder head screw M2.5*12
Four cover nut M3
Four glass fiber tube M8*5*330
Four multi axis tripod cushion D8(black and yellow)
Four half round head cap D8
Weight:150g
Package included:
1set*landing gear
