- Model Number: X2212 X2216
- For Vehicle Type: Airplanes
- Four-wheel Drive Attributes: Motors
- Remote Control Peripherals/Devices: Motor
- RC Parts & Accs: Motors
- Material: Composite Material
- Brand Name: SPARKHOBBY
- Origin: Mainland China
- Recommend Age: 12 y
- Use: Vehicles & Remote Control Toys

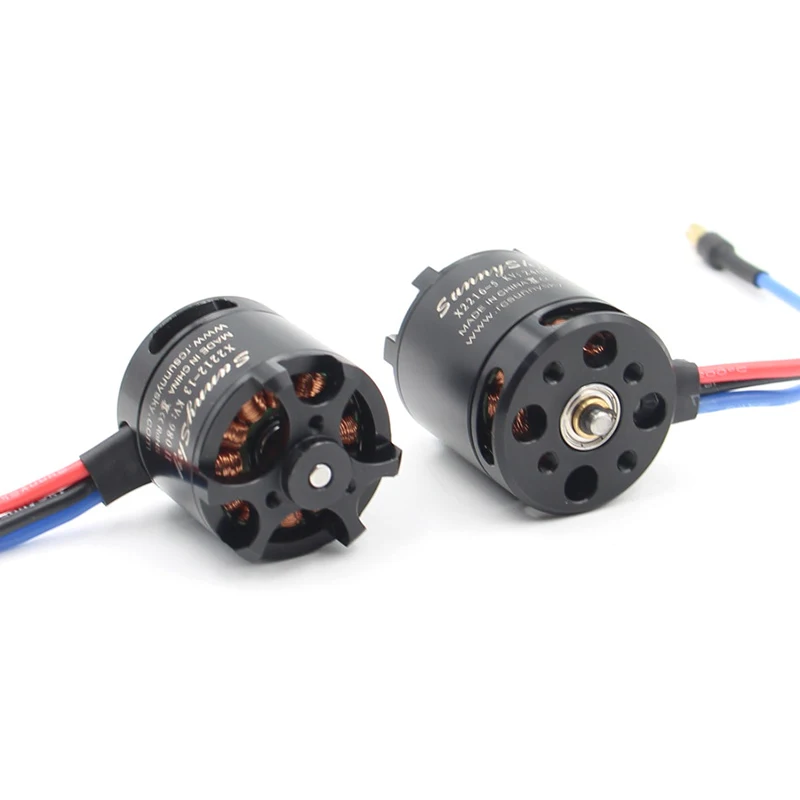

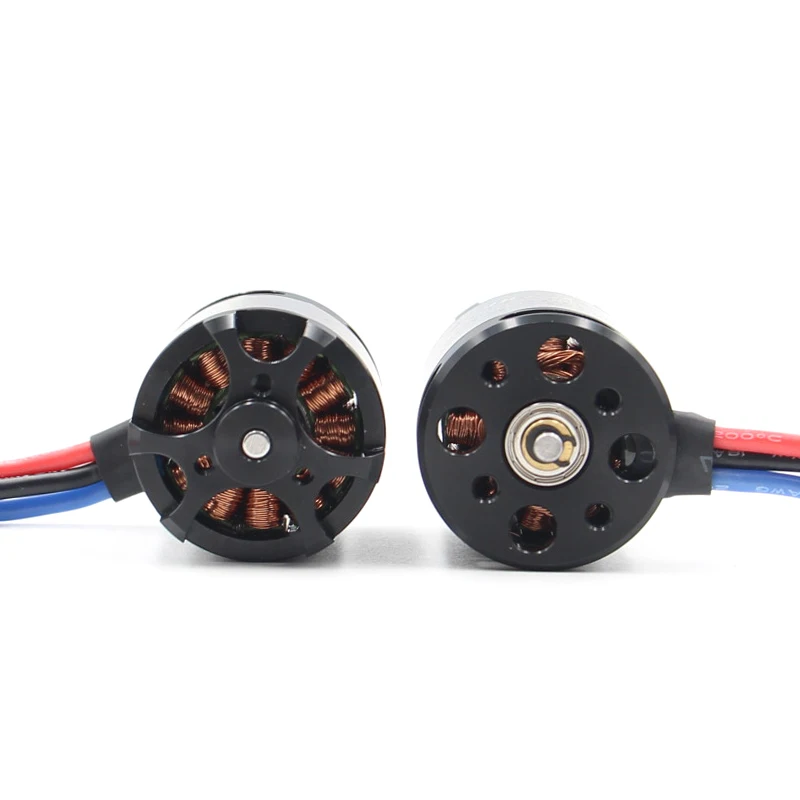

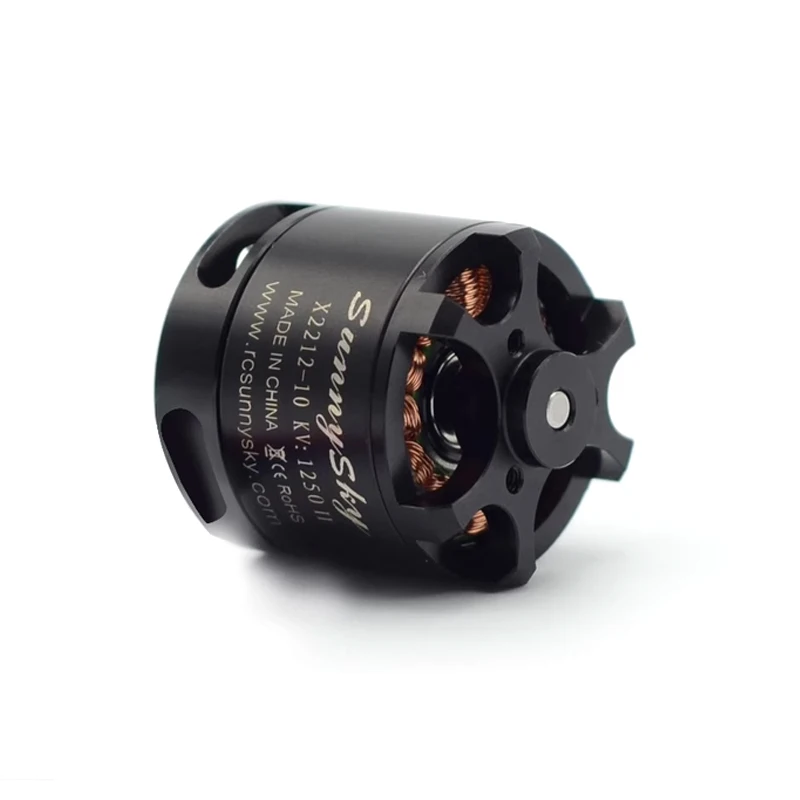

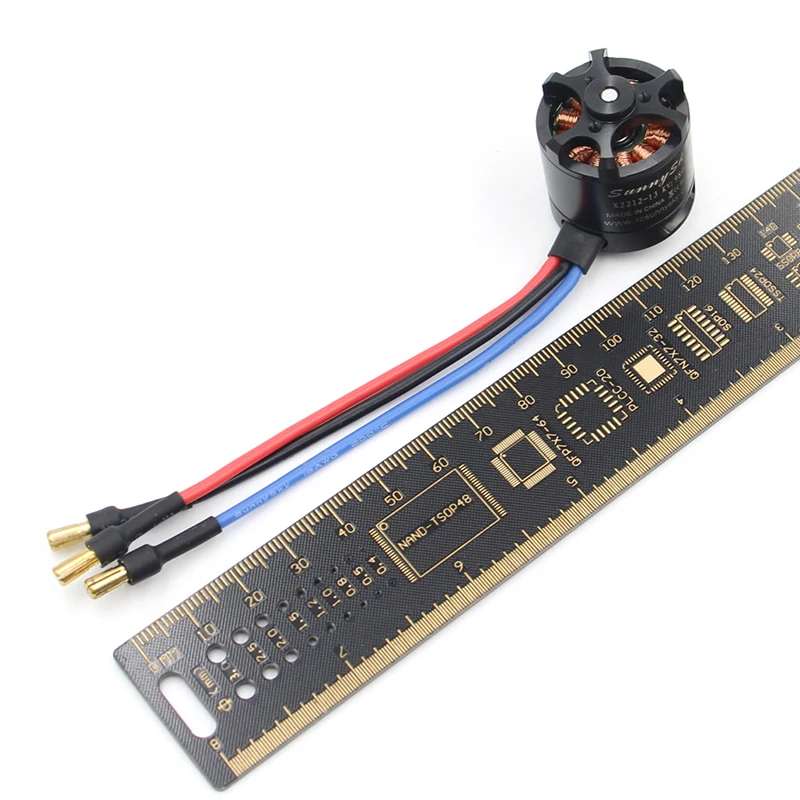

Item: SUNNYSKY X2212 X2216 Brushless Motor (Flat Shaft )
Parameters:

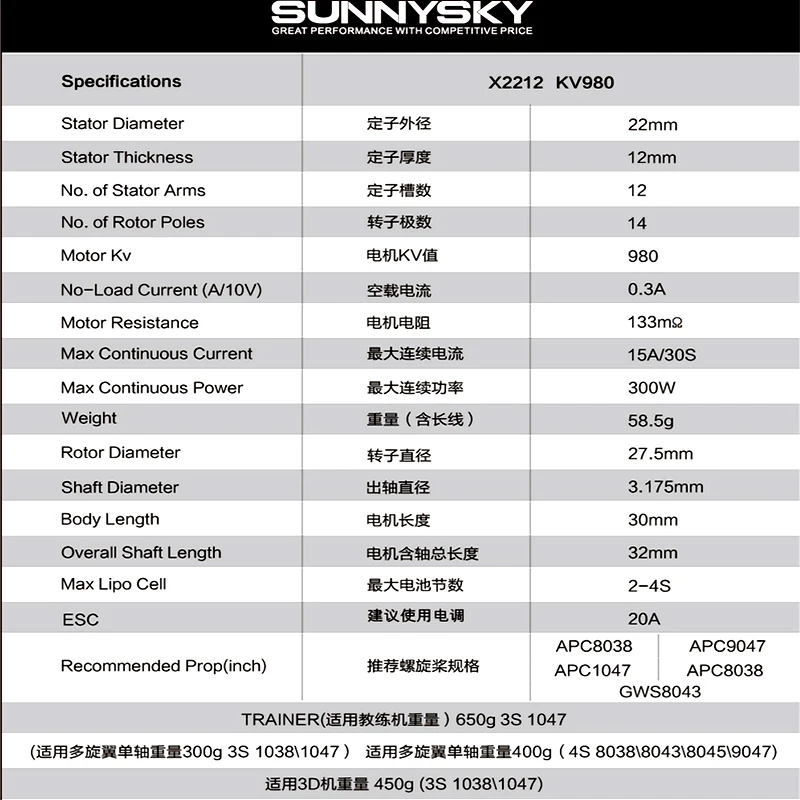

X2212 KV980
Material: Copper+Metal
Color: Black
KV value: KV980
Number of slots: 12N14P
Interphase internal resistance: 133 Milliohm
Motor size: Diameter 27.0x 30mm
Axis Diameter: 3.175mm

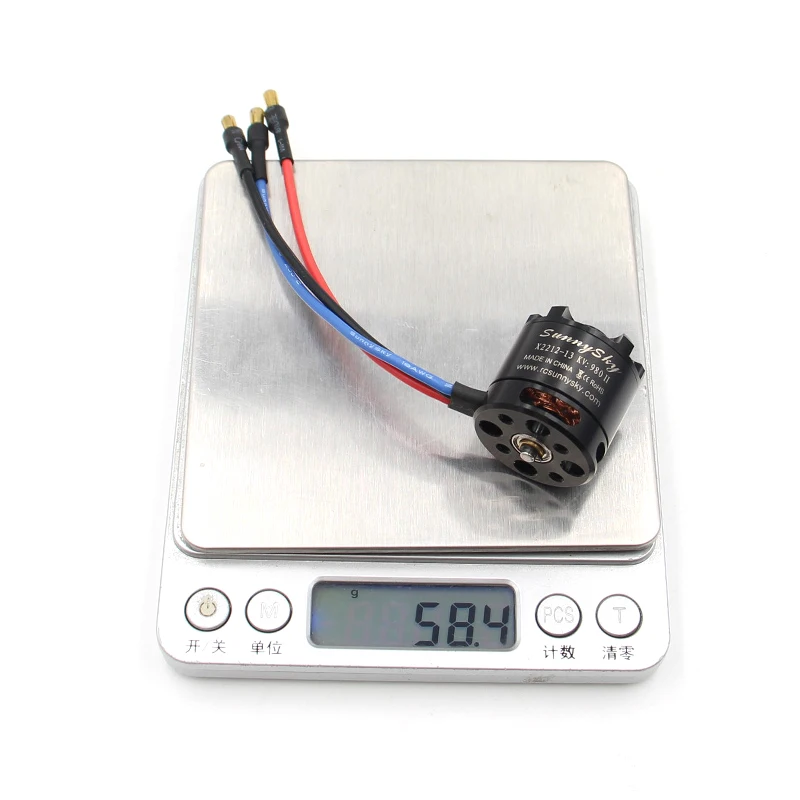

Motor weight (including wire): 58.5g
Working rated voltage (Lipo): 2-4S
No-load current: 0.3A/10V
Maximum continuous power: 300W
Maximum continuous current: 15A/40s
Recommended use of electric regulation: 20A
Recommended propeller specifications: APC8038, APC9047, APC1047, GWS8043
X2212 KV1400
Material: Copper+Metal
Color: Black
KV value: KV1400
Number of slots: 12N14P
Interphase internal resistance: 65 Milliohm
Motor size: Diameter 27.0x 30mm
Axis Diameter: 3.175mm
Motor weight (including wire): 59g
Working rated voltage (Lipo): 2-4S
No-load current: 0.9A/10V
Maximum continuous power: 365W
Maximum continuous current: 28A/15s
Recommended use of electric regulation: 30A
Recommended propeller specifications: APC7060, APC8038, APC8060, APC9045, APC9047
X2212 KV2450
Material: Copper+Metal
Color: Black
KV value: KV2450
Number of slots: 12N10P
Interphase internal resistance: 32 Milliohm
Motor size: Diameter 27.0x 30mm
Axis Diameter: 3.175mm
Motor weight (including wire): 57g
Working rated voltage (Lipo): 2-3S
No-load current: 1.6A/10V
Maximum continuous power: 450W
Maximum continuous current: 40A/30S
Recommended use of electric regulation: 40A
Recommended propeller specifications: APC6040

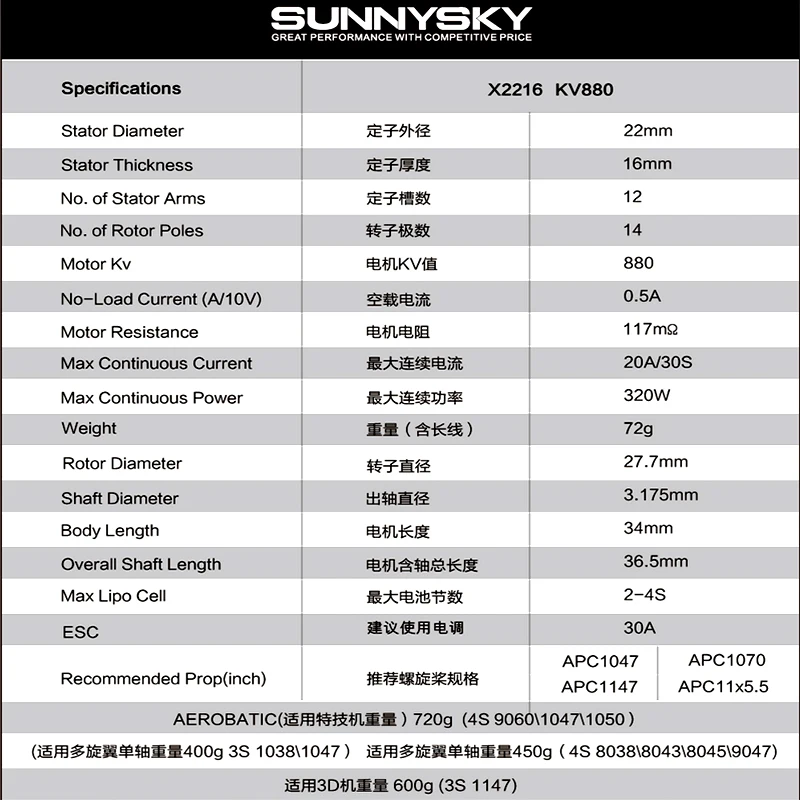

X2216 KV880
Material: Copper+Metal
Color: Black
KV value: KV880
Number of slots: 12N10P
Interphase internal resistance: 117 Milliohm
Motor size: Diameter 27.7x 34mm
Axis Diameter: 3.175mm
Specification of Silicone Wire for Motor: 18AWG 100mm
Motor weight (including wire): 72g
Working rated voltage (Lipo): 2-4S
No-load current: 0.5A/10V
Maximum continuous power: 320W
Maximum continuous current: 20A/30SAPC
Recommended use of electric regulation: 30A
Recommended propeller specifications: APC1047, APC1070, APC1147, APC11X5.5
X2216 KV1100
Material: Copper+Metal
Color: Black
KV value: KV1100
Number of slots: 12N10P
Interphase internal resistance: 73 Milliohm
Motor size: Diameter 27.7x 34mm
Axis Diameter: 3.175mm
Specification of Silicone Wire for Motor: 18AWG 100mm
Motor weight (including wire): 72g
Working rated voltage (Lipo): 2-4S
No-load current: 0.9A/10V
Maximum continuous power: 385W
Maximum continuous current: 24A/30S
Recommended use of electric regulation: 30A
Recommended propeller specifications: APC8060, APC9045, APC9047, APC9060, APC1047

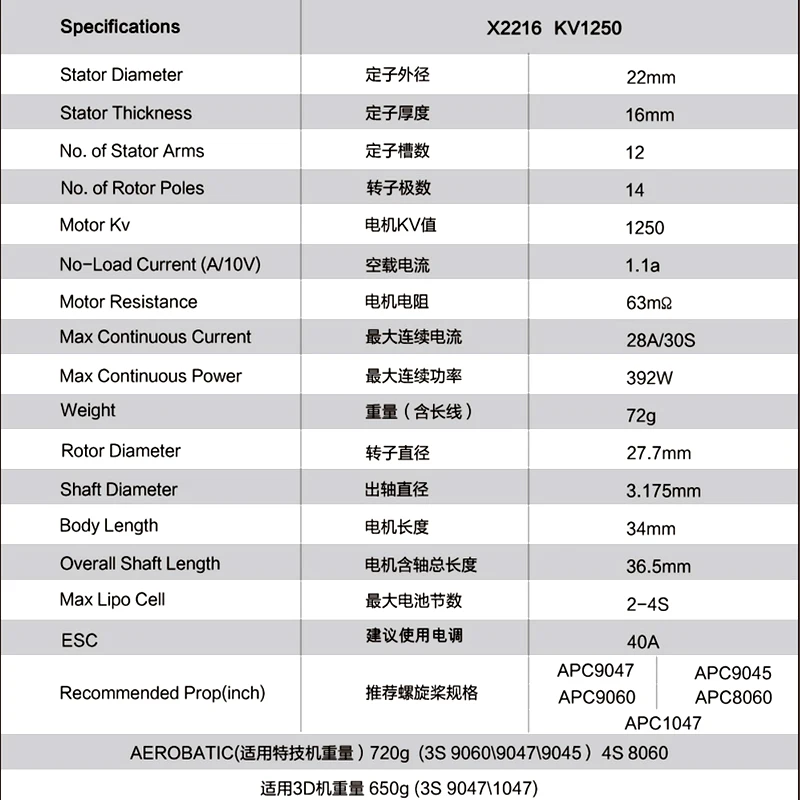

X2216 KV1250
Material: Copper+Metal
Color: Black
KV value: KV1250
Number of slots: 12N10P
Interphase internal resistance: 63 Milliohm
Motor size: Diameter 27.7x 34mm
Axis Diameter: 3.175mm
Specification of Silicone Wire for Motor: 18AWG 100mm
Motor weight (including wire): 72g
Working rated voltage (Lipo): 2-4S
No-load current: 1.1A/10V
Maximum continuous power: 392W
Maximum continuous current: 28A/30S
Recommended use of electric regulation: 40A
Recommended propeller specifications: APC8060, APC9045, APC9047, APC9060, APC1047

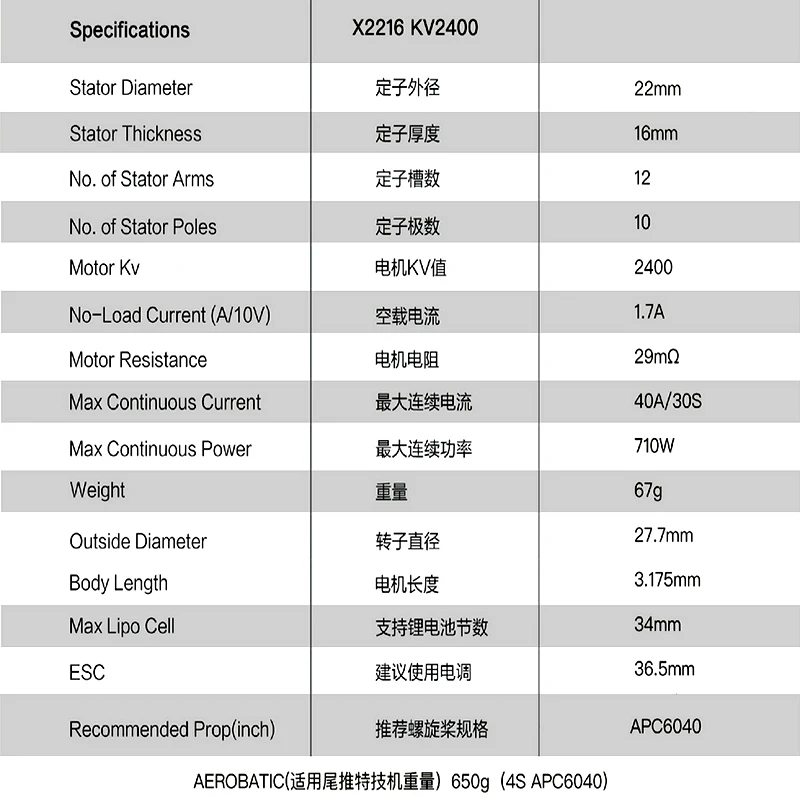

X2216 KV2400
Material: Copper+Metal
Color: Black
KV value: KV2400
Number of slots: 12N10P
Interphase internal resistance: 29 Milliohm
Motor size: Diameter 27.7x 34mm
Axis Diameter: 3.175mm
Specification of Silicone Wire for Motor: 18AWG 100mm

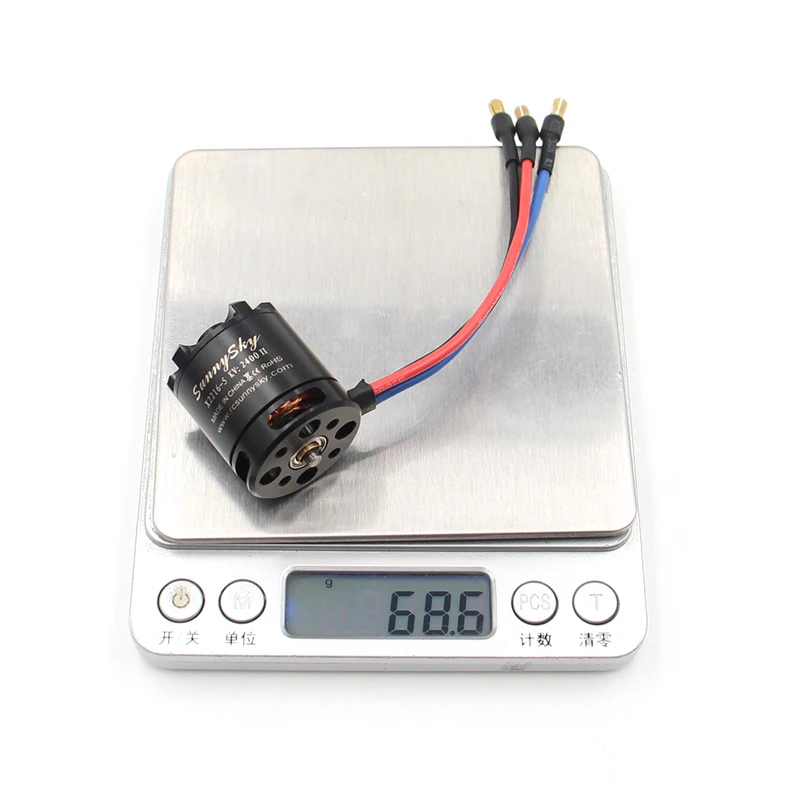

Motor weight (including wire): 67g
Working rated voltage (Lipo): 2-4S
No-load current: 1.7A/10V
Maximum continuous power: 710W
Maximum continuous current: 40A/30S
Recommended use of electric regulation: 40A
Recommended propeller specifications: APC6040
NOTE:

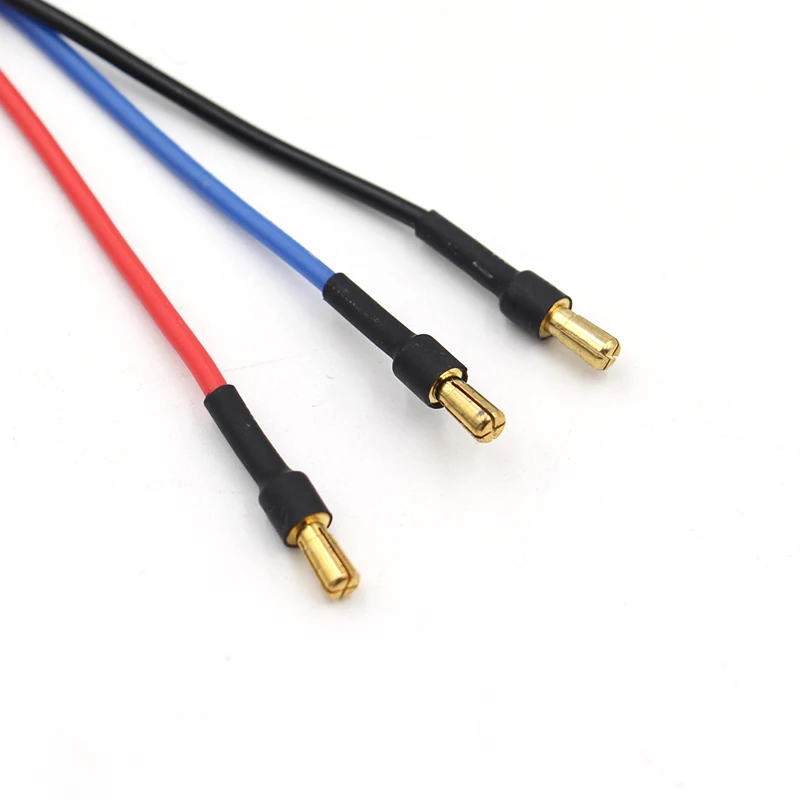

The motor factory has welded 3.5 banana heads, ready to use.

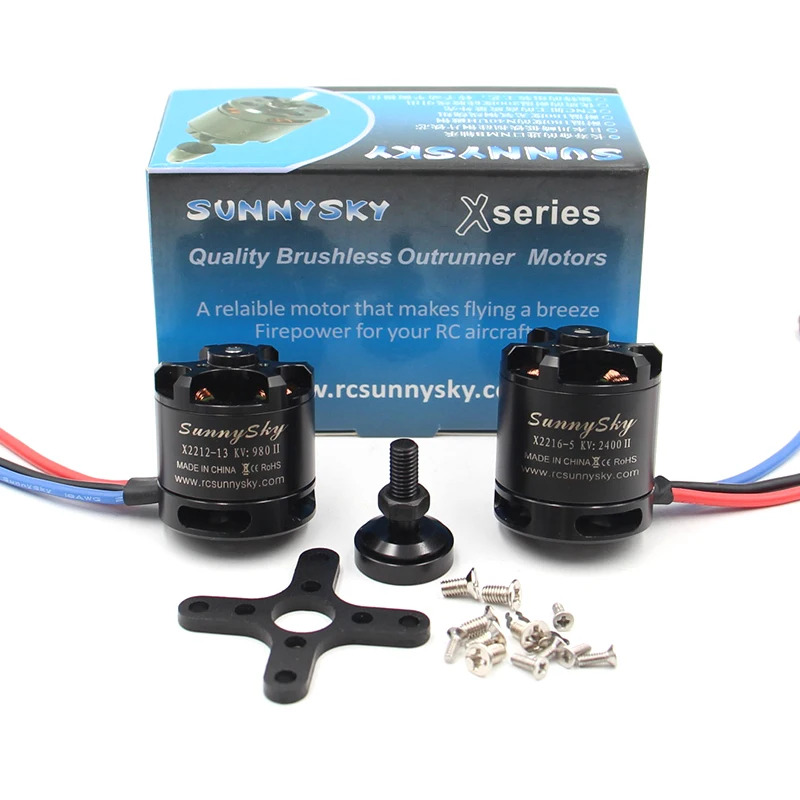

- Package Included:
- SUNNYSKY X2212 X2216 Brushless Motor (Flat Shaft ) x 1

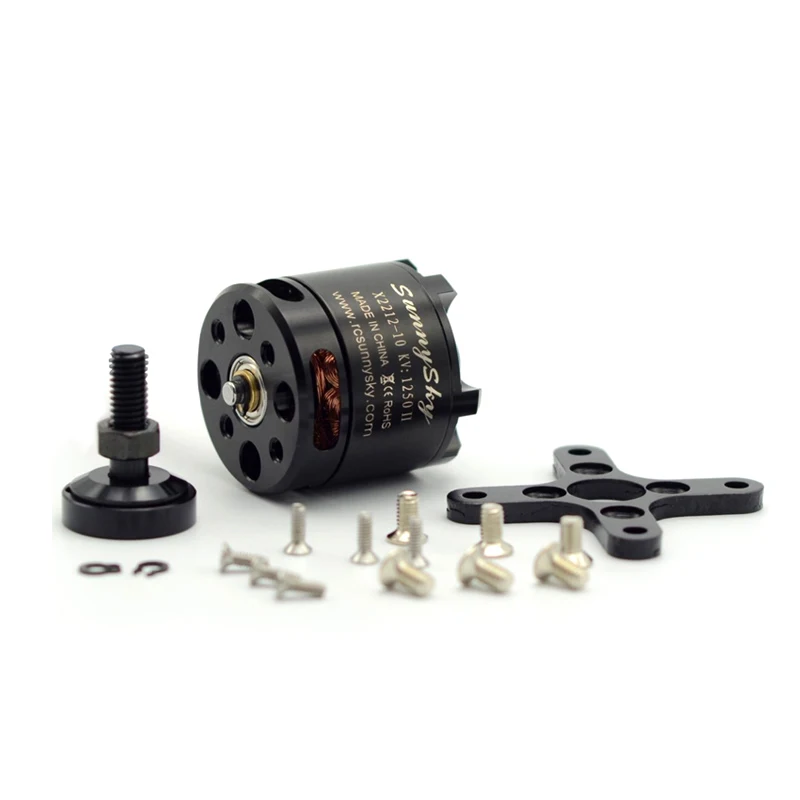

- Bag of Accessories x1
