ZRE-CPTR Mini Digital USB 2.0 TV Receiver DAB FM SDR RTL-SDR A300U Portable Tuner Dongle

$15.15$22.83

Australia
Australia
China
China
France
France
SPAIN
SPAIN
United States
United States
Clear
Compare
Continue Shopping SKU: 3256805504518688 Category: Tag:
  • Connectors: USB
  • Remote Control: Not Included
  • Brand Name: ALLOYSEED
  • Origin: Mainland China
  • Item Type: TV Stick
  • Certification: NONE

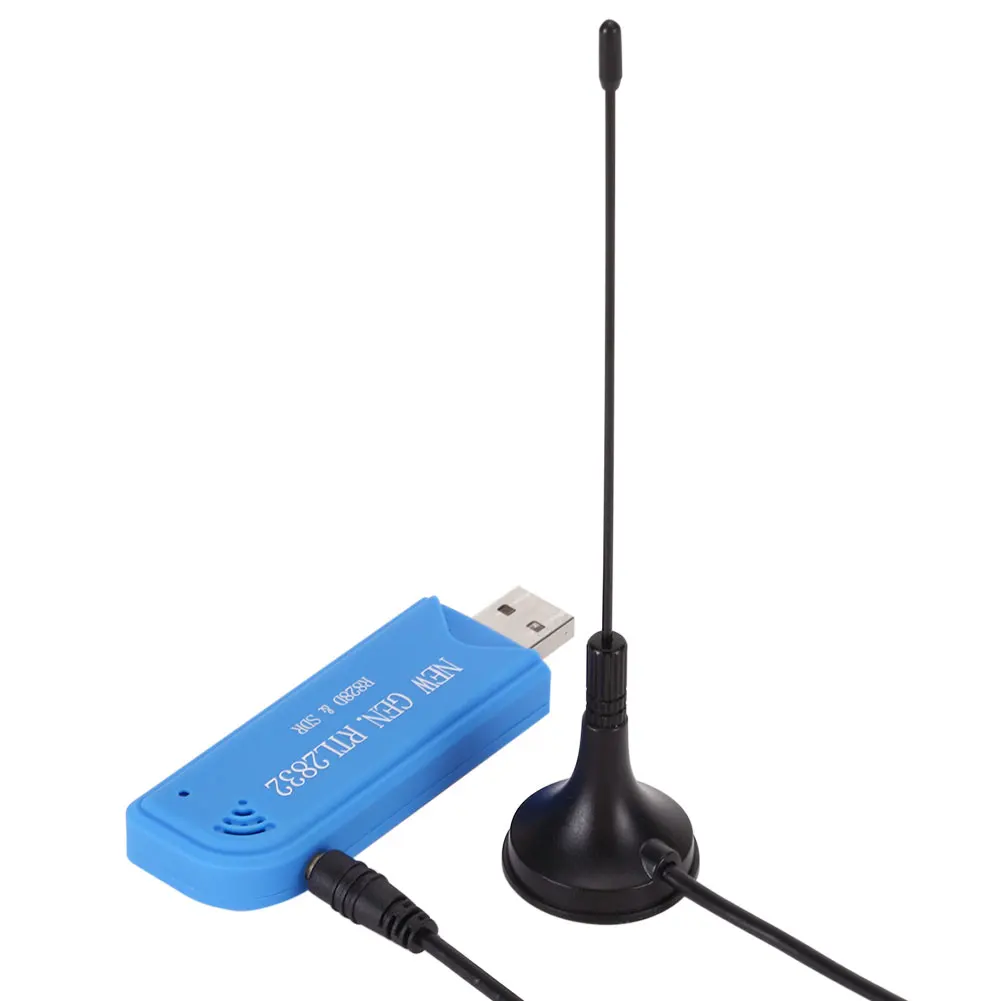

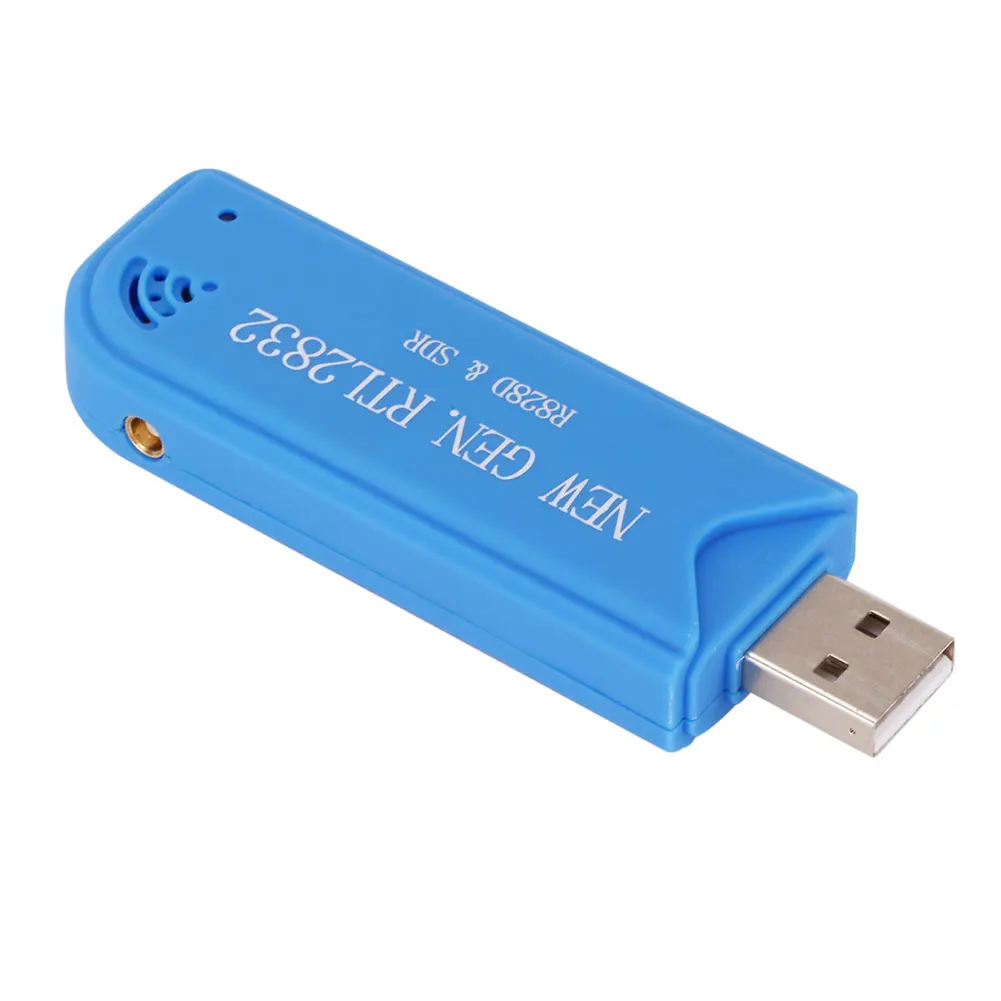

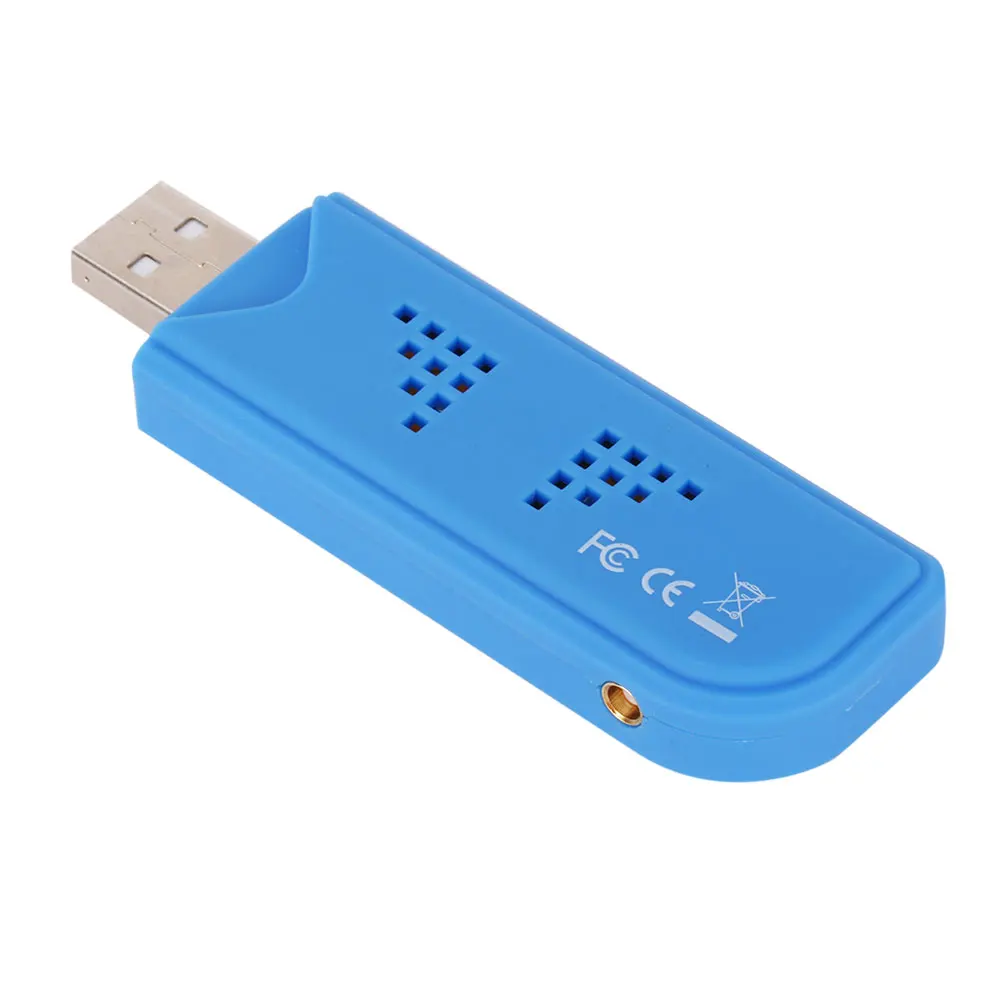

Mini Digital USB 2.0 TV Receiver DAB FM RTL2832U R828D SDR RTL-SDR A300U Portable 25MHz-1760MHz Receiving Frequency Tuner Dongle Stick with Antenna
Description:
This is a new generation of software-defined radio receiver RTL-SDR with RTL2832 ADC chip, 0.5 PPM TCXO (customization is optional) and MCX connector, with a bandwidth between 25 MHz and 1760 MHz.

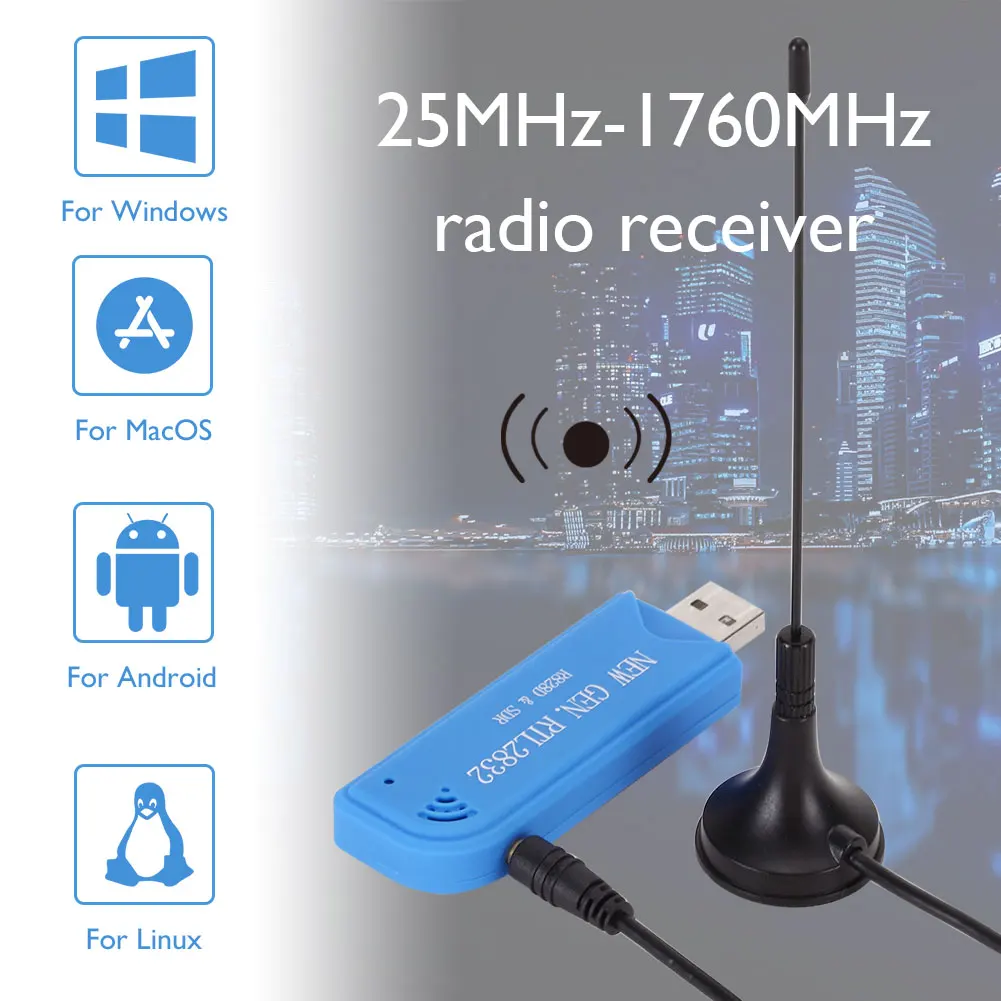

Very suitable for use as a radio scanner with free computer software, such as using for SDR, HDSDR, SDR-Radio, Linrad, GQRX or SDR Tap on Android. It is suitable for Windows, MacOS, Linux, Android and even embedded Linux computers, such for Raspberry Pi.
Suitable for various applications , including general wireless scanning, air traffic control, radio security, ADS-B aircraft radar, AIS ship radar, ACARS, relay radio, P25/MOTOTRBO digital voice, POCSAG, weather balloon, APRS, NOAA weather satellite APT, M2 meteor satellite, radio astronomy, meteor scattering monitoring, DAB, or as a low-cost platform for traditional ham radio.
This model uses a new ADC RTL solution.
It uses the improvement of the tuner, with 0.5 PPM TCXO (optional customization) (no drift, with initial offset accuracy and 1 PPM PPM 0.5 temperature deviation), increased part tolerances, and MCX connectors.
A USB 2.0 port is required, and can be used with most USB 3.0 ports (Please note that we cannot guarantee that this feature will work on all USB 3.0 ports, so just in case, please make sure your PC has a USB 2.0 port)

Feature:
Fully assembled and ready to use.
Small size.

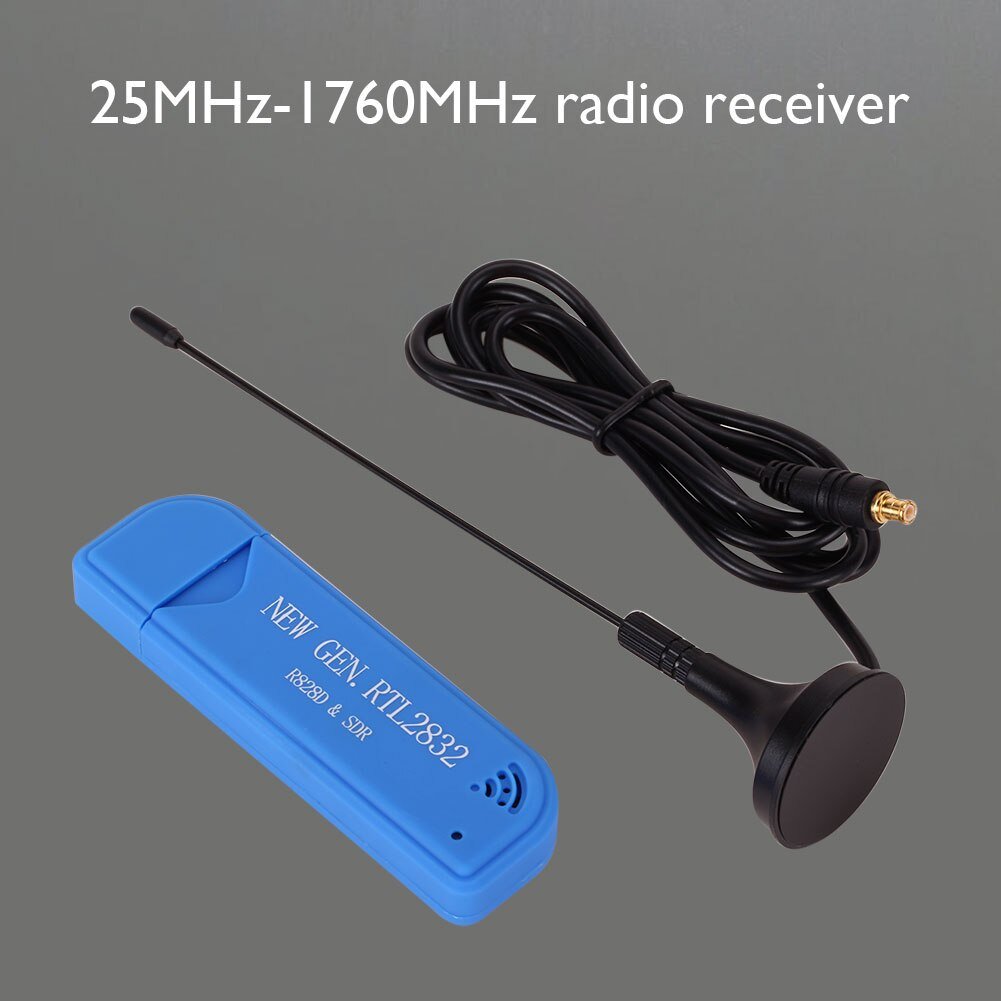

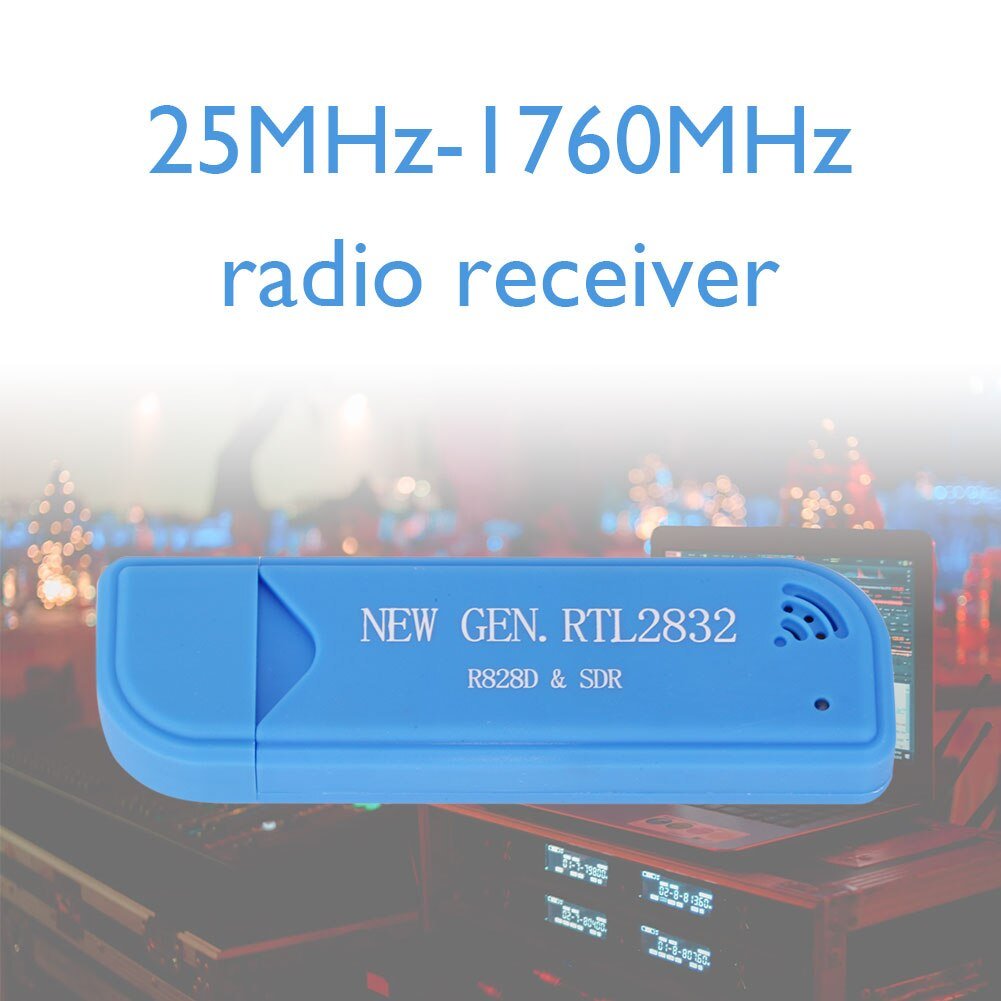

25 MHz to 1760 MHz, operating frequency.
Copper from 25 MHz to 1760 MHz in the VHF and UHF bands.
AM, NFM, FM, DSB, USB, LSB and CW reception modes.
The MCX antenna gold connector is also more durable and has low insertion loss.
Free software.

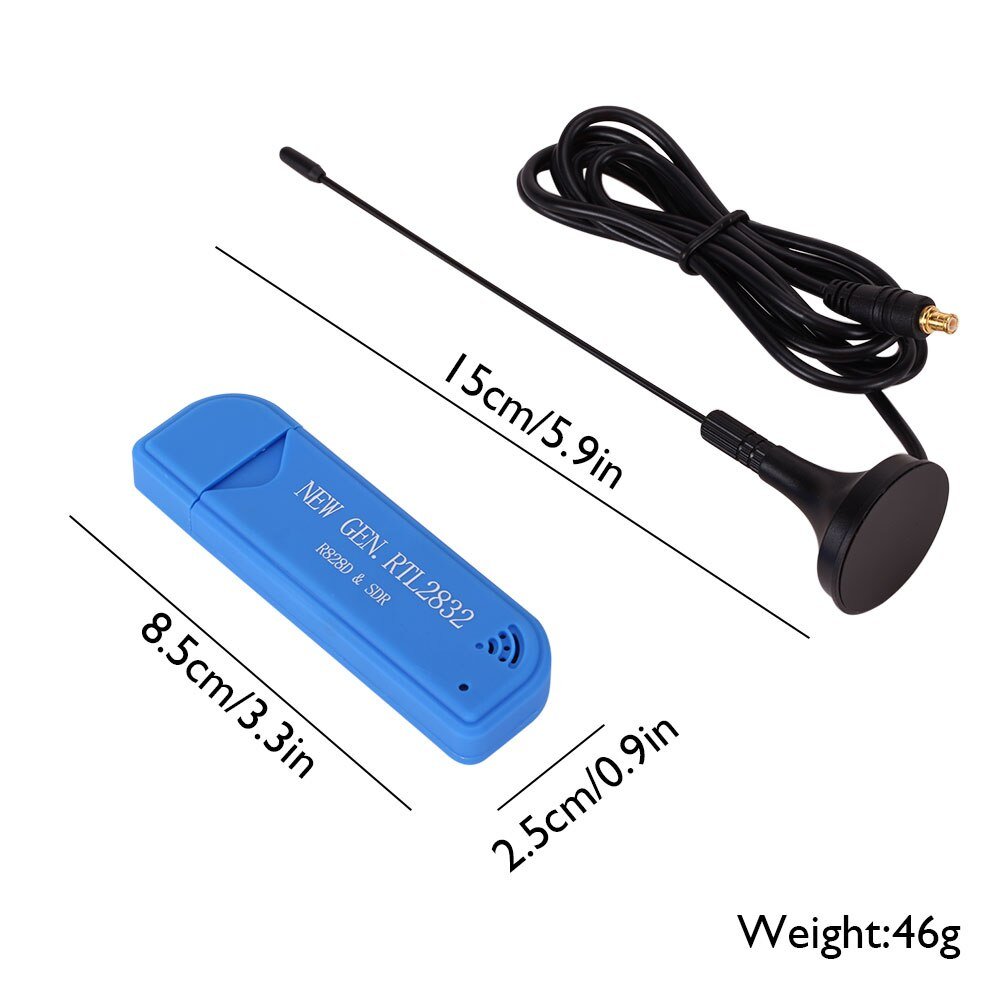

Specification:
Packing Size: 21 X 8.3 X 1cm/8.27 X 3.27 X 0.39″
Body: 8.5 X 2.5 X 1cm/3.35 X 0.98 X 0.39″
Antenna Height: 15cm/5.91″
Total Weight: 46g

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.

1 X USB TV Receiver
1 X Antenna
