ZRE-CPTR Audio-Technica 3600L AT3600L ATN3600L MM Moving Magnet Cartridge and Stylus for AT-LP60 PL300 LP60 310BT Phonograph Vinyl Phono

Thank you for visiting our store

Happy shopping

feature:

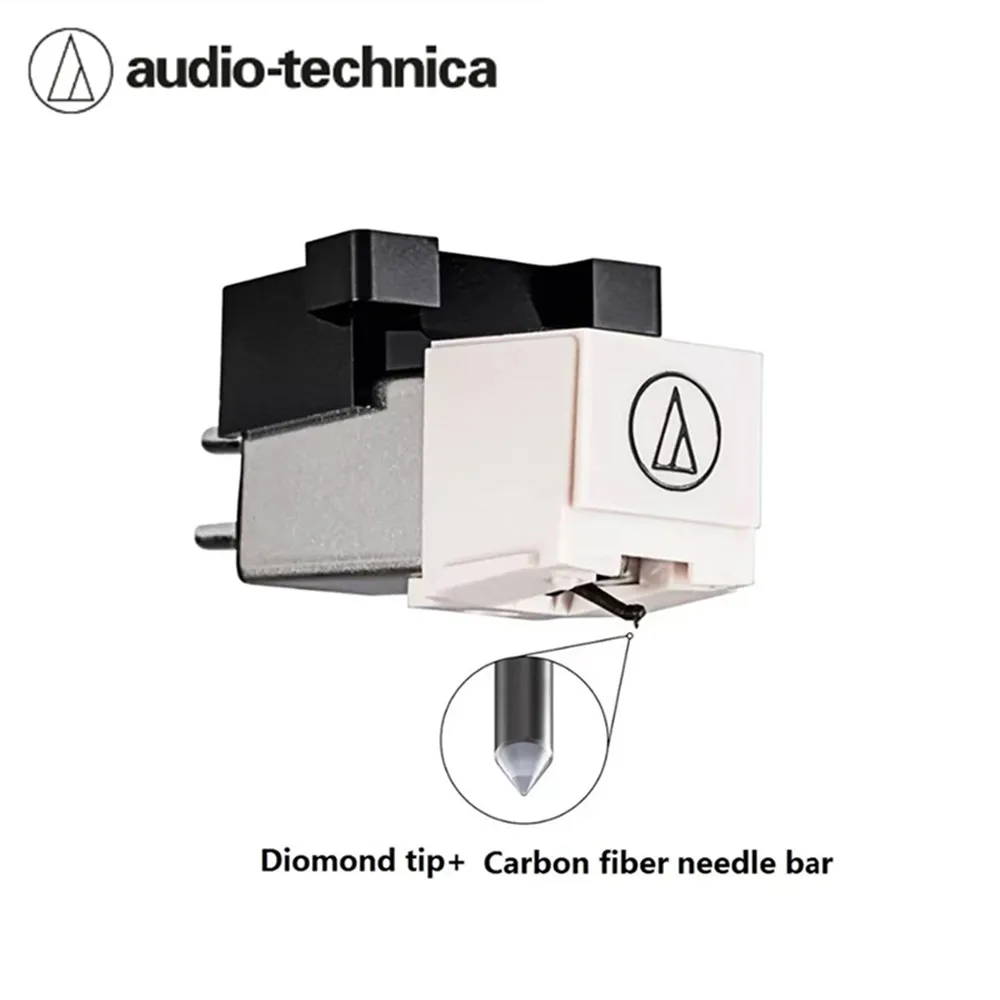

The AT3600L is a high-quality cartridge with a production history of more than 50 years and a very mature production technology. As an entry-level cartridge, there is no reduction in stylus material and the tip is an extremely durable rhinestone. The needle bar is made of high-quality carbon fiber material, which not only improves the stiffness, but also guarantees the sound quality level

Specification:

-Output voltage: 4.2 mV-

Frequency Response: 20Hz-20kHz-

Channel Balance: 1.5dB –

Channel separation at 1kHz/10kHz: 24/15dB-

Tracking force: 2-2.5g –

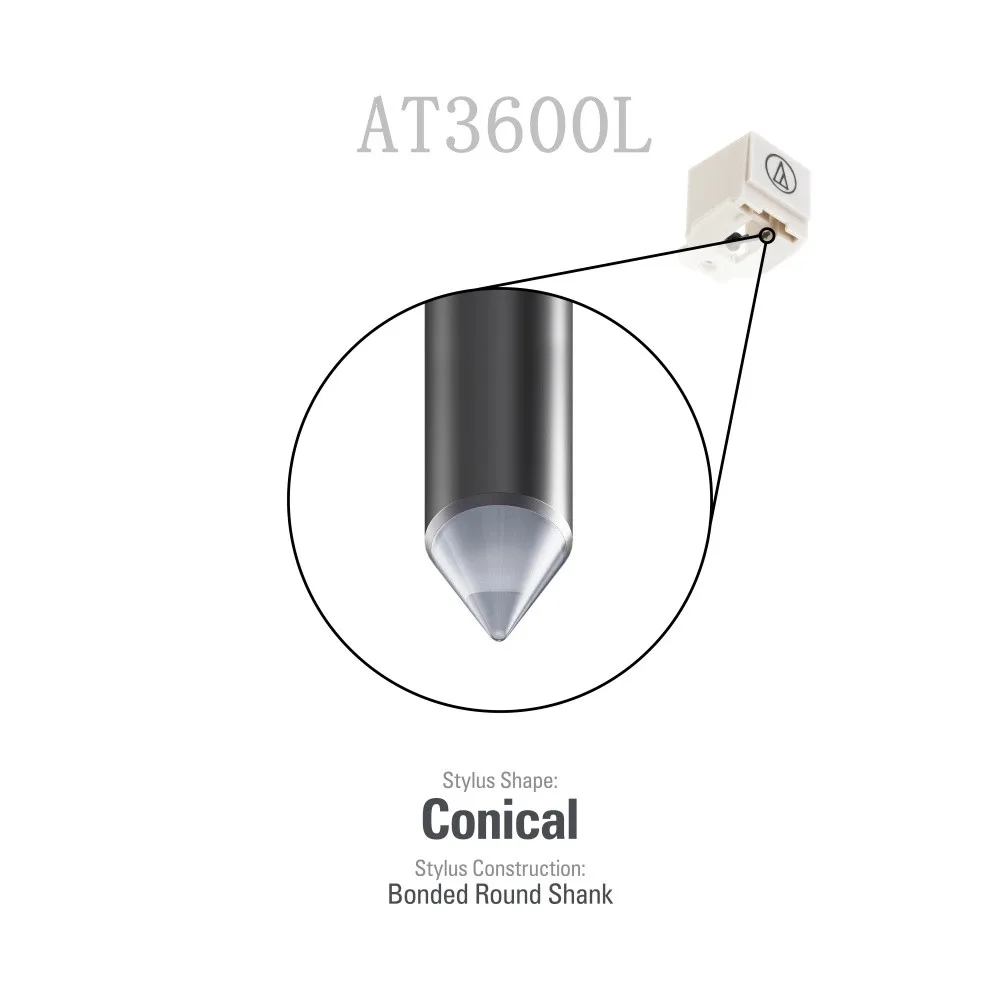

Optical Pen Type: Very Polished and Diamond Cone 0006 Inch –

Pen type structure: round handle connection-

Weight: 5.7g-

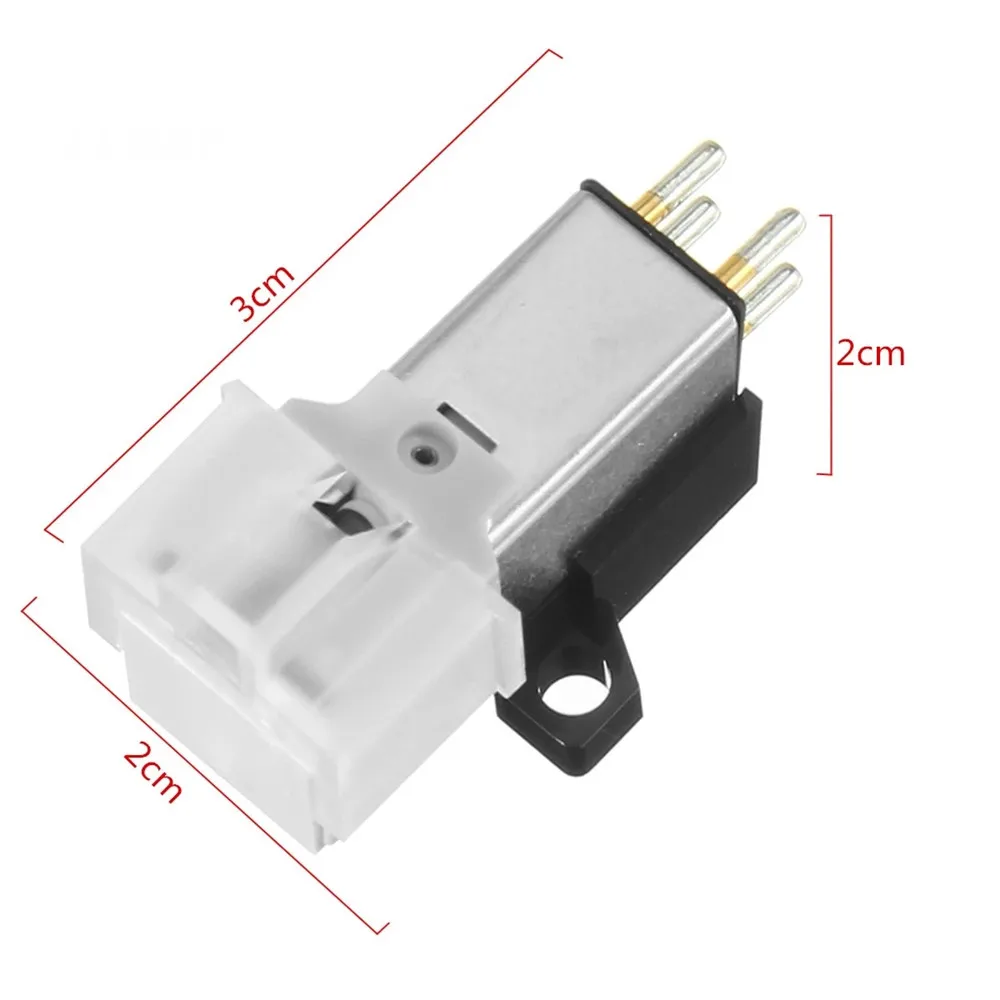

Dimensions: 17.0 (height) x 16.3 (width) x 31.0 (length) mm

Original audio-technica iron triangle stylus MM LP vinyl record player moving magnetic stylus stylus accessories.

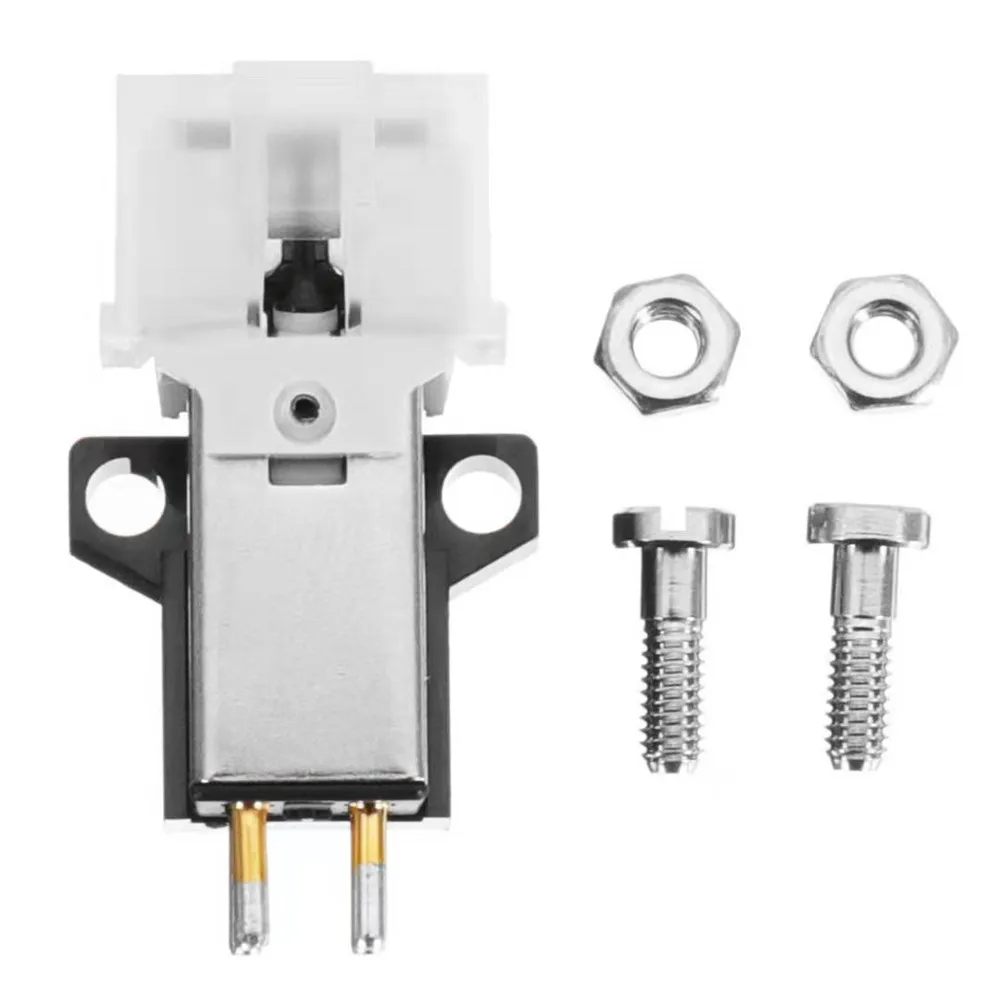

Phono fixed hole distance: 13mm (measure the center distance of two holes) Distributed fixed rose

The phono terminal is marked with 4 pins of R+, R-, L+, L-

Common phono terminal wiring colors are: R+=red, R-=green, L+=white, L-=blue

Recommended acupuncture pressure range: 1.5g-2g, adjust the acupuncture pressure according to personal listening preferences

The stylus is a consumable item, and its normal service life is about 300-400 hours. In addition to damage caused by careless operation, the use of excessive needle pressure, shoddy and low-quality records and severely shaking turntables will shorten the life of the stylus. Due to the larger radius of curvature of the bald needle tip, the tracking ability of the high-frequency signal in the sound groove is reduced. When the details of the sound are reduced, the treble gradually becomes poor, and the sound becomes more and more dull, it is necessary to consider replacing the cartridge. Most vinyl turntables above use MM cartridges. Audio-Technica cartridges are basically universal, just check whether they can be fixed to the tone arm stand.
