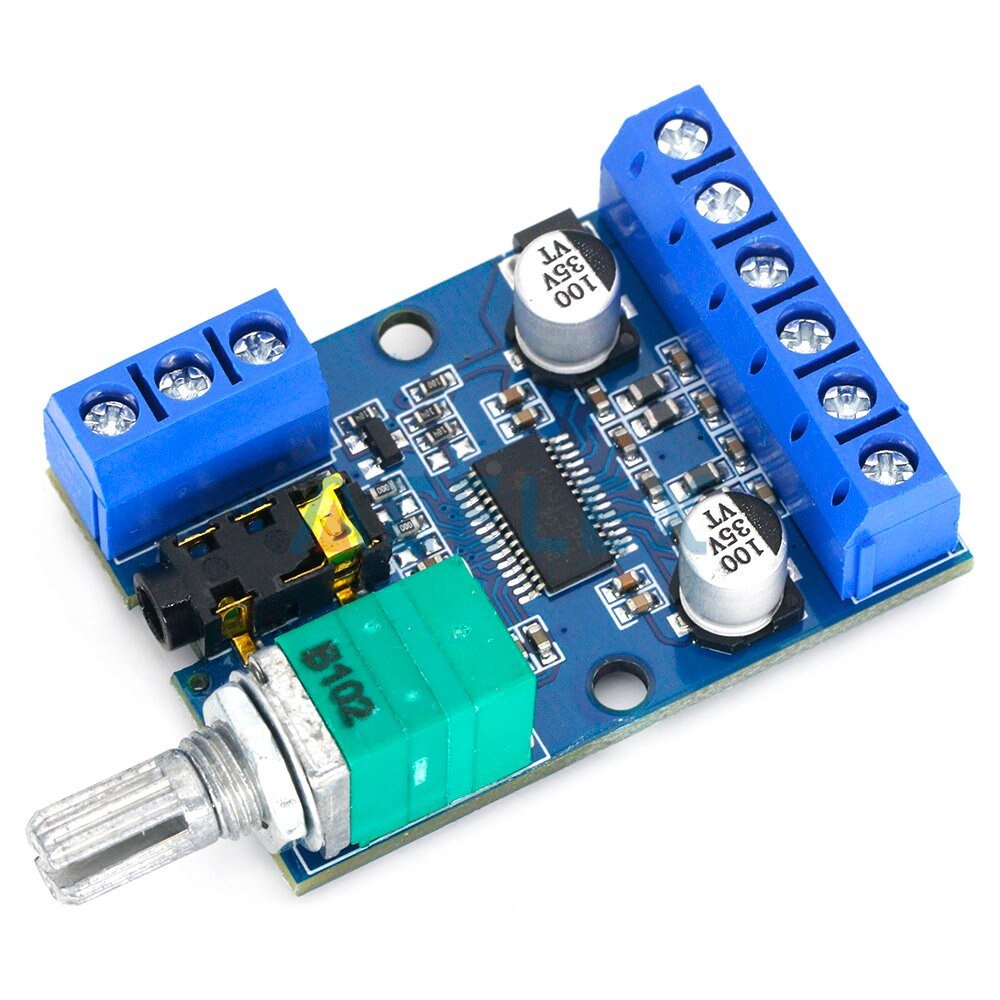

ZRE-CEV DY-AP3015 DC 8-24V 30W * 2 Class D Dual Channel High Power Stereo Digital Amplifier Board with Adjustable Volume Potentiometer

Name: ZRE-CEV DY-AP3015 DC 8-24V 30W * 2 Class D Dual Channel High Power Stereo Digital Amplifier Board with Adjustable Volume Potentiometer
SKU: ZRE-CEV92030
Price: 5.10 USD
Availability: InStock

Original price was: $7.08.Current price is: $5.10.

99822 in stock

Add to wishlist

Compare

Continue Shopping SKU: ZRE-CEV92030 Category: Integrated Circuit Tag: electronic volume

Description
Reviews (0)

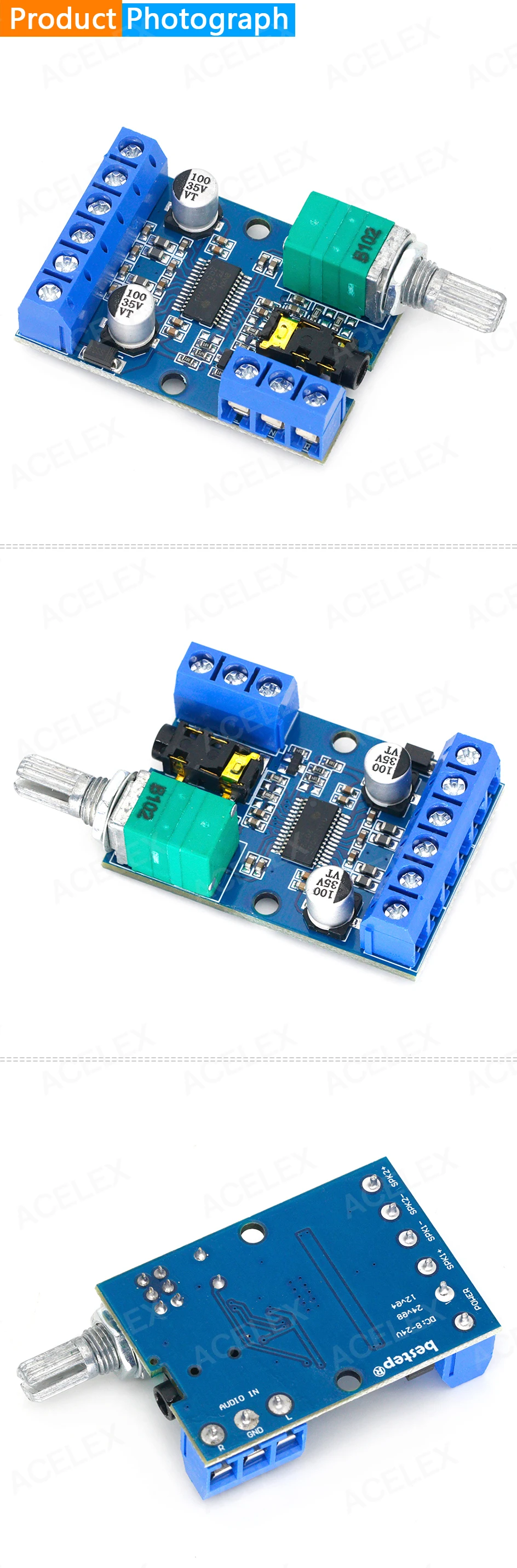

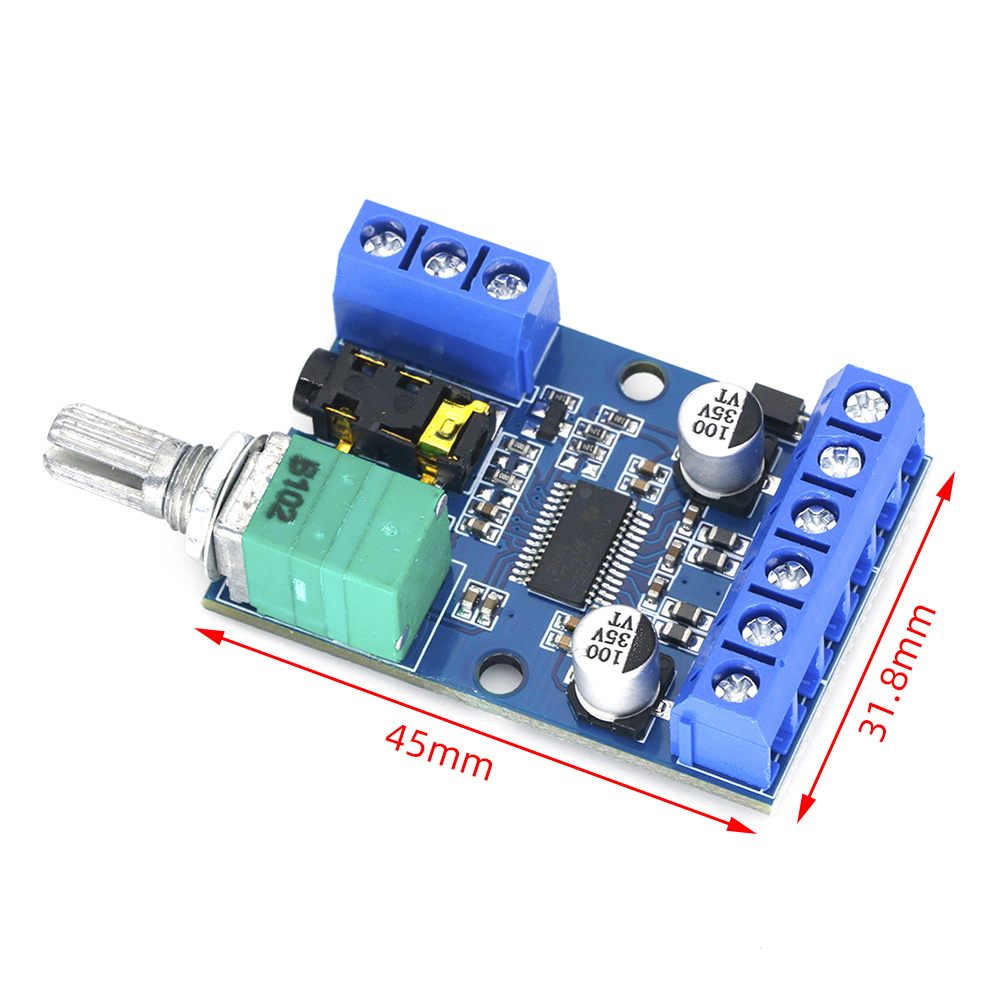

Size: 45*31.8mm
Type: Electronic Module
Style: Electronic Module
Output Type: –
Model Number: DY-AP3015
DIY Supplies: ELECTRICAL
Brand Name: ACELEX
Origin: Mainland China
Certification: NONE
Model Number: DY-AP3015
Operating Temperature: -40- 85
Supply Voltage: DC 8-24V
Dissipation Power: 30W * 2
Package: DIY KIT
Functions: Electronic Module
Range of application: Switch And Sensor For Arduino STM

Product Parameter
product name	30W stereo sound digital power amplifier module
Operating Voltage	DC 8~24V
Operating mode	Class D (PMW modulation)
Number of channels	Stereo (dual channel)
Maximum output power (@1KHz)	~~18W*2@12V 4Ω~~
	18W*2 @12V 4Ω
	10W*2 @12V 8Ω
	15W*2 @16V 8Ω
	20W*2 @20V 8Ω
	30W*2 @24V 8Ω (heat sink required)
Adapted speakers (30W~150W)	4 ohms (8-12V power supply)
Adapted speakers (30W~150W)	8 ohm (8-24V power supply)
Module protection mechanism	Power reverse connection protection
	Short circuit protection
	Self-recovery overheating protection
Note: In order to improve the performance of the module, it is recommended that the power amplifier chip be added with a heating plate in the application scenario where the work exceeds 20W*2.

Precautions for use:

1. The recommended power supply voltage is DC 8~24V. If it exceeds 26V, the chip will be burnt, and noise will occur if it is below 8V.

2. The power supply does not exceed 12V when connected to a 4Ω speaker, and does not exceed 24V when connected to an 8Ω speaker.

3. The power supply current is recommended to be above 2A.

4. The working power of the module exceeds 20W*2, and a heat sink is required.

5. Ensure that the input audio signal is within 0.5V~1.5V.

6. The speaker cable should not be too long, and it is better to keep it within 1 meter.

7. Pay attention to static electricity protection. Before touching the power amplifier board, you need to release the static electricity on your hands to avoid static electricity.

Chip breakdown, digital power amplifier is more sensitive to static electricity.

8. It is recommended to use the speaker with a rated power of 30W and above to avoid the speaker from heating and burning.
