- Package: Yes
- Model Number: DB-DP11226
- Maximum Power Per Channel: NO POWER
- Brand Name: WONDOM
- Origin: Mainland China
- Certification: RoHS
DB-DP11226
Notice: There is only a PC UI for use with JAB2v2 now. We are working hardly to promote the release of PC UI for other products. Since ICP5 supports online firmware update, even if you buy it now, and there is other PC UI released in future, you can update the firmware at home with one click. If you mind this, please do not place an order now.

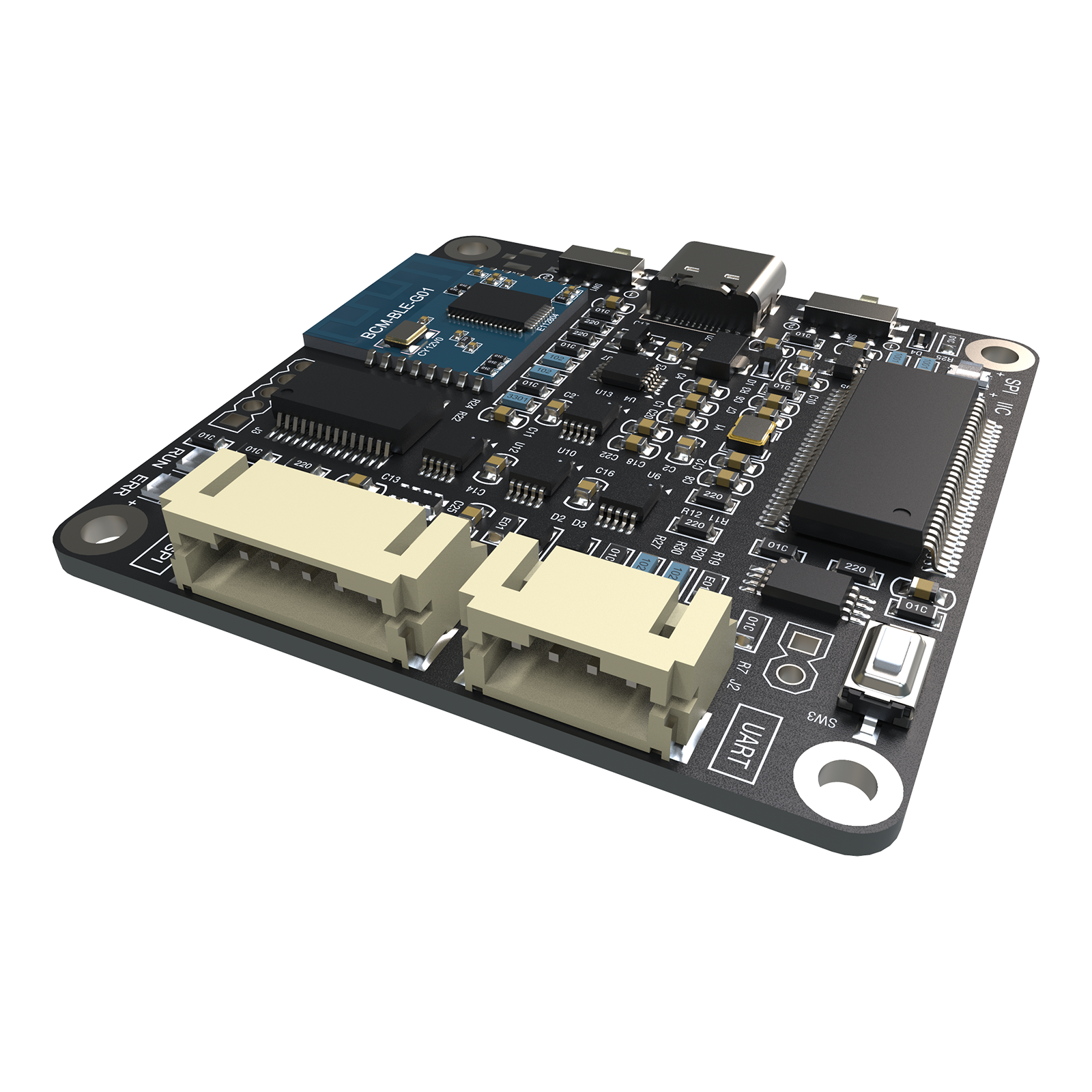

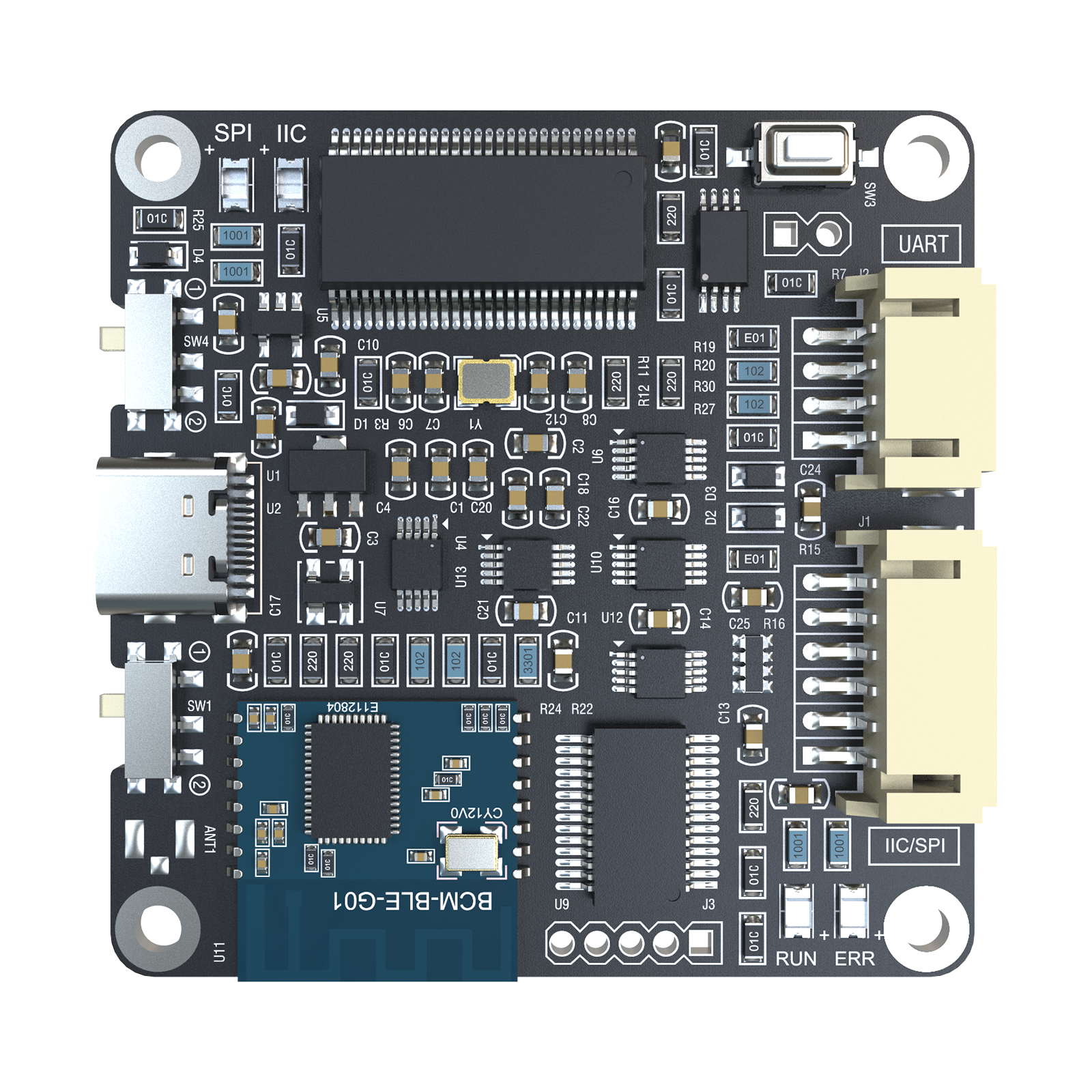

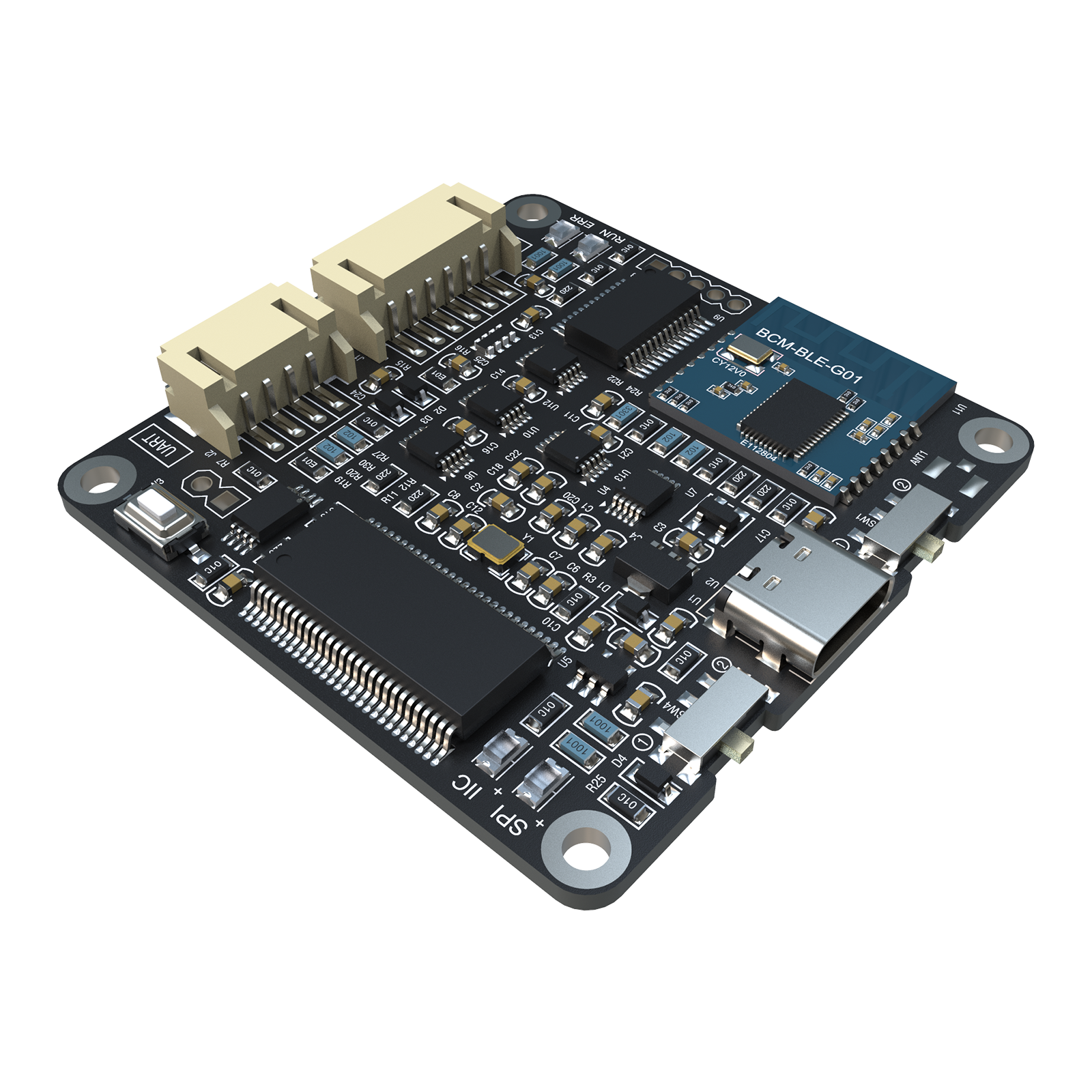

WONDOM ICP5 is a new member of WONDOM ICP series, integrated with USB UART for PC UI Control & Bluetooth BLE for APP Control. It is designed to help customers, even those who are not familiar with SigmaStudio, to get a simple and quick start of remote control and simple programming like EQ for their audio systems.
ICP5 is a multiple purpose programming board for use with WONDOM products integrated with DSP, providing various functions as programming with SigmaStudio, APP control and PC UI control. In addition, ICP5 supports online Firmware Upgrade by yourselves for future use with more products . Owing to the equipped auto-identification system, ICP5 can recognize the target products automatically once they are connected.
Program through SigmaStudio
On-board self-boot EEPROM is included in ICP5 for operating the board independently of the Analog Devices, Inc., SigmaStudioâ„¢ software.
PC UI Control
With the equipped USB UART, customers can get PC UI function of their audio systems after connection with ICP5, where you can adjust the frequency, volume, gain, 3D, EQ and other parameter to get desired audio effects. For now, we only have PC UI for use with JAB2v2. We are working hardly to promote the release of PC UI and they will be released in succession. Since ICP5 supports online firmware update, you can update the firmware for other products at home with one click, which is rather easy and convenient.
Download Link : https://store.sure-electronics.com/images/documents/Miumax_For_JAB2v2_Setup_V1.1.zip
APP Control
ICP5 is integrated with Bluetooth BLE, which supports signal communication, that create possibility for APP control of WONDOM products with DSP. There is no APP available for use with ICP5 now. We will work on the development of APP after all the PC UIs are released.
Online Firmware Update
ICP5 supports online firmware update, which makes it suitable for use with all products. You just need to update the firmware with one click at home if you want to use it with a different product.
Package Includes
1pc DB-DP11226, ICP5
1pc PH-6Pos connection cable
1pc PH-4Pos connection cable
Features:
-
Multiple Purpose Programmer
-
Supporting All WONDOM Products That are Integrated with DSP
-
SigmaStudio Programming
-
UART for PC UI Control
-
Bluetooth for APP Control
-
Online Firmware Upgrade
-
Remote Control of Audio Systems
Specification:Connection
