- Package: Yes
- Maximum Power Per Channel: NO POWER
- Brand Name: SOLUPEAK
- Certification: NONE
- Origin: Mainland China
(It is well soldered/assembled,  without the Oscillator)
This adapter board is used for CD /DAC/Digital Player , upgrade performance
Suitable with multiple types of TCXO / OCXO DIP8 DIP14
PCB Size: 9*5 cm
Power supply range:Â AC 8V – 12V, above 200mA

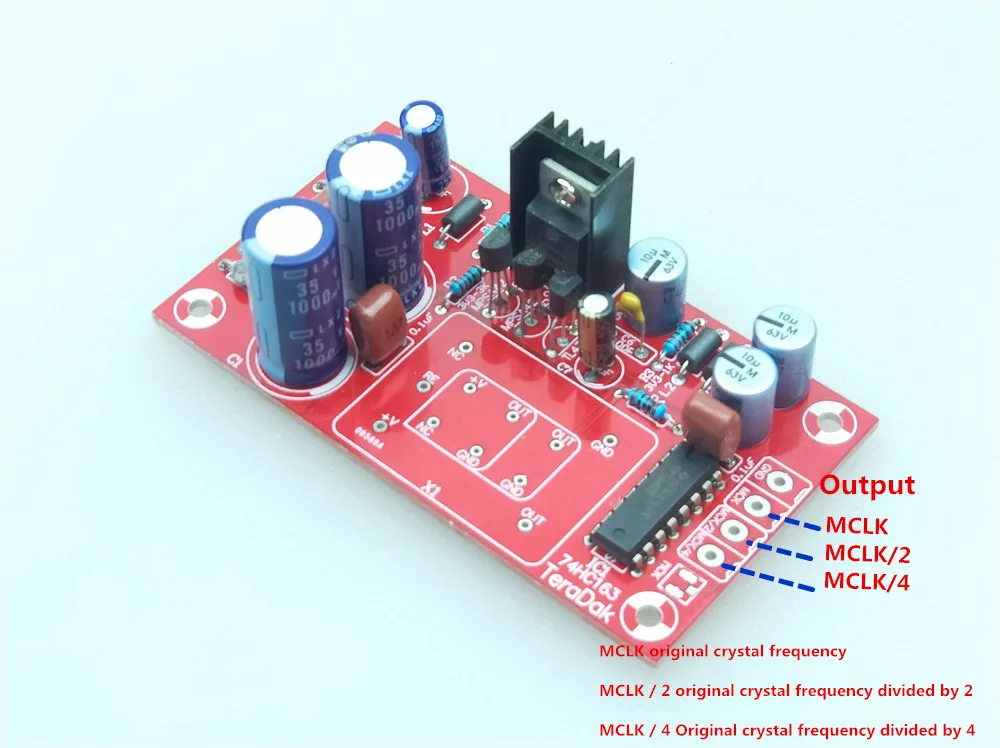

Output MCLK clock frequency:
MCLK ,original crystal frequency
MCLK/2 ,original crystal frequency divided by 2
MCLK /4 ,original crystal frequency divided by 4
Features of this precision clock module:
1. Two stage voltage regulator by TL431 to offer very low noise power to TCXO, which is critical to get frequency stability of TCXO.
2. High speed and low output impedance 74h163n wave buffer for clock signal.
3. It will benefit to get stable and anti noise clock signal.
4. It also supply frequency division （1, 1/2, 1/4 output）, so you can get clock signal simultaneously.
5. If your digital system need both frequency listed above, you can offer two clock from synchronic clock source with minimal jitter.
6. This module should feed 8~12vac 0.5A power input.
