- Model Number: Afr-2000
- Type: Filter
- Brand Name: CNZG
- Origin: Mainland China
- Certification: CE
- Port Size: 1/4” =12.5mm
- usage: Air Regulator
- Used: water oil moisture separator for compressor
Product Description:

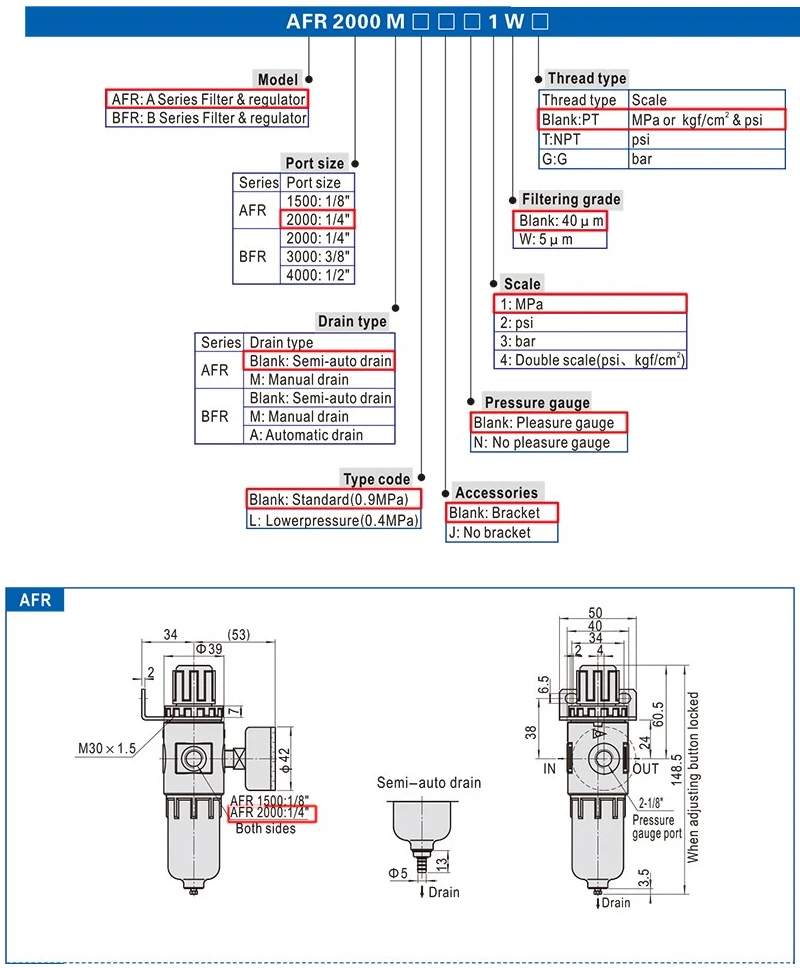

Model: AFR2000 (AFR is the model, 2000 refers to the port size)
Port size: G1 / 4
Filter+PC4mm Fitting: For Pipe4*2.5mm
Filter+PC6mm Fitting: For Pipe6*4mm
Filter+PC8mm Fitting: For Pipe8*5mm
Filter+PC10mm Fitting:For Pipe10*6.5mm
Filter+PC12mm Fitting: For Pipe12*8mm
Filter+PC14mm Fitting:For Pipe14*10mm
Filter+PC16mm Fitting: For Pipe16*12mm
Material: Body (Aluminum Die-casting Products), Yung Cup (polycarbonate)
Fluid: Air
Filtration Precision: 5μm
Operating Pressure range: 0 ~ 1.0MPa (Manual Drain: 0-9.5kgf / cm2, Differential Pressure Discharge: 1.5-9.5kgf / cm2)
Temperature: 5 ~ 60 °
Gauge Caliber: G1 / 8
Treatment Cup Capacity: 15CM3Length: Appox 15cm
Installation And Use :
The Direction Shown By The Arrow On The Valve Body Is Installed, Which Is The Direction Of The Gas Flow Direction.
Package Included:1x Filter regulator
