- Model Number: 8*5,12*8,14*10,10*6.5,16*12,6*4,4*2.5
- Type: Pipe
- Certification: CE
- Origin: Mainland China
Product Parameter:

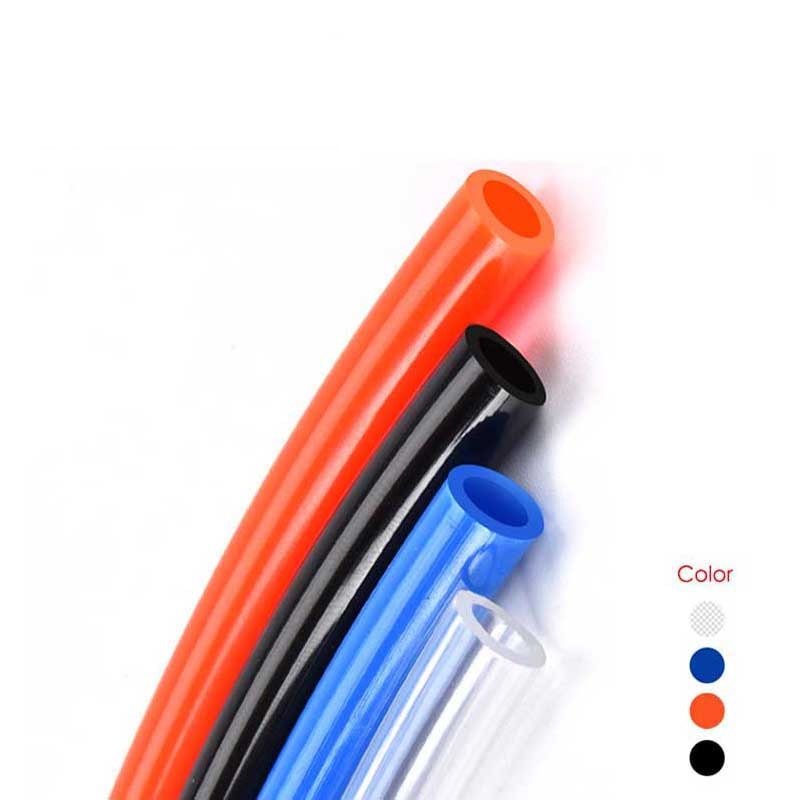

【Product Name】Pu Tube
【Size】4*2.5mm 6*4mm 8*5mm 10*6.5mm 12*8mm 14*10mm 16*12mm
【Material】Polyurethane Tube
【Maximum Pressure】145Psi
【Working Temperature】-4℉~176℉
【Product Feature】high Flexibility Strong Restoring Force,no Deformation With Bending,resistance To Oils With No Crrosive
【Compression-resistance (in Usual Temp)】 0.8mpa(8.5kgf/cm⊃2;).
【Tensile Stress: 550kg/cm⊃2; Roduct Feature】 high Flexibility Strong Restoring Force,no Deformation With Bending.
【Use Range】Pneumatic Pneumatic Tools; Instruments,mechanical Gas Pipeline; Laboratory Automation Equipment; General Industrial Water And Gardening.
Product Feature:
Using Flexible, Has High Elasticity To Restore Memory Effect,folded Without Creases, And The Hand Feels High Toughness. The Surface Of The Hose Is Smooth And Flat,The Color Is Bright.
Pu Air Hose Features: Light-weight; Abrasion And Chemical Resistance;tasteless ; High Mechanical Strength, Minimal Pressure Loss; Convenient For Piping As It Has Better Flexibility Than Nylon Tubes.
Air Compress Hose Working Medium: Compressed Air, Vacuum ( Not Other Gas Or Liquid); Application Of Air Tube: Used For Piping Of Pneumatic Devices.
Exhaust The Pu Tube To The End And Then Let Go, The Pu Tube Will Immediately Return To Its Original Appearance, No Creases, High Elasticity Recovery, Anti-aging.
It Must Be Under The Rated Working Pressure And Temperature, If You Want To Keep This Pu Tube In A Long Term Service Life. As Temperature Rise, Working Pressure Shall Be Reduced Correspondingly, If Go Beyond The Limiting, The Tube Can Rupture.
Attention!
Do Not Use for Fittings for Drinking Water Tubes.
Do Not Use Fittings under Extra External Load (Bend, Twist or Pull), Otherwise It will Cause Damage or Leakage.
It Must Be Under the Rated Working Pressure and Temperature, if You Want to Keep This Pu Tube in a Long Term Service Life. As Temperature Ris
