- Is Smart Device: no
- Usage: Mig Welding
- Weight: 6.5KG
- Dimensions: 420mm*24mm*28mm
- Wire Feeding Speed: 3-18m/min
- Model Number: MIG145
- Brand Name: HZXVOGEN
- Certification: CE
- Origin: Mainland China
- Mig Welder Frequency: 50/60HZ
- Mig Welding Machine OutPut Current: 30-130A
- Function 1: non gas welding machine
- Function 2: semi-automatic without gas
- Function 3: mig spawalniczy
- Function 4: Semi-automatic welding machine
Parameters:
Input voltage: AC~220V±15%
Input current: 25A
Output voltage: 11~24V
No-load voltage: DC50V
Output current: 20-140A
Maximum rated input power: 4940
Maximum output power: 2940W
Maximum input power: 4940W
Recommended circuit breaker: 40A
Load duration: 140A 25% 70A 60%
Welding thickness: 0.4-5mm

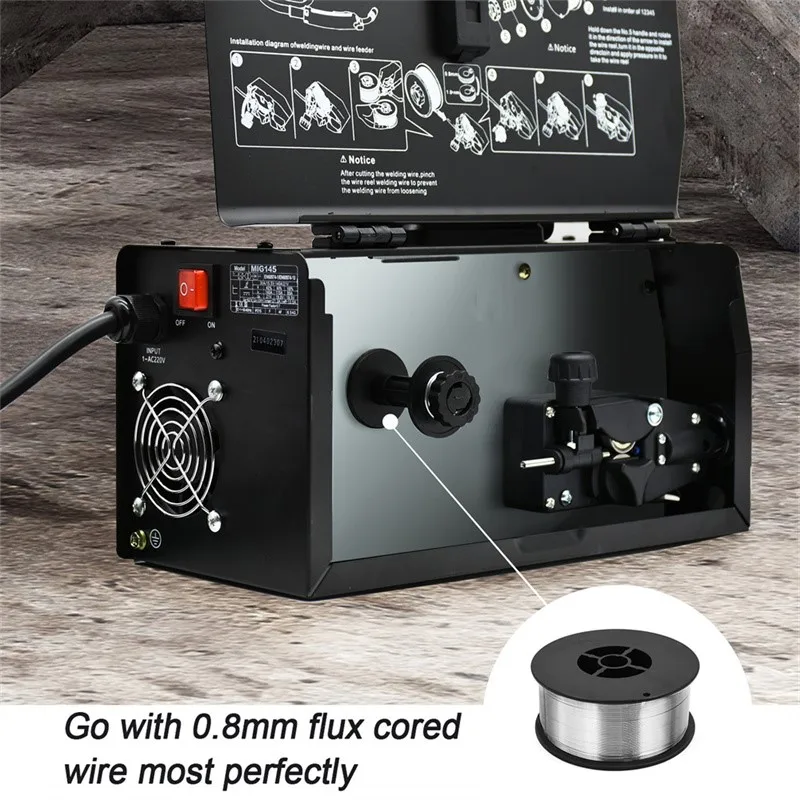

Applicable welding wire diameter: flux core 0.6/0.8mm
Features:
1.Compatible With Flux Core,Spot Welding Quickly.And It Can Atomatically Feed Wire Without Filling When Pressed MIG Torch Button
2.One-time Molding,Don’t Need To Knob Slag,Don’t Need To Polish.Its efficiency is 30% Higher Than Tranditional ARC
3.With Unified Control Function,Only Has Small Splash.It Can Spot Welding Ultra-thin Material,Make The Spot Point More Sleek And Firm
4.It Can Control The Width Of Welding Bead By Adjusting Inductance.
5.With Overheating And Overcurrent Automatic Protection Function Which Effectively Protect The Internal Circuit Of The Welder From Damage
6.Easily Adjust The Current And Voltage To Welding
7.The features of this machine are as follows:
IGBT inverter technology, current mode control, reliable quality, stable performance. Closed loop feedback, constant output, strong anti network voltage fluctuation ability
Packing list:
MIG145 Welding Machine*1
1KG 0.8mm Flux Core*1
240cm Mig Torch *1
130CM Ground clamp*1
Customer Feedback Videos:
On the reverse side you can see that even at minimum the metal heats up well
800F Welding Helmet:
Filter Size |
133mm×114mm×10mm |
Active Viewing Area |
100×93 |
Light Shade |
DIN4 |
Dark Shade |
DIN5~DIN9/ DIN9~DIN13 |
Way to shift Dark State |
Outer , stepless shift |
Switching Time |
≤1/10000S |
Sensitivity Adjustment |
Stepless Control |
Delay Time |
0.1S/0.4S/0.8S |
Power supply |
Replaceable Lithium battery & Solar supply |
Rated Capacity of Battery |
600mAh |
Operating Temperature |
-5℃~+55℃ |
Sensors to Weld Arc |
4 |
Protect Grade against UVB |
DIN16 |
Weld Mode |
Grind & Cut |
Low battery |
YES |
Test |
YES |
LYG-7500 Welding Helmet:
