- Usage: Home DIY
- Power Source: DC
- Weight: 2.1kg
- Rated Voltage: 24V
- Rated Torque: none
- Rated Input Power: 125W
- No-Load Speed: 7000rpm
- Max. Drilling Diameter: 6mm
- Frequency: 50/60Hz
- Application: copper, aluminum, wood,plastic,jade stone drilling
- Model Number: NL02
- Drill Type: Drill Press
- Brand Name: NovelLife
- Origin: Mainland China
- Rated Power: 120W
- Drill Chuck Model: B10
- Drill Bit Clamping Size: 0.6-6mm
- Max. Pressing Stroke: 4cm
- Max. Drilling Depth: 4cm
- Drill Press Machin Size: 15X12X22cm/5.9X4.7X8.7inch(L*W*H)
Note: Each color model picture has clearly show the parts included
Drill Press Assemble Video:

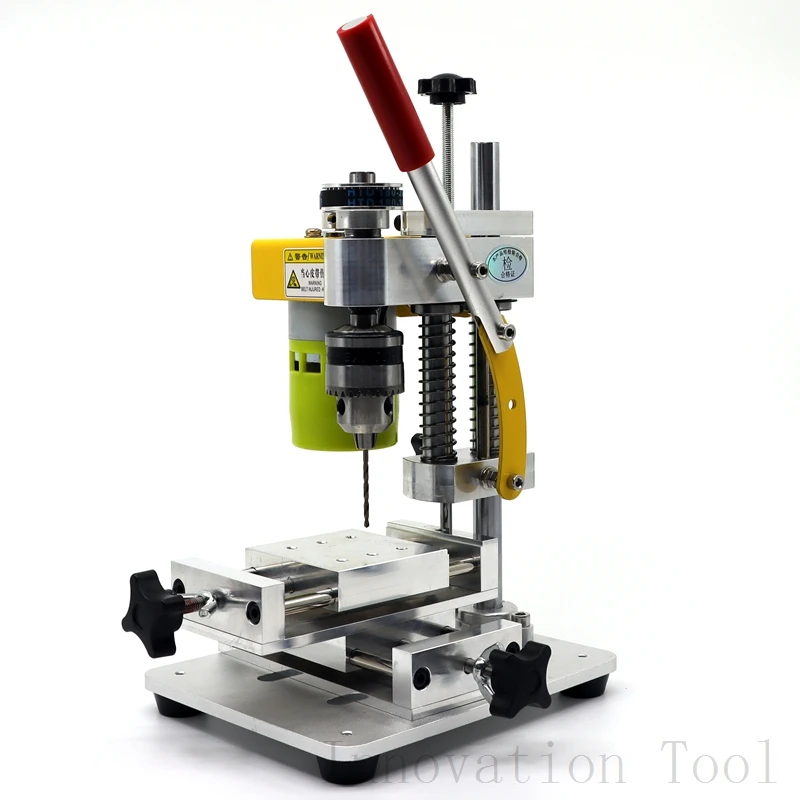

Mini Drill Press Precision CNC Table Milling Machine Portable Benchtop Driller 795 Motor B10 Chuck Metal Wooden DIY Crafts Tool

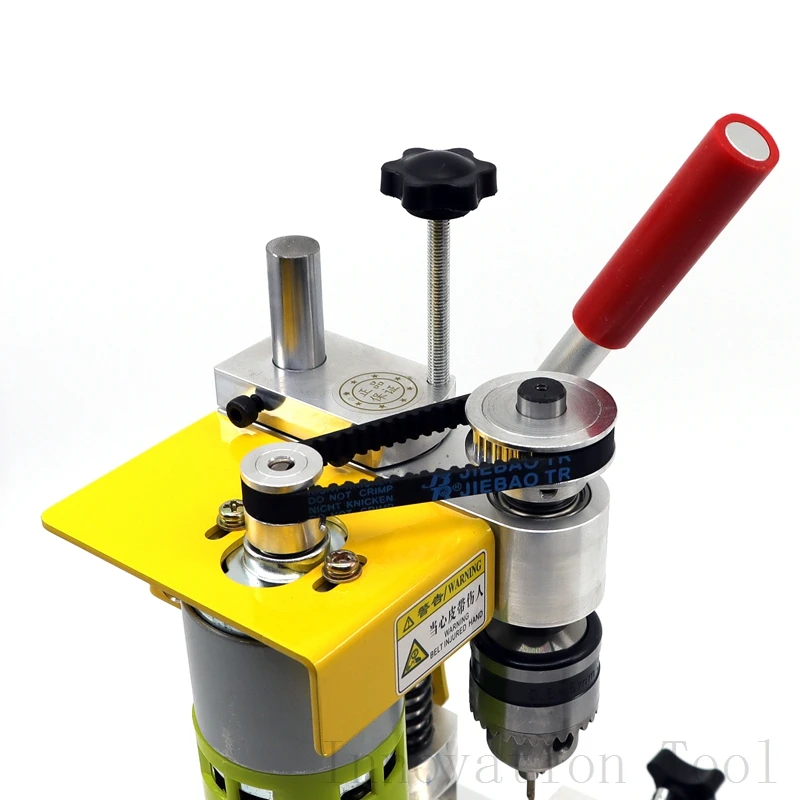

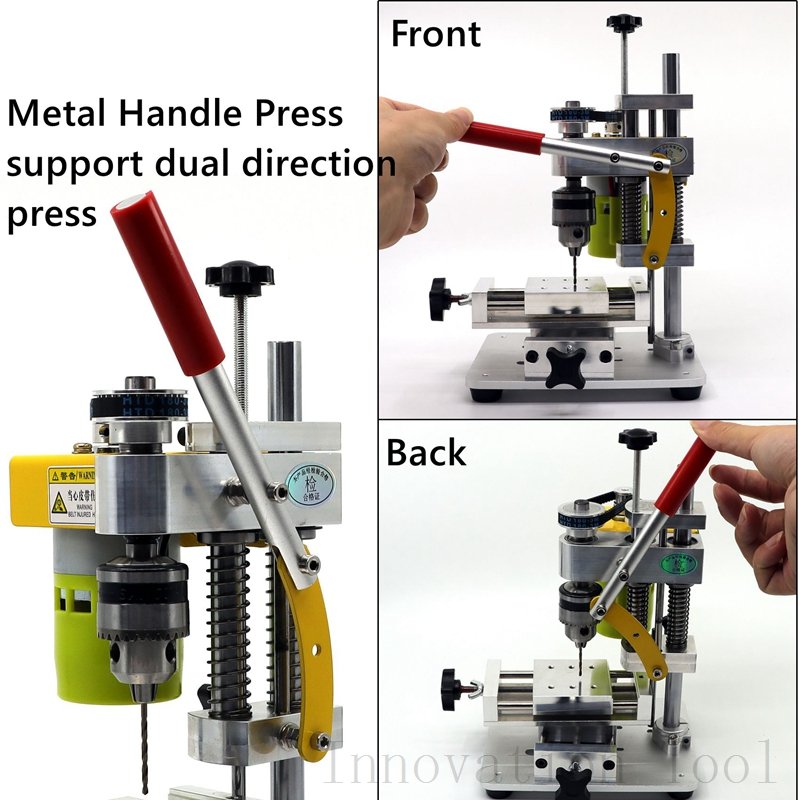

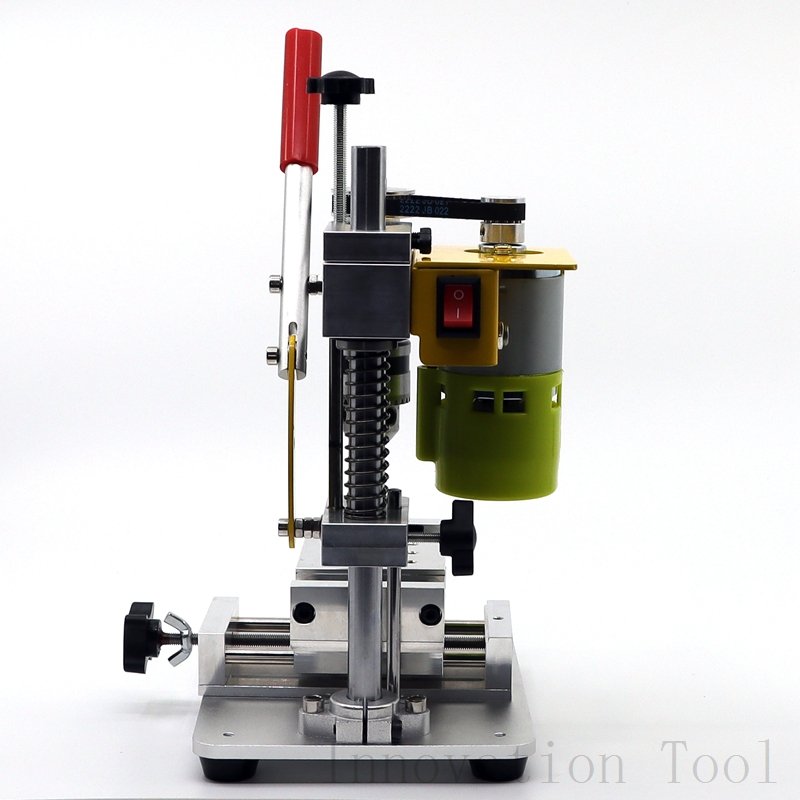

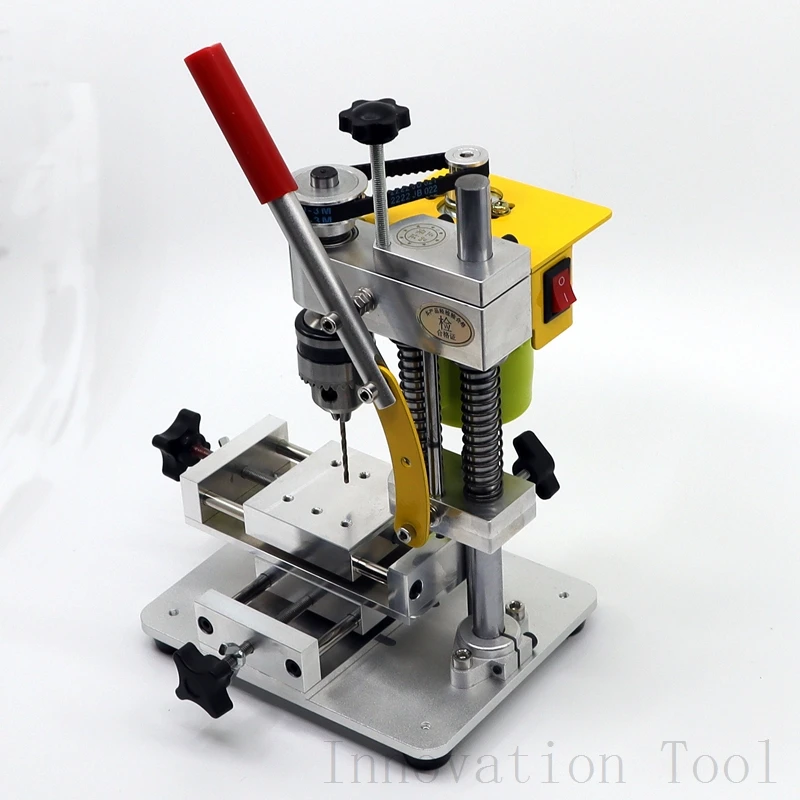

this is a 2 in 1 mini machine support standard drilling works and when installed the 2 axis sliding worktable will also do milling works. It has solid metal structure and 795 motor ensure powerful drilling capacity and B10 drill chuck compatible for 0.8-6mm HSS drill bits. It is equipped with 3 metal axis, 2 liner bearings, dual spring and limit lever ensure precision drilling. compatible size and dual expansion slots on the base enable you to install the expansion parts. 2 axis sliding worktable and one fine-tuning knob enable you to do CNC drilling projects as well.
-Motor:795
-Power Supply:24V 5A
-Speed: 4500-7000RPM
-Drill Chuck Model: B10
-Drill Clamping Diameter:0.6-6mm
-Max. Pressing Stroke:4cm
-Max. Drilling Depth:4cm

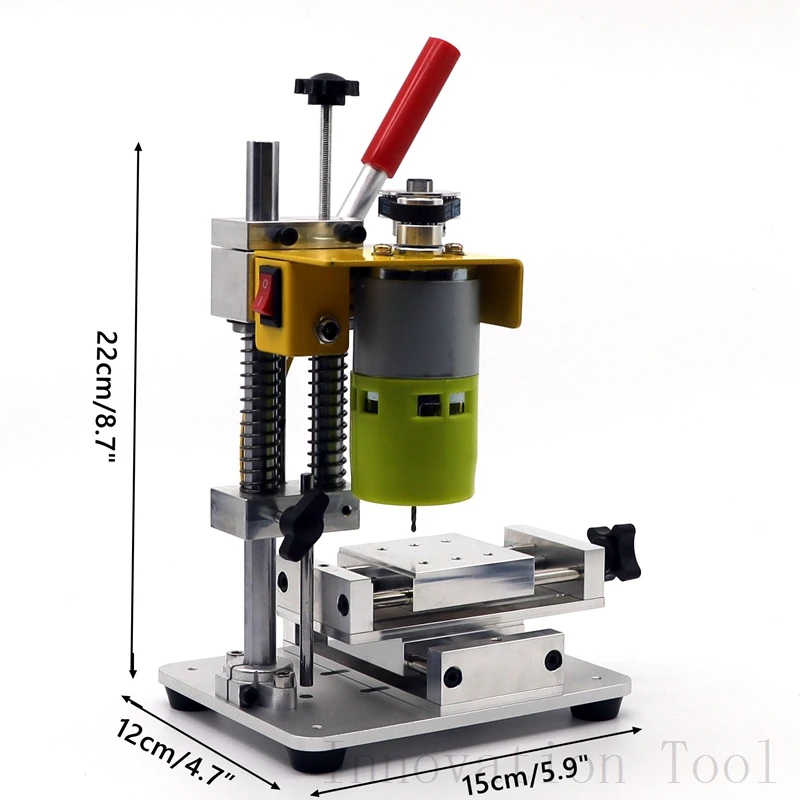

-Size:15X12X22cm/5.9X4.7X8.7inch(L*W*H)

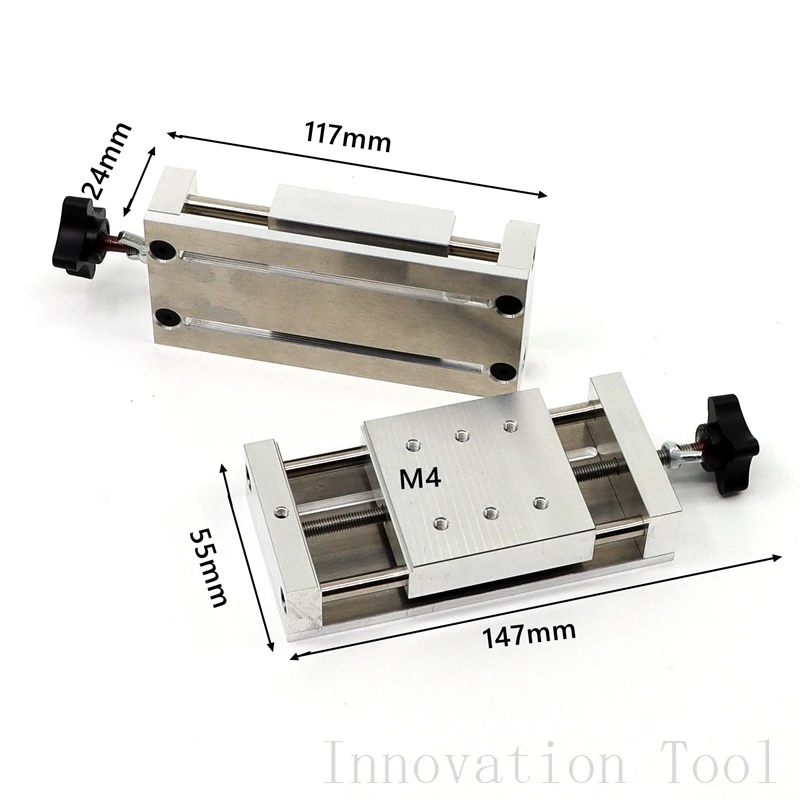

-Sliding Worktable Size:147X55X48mm/5.8X2.2X1.9inch(L*W*H)

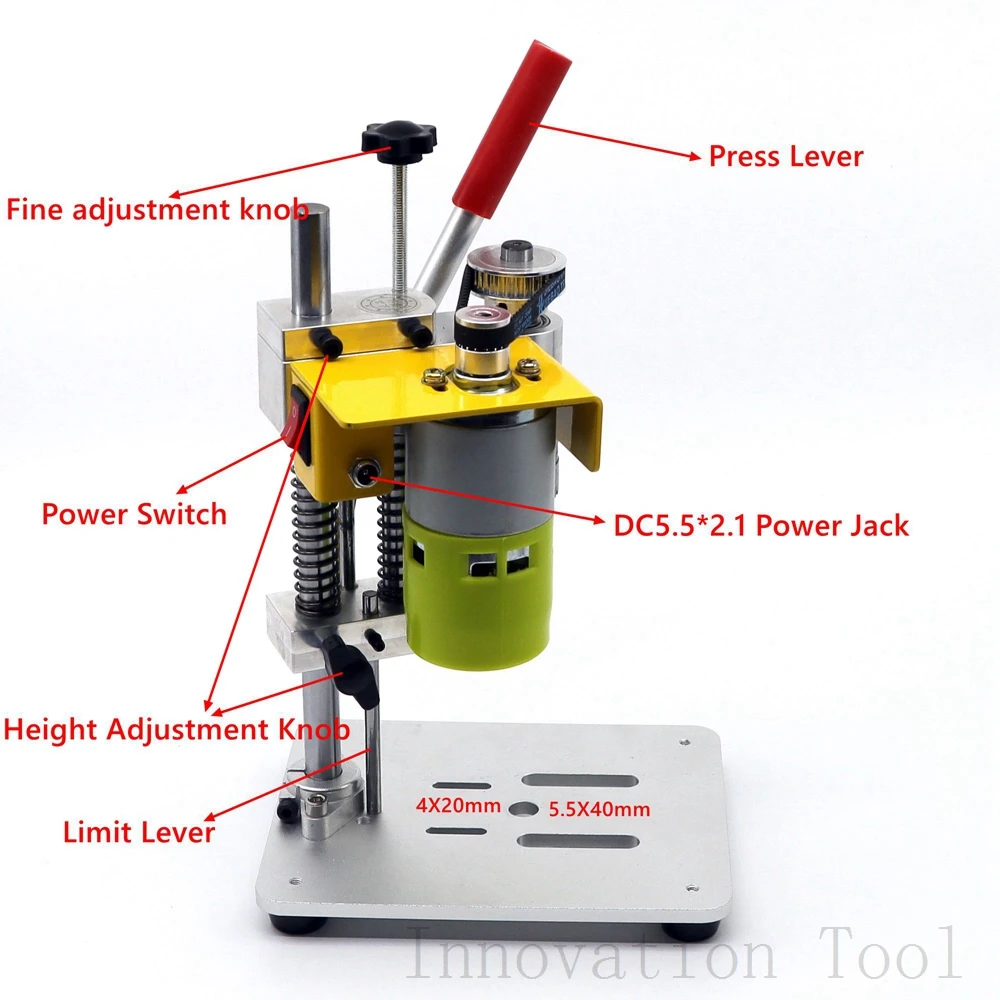

Features:

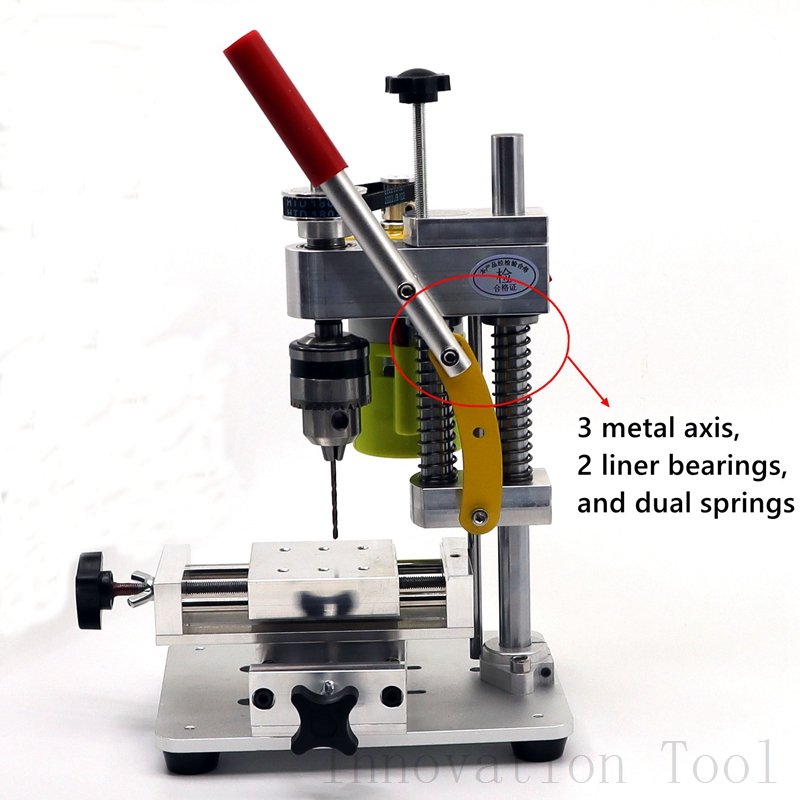

1)solid metal structure with 3 metal axis, 2 liner bearings, dual spring ensure precision drilling

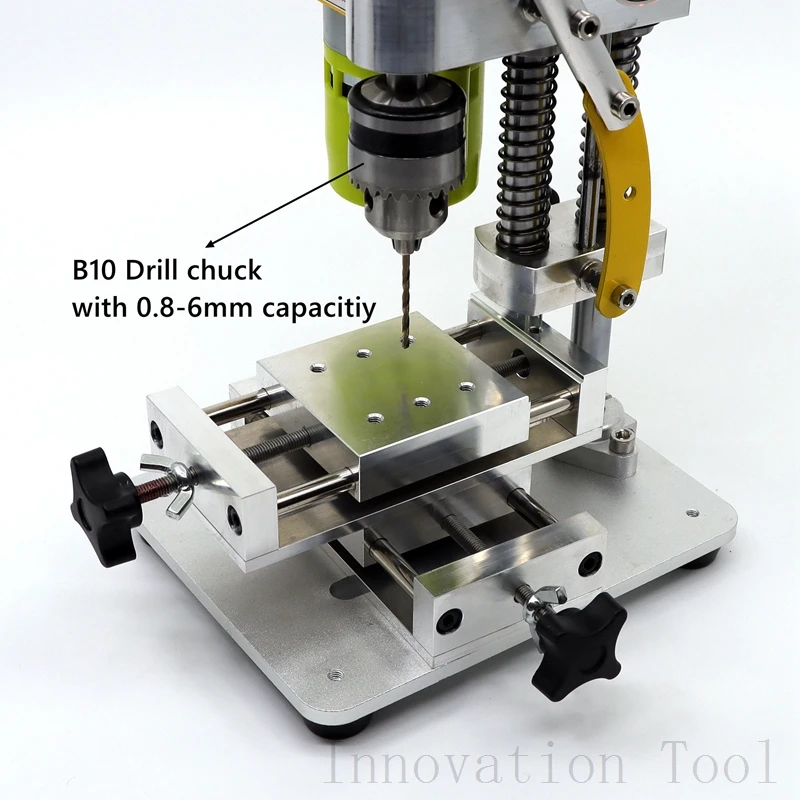

2) 795 motor ensure high drilling power and B10 drill chuck compatible for 0.6-6mm HSS drill bits

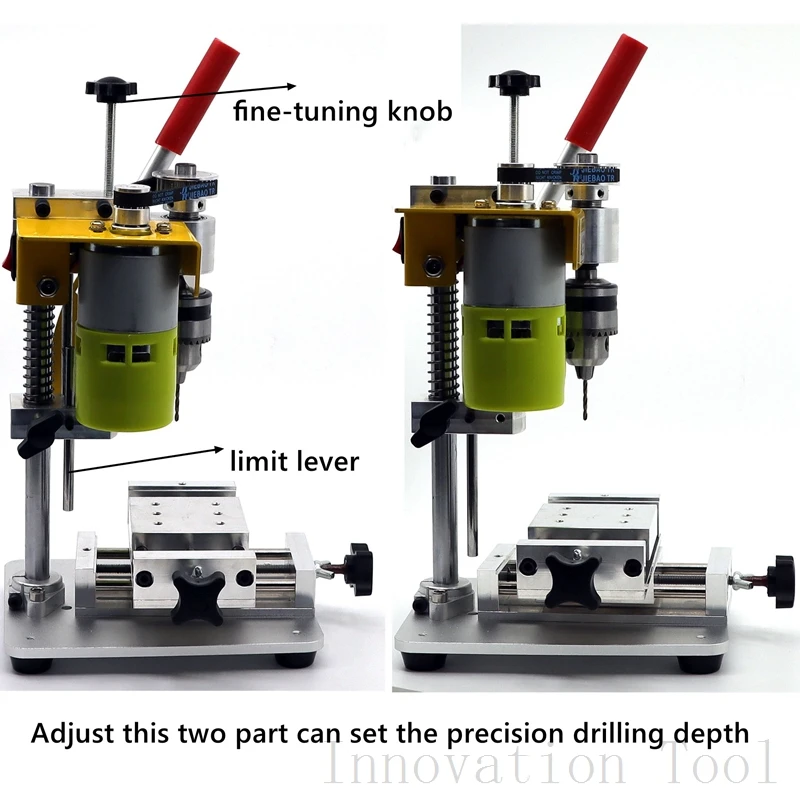

3) Equipped with limit lever enable you to control the drilling depth easily

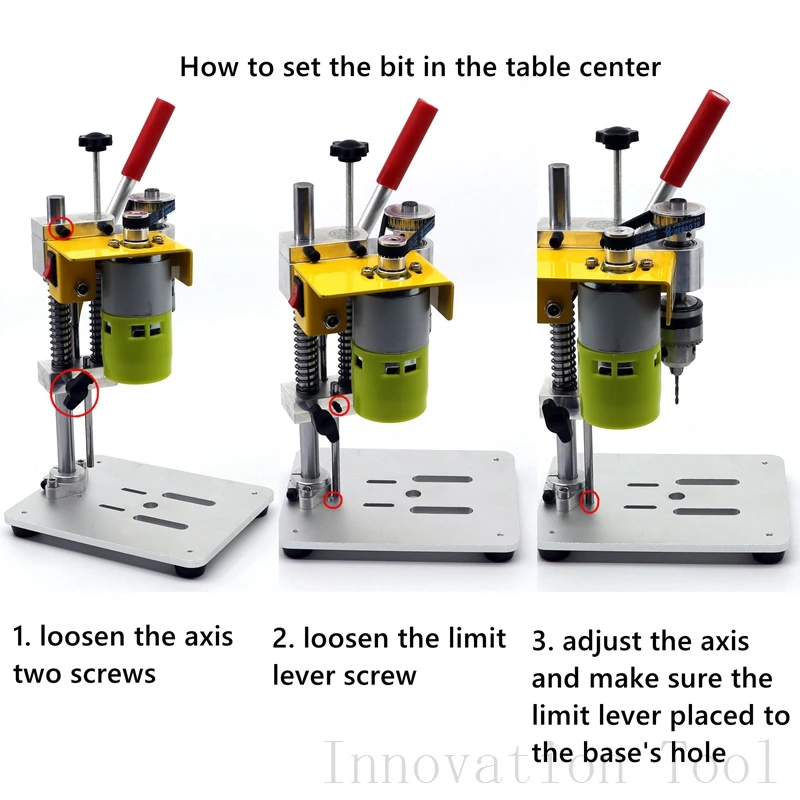

4) Alignment hole on the base enable you to locate the drilling center on the base easily (after adjust the pressing height, just loosen the limit lever, make sure it will drop down to the hole which means the bit is at the base center)

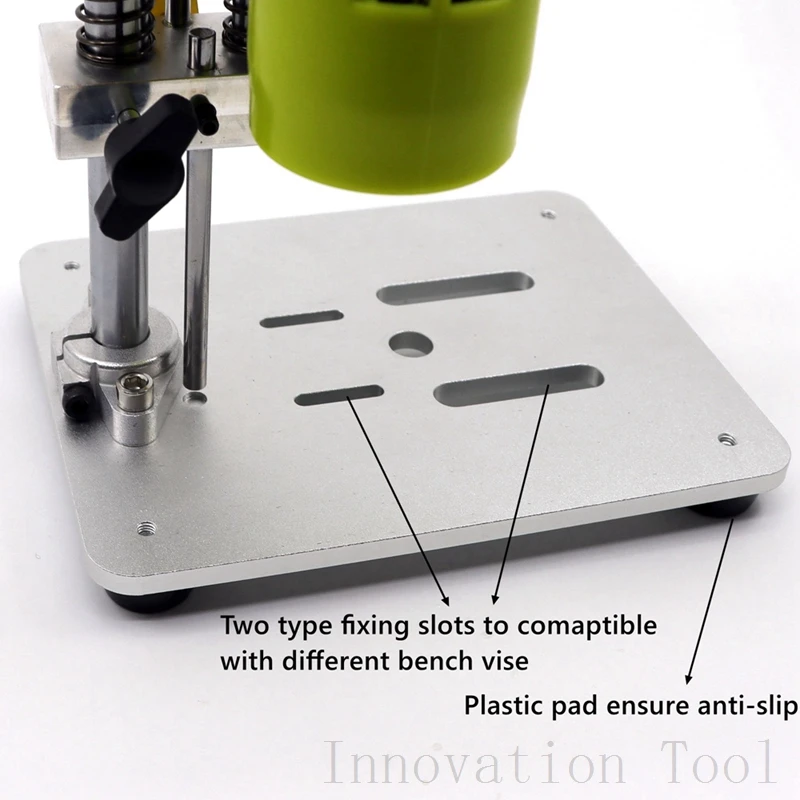

5) Dual expansion slots on the base enable you to install the mini bench vise or CNC sliding table or other add-on parts
6) 2 axis sliding worktable and one fine-tuning knob enable you to do CNC drilling projects
7) Compatible size and about 1.7kg weight, save your space and easy to carry
8) Once installed the comaptible drill bit can widely used in the DIY wooden jade stone and toys model cafts, watch and mobile phone repair
Pacckage Included:
1X Mini Press Machine
1X B10 Drill Chuck
